Sennheiser SKP 500 G4-AW+ | Plug on Transmitter with Phantom Power

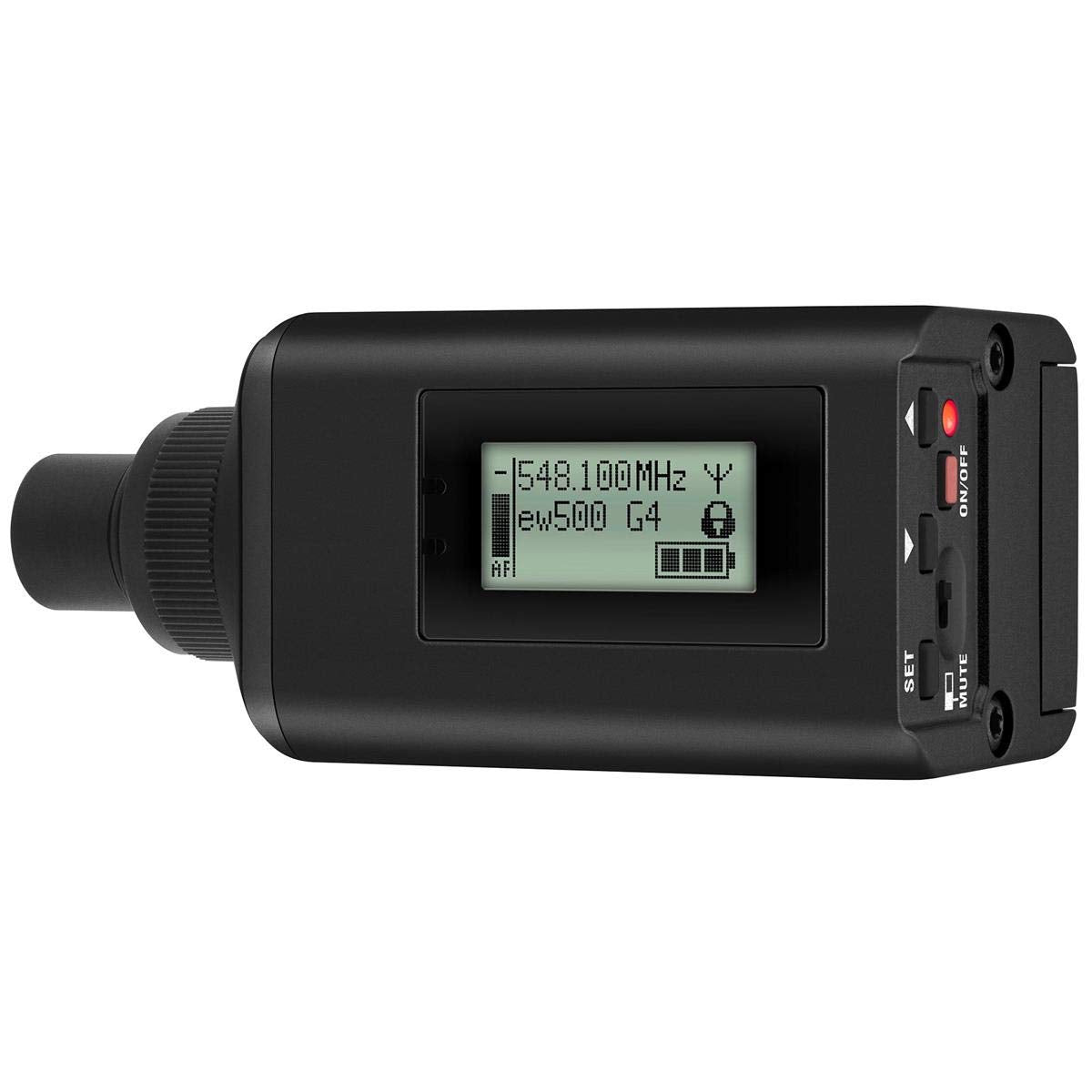

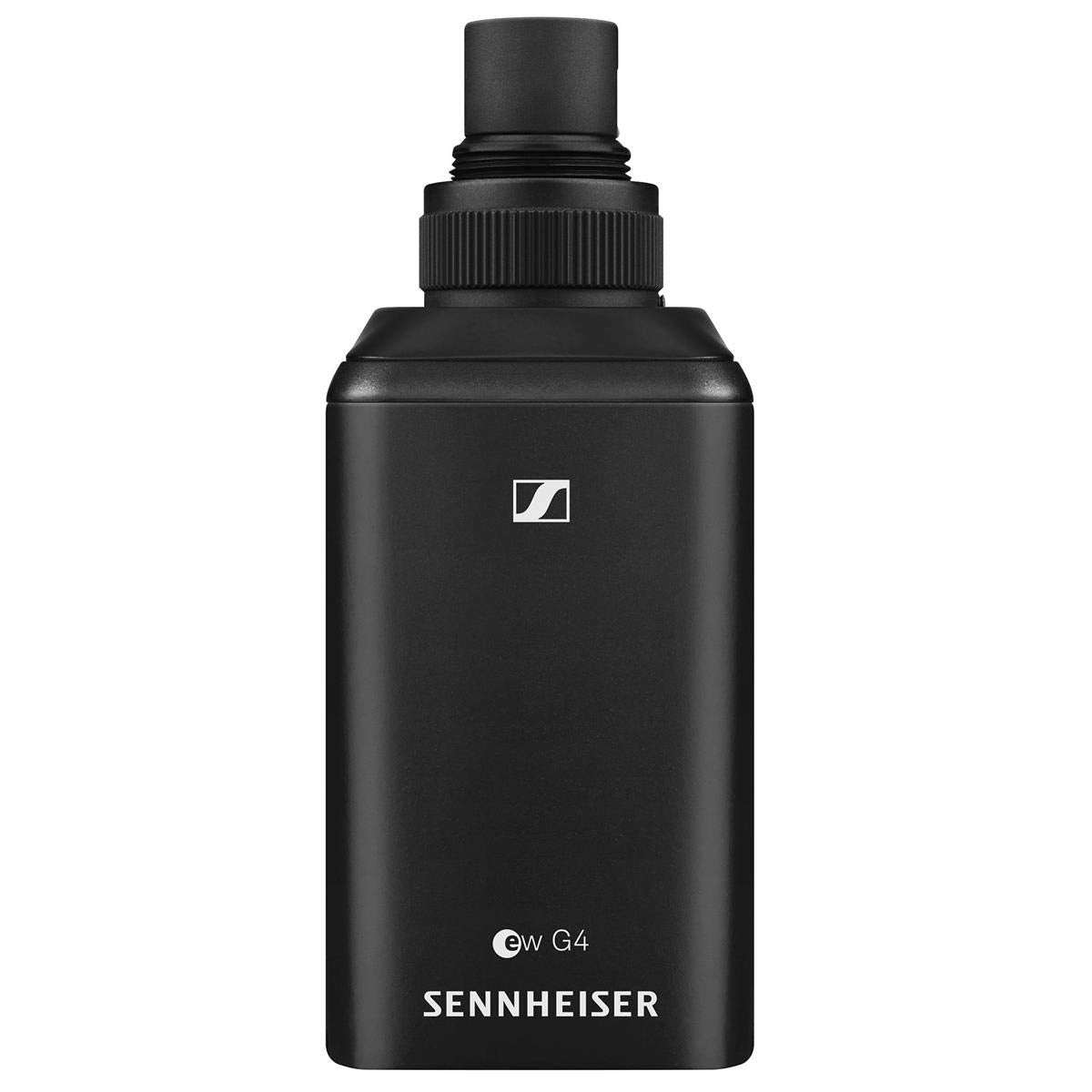

The Sennheiser SKP 500 G4-AW+ is a high-performance plug-on transmitter designed for professional film productions. Engineered with increased bandwidth and transmission power, this versatile transmitter is part of the evolution wireless G4 500P Series systems. It features an elegant black design and comes equipped with phantom power, making it ideal for use with any professional microphone. Whether you're working on a feature film or a documentary, the Sennheiser SKP 500 G4-AW+ ensures consistent and high-quality audio capture.

With its easy-to-use interface, the SKP 500 G4-AW+ allows for quick setup and flexible wireless synchronization between the transmitter and receiver via infrared. The device operates within the AW+ frequency range of 470 - 558 MHz and the GW1 range of 558 - 608 MHz, offering up to 88 MHz bandwidth and supporting up to 32 channels. Its robust build ensures durability and reliability in various shooting environments, from studios to outdoor locations. Additionally, the transmitter can cover a range of up to 100 meters (330 feet) and offers increased RF output power options (10/30/50 mW), ensuring stable and clear signal transmission.

The SKP 500 G4-AW+ is designed for extended use, providing up to 8 hours of operation time on 2 AA batteries or a BA 2015 accupack. Its lightweight construction—approximately 195 g including batteries—makes it a portable and convenient choice for professionals on the move. This advanced transmitter combines Sennheiser's renowned sound quality with optimal performance, making it a valuable addition to any filmmaker's toolkit.

Key Features

• Professional sound and excellent construction quality
• Easy to use and fast setup time
• Flexible wireless synchronization between transmitter and receiver via infrared
• Up to 88 MHz bandwidth, supporting up to 32 channels
• Range: up to 100 meters / 330 feet
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time

Specifications

• Dimensions: Approx. 105 x 43 x 43 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: <= 0.9%
• Weight (including batteries): Approx. 195 g
• Signal-to-noise ratio: >= 120 dBA
• RF output power: Switchable (Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW)
• Switching bandwidth: Up to 88 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Operating time: Typically 8 hours
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: At nominal voltage: typ. 210 mA, with transmitter switched off: <= 25 A
• Input impedance: 68 kΩ, unbalanced
• Max. input voltage: 6 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps
• 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
• 6 frequency banks with up to 32 programmable channels
• AF frequency response: 80 - 18,000 Hz
• Temperature range: -10°C to +55°C
• Frequency stability: <= +/-15 ppm

Package Contents

• SKP 500 G4 pro plug-on transmitter
• 2 AA batteries
• POP 1 pouch with belt clip
• Quick guide
• Safety guide
• Manufacturer declaration sheet
