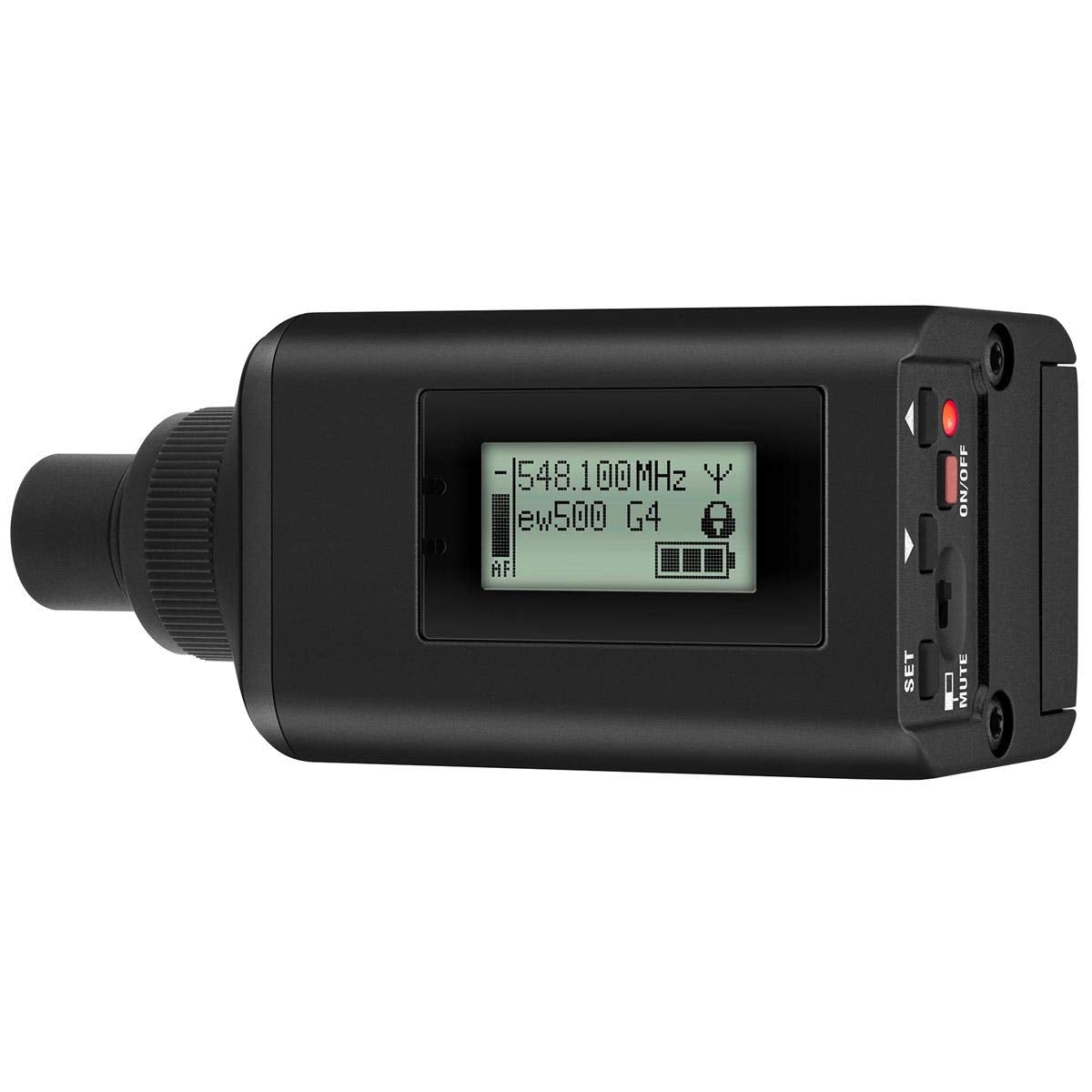

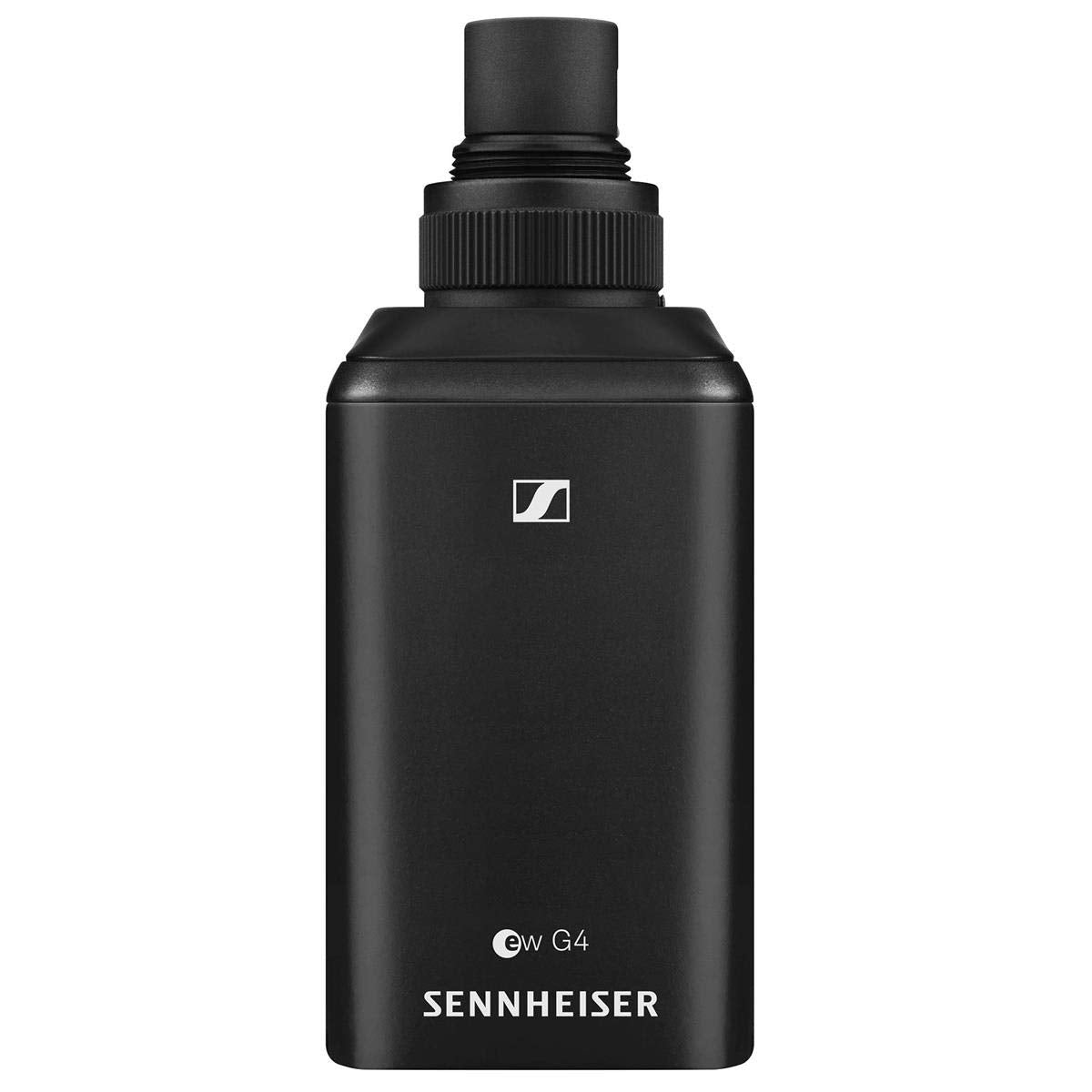

Sennheiser SKP 500 G4-GW1 | Plug on Transmitter with Phantom Power

The Sennheiser SKP 500 G4-GW1 Plug-on Transmitter with Phantom Power is the epitome of professional audio transmission and reliability. Designed for professional film productions and top-tier audio applications, this powerful black plug-on transmitter integrates increased bandwidth and transmission power, providing exceptional sound quality and clarity. Be it capturing on-set dialogues, broadcasting live events, or any high-stakes audio recording, the SKP 500 G4-GW1 stands out by offering seamless wireless synchronization and up to 88 MHz bandwidth. Whether you are a sound engineer, a film producer, or an audiophile, the Sennheiser SKP 500 G4-GW1 ensures dependable performance and robust build quality.

With an easy-to-use interface and rapid setup time, users can quickly get their systems operational with minimal fuss. The transmitter boasts up to 100 meters (330 feet) range and can efficiently operate up to 8 hours. Additionally, the transmission is extremely secure, thanks to its infrared synchronization functionality. Every aspect of this transmitter, from its increased RF output power to its multi-channel performance, is geared towards delivering unparalleled audio transmission quality.

Key Features

• Professional sound and excellent construction quality
• Easy to use and fast setup time
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Up to 88 MHz bandwidth, up to 32 channels
• Range: up to 100 meters / 330 feet
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time

Specifications

• Dimensions: Approx. 105 x 43 x 43 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: ≤ 0.9%
• Weight (incl. batteries): approx. 195 g
• Signal-to-noise ratio: ≥ 120 dBA
• RF output power: switchable - Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching bandwidth: up to 88 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 210 mA, with transmitter switched off: ≤ 25 A
• Input impedance: 68 kΩ, unbalanced
• Max. Input voltage: 6 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory preset channels (no intermodulation), 6 frequency banks with up to 32 programmable channels
• AF frequency response: 80 - 18,000 Hz
• Temperature Range: -10°C to +55°C
• Frequency stability: /-15 ppm

Package Contents

• SKP 500 G4 pro plug-on transmitter
• 2 AA batteries
• POP 1 pouch with belt clip
• Quick guide
• Safety guide
• Manufacturer declaration sheet
