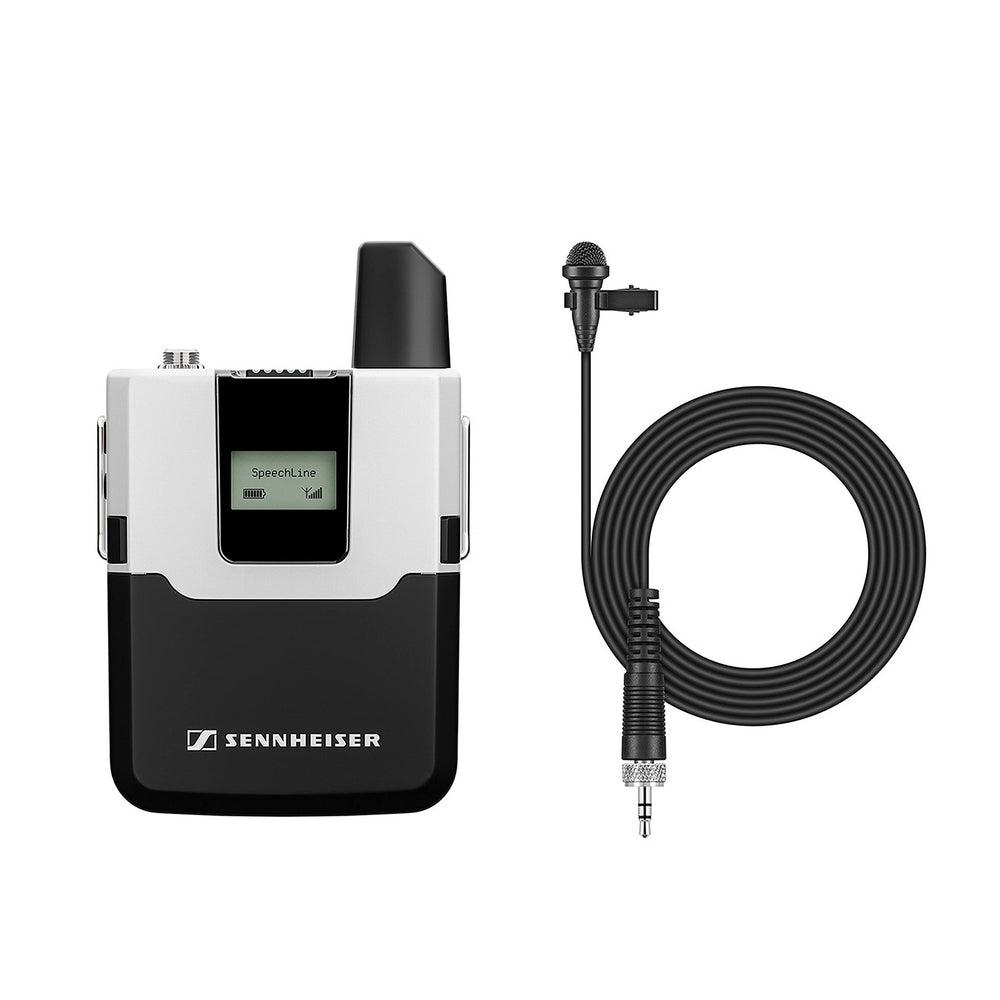

Sennheiser SL Bodypack ME 2 KIT DW-4 SpeechLine Digital Wireless Bodypack Kit with ME 2 Lavalier Microphone

Sennheiser SL Bodypack ME 2 KIT DW-4 SpeechLine Digital Wireless Bodypack Kit with ME 2 Lavalier Microphone

The SL Bodypack KITs DW are the perfect complement to the new SL Multi-Channel Receiver DW.
This KIT contains the compact and robust SL Bodypack DW bodypack transmitter, which is specially designed to transmit the spoken word and is compatible with all Sennheiser neckbands and Lavalier microphones (e.g. SL Headmic 1 or MKE 1). Thanks to the bi-directional communication between transmitter and receiver, no adjustments need to be made at the transmitter and the automatic frequency and interference management ensures easy setup and maximum transmission reliability. The transmitter's LC display shows the name of the radio link, the charge level of the battery pack(s) and the reception quality. With the easily accessible mute switch, the transmitter can be muted if necessary. Does not include battery packs or carrying pouch.

Key Features

• Lockable 3.5 mm jack socket
• Clear and easy focused user interface
• Long operation time (up to 15 hours)
• Advanced power management and Li-Ion rechargeables
• Secure 256-bit AES encryption
• Remote controllable
• High speech intelligibility
• Easy attachment to clothing
• Mini jack for bodypack transmitters from Evolution Wireless series, AVX, SpeechLine Digital Wireless, XS Wireless

Technical Specifications

SL Bodypack DW
Frequency response
20 to 20,000 Hz
RF output power
adaptive, up to 250 mW (country-specific)
Operating time
Accupack: typ. 15 h Batteries: typ. 10 h
Input voltage range
Mic: 2.2 V RMS Line: 3.3 V RMS
Dynamic range
> 120 dB(A)
Input impedance
1 M OHM
Sampling rates
24 bit/48 kHz
Audio input
3,5 mm socket, lockable
THD, total harmonic distortion
typ. 0.1 %
Weight
approx. 88 g
Signal-to-noise ratio
> 90 dB(A)

ME 2
Dimensions
d 6,5 mm (ME 2-US)
d 10,5 mm (ME 2-II)
Frequency response (Microphone)
30.....20000 Hz (ME 2-US)
50..18000 Hz (ME 2-II)
Transducer principle (Microphone)
Permanent polarized condenser
Connection cable
mini-jack
Cable length
1,6 m
Pick-up pattern
omni-directional
Sensitivity in free field, no load (1kHz)
20 mV/Pa
Equivalent noise level
36 dB
Maximum sound pressure level (passive)
130 dB
Operating voltage (stand-alone)
7,5 V

What's in the box?
SL Bodypack DW
ME 2
