Sennheiser TCC M-S-W Housing Kit for TeamConnect Ceiling Medium, White

The Sennheiser TCC M-S-W Housing Kit is an exceptional choice for those looking to surface mount or suspend the TeamConnect Ceiling Medium in a sleek, white finish. Designed for superior audio output and network control, this housing kit ensures optimal performance and seamless integration with your existing setup. Whether you're upgrading a conference room, outfitting a new office space, or enhancing an existing audio system, the Sennheiser TCC M-S-W Housing Kit offers a comprehensive solution with unmatched audio clarity and reliability.

Engineered with precision, this housing kit features a pre-polarized condenser microphone, capable of capturing crystal-clear audio across a broad frequency range of 100 Hz to 16,000 Hz. Its sophisticated design includes multiple mounting options, ensuring that it can be effortlessly installed to meet your specific needs. The Sennheiser TCC M-S-W Housing Kit is not just about functionality; its sleek, white housing adds a modern touch to any environment, making it a perfect blend of form and function.

For professionals who demand the highest standards in audio technology, this kit also includes advanced features such as a beam pattern pickup and a high signal-to-noise ratio of 79 dB(A). With its robust construction and compliance with safety standards like IEC/EN 62368-1, you can trust that this housing kit will deliver exceptional performance while being secure and reliable.

Key Features

• Pre-polarized condenser microphone
• Wide frequency response of 100 Hz to 16,000 Hz
• High signal-to-noise ratio of 79 dB(A)
• Beam pattern pickup for precise audio capture
• Compliance with IEC/EN 62368-1 safety standards
• Sleek white housing for modern aesthetics
• Multiple mounting options: surface or suspension
• Easy integration with existing audio systems

Specifications

• Dimensions: 477 x 46 mm (16 x 1.8 inches)
• Weight: Max. 4.9 kg (10.8 lbs)
• Audio Output: 1 x 3-pin terminal, 1x Digital Dante Network Audio (RJ-45)
• Network/Control: 1 x RJ-45 Ethernet Port for PoE power supply and data/control communication
• Supply Voltage: PoE IEEE 802.3af Class 3 / IEEE 802.3at Typ 2 / Class 4 (when cascaded)
• Power Consumption: Approx. 8 W
• Transducer Principle: Pre-polarized condenser microphone
• AF Frequency Response: 100 Hz to 16,000 Hz
• Sensitivity: 0 dBV/Pa (890 mV/Pa)
• Signal-to-Noise Ratio: 79 dB(A)
• Equivalent Noise Level: 15 dB(A)
• Number of KE 10-237 Microphone Capsules: 15
• Pick-Up Pattern: Beam pattern
• Max. Sound Pressure Level: 98 dB SPL
• Dynamic Range: 83 dB(A)
• Temperature Range: Operation: 0 to 40°C, Storage: -10 to 60°C
• Relative Air Humidity: 20 to 95%, non-condensing

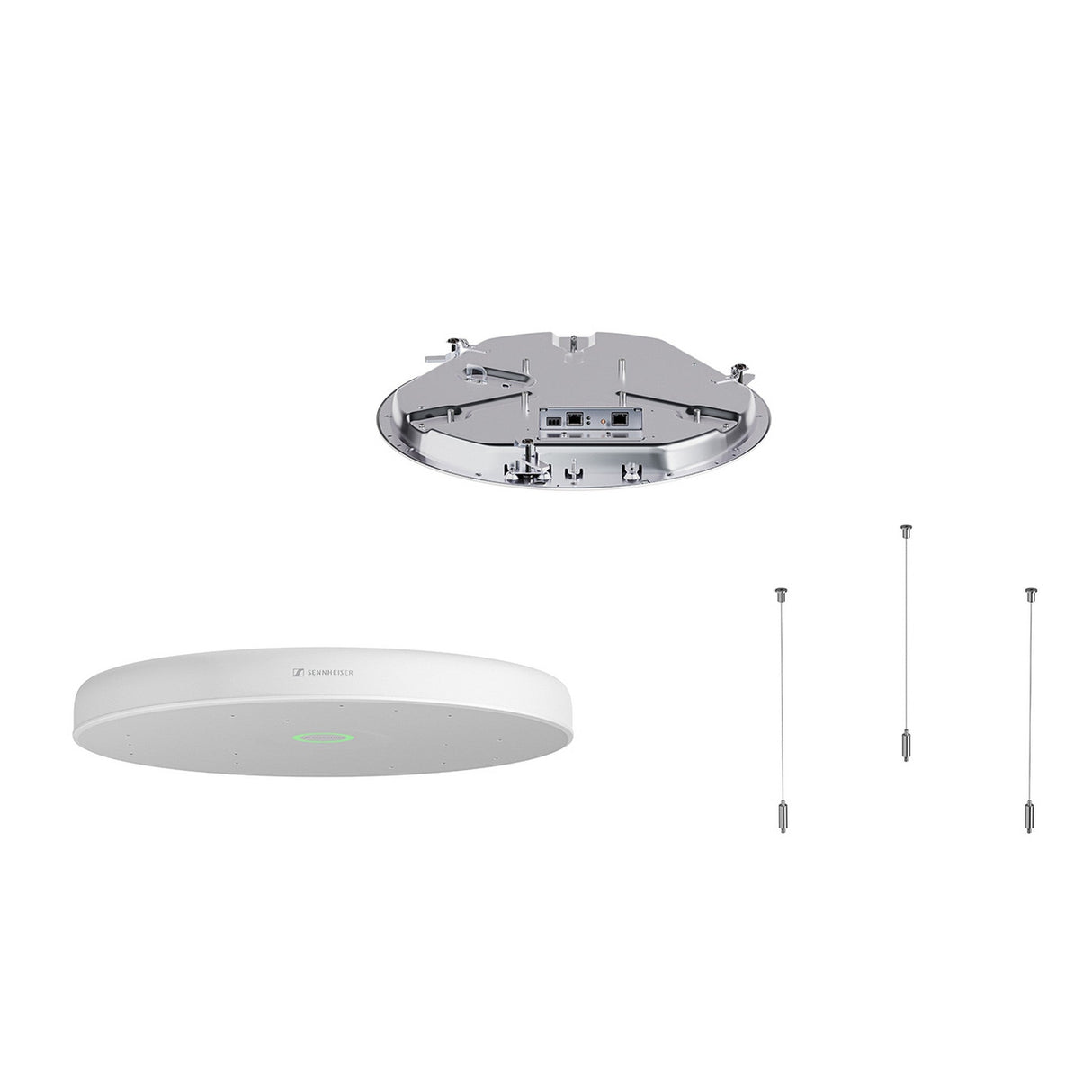

Package Contents

• TCC M microphone
• Front plate white
• Design housing white
• Chicago plenum connection box cover plate
• Drilling templates
• Phoenix connector
• Safety rope
• Suspension kit
