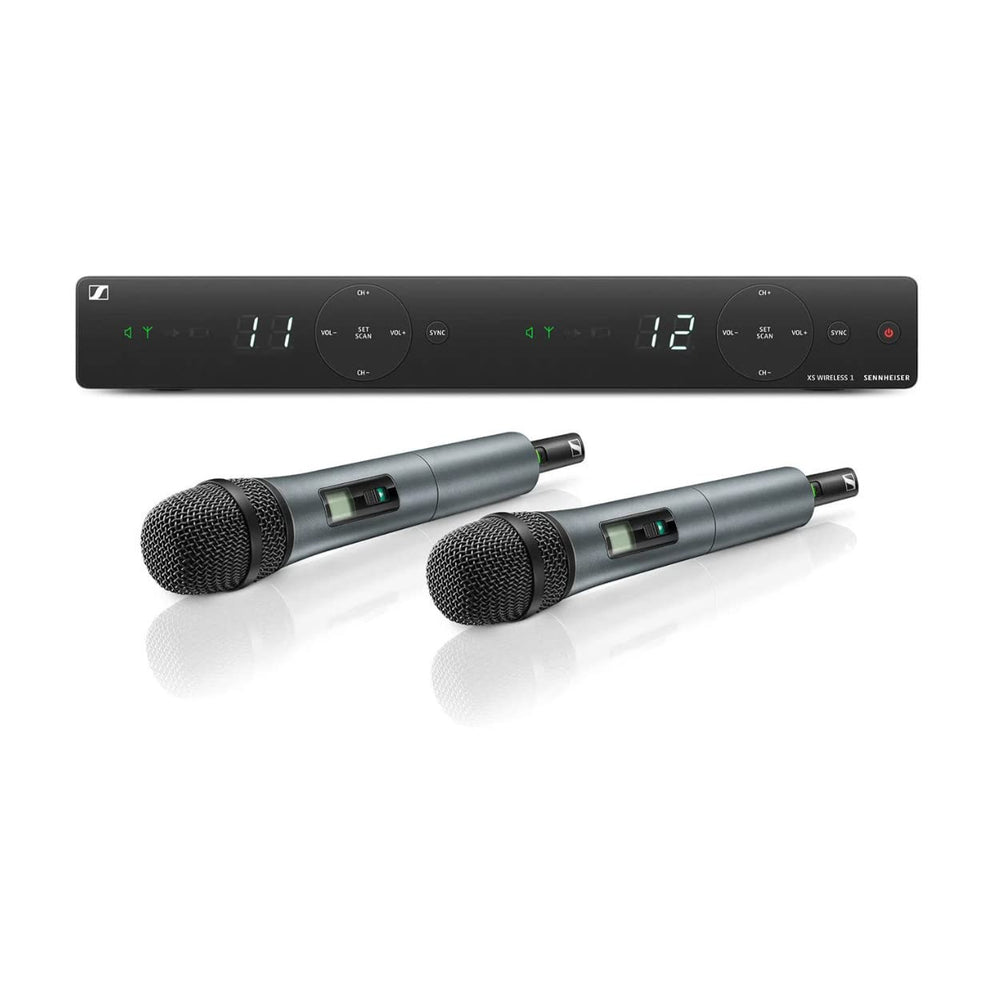

Sennheiser XSW 1-825 DUAL-A | Wireless Dual Handheld Microphone System, A

The Sennheiser XSW 1-825 DUAL-A Wireless Dual Handheld Microphone System is designed to elevate your vocal performances and presentations. This reliable and easy-to-use wireless system operates within a stable UHF band, offering seamless audio transmission with up to 10 compatible channels. Perfect for live sound environments, this system features Sennheiser's renowned e825 dynamic cardioid microphone capsules, ensuring excellent sound quality and clarity. Whether you're a singer or a presenter, the XS WIRELESS 1 VOCAL SET provides an intuitive setup process with automatic frequency management and synchronization via its remote channel, making it a hassle-free solution for your audio needs.

This all-in-one wireless system includes two handheld transmitters equipped with the Sennheiser e825 microphone capsules, an intuitive stationary receiver, and integrated antennas for optimal performance. The selection of UHF frequencies within a broad bandwidth guarantees minimal interference and impeccable sound reproduction every time you use it. With a rugged ABS housing and a design built for durability, the Sennheiser XSW 1-825 DUAL-A is the ultimate microphone system for professionals looking to amplify their voice without the complications of a wired setup.

Key Features

• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
• Antenna-switching diversity reception
• Integrated antennas for streamlined setup
• Automatic frequency management and synchronization via remote channel
• Selectable UHF frequencies within a large bandwidth
• Supports up to 10 compatible channels simultaneously

Specifications

• Dimensions: approx. 200 x 42 x 127 mm
• THD, total harmonic distortion: <= 0.9%
• Pick-up pattern: cardioid
• Signal-to-noise ratio: >= 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Operating time: approx. 10 hrs
• Modulation: wideband FM
• Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing: rugged ABS housing
• Dynamic range: dynamic
• Frequency: 8 frequency banks, each with up to 10 factory-preset channels
• Frequency range: A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity 1.5 mV / Pa
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range: 45 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range operation: 0°C to +40°C, storage: -20°C to +70°C
• Receiver Principle: double superheterodyne
• Diversity principle: Antenna switching diversity via internal antennas
• Receiver weight: approx. 340g
• Power supply Receiver: 12 V DC nom. / 300 mA
• AF frequency response Receiver: 50 to 16,000 Hz (-3 dB)
• Microphone weight: approx. 245g
• Power supply Microphone: 2 AA size batteries, 1.5 V
• AF frequency response SKM 825: 80-14,000 Hz
• SKM 835: 80-16,000 Hz

Package Contents

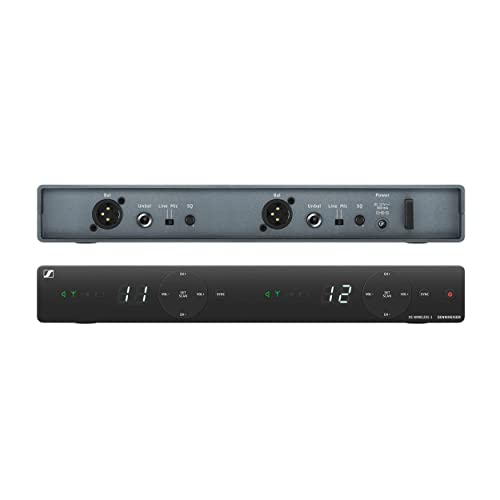

• 1 receiver EM-XSW 1 Dual Channel
• 2 handheld transmitters SKM 825-XSW
• 2 microphone clamps MZQ 1
• 1 power supply NT 12-5 CW
• 2 AA batteries
