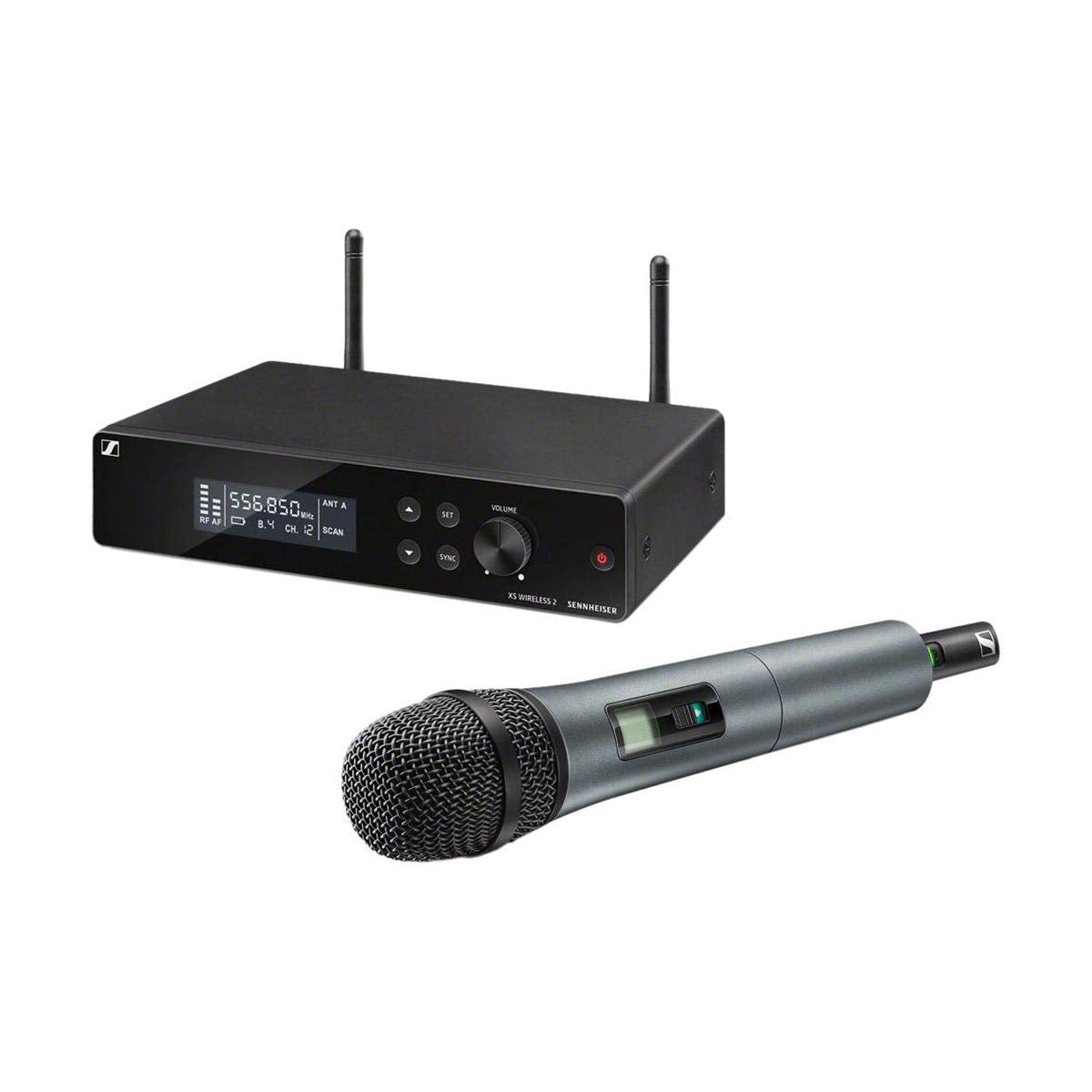

Sennheiser XSW 2-865-A | Handheld Vocal Wireless Microphone System

The Sennheiser XSW 2-865-A Handheld Vocal Wireless Microphone System is designed for singers and presenters who desire the freedom of wireless performance with superior sound quality. This wireless system is equipped with Sennheiser’s evolution microphone capsule e865, known for its excellent live sound, ensuring every detail of your voice is captured. The system is enhanced with a True Diversity receiver housed in metal, which provides durability and reliable signal reception, even in challenging live stage environments. With an intuitive LCD display, the XS WIRELESS 2 system offers greater flexibility and up to 12 compatible channels within a stable UHF band.

Setting up the Sennheiser XSW 2-865-A is straightforward thanks to its automatic frequency management and synchronization via remote channel. Its external antennas further improve signal stability, while the inclusion of a rackmount kit allows for seamless integration into your existing audio setup. Whether you are performing on stage or presenting, this all-in-one wireless system delivers the performance you need to shine.

Key Features

• Renowned evolution microphone capsules for high-quality live sound
• True diversity receiver with durable metal housing
• External antennas for improved signal stability
• Automatic frequency management and synchronization via remote channel
• Fully tunable across a wide range of UHF frequencies
• Includes rackmount kit for easy integration

Specifications

• Receiver Dimensions: Approx. 200 x 42 x 127 mm
• Receiver Weight: Approx. 680g
• Power Supply: 12 V DC nom. / 300 mA
• Housing: Metal, microphone: robust ABS
• AF Frequency Response: 50 to 16,000 Hz (-3 dB)
• Microphone Dimensions: Approx. 260 x 50 mm
• Microphone Weight: Approx. 245g
• Operating Time: Approx. 10 hrs
• Power Supply: 2 AA size batteries, 1.5 V
• AF Frequency Response: 80-16,000 Hz
• Microphone Type: Condenser
• Frequency Response: 50 to 16,000 Hz (-3 dB)
• Total Harmonic Distortion: <= 0.9%
• Pick-up Pattern: Super-cardioid
• Signal-to-Noise Ratio: >= 103 dBA
• RF Output Power: 10 mW
• Switching Bandwidth: Up to 24 MHz
• Modulation: Wideband FM
• Output Voltage: 1/4“ jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Frequency: 8 frequency banks, each with up to 12 factory-preset channels
• Frequency Range: A: 548-572 MHz
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• Squelch: Switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input Sensitivity: 1.8 mV / Pa
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
• Audio Adjustment Range: 40 dB, adjustable in 5-dB steps
• Line / Mic Level: 20 dB, switchable
• Temperature Range: Operation: 0°C to +40°C, storage: -20°C to +70°C
• Receiver Principle: Double superheterodyne
• Diversity Principle: True Diversity

Package Contents

• 1 XSW 2 receiver
• 1 SKM 865-XSW handheld transmitter with e865 capsule
• 1 microphone clamp
• 1 power supply
• 2 AA batteries
• 1 rackmount kit
• User manual
