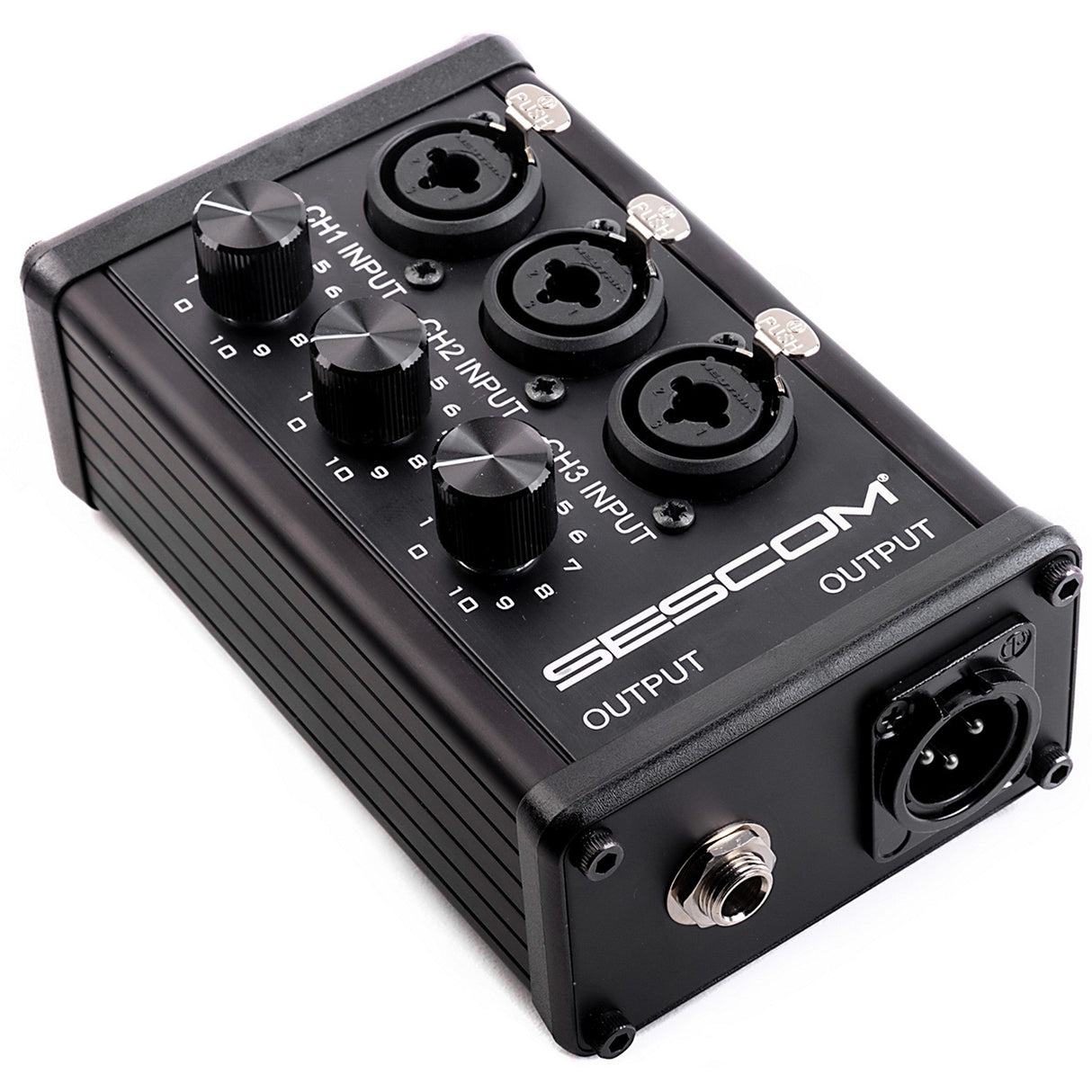

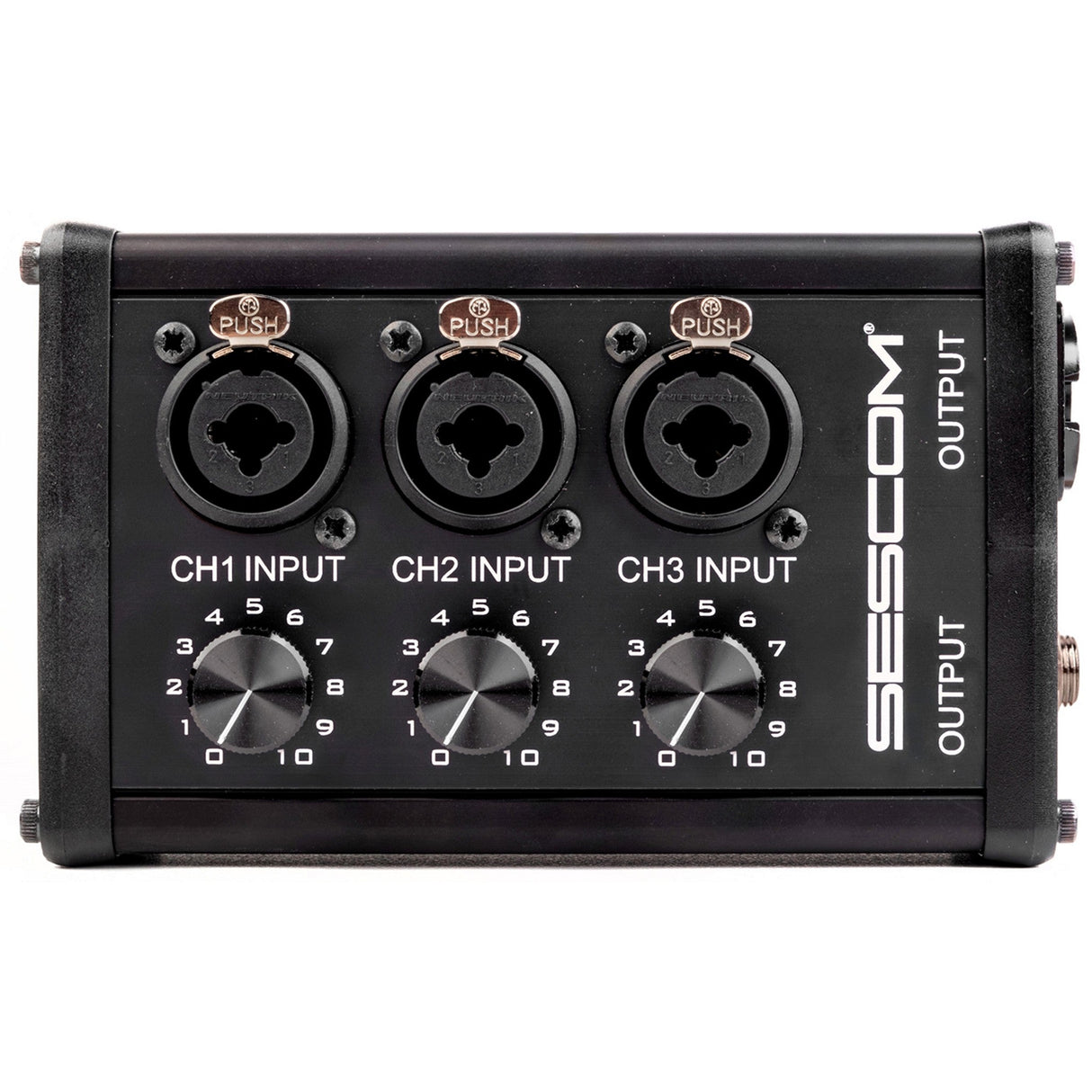

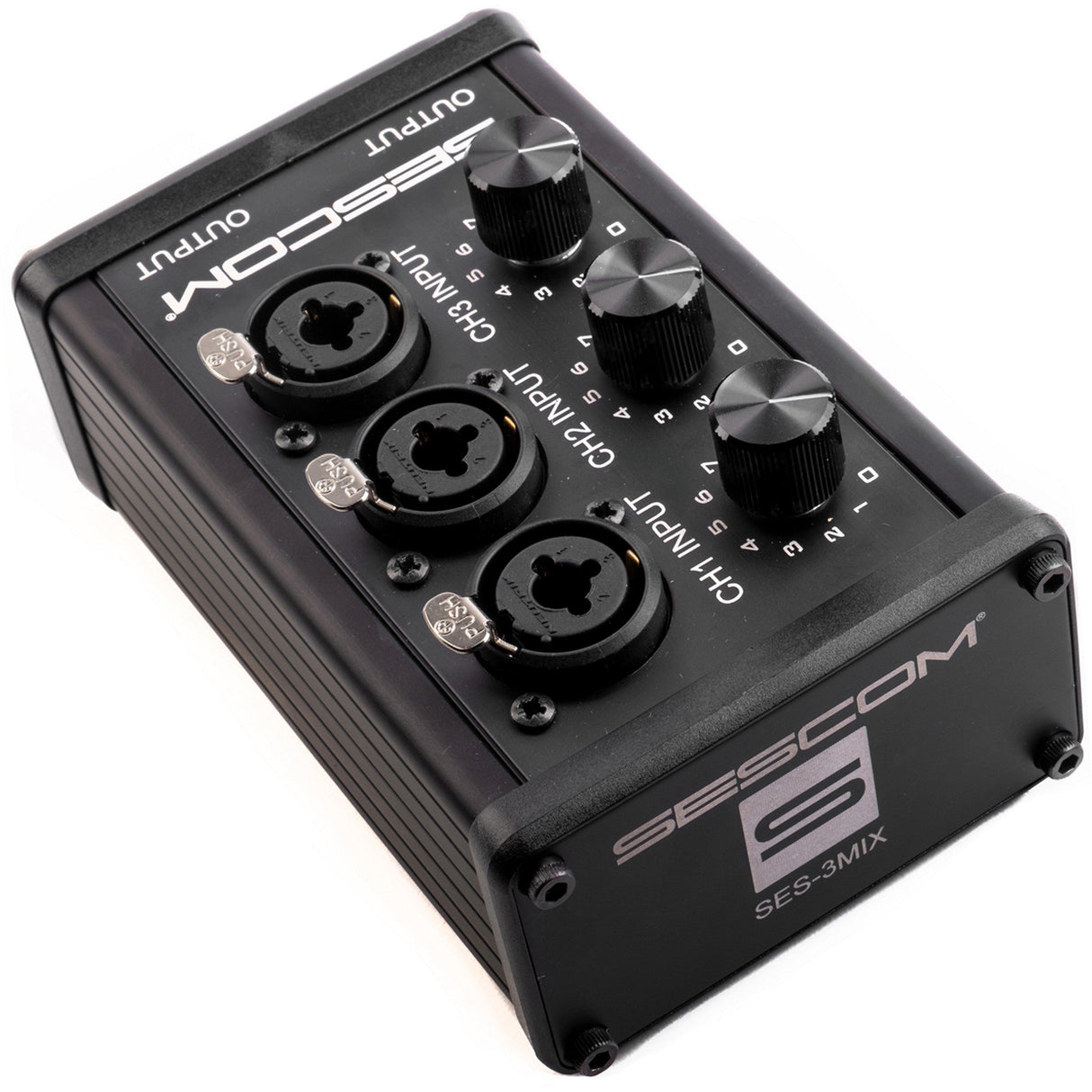

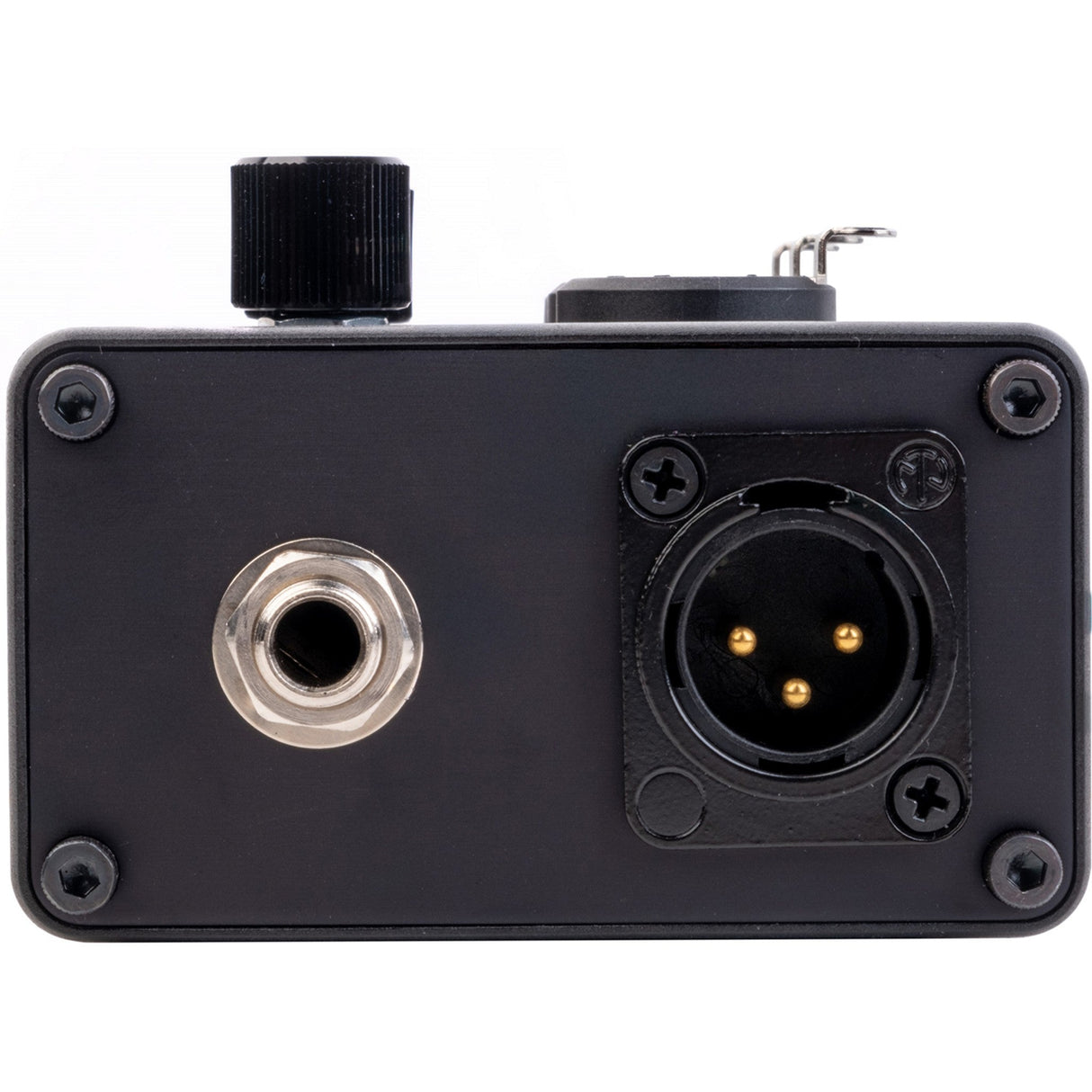

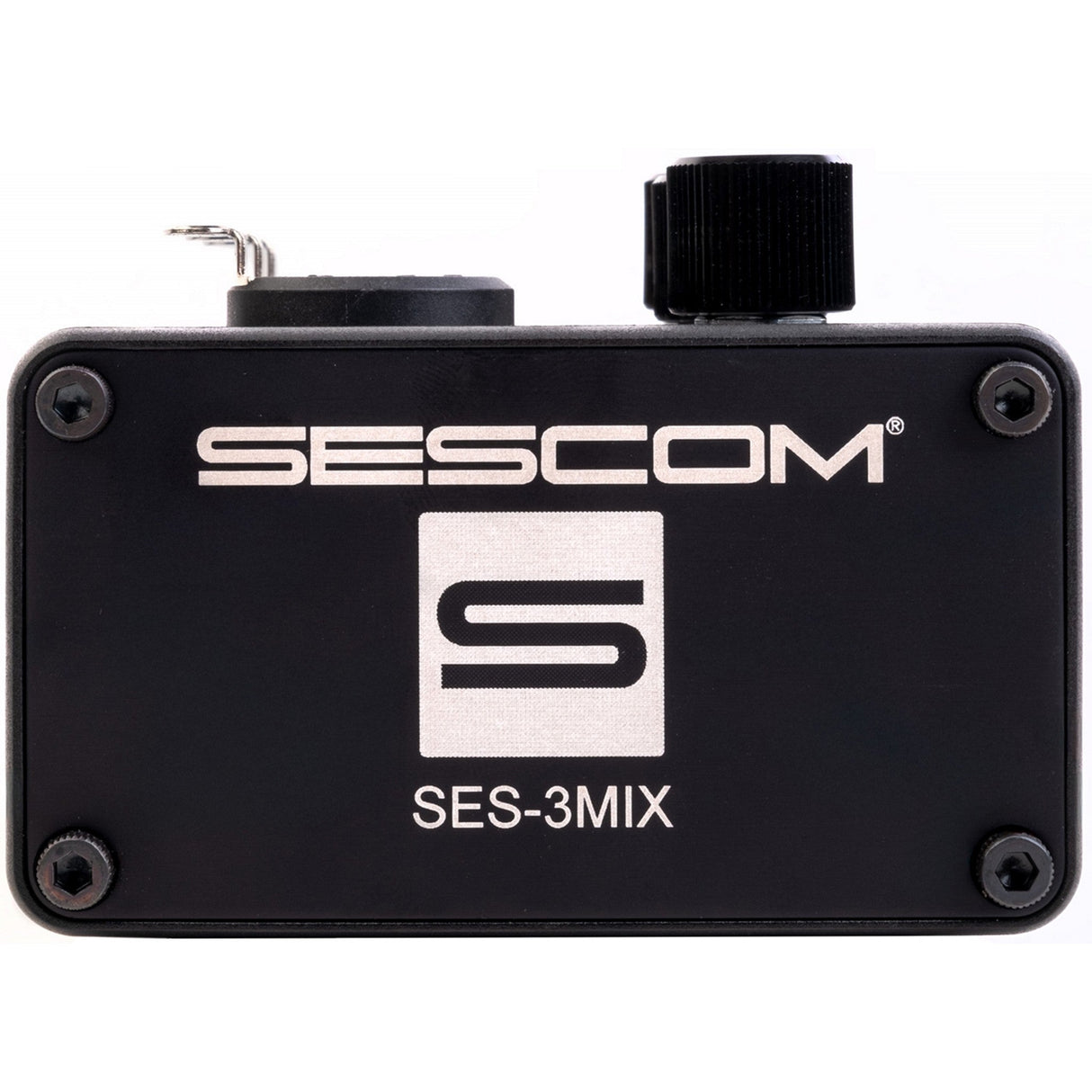

Sescom 3MIX 3-Channel Mic/Line Mixer with Independent Level Control
Sescom 3MIX 3-Channel Mic/Line Mixer with Independent Level Control
Free Shipping
Sescom PHASEREVERSE - Phase Reversal Tool for Clearer Sound
The Sescom PHASEREVERSE is an essential tool for any sound professional, helping you maintain optimal phase alignment for clear and full-bodied sound in both audio production and live sound environments. Whether you're using it in mic setups, monitoring, or speaker configurations, this device corrects phase issues that could otherwise result in hollow or unclear sound. By flipping the phase of one signal by 180Ā°, it ensures that your recordings or live setups remain crisp and immersive.
Phase reversal is particularly useful when dealing with multiple mics capturing the same sound source, such as vocals or drums, where phase cancellation might occur. Additionally, in stereo mixes with channels out of phase, this tool can help retain clarity, especially when played in mono.
In live sound setups, phase issues can often lead to feedback problems. The PHASEREVERSE tool can help minimize feedback by reversing the phase on specific inputs, providing a more controlled sound environment. Aligning microphones and monitors on stage has never been easier, improving sound quality for both performers and engineers alike.
Features:
- High-quality Neutrik connectors for reliability and durability.
- Reverses polarity of Pins 2 and 3 of a balanced line.
- In-line configuration: XLR Female to XLR Male, and can also be used in reverse.
- Requires the use of a balanced signal for optimal performance.
Specifications:
Connection Type: XLR
Capacitance between Contacts: ā¤4 pF
Contact Resistance: ā¤3 mĪ©
Dielectric Strength: 1.5 kVdc
Insulation Resistance: > 10 GĪ© (initial)
Rated Current per Contact: 16 A
Rated Voltage: < 50 V
Insertion Force: ā¤ 20 N
Withdrawal Force: ā¤ 20 N
Lifetime: > 1000 mating cycles
Locking Device: Latch lock
Boot Material: Polyurethane
Contact Plating: 0.2 Āµm Au hard alloy over 2 Āµm Ni
Contact Material:
- Female: Bronze (CuSn8)
- Male: Brass (CuZn39Pb3)
Locking Element:
- Female: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Male: Zinc diecast (ZnAl4Cu1)
Shell Coating: Black KTL
Strain Relief: Polyacetal (POM)
Flammability: UL 94 V-0
Protection Class: IP 40
Temperature Range: -22Ā°F to 176Ā°F (-30 Ā°C to +80 Ā°C)
Warranty:
1 Year
