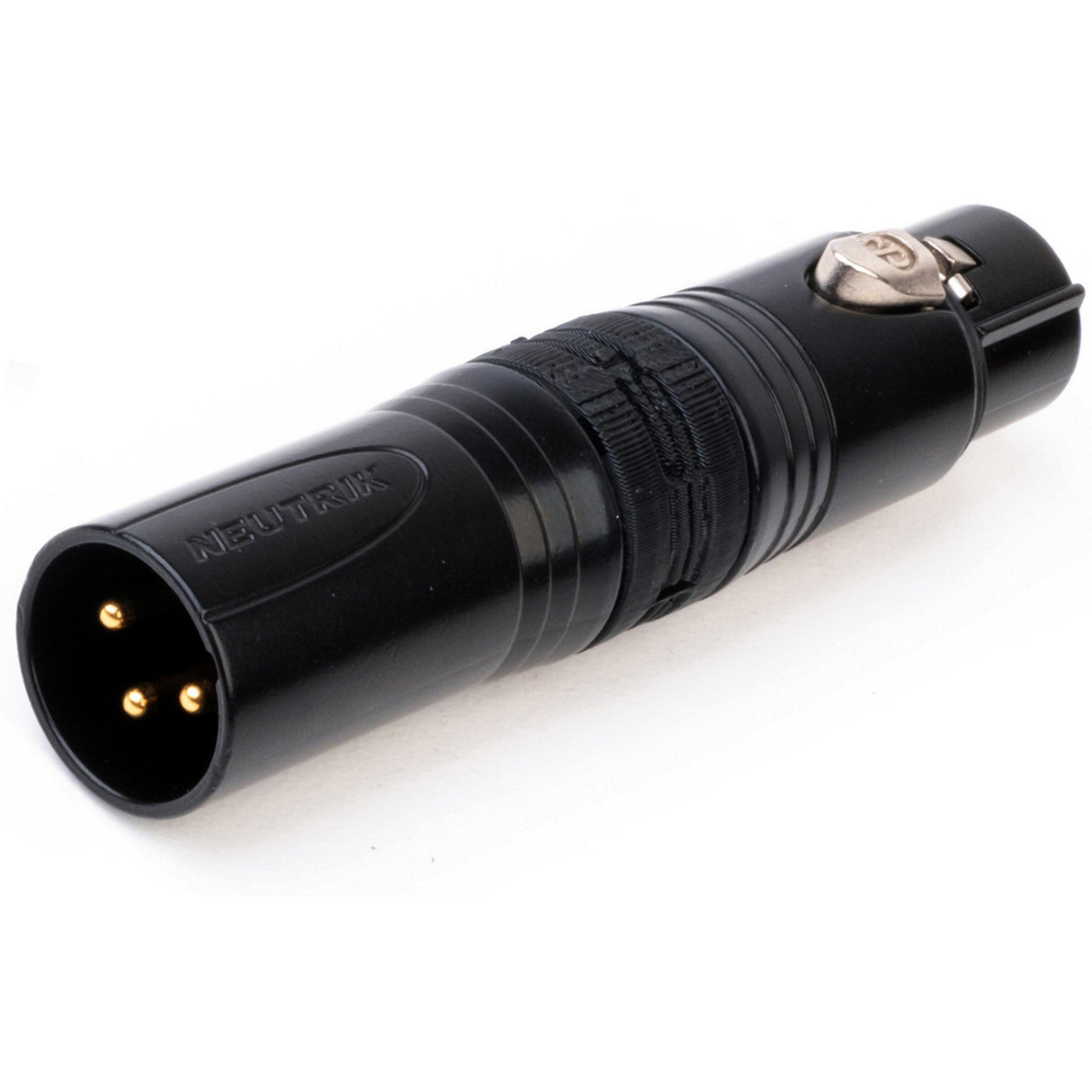

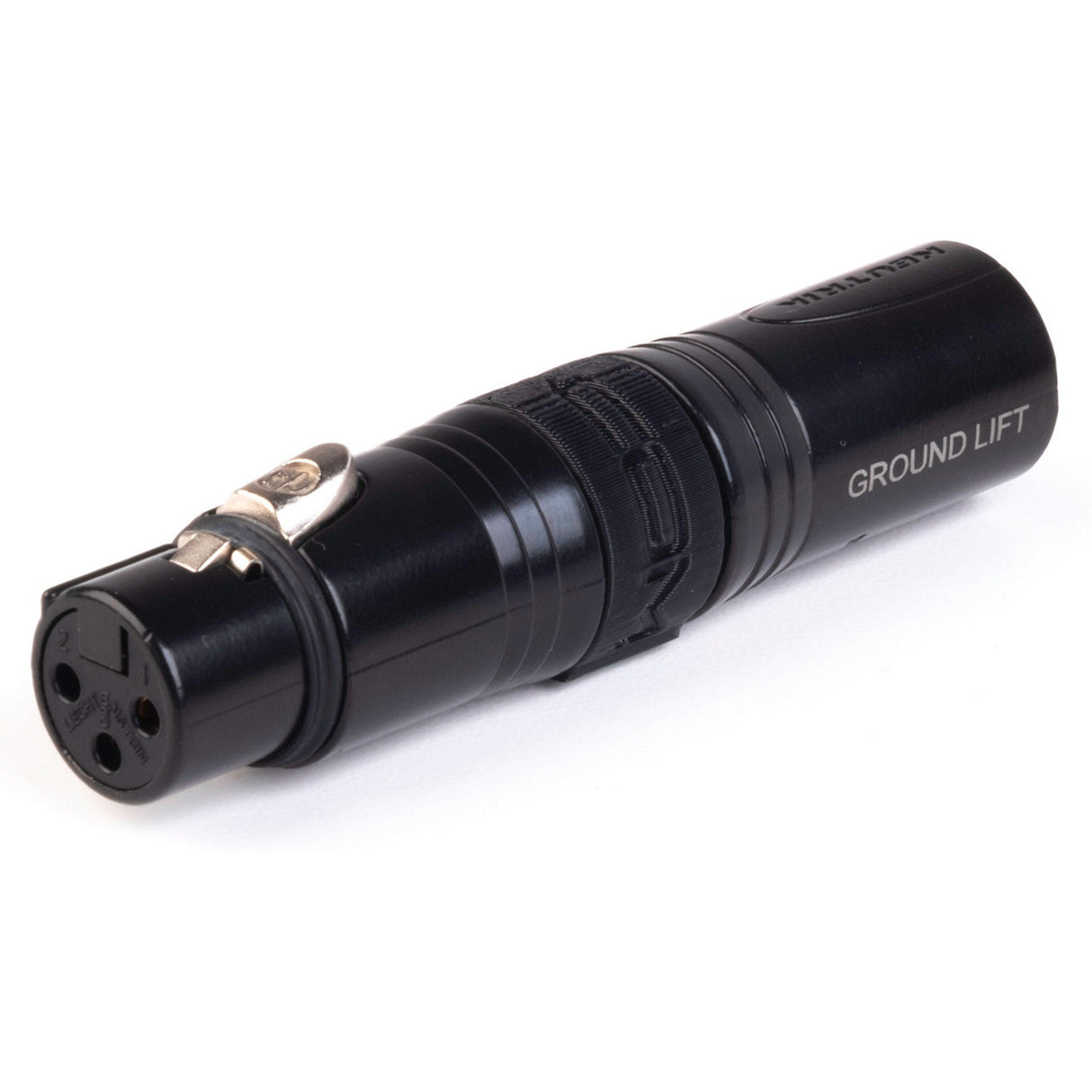

Sescom Bi-Directional 3-Pin XLR In-Line Ground Lift Adapter
Eliminate unwanted hum and buzzing in your audio setups with the Sescom Bi-Directional 3-Pin XLR In-Line Ground Lift Adapter. This essential tool is engineered to isolate ground loops in balanced audio connections, ensuring pristine sound quality without the need to modify existing cables. Ideal for live sound environments, broadcasting stations, and studio applications, the adapter swiftly lifts the ground on balanced signals, effectively removing noise caused by ground loops. Its in-line design allows for seamless integration between XLR cables, providing a hassle-free solution to common audio interference issues. With high-quality Neutrik connectors and a robust construction, the Sescom Ground Lift Adapter is a reliable addition to any audio professional's toolkit. :contentReference[oaicite:0]{index=0}
Key Features
- High-quality Neutrik connectors ensure reliable performance.
- Pin 1 lift results in an ungrounded signal, eliminating hum.
- In-line configuration for easy integration into existing setups.
- XLR Female to XLR Male; can be used in reverse for versatile applications.
Technical Specifications
Connection Type: XLR Female to XLR Male
Capacitance between Contacts: ≤4 pF
Contact Resistance: ≤3 mΩ
Dielectric Strength: 1.5 kVdc
Insulation Resistance: >10 GΩ (initial)
Rated Current per Contact: 16 A
Rated Voltage: <50 V
Insertion Force: ≤20 N
Withdrawal Force: ≤20 N
Lifetime: >1000 mating cycles
Locking Device: Latch lock
Boot Material: Polyurethane
Contact Plating: 0.2 µm Au hard alloy over 2 µm Ni
Contact Material: Female: Bronze (CuSn8); Male: Brass (CuZn39Pb3)
Insert Material: Polyamide (PA66)
Locking Element: Female: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring); Male: Zinc diecast (ZnAl4Cu1)
Shell Material: Zinc diecast (ZnAl4Cu1)
Shell Coating: Black KTL
Strain Relief: Polyacetal (POM)
Flammability: UL 94 V-0
Protection Class: IP 40
Temperature Range: -22°F to 176°F (-30°C to +80°C)
