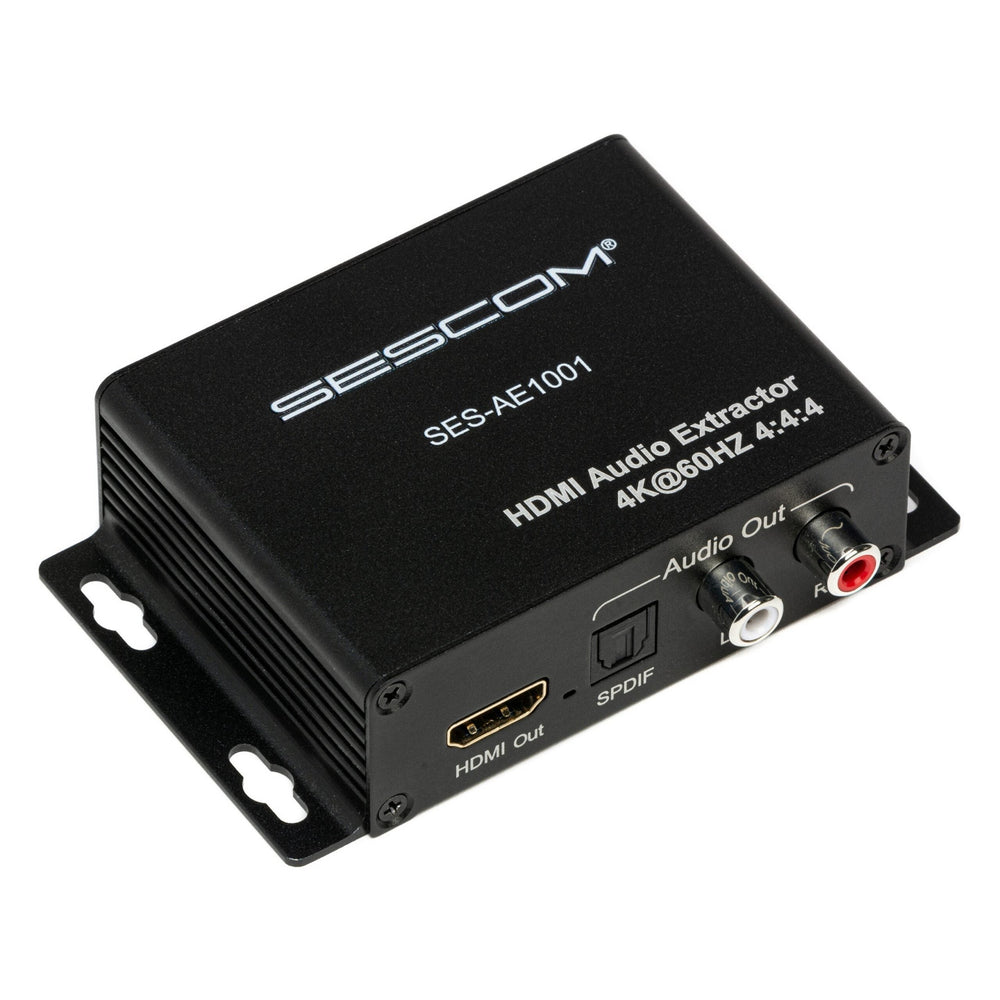

Sescom SES-AE1001 HDMI 4K@60Hz YUV 4:4:4 Audio Extractor with EDID
Sescom SES-AE1001 HDMI 4K@60Hz YUV 4:4:4 Audio Extractor with EDID
Sescom SES-AE1001 HDMI 4K@60Hz YUV 4:4:4 Audio Extractor with EDID
The Sescom SES-AE1001 is a low cost 4K HDMI 2.0 audio extractor allowing you to extract the digital HDMI audio signal from HDMI inputs and break it out to analog 2-Channel RCA stereo audio output or SPDIF 5.1 channel audio out. It'supports video resolutions up to 4K@60Hz YCbCr 4:4:4 as well as PCM and Dolby DTS audio formats.
Key Features
- 3 Audio EDID Settings: Bypass/2.0 CH/5.1CH
- S/PDIF TOSLINK Interface
- HDCP 2.2/1.4 Compliant
- Black Powder-Coated Aluminum Cabinet
- FCC, CE Certified
Technical Specifications
Transmission Distance
Input up to 26.25 Ft / Output up to 49.21 Ft
Input Video Signal
0.5-1.0 Volts P-P
Input DDC Signal
5 volts p-p(TTL)
Video Formats
4Kx2K/1080P/1080i/720P/576P/576i/480P/480i, 3D Video
Video Resolutions
up to 4K@60Hz YUV 4:4:4
Video Color Format
xv-YCC/deep color 36bit
Bandwidth Frequency
4.95Gbps
Audio Formats
PCM, DTS-HD Master Audio, Dolby True-HD
Data Transfer Rate
18Gbps
Power Consumption
2W
Dimensions Each Unit
4 1/8 x 2 1/2 x 1 1/8 Inches
Weight
4.1 oz
