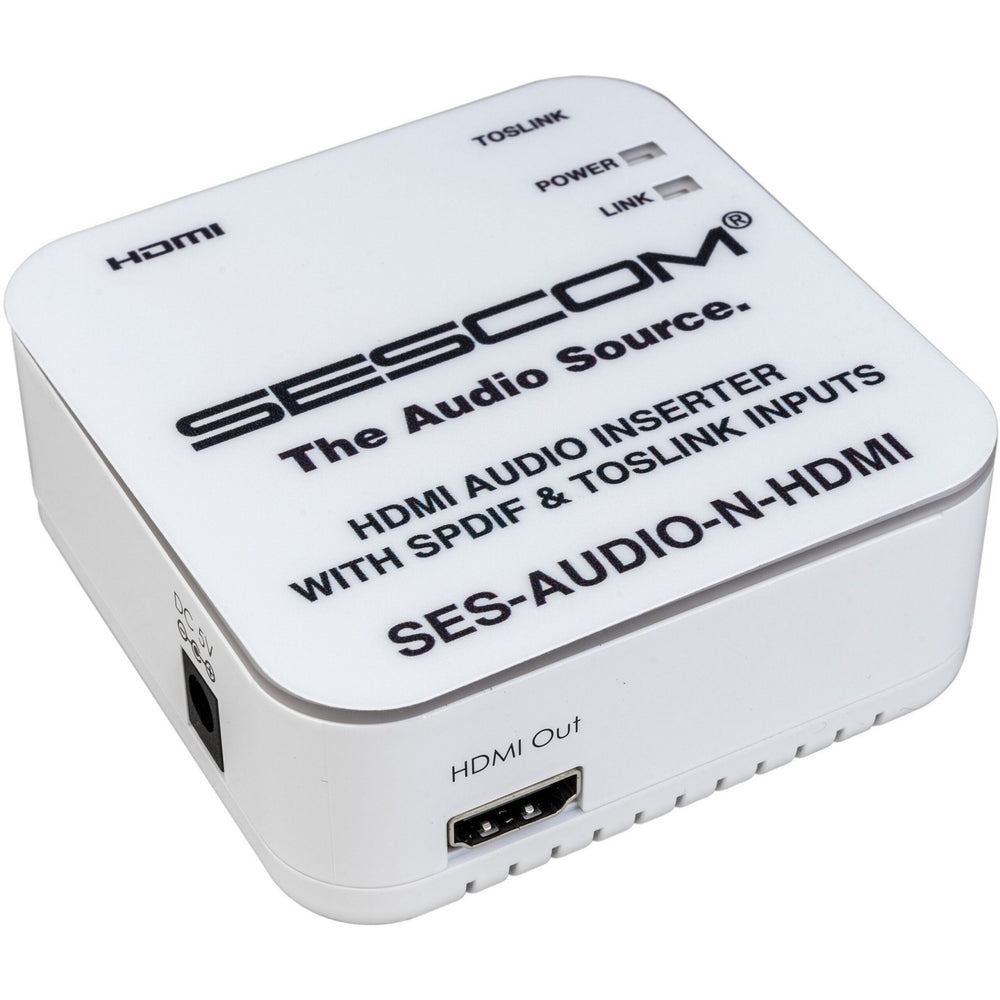

Sescom SES-AUDIO-N-HDMI L/R RCA Analog Audio and Toslink to HDMI Audio Inserter
Sescom SES-AUDIO-N-HDMI L/R RCA Analog Audio and Toslink to HDMI Au...
Free Shipping
Sescom SES-AUDIO-N-HDMI L/R RCA Analog Audio and Toslink to HDMI Audio Inserter
Insert an external audio signal into an HDMI or DVI signal path with the Sescom SES-AUDIO-N-HDMI Audio Inserter. Using the Audio IN Select feature, switch among three different audio input options: HDMI, Optical, and L/R Analog. Insert stereo and multi-channel surround sound signals while extending the HDMI signal.
Embeds external L/R analog or optical audio into HDMI signal. Integrates audio and DVI video to HDMI signal output. Replaces audio in the original HDMI signal with other input sources.
Please note that this unit requires that the incoming HDMI signal contain existing embedded audio to embed new audio over. It will not function properly if no audio is present on the incoming HDMI signal.
Key Features
- Compliant with HDMI, HDCP 1.2 and DVI 1.0
- Supports HDMI audio sampling rates up to 192 kHz
- Supports Optical S/PDIF audio sampling rate up to 48 kHz
- Supports TMDS clock frequency up to 225 MHz
- Supports high-bit-rate (HBR) audio
Technical Specifications
Input Ports
1xHDMI, 1xOptical (Digital Audio), 1xL/R (Analog Audio)
HDMI Audio Sampling Rate Up to 192 kHz
Optical Audio Sampling Rate Up to 48 kHz
Output Port 1xHDMI
HDMI Cable I/O Distance 10 meter, 1080p@12-bit 15 meter, 1080p@8-bit
HDMI Audio Format
LPCM 2/5.1/7.1, Dolby 5.1, DTS 5.1, Dolby Digital+, Dolby TrueHD & DTSHD Master Audio
Optical Audio Format LPCM 2, Dolby Digital & DTS Digital Audio 5.1
Dimensions (WxDxH)
3.6 x 3.4 x 1.3 inches
Weight
3.77 oz
Warranty
1 Year
