Sescom SES-X-FA2 Battery Powered 2-Channel Balanced XLR Mic/Line Level Fiber Connector

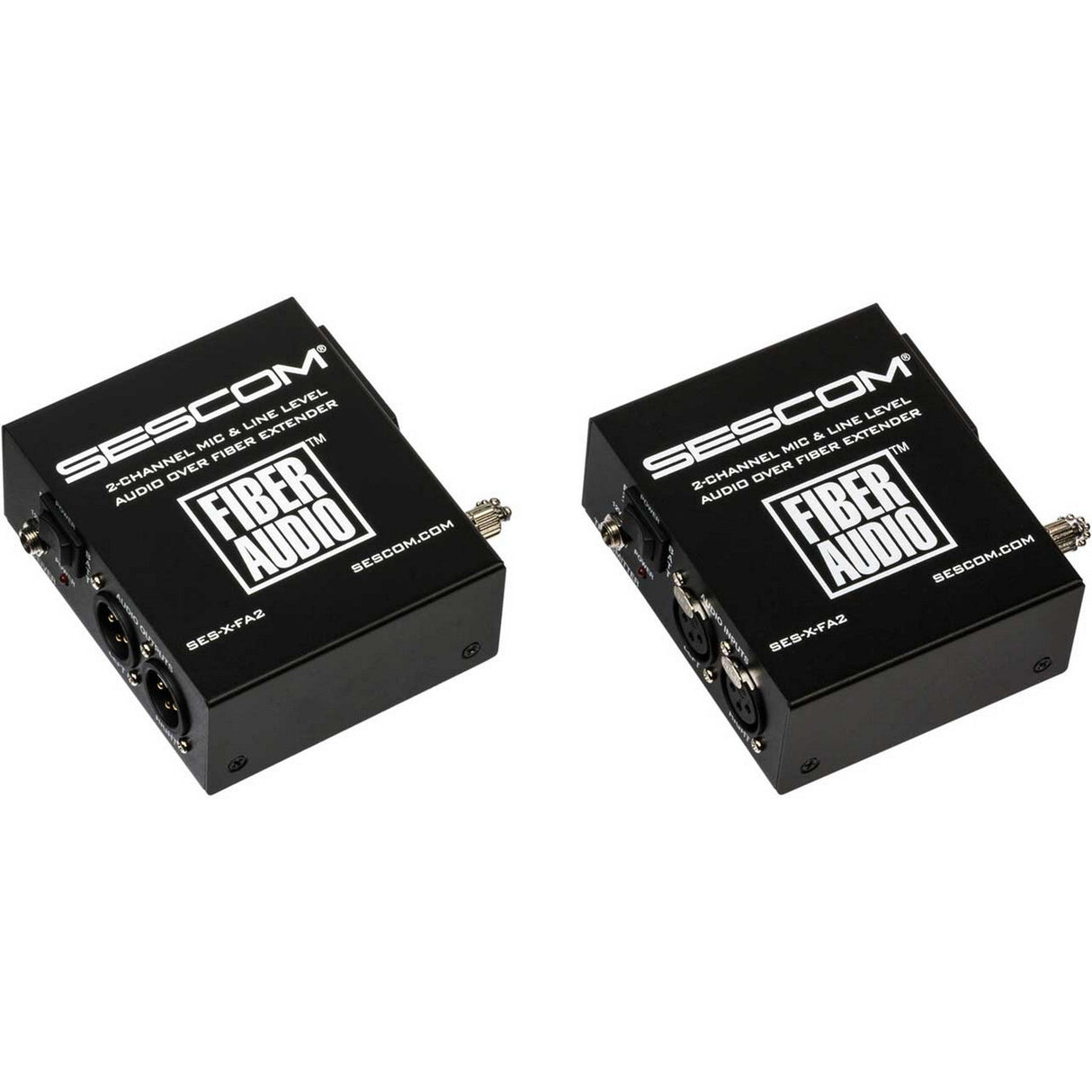

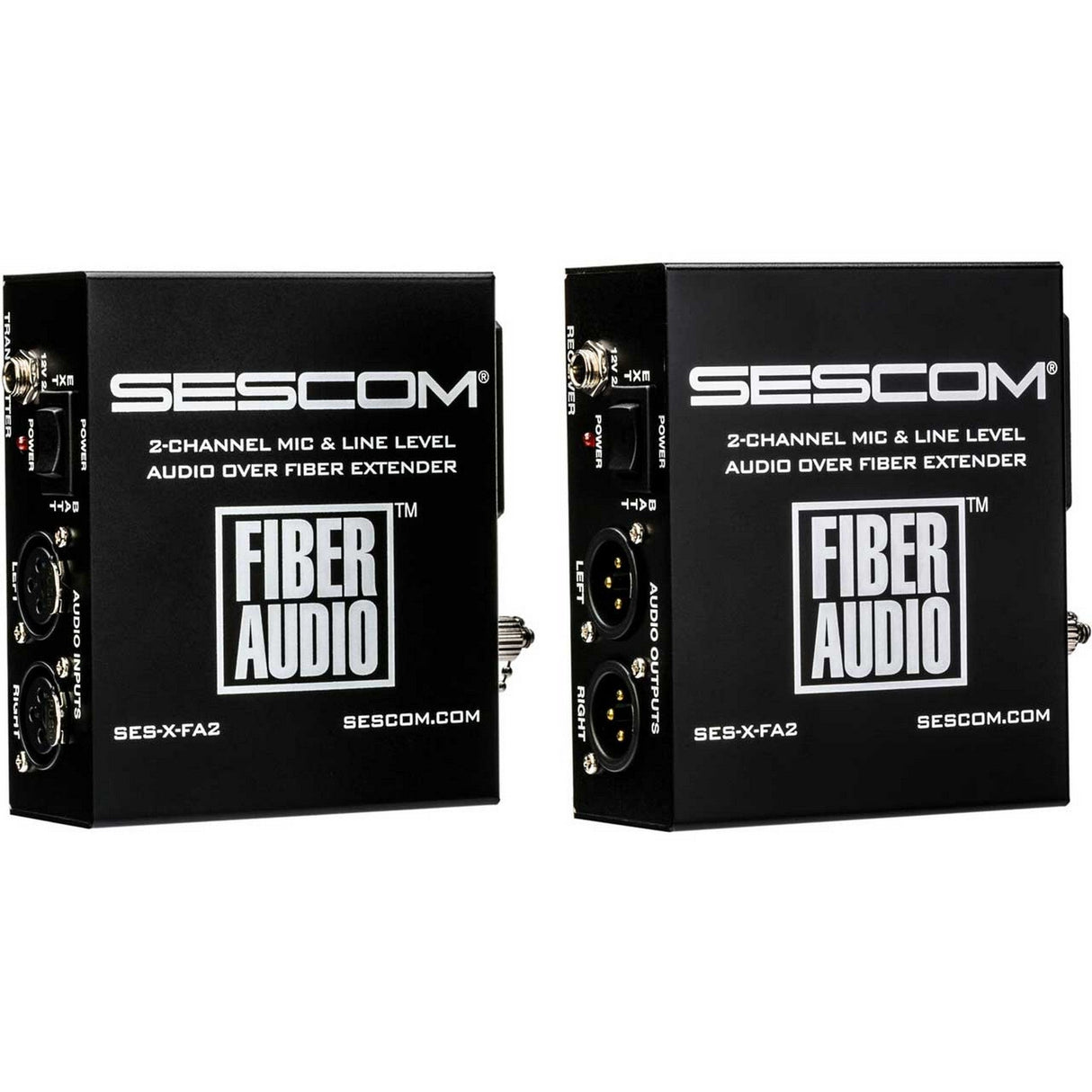

The Sescom SES-X-FA2 is a professional-grade, portable audio over fiber extender designed to transmit two channels of balanced microphone or line-level analog audio over a single fiber optic cable. Utilizing 24-bit digital encoding, this system ensures high-fidelity audio transmission with a signal-to-noise ratio exceeding 85dB. Whether you're in a broadcast studio, live event venue, or field production environment, the SES-X-FA2 provides reliable and interference-free audio transmission over long distances.
Equipped with switchable balanced mic or line-level inputs, the SES-X-FA2 offers versatility to accommodate various audio sources. The system supports transmission distances up to 984 feet over multimode fiber and up to 12.4 miles over single-mode fiber, making it suitable for both short and long-range applications. Its wide dynamic optical range eliminates the need for optical adjustments, simplifying setup and operation.
Designed for portability and ease of use, each unit features a compact and rugged enclosure measuring 4.33" x 3.62" x 1.65" and weighing only 7.9 oz. The SES-X-FA2 can be powered by a standard 9VDC battery, providing approximately 4 hours of operation, or via an included AC adapter. Simplex ST connectors facilitate straightforward fiber connections, ensuring quick deployment in various settings. Please note that this system is not compatible with IFB systems where audio is modulated with voltage and should not be used with phantom-powered devices.
Key Features
- Portable 2-channel analog audio to fiber transmission
- 24-bit digitally encoded analog audio for high-fidelity transmission
- Supports multimode fiber up to 984 feet and single-mode fiber up to 12.4 miles
- Switchable balanced mic or line-level inputs for each channel
- Wide dynamic optical range requires no optical adjustments
- Power via AC adapter or standard 9VDC battery (approx. 4-hour runtime)
- Simplex ST connectors for easy fiber connections
- Compact and lightweight design for portability
- FCC & RoHS compliant
Technical Specifications
Audio Channels: 2 (balanced mic or line-level)
Bit Rate: 24-bit
Sample Rate: 48kHz
Signal-to-Noise Ratio: >85dB
Input Impedance: 10KΩ
Mic Level: -30dB
Line Level: 0dB in/0dB out
Transmission Distance: Up to 984 feet over multimode fiber; up to 12.4 miles over single-mode fiber
Optical Connectors: Simplex ST
Power Options: AC adapter or standard 9VDC battery (alkaline battery runtime: approx. 4 hours)
Dimensions (Each Unit): 4.33" x 3.62" x 1.65"
Weight (Each Unit): 7.9 oz
Compliance: FCC & RoHS compliant
Compatibility Notes: Not for use with IFB systems where audio is modulated with voltage; not for use with phantom-powered devices
What's Included

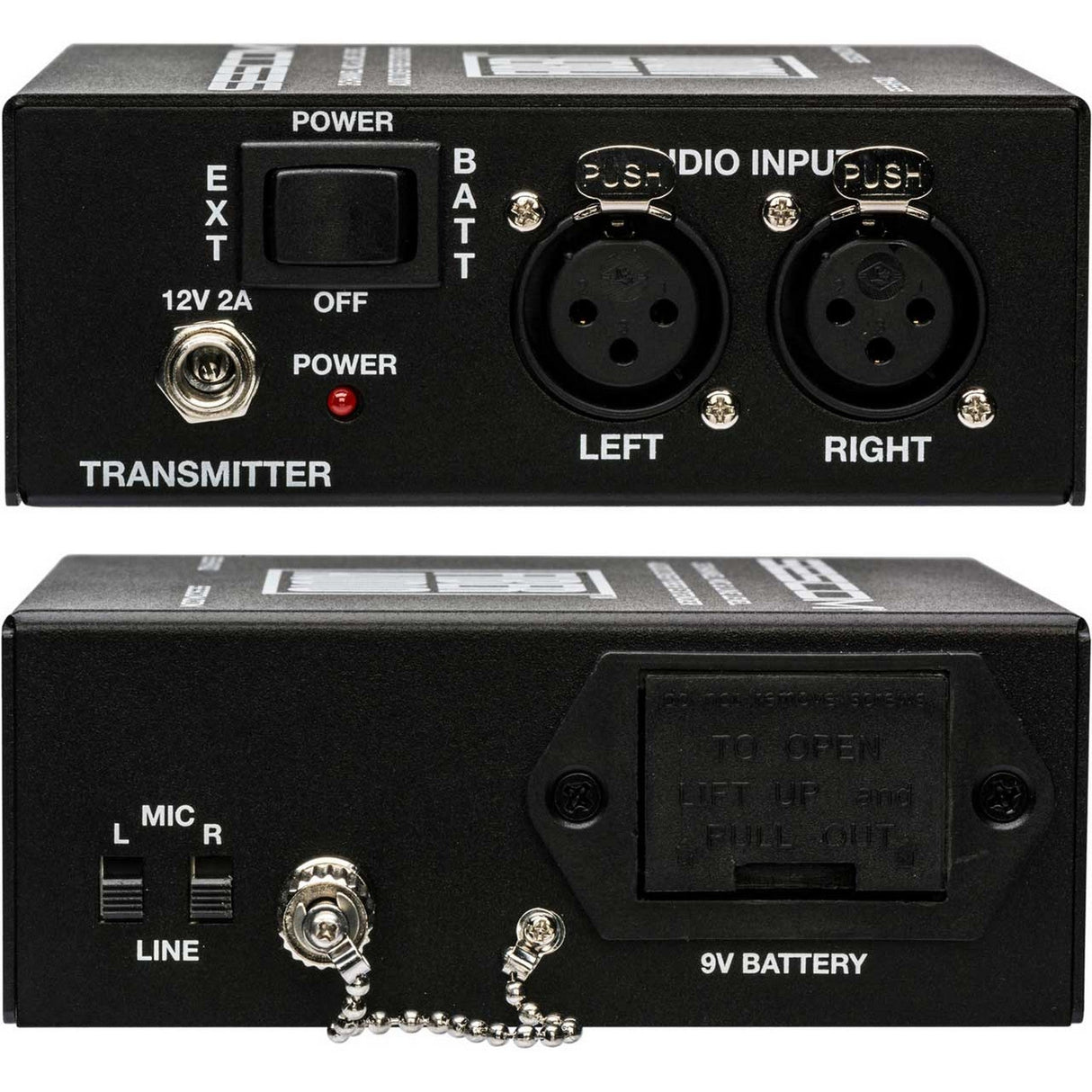

- 1 x SES-X-FA2 Transmitter Unit

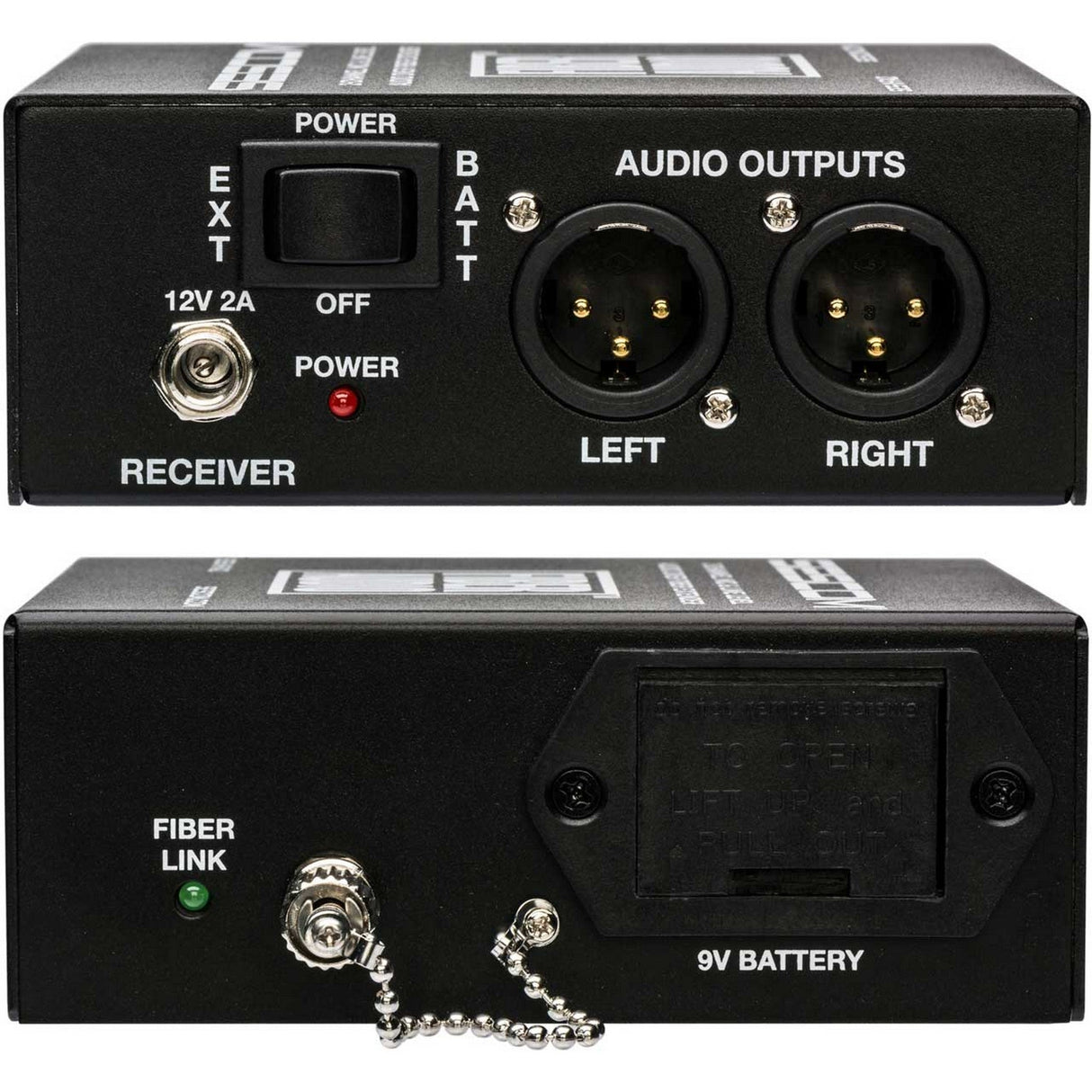

- 1 x SES-X-FA2 Receiver Unit
- 2 x 9VDC Batteries
- 2 x AC Power Adapters
- 1 x User Manual
- Limited 1-Year Manufacturer Warranty
