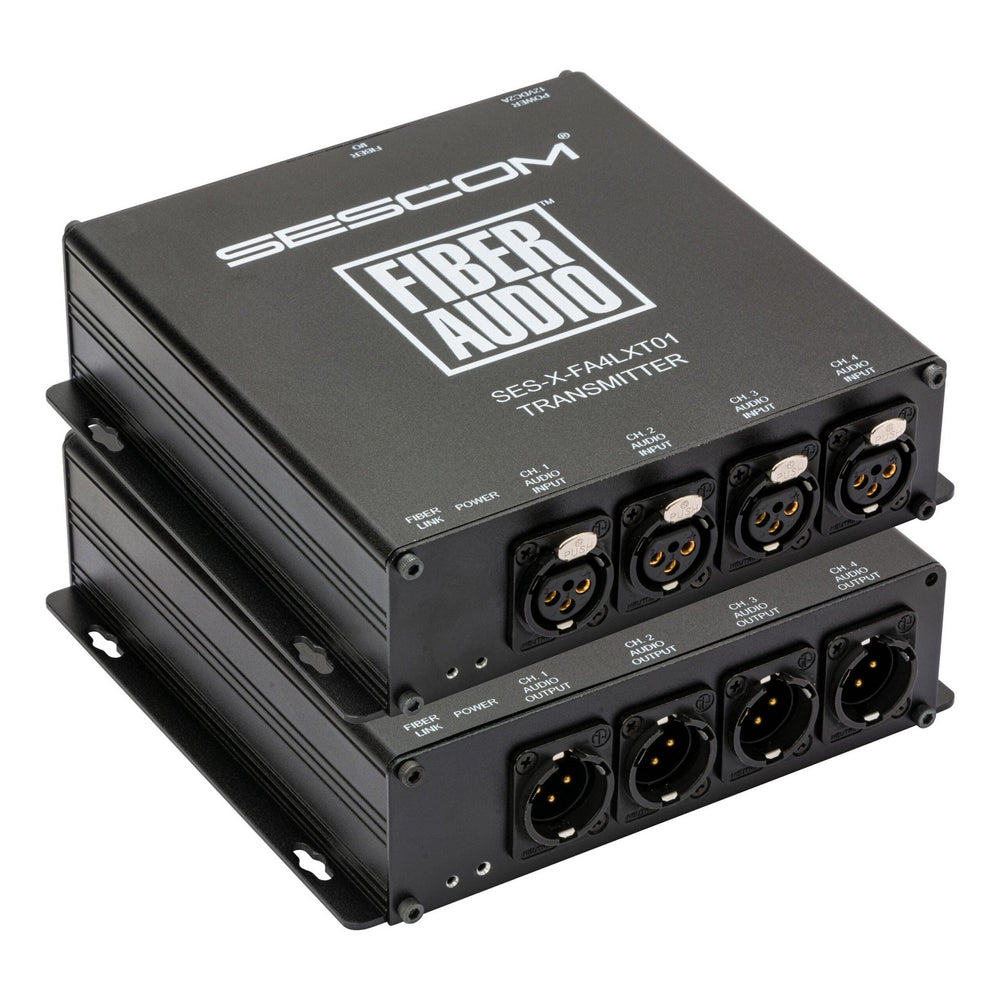

Sescom SES-X-FA4LXT01 Audio Over Fiber Extender
The cost effective, long-haul solution for sending 4-Channels of XLR balanced line level audio over a single fiber cable! The Sescom X-FA4LXT01 sends Balanced and Un-balanced 24 Bit PCM - AES3 encoded line level audio signals over multimode or single mode optical fiber at distances up to 1600 feet (multimode) or up to 12.4 miles (single mode). Sescom's new and improved X-FA4 design eliminates potential crosstalk issues. X-FA4LXT01 houses 3-Pin XLR connections. Professional bayonet style ST fibers connectors ensure a consistent, uninterrupted signal. Its plug-and-play design ensures fast, adjustment-free installation and operation. LED indicators are provided to instantly monitor the system operating status.
Key Features
- 4-Channel XLR Audio to Fiber Transmission
- ST Fiber Connector
- 24-Bit Digitally Encoded Analog Audio
- Transmission Distance up to 12.4 miles over Singlemode Fiber
- No Loss in Signal Quality
- Adjustment Free Plug & Play Operation
- Enable Cascaded Audio Setups
- Line Level Balanced Audio Operation
- Indicator LEDs Monitor Fiber Link and Power
- Housed in Rugged Aluminum Enclosures
- FCC & RoHS Compliant
Technical Specifications
Unity Gain
0dB
Sample Rate
48kHz, 24K bit rate
Frequency Response
20Hz - 20kHz
Signal to Noise Ratio
> 90dB Ref. 4dBu, A Weighting
Total Harmonic Distortion
<0.05%
Maximum Balanced Input Signal
18dBu
Optical Wavelength
1310nm
Max input/output voltage
17.4Vp-p
Input Power
12VDC/2A
Power Consumption
< 2W per unit
Dimensions (LxWxH)
6.5 x 6.25/7.125 with fiber connector x 2.0 in
Item Includes
1-4CH Transmitter with XLR Connectors, 1-4CH Receiver with XLR Connectors, 2-12VDC/2A power supplies
