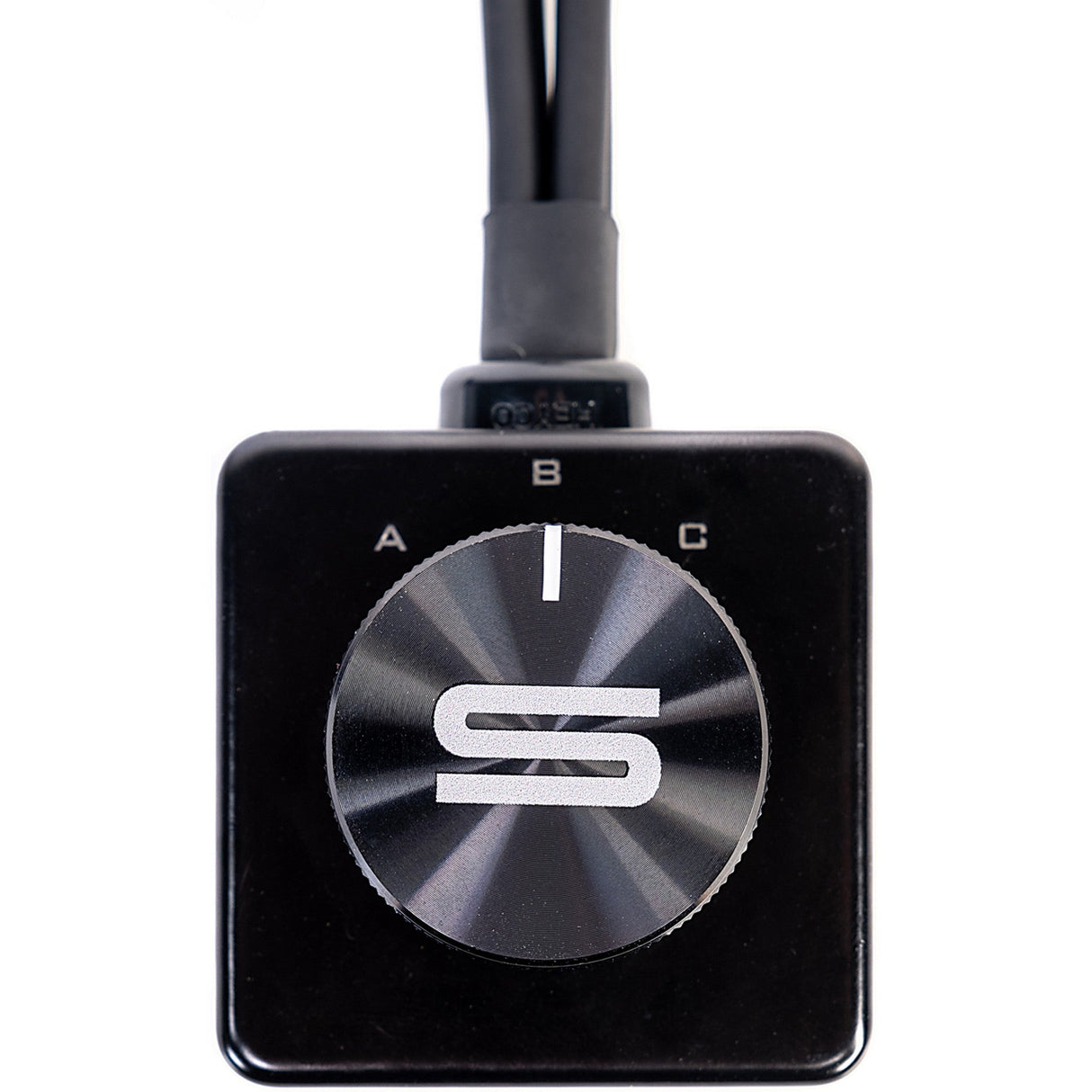

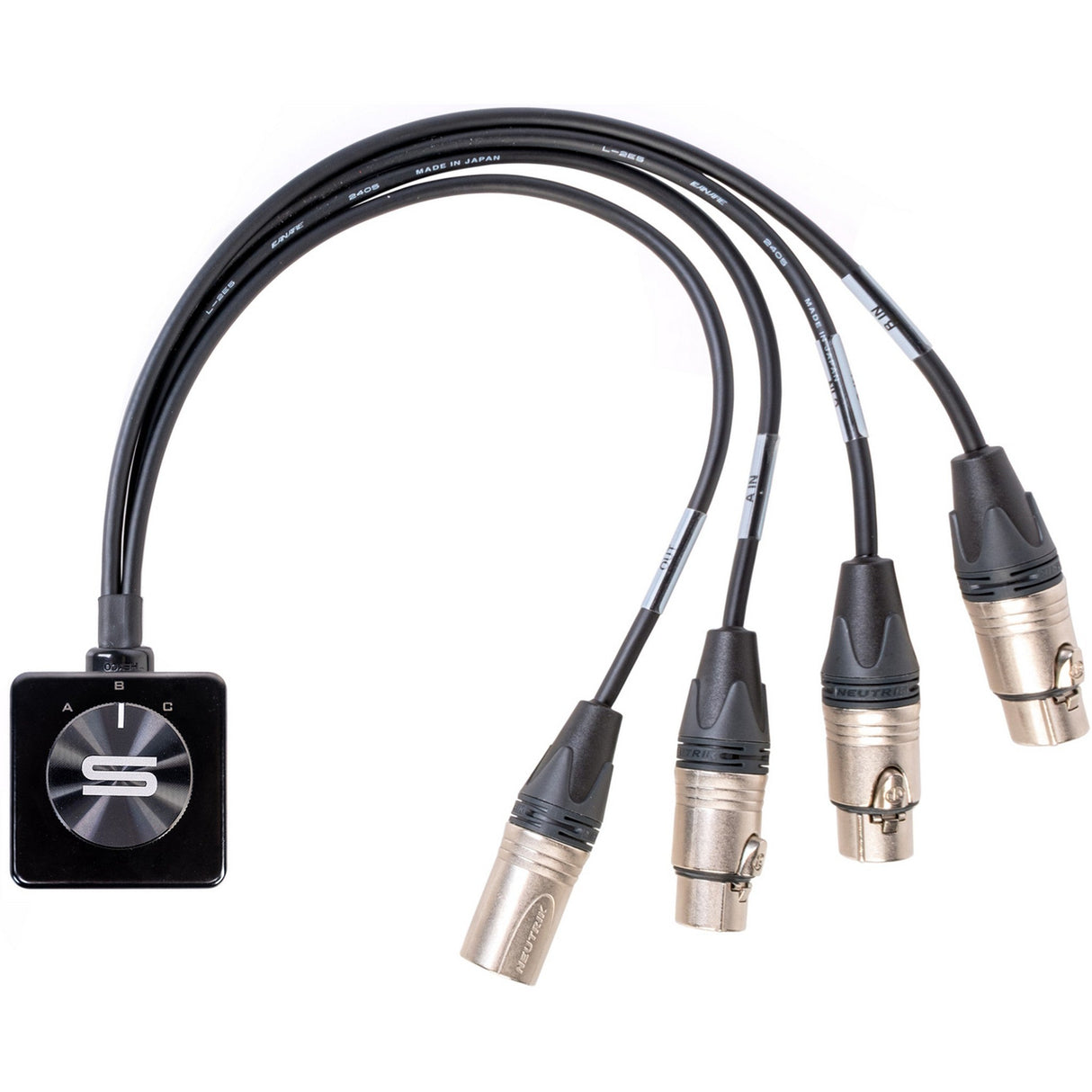

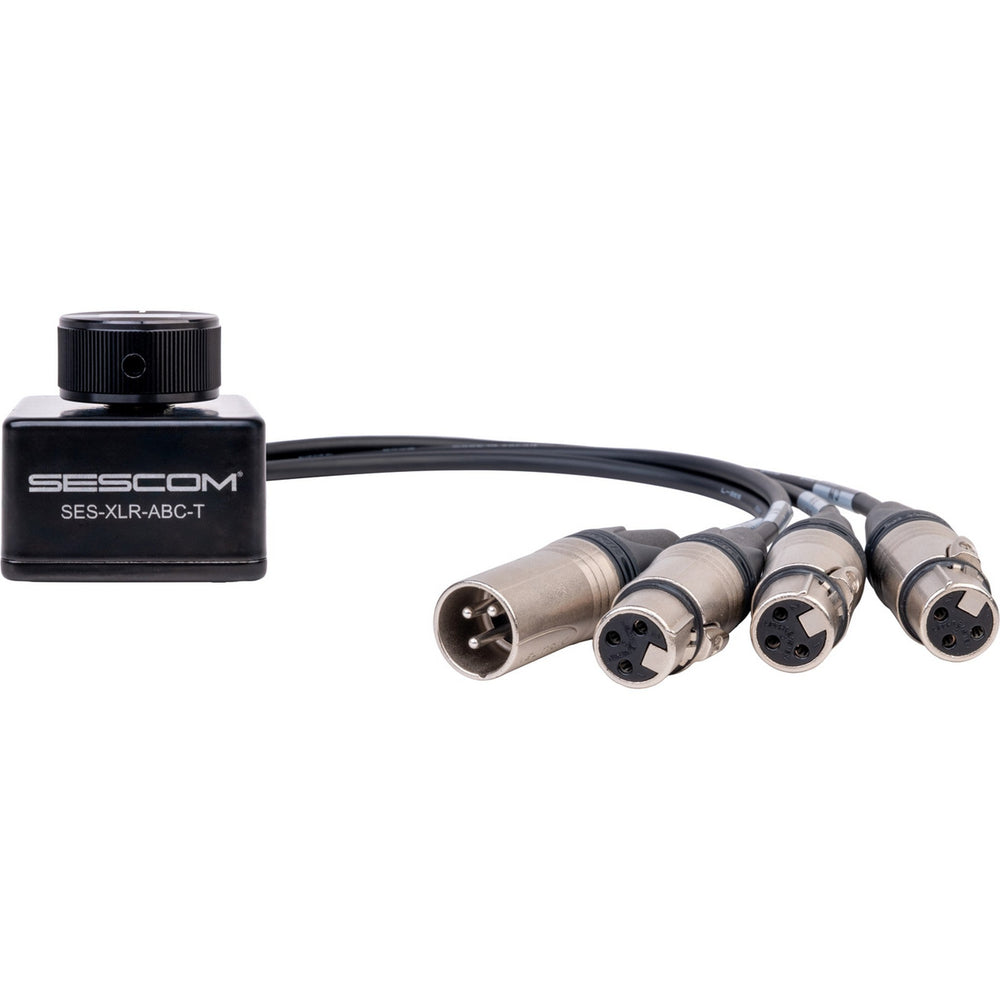

Sescom SES-XLR-ABC-T Balanced Audio Passive XLR Pigtail 3-In/1-Out Switcher
The Sescom SES-XLR-ABC-T is a premium-grade passive audio switcher designed to seamlessly manage multiple microphone inputs within professional audio setups. This 3-in-1-out XLR pigtail switcher allows sound engineers to effortlessly select between three balanced microphone sources feeding into a single output channel, making it an indispensable tool for live sound, broadcasting, and studio environments. Its compact, cable-based design ensures minimal footprint while providing maximum flexibility in routing audio signals.
Engineered for durability and superior performance, the SES-XLR-ABC-T features high-quality Canare microphone cables known for their excellent signal integrity and shielding capabilities. The unit is terminated with industry-standard Neutrik XLR connectors, ensuring reliable connections and longevity even under rigorous use. The low-noise rotary switch enables quiet and efficient channel selection, crucial for live applications where seamless transitions are paramount. Additionally, the device is compatible with phantom power sources, although it's recommended to mute channels before switching to prevent any potential popping sounds.
Designed with the professional in mind, this passive switcher requires no external power, reducing setup complexity and potential points of failure. Its robust construction and high-quality components make it a reliable choice for audio professionals seeking a straightforward solution for managing multiple microphone inputs without compromising on sound quality or system integrity.
Key Features
- Three female XLR inputs to one male XLR output configuration
- High-quality Canare microphone cables for superior signal integrity
- Neutrik XLR connectors for reliable and durable connections
- Low-noise rotary switch for seamless input selection
- Passive design requiring no external power
- Compatible with phantom power sources (mute channels before switching)
- Compact and durable construction suitable for professional environments
Technical Specifications
Cable Specifications:
Nominal Outer Diameter: 0.181 in (4.6 mm)
Jacket Nominal Thickness: 0.035 in (0.9 mm)
Number of Conductors: 2
Conductor AWG: 26
Insulation Type: IPE
Pitch Twist: <0.79 in
Shield Coverage: >96.7%
Shield Type: TAC Braid
Conductor DCR: <38.7 Ω/1000 ft
Shield DCR: <6.7 Ω/1000 ft
Cable Weight: 0.030 lbs/ft
Neutrik Connector Specifications:
Capacitance Between Contacts: ≤ 4 pF
Contact Resistance: ≤ 3 mΩ
Dielectric Strength: 1.5 kVDC
Insulation Resistance: >10 GΩ (initial)
Rated Current Per Contact: 16 A
Insertion Force: ≤ 20 N
Withdrawal Force: ≤ 20 N
Lifetime: >1000 mating cycles
Boot Material: Polyurethane
Contact Plating: 2 µm Ag
Female Contact: Bronze (CuSn8)
Male Contact: Brass (CuZn39Pb3)
Insert: Polyamide (PA66)
Locking Device: Latch Lock
Female Locking Element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Male Locking Element: Zinc diecast (ZnAl4Cu1)
Shell: Zinc diecast (ZnAl4Cu1)
Shell Plating: Nickel
Strain Relief: Polyacetal (POM)
Protection Class: IP40
Operating Temperature Range: -22°F to 176°F (-30°C to +80°C)
What’s Included
- Sescom SES-XLR-ABC-T Professional Grade Balanced Audio Passive XLR Pigtail 3-In 1-Out Switcher/Swapper
