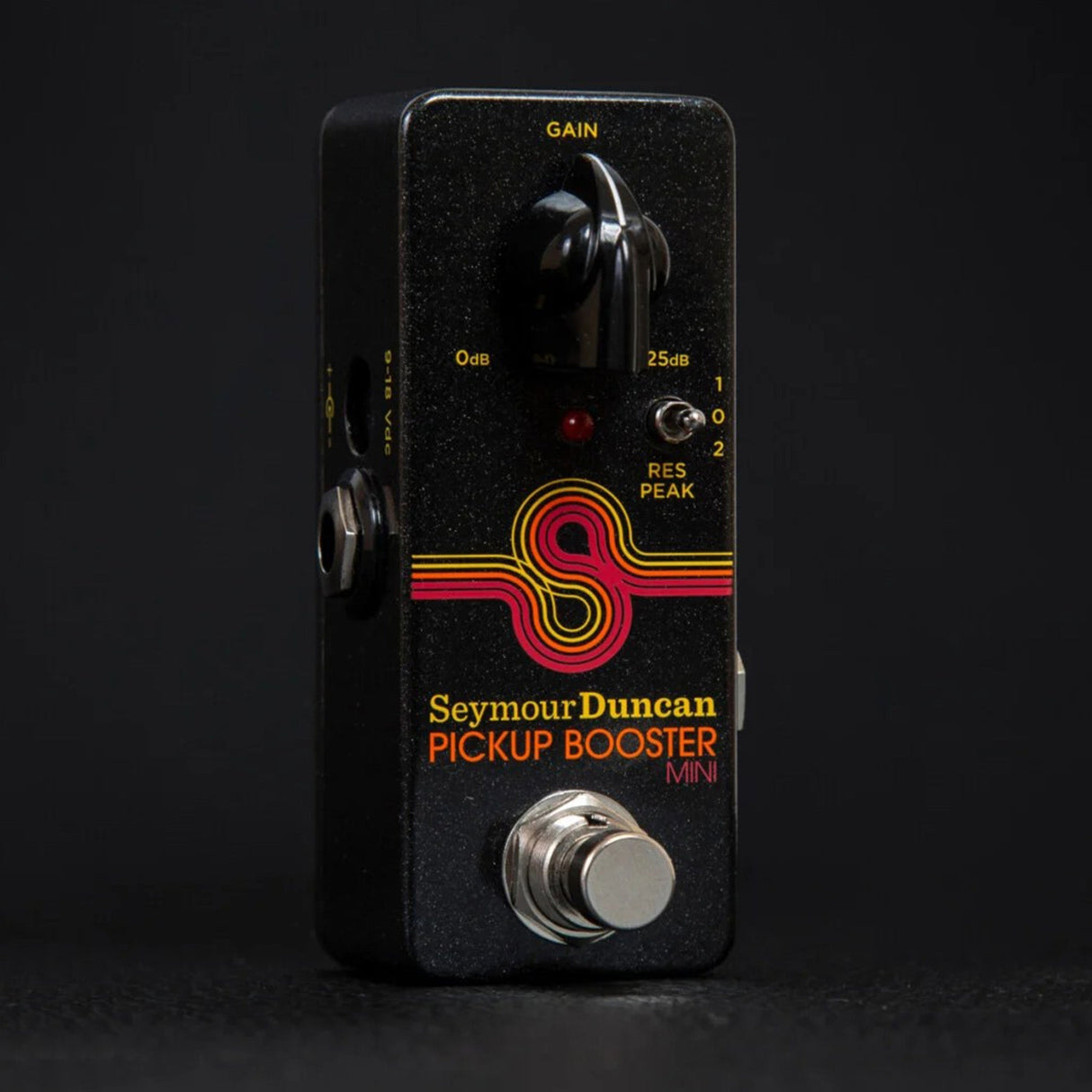

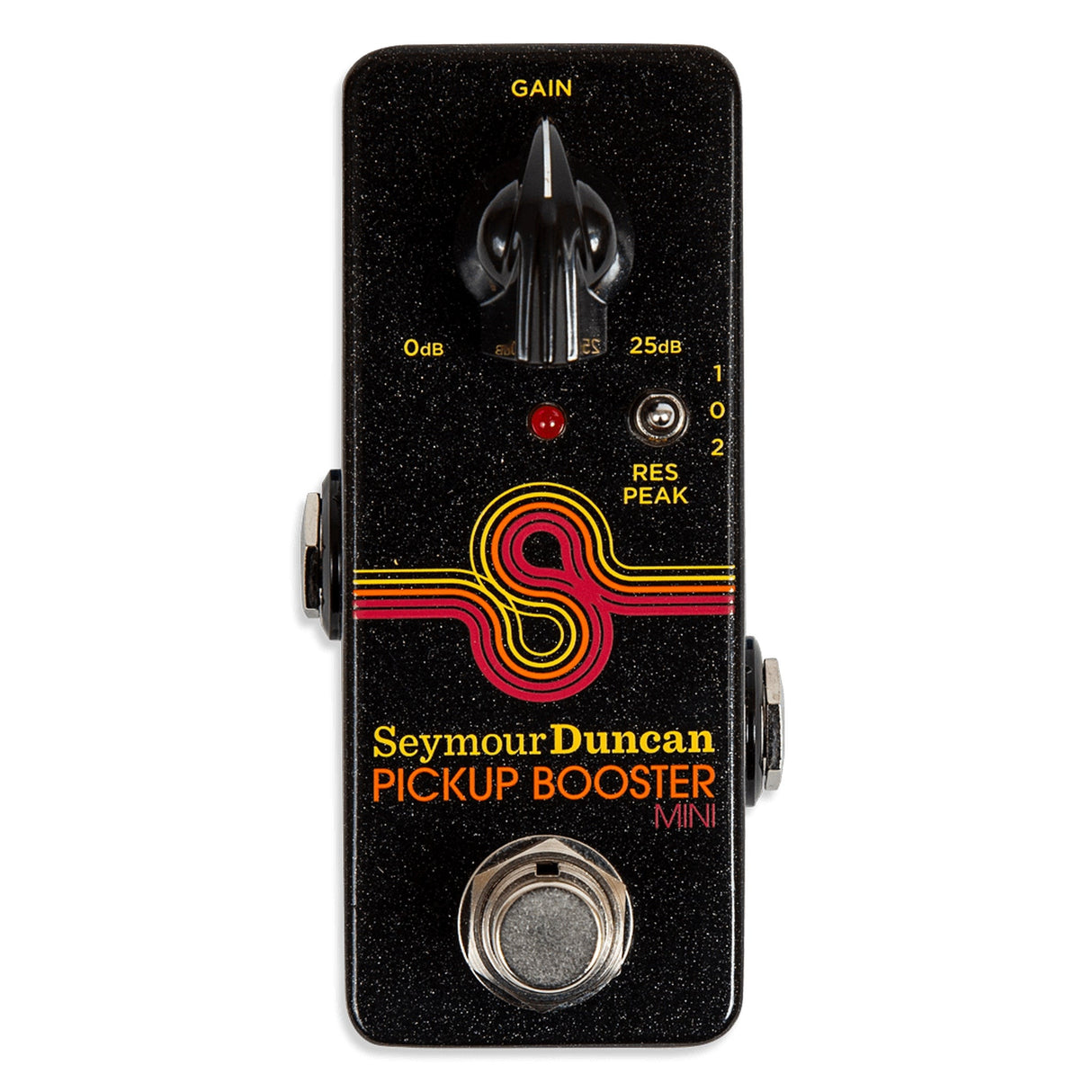

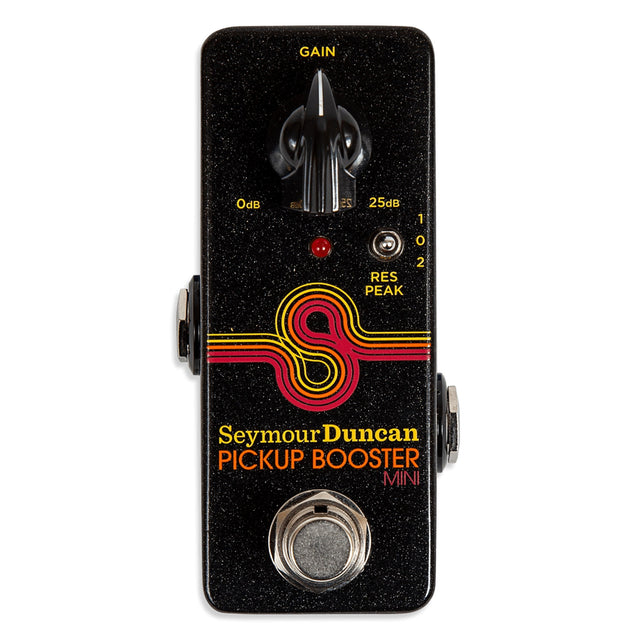

Seymour Duncan Pickup Booster Mini Guitar Boost Pedal

Seymour Duncan Pickup Booster Mini Guitar Boost Pedal

Seymour Duncan Pickup Booster Mini is a guitar boost pedal designed for electric guitar signal enhancement in pedalboard setups. It enables adjustable clean gain and pickup interaction for guitar players supporting live performance and studio signal chains. This makes it ideal for compact pedalboards where controllable boost and tonal interaction are critical.

The pedal operates using a fully discrete Class A circuit with true bypass switching to maintain signal integrity when disengaged. A resonance switch allows the circuit to interact directly with guitar pickups, altering response characteristics without changing the core signal path.

This design allows players to adapt a single instrument to different tonal roles during a performance. It supports consistent signal strength across long cable runs and flexible gain staging without altering amplifier settings.

Key Features

• Discrete Class A Circuit: Fully discrete design engineered for clean gain and pickup interaction.
• Adjustable Gain Control: Provides variable boost for matching output levels or driving amplifiers.
• Resonance Switch: Alters pickup response to simulate different tonal characteristics.
• True Bypass Switching: Preserves the original signal path when the pedal is disengaged.
• Compact Pedal Format: Designed to fit easily on space-limited pedalboards.

Technical Specifications

Type of Circuitry
Fully discrete, Class A

Gain Range
0 to 25 dB

Bypass
True bypass

Frequency Response
-3 dB at 30Hz and 38 kHz

Distortion
<0.02% at 200mV RMS output

Noise
-120 dBV referred to input with gain set at 25dB

Input Impedance
250k Ohms when effect is on

Output Impedance
150 Ohms

Power Requirements
9 to 18V regulated DC adapter center negative

Current Consumption
4.5mA at 9V when LED is on

Dimensions
1.52" x 3.65" x 2.125"
