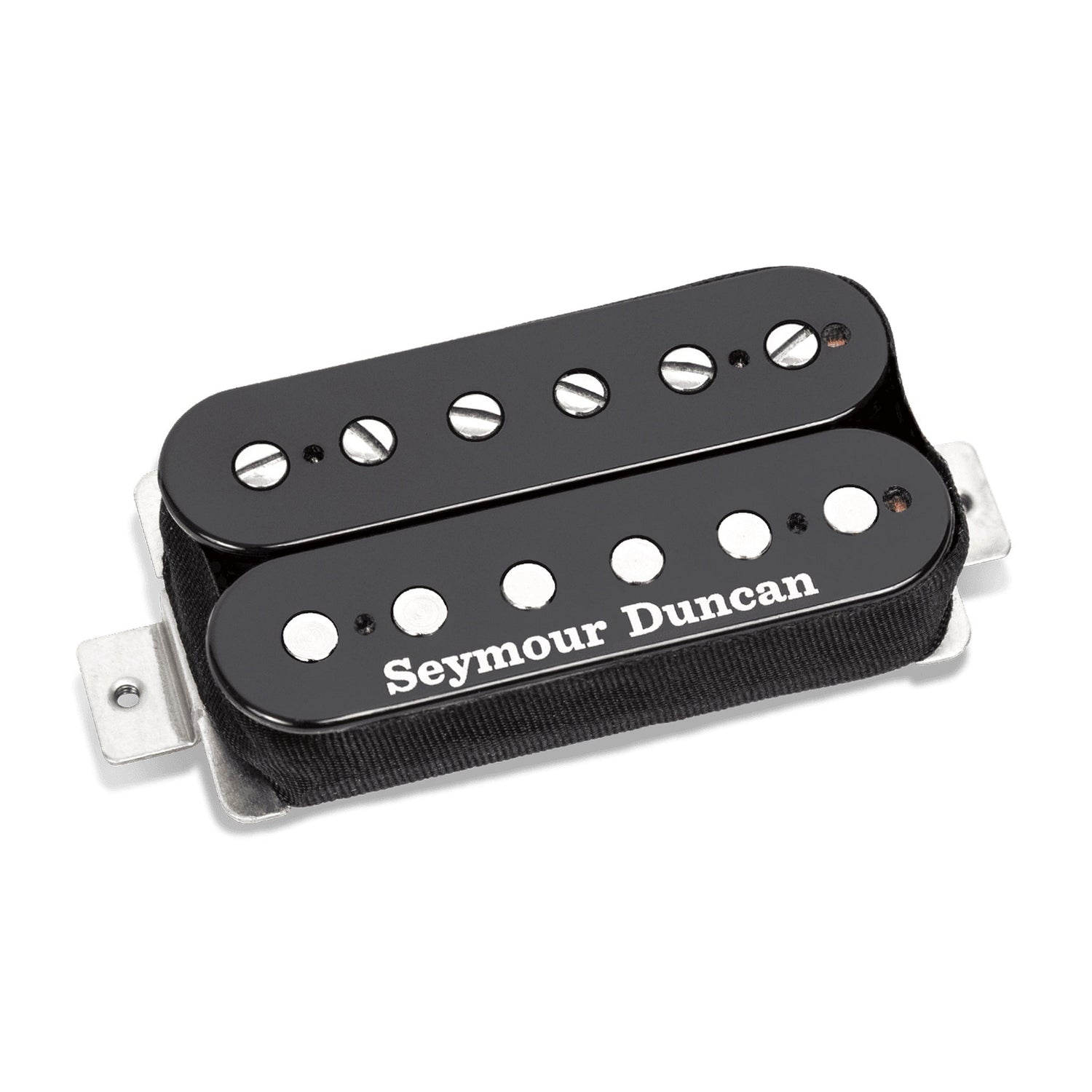

Seymour Duncan SH-2 Jazz Model Classic Output Humbucker Pickup, Black
Seymour Duncan | SKU: SEY-SH2NJAZZMODELBLK-1110201B
Loading...
$9900
Free Shipping
Unit price
/
Unavailable
More finance options:
Estimated Shipping Widget will be displayed here!
Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability.
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Seymour Duncan SH-2 Jazz Model Classic Output Humbucker Pickup
The SH-2 Jazz Model is a classic-output neck humbucker from Seymour Duncan, handcrafted in Santa Barbara, CA. It delivers bright, clear tone ideal for neck-position leads, clean rhythm passages, or adding sparkle to darker guitars. Its versatile voice and vacuum wax potting ensure squeal-free performance across genres.
Featuring an Alnico 5 bar magnet, specially formulated coil wind, and a nickel silver bottom plate, the Jazz neck offers glassy treble response, tight bass, and scooped mids that cut through high gain. Hand-built with a 4-conductor shielded cable, it supports coil-splitting, phase switching, and series/parallel wiring for tonal flexibility.
Key Features
- Pickup Type: Humbucker (Classic Output)
- Position: Neck
- Magnet: Alnico 5 bar magnet
- DCR (DC Resistance): 7.5 kΩ
- Cable: 4-conductor shielded lead wire
- Potting: Vacuum wax potted
- Polepiece Spread: 1.93" (49 mm)
- Number of Strings: 6
- Color: Black exposed coils
- Mounting Hardware: Height adjustment screws, springs, wiring diagram included
Technical Specifications
- Length: 2.69" (68.45 mm)
- Width: 1.43" (36.53 mm)
- Height: 1.07" (22.33 mm) including tabs
- DC Resistance: 7.5 kΩ (neck)
- Magnet Material: Alnico 5
- Lead Wire: 4-conductor shielded
- Type: Passive
- Polepiece Spread: 1.93" (49 mm)
- Strings: 6
- Color/Finish: Black exposed coils
- Manufacturer Part Number: 11102-01-B
What's Included
- Seymour Duncan SH-2 Jazz Model neck humbucker (6-string, black)
- 4-conductor shielded lead wire
- Mounting screws and springs
- Wiring diagram
