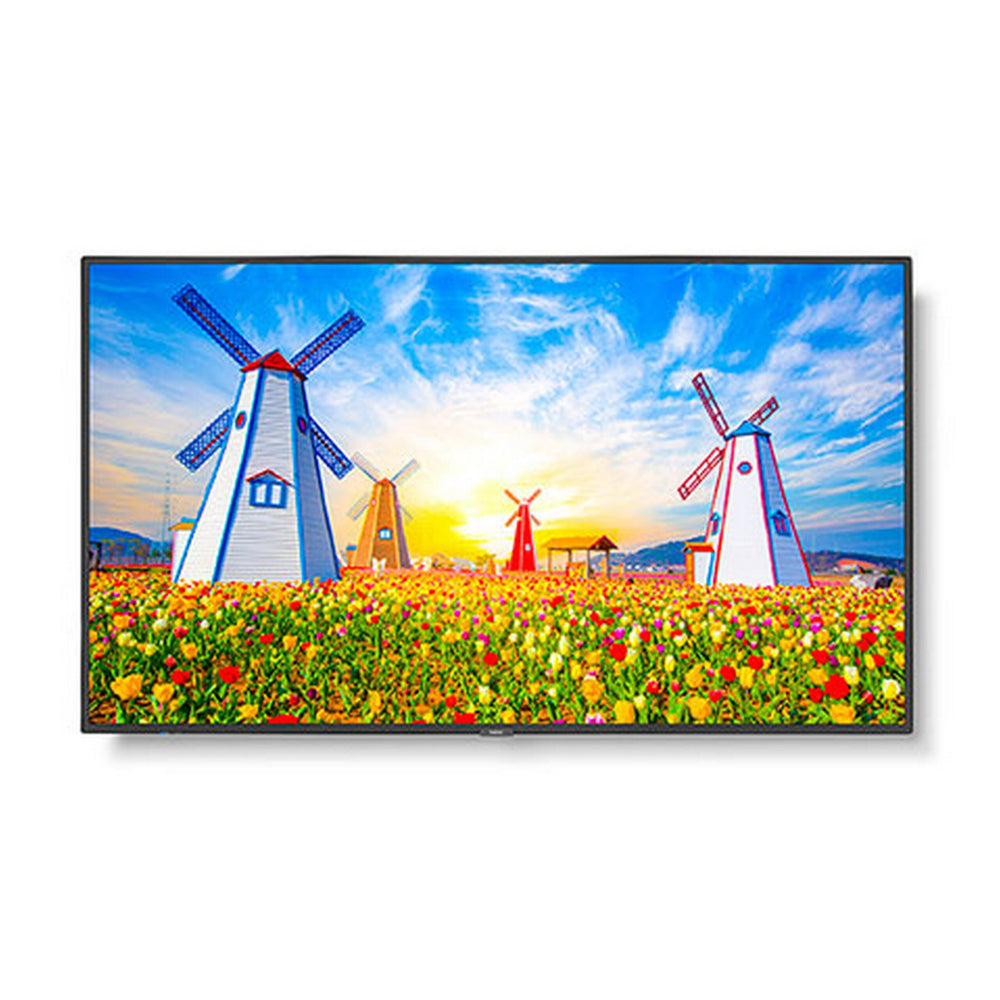

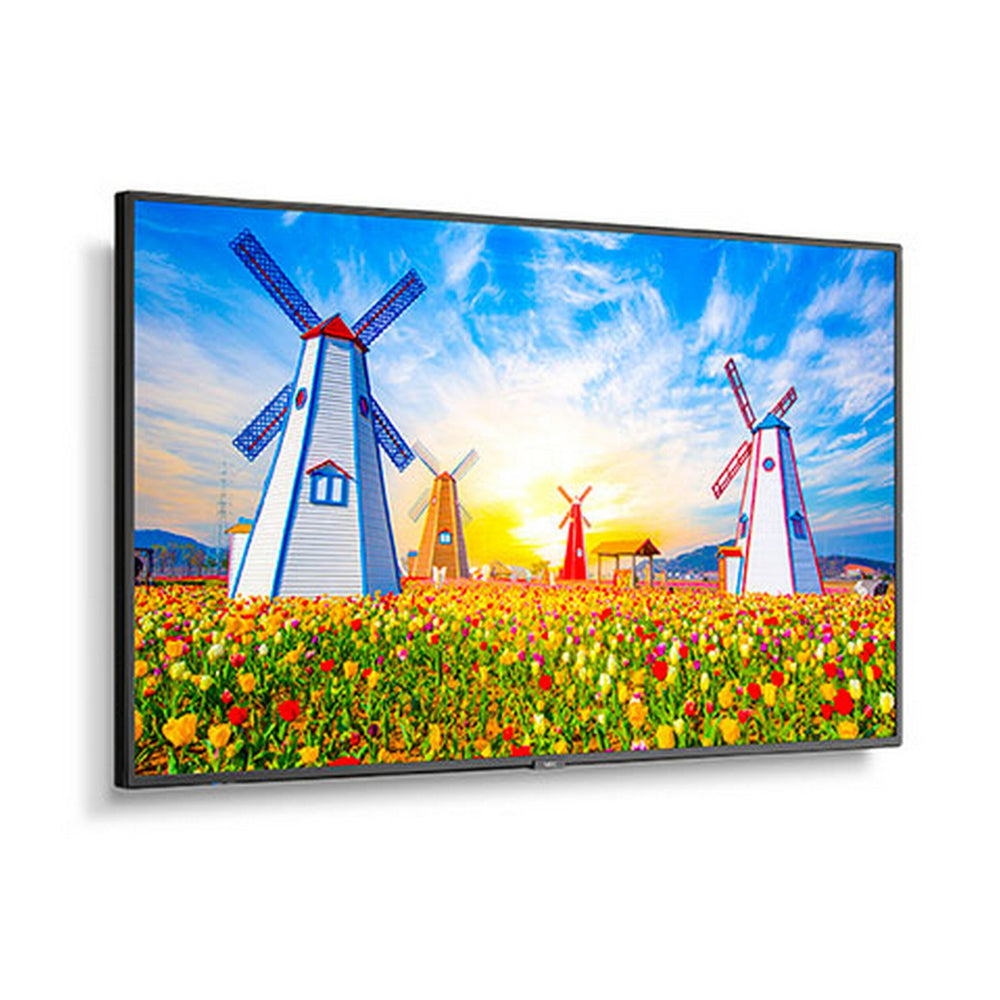

Sharp M651 65 Inch Ultra High Definition Professional Display

Create pixel-perfect imagery with the high-end panel quality of the fully professional NEC M Series large format displays. By focusing on customer needs while also offering professional reliability, the M series displays give customers a digital signage display lineup without all the costs. The M series can support both landscape and portrait orientations while also allowing the modularity possibilities to customize their needs dependent on their application and use. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. The NEC M series boasts 500 cd/m brightness which is ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail and grocery store environments when the focus should be on the message, not the budget.

Key Features

• 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
• Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
• Accepts Intel Smart Display Module Small or Large allowing for sleek all-in-one intelligence and interoperability in a small form factor setting by accepting Intel processor-based products and other peripherals directly into the displays
• Raspberry Pi Compute Module 4 allows for future proof expansion and NEC Mediaplayer support (Q2 2021)
• Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
• 500 cd/m2 brightness and HDR compatibility will capture the attention of audience in almost any situation
• Integrated Media Player allows for audio, video or image playback via USB
• Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
• Integrated Ambient Light Sensor allows the display to automatically adjust its luminance based on external brightness conditions
• Energy Star 8.0 Certified Product

Technical Specifications

Display
Panel Technology
IPS
Viewable Image Size
65”
Aspect Ratio
16:9
Native Resolution
3840x2160
Supported Resolutions
DisplayPort: V1.2 (HDCP 1.3/2.2) VGA60, SVGA60, XGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50 Hz/60 Hz, 576p@50 Hz, 480p@60 Hz, 3840x2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz), 4096x2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz) HDMI (HDCP 1.4/2.2) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920x1080 (60 Hz), 1080p, 1080i, 720p@50 Hz/60 Hz, 576p@50 Hz, 480p@60 Hz, 576i@50 Hz, 480i@60 Hz, 3840x2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60 Hz (MODE2)), 4096x2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60 Hz (MODE2))
Pixel Pitch
0.37 mm
Pixels Per Inch
68 @ native resolution
Backlight Type
LED Edge-lit
Brightness (typical)
500 cd/m2
Contrast Ratio (typical)
8,000:1 (Out of the box conditions, local dimming ON)
Viewing Angle (typical)
178 Vert., 178 Hor. (89U/89D/89L/89R) @ CR>10
Response Time (Gray to Gray)
8 ms
Refresh Rate
60Hz
Active Screen Area
56.24 x 31.6mm / 1428.5 x 803.5mm
Orientation
Landscape/Portrait
Dimming Capability
Local Dimming Capable
Displayable Colors
More than 1.08 billion (8-bit+FRC)
Color Temperature (Max) (K)
10000K
Color Temperature (Min) (K)
2600K
Gamma (Typical)
Native, 2.2, 2.4, S-Gamma, DICOM, Programmable1, Programmable2, Programmable3
Synchronization Range
Horizontal (Analog/Digital)
Digital: 26.0 - 135.0kHz
Vertical Digital: 23.0 - 86.0Hz
Input Signal
Video
Digital TMDS / DisplayPort
Signal Compatibility/Connectivity
PC Signal Compatibility
Yes
Macintosh Signal Compatibility
Yes
Video
Digital TMDS / DisplayPort
External Control
LAN and RS232 In - Full external control capabilities
Physical Specifications
Bezel Width (Left/Right, Top/Bottom)
0.49 in./0.49 in., 0.47 in./0.61 in. : 12.5 mm/12.5 mm, 12 mm/15.6 mm
Dimensions (WxHxD)
Without stand
57.4 x 32.9 x 2.5 in. / 1458.4 x 836.2 x 62.4 mm
Shipping
68.4 x 40.7 x 11.0 in. / 1736.0 x 1033.0 x 280.0mm
Weight
Net Weight (without stand)
81.8 lbs. / 37.1 kg.
Shipping
108.7lbs. / 49.3kg
