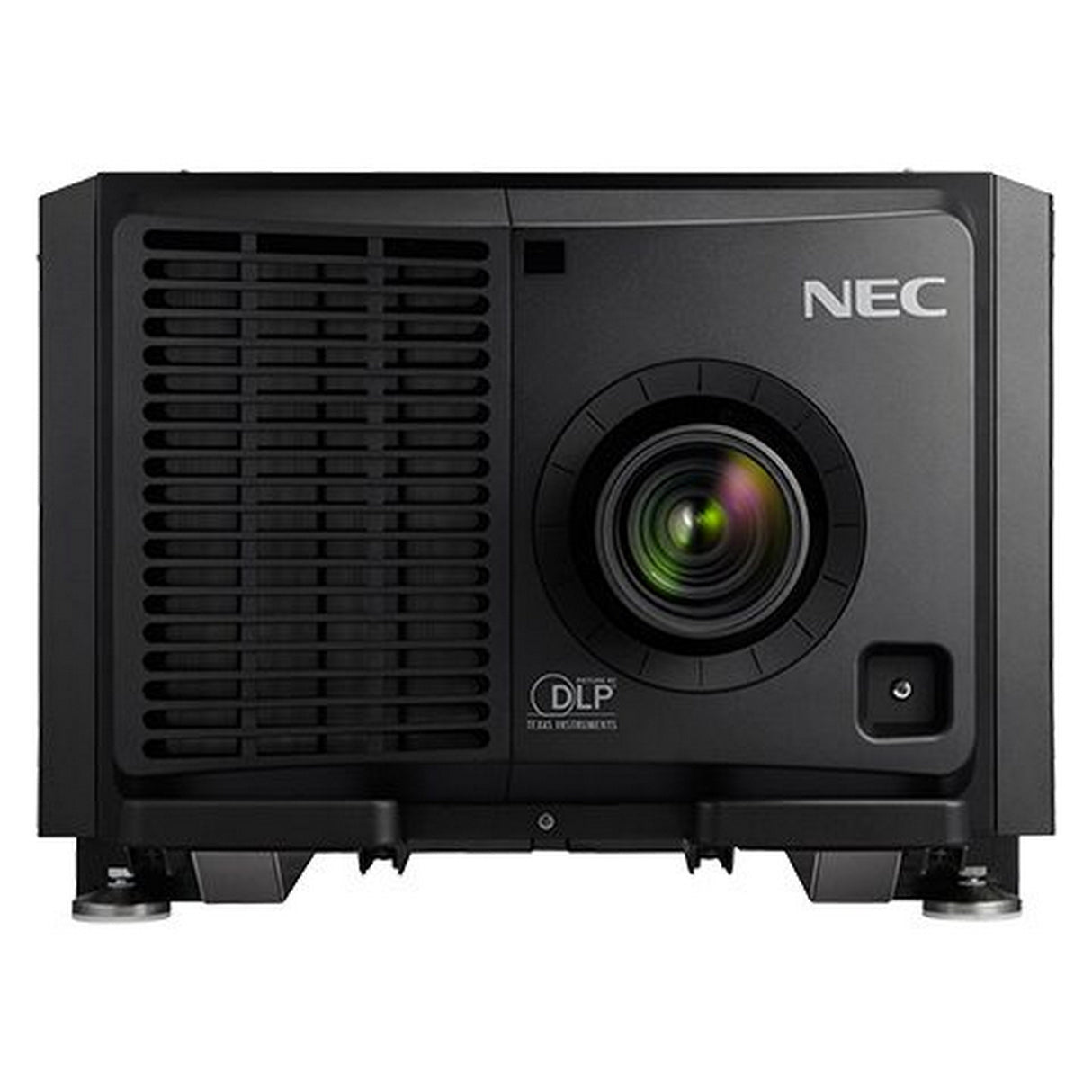

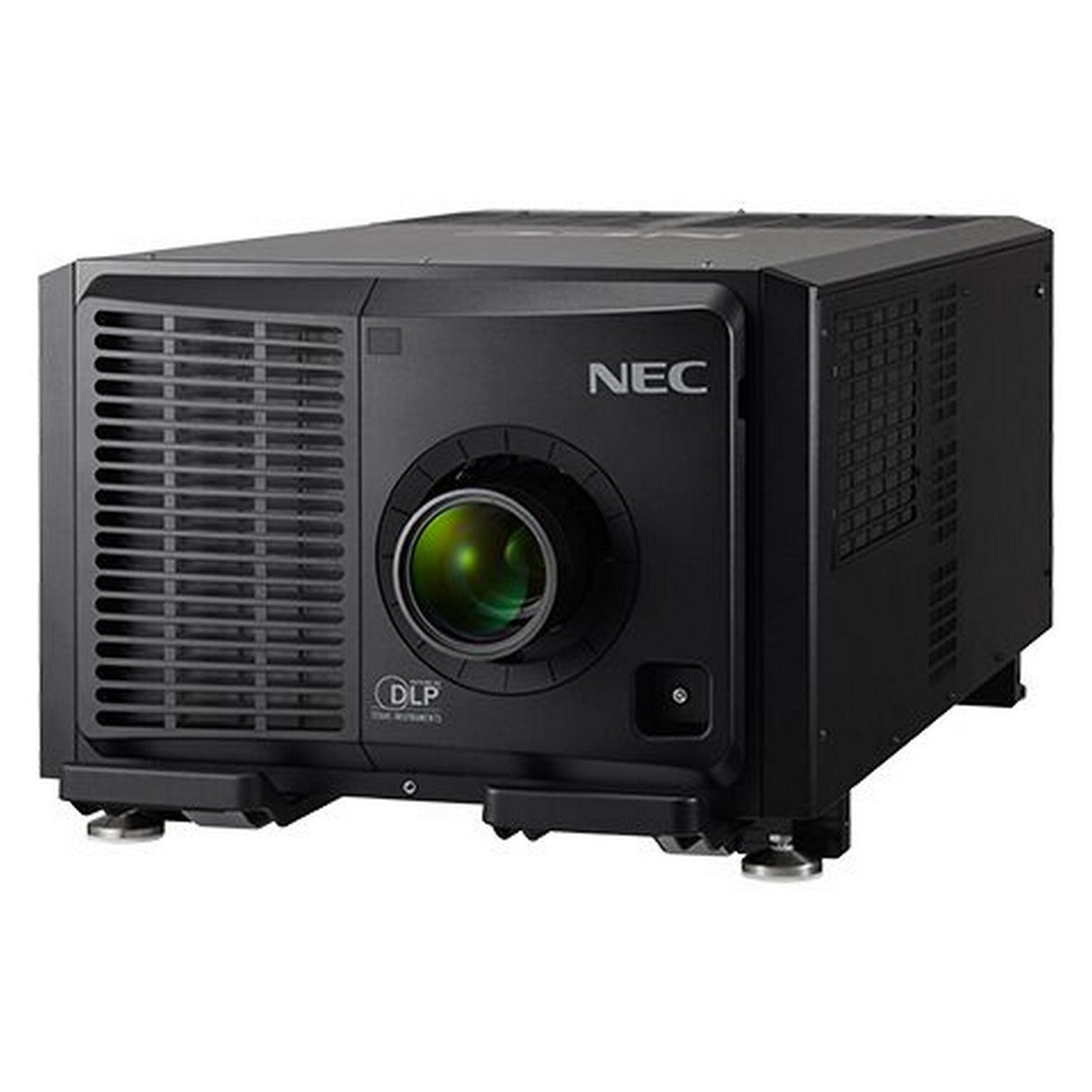

Sharp NP-PH3501QL 40,000 Lumen 4K Professional Laser Installation Projector
NEC's PH3501QL is a 40,000 Center Lumens (35,000 ANSI) 3-Chip DLP RB laser projector with advanced professional installation features for higher education, house of worship, rental & staging, museum and corporate users. Creates stunning real life video images using proprietary Digital Cinema Quality Video processing. extreme brightness and resolution also offer a seamless alternative to video walls. With its multitude of digital inputs, (Dual HDMI (V2.0) w/ HDCP (V1.4/2.2), Dual DisplayPort w/ HDCP (V.1.4), HDBaseT w/ HDCP (V1.4/2.2), Quad 3G-SDI and an OPS slot) connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional powered lenses (lens shift, focus and zoom), Built-in edge blending, stacking and geometric correction help support projection mapping when single or multiple projectors are required. The newly developed sealed optical engine creates a filter/maintenance free projector.
Key Features
- 4K (4096 x 2160) native resolution for unsurpassed image detail for demanding graphics design and CAD/CAM applications
- Display stunning 4K content using NEC's proprietary high performance video processing/scaling chip without the loss of critical details. 4K60P processing supported on all digital inputs from HDR10, BT.2020 signals using āUltra HD Blu-rayā and ā4K TV broadcastingā
- The latest RB laser light source produces extremely bright, dynamic images - even in high ambient lighting conditions
- Stable brightness (constant brightness) preserves image integrity over a longer time period
- High performance lenses with +/-50% vertical lens shift providing for unprecedented installation flexibility
Technical Specifications
Display
Aspect Ratio
1.9:1
Maximum Resolution
4K 4096 x 2160
Native Resolution
4K 4096x2160
Contrast Ratio (typical)
30,000:1 with Dynamic Contrast
Synchronization Range
Horizontal (Analog/Digital)
Analog: 15-100kHz, Digital: 24-153kHz
Vertical Analog: 48-120Hz, Digital: 24-120Hz
Signal Compatibility/Connectivity
Supported Video Standards
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
PC Signal Compatibility
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA, 4K
Macintosh Signal Compatibility
Yes
Sync Compatibility
Separate Sync / Composite Sync / Sync on G
External Control
RS-232, IR, DDC/CI, USB
Dimensions (WxHxD)
Product
27.4 x 46.5 x 17.9 in. / 697 x 1180 x 455mm
Net Weight
372.6 lbs. / 169 kg
