Audio-Technica AT8015 18.1in Line Gradient Microphone Video Broadcast Production

Audio-Technica AT8015 18.1in Line Gradient Microphone Video Broadcast Production

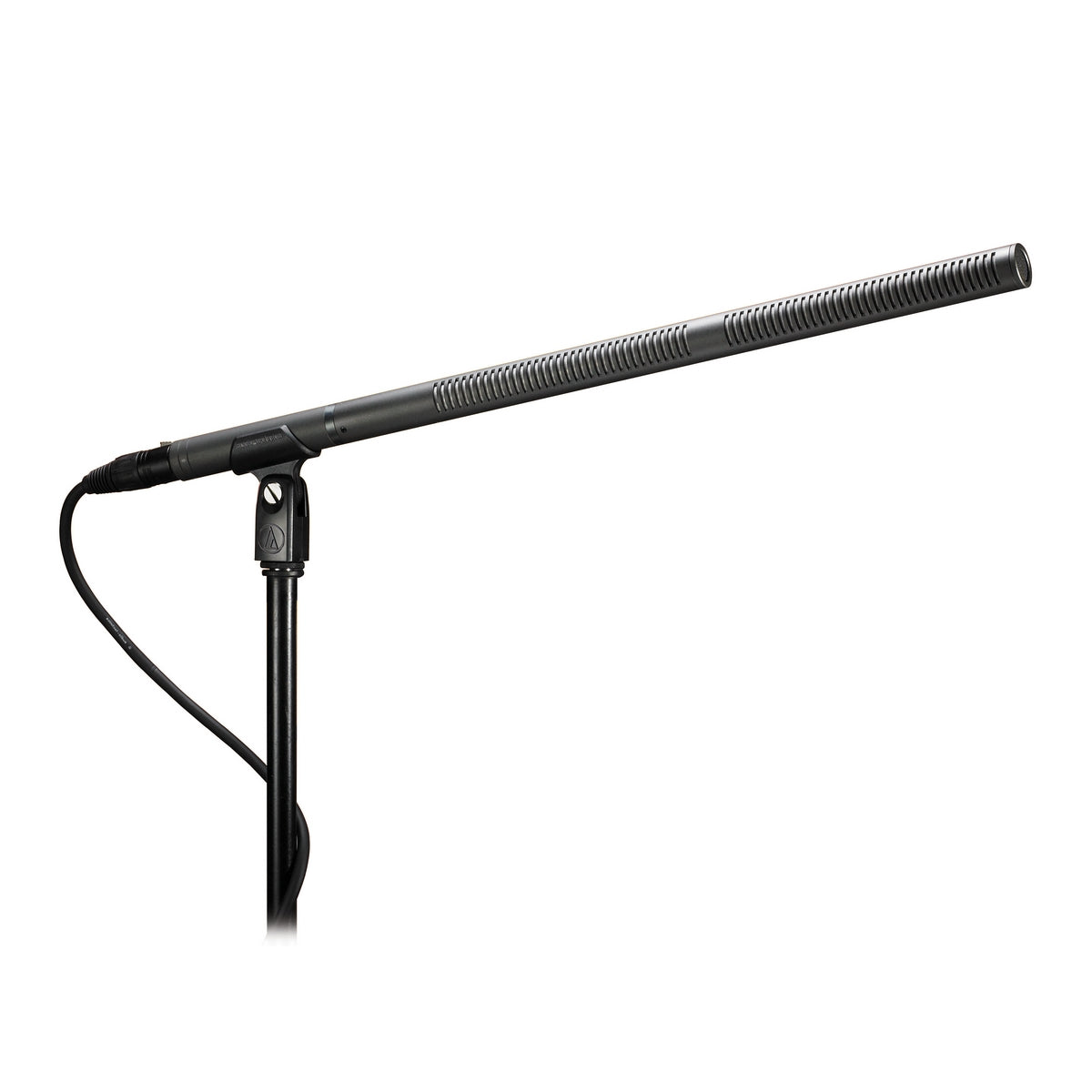

The Audio-Technica AT8015 is a premium 18.1-inch line gradient microphone designed specifically for video production and broadcast applications (ENG/EFP). This versatile mic delivers the narrow acceptance angle essential for long-distance sound capture, providing excellent audio quality. Its robust design ensures exceptional sound rejection from the sides and rear, making it an ideal choice for professional audio acquisition in various environments.

Whether you are working on a bustling film set, covering an outdoor event, or doing studio interviews, the AT8015 offers superior performance with its switchable low-frequency roll-off feature. This functionality significantly reduces low-frequency ambient noise, such as traffic sounds or air-handling systems, along with room reverberation and mechanical vibrations. Additionally, this microphone operates efficiently on both battery and phantom power, offering a great deal of flexibility during use. Furthermore, it is RoHS compliant, ensuring that it is free from all harmful substances specified by the EU directive on hazardous substances.

Key Features

• Designed for video production and broadcast (ENG/EFP) audio acquisition
• Provides the narrow acceptance angle desired for long-distance sound pickup
• Excellent sound rejection from the sides and rear of the microphone
• Switchable low-frequency roll-off to minimize ambient noise
• Operates on either battery or phantom power
• Compliant with RoHS directives

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Line + gradient
• Frequency Response: 40-20,000 Hz
• Low Frequency Roll-Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: Phantom: -38 dB (12.5 mV) re 1V at 1 Pa; Battery: -39 dB (11.2 mV) re 1V at 1 Pa
• Impedance: Phantom: 250 ohms; Battery: 300 ohms
• Maximum Input Sound Level: Phantom: 132 dB SPL, 1 kHz at 1% T.H.D.; Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range (typical): Phantom: 110 dB, 1 kHz at Max SPL; Battery: 98 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 72 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 2 mA typical
• Battery Type: 1.5V AA/UM3
• Battery Current / Life: 0.4 mA / 1200 hours typical (alkaline)
• Switch: Flat, roll-off
• Weight: 195 g (6.9 oz)
• Dimensions: 460.0 mm (18.11 inches) long, 21.0 mm (0.83 inches) diameter
• Output Connector: Integral 3-pin XLRM-type

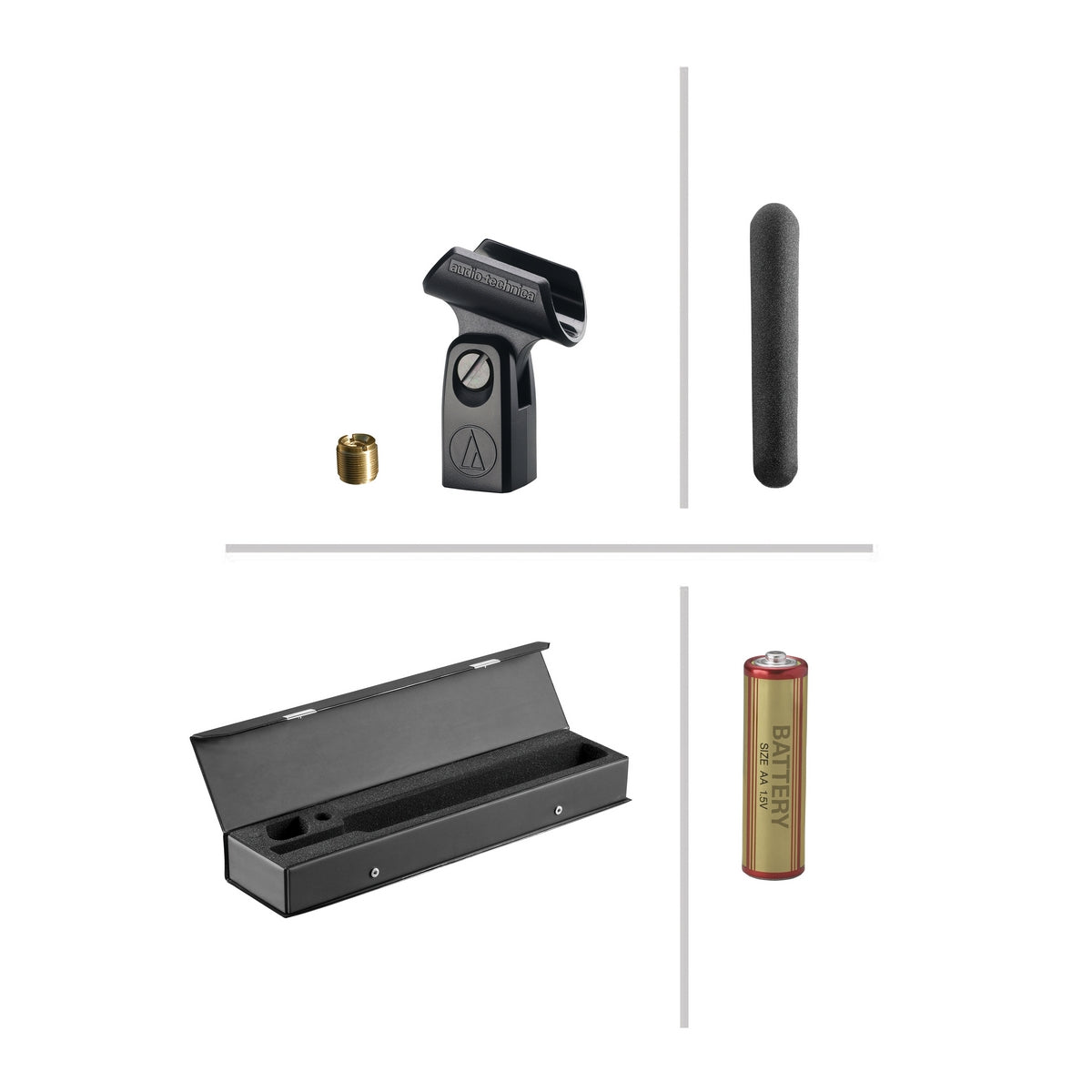

Package Contents

• AT8015 Microphone
• AT8405a stand clamp for 5/8-inch – 27 threaded stands
• 5/8-inch – 27 to 3/8-inch – 16 threaded adapter
• AT8135 windscreen
• 1.5V AA battery
• Protective carrying case
