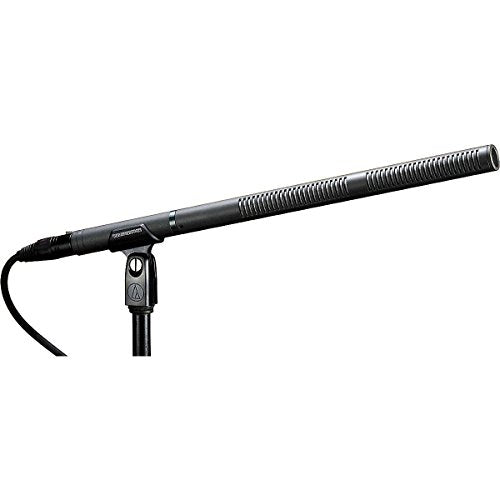

Audio-Technica AT8035 14.5in Line Gradient Condenser ENG Outdoor Recording Microphone

Audio-Technica AT8035 14.5in Line Gradient Condenser ENG Outdoor Recording Microphone

The Audio-Technica AT8035 is a 14.5-inch Line + Gradient Condenser Microphone elegantly designed for professional video production and broadcast use. Its ample length makes it ideal for ENG, outdoor recordings, and other specialized audio capturing scenarios. Whether you're utilizing it with a boom or handheld, this microphone ensures unparalleled audio quality by providing a narrow acceptance angle for long-distance sound pickup. Its excellent sound rejection from the sides and rear, along with a switchable low-frequency roll-off, makes it a reliable choice for any professional setting. The AT8035 operates on either battery or phantom power, delivering versatile usage options.

This microphone is designed to meet the rigorous demands of audio professionals. Its fixed-charge back plate and permanently polarized condenser element provide a robust and durable structure. The microphone is RoHS compliant, meaning it is free from all hazardous substances specified in the EU directive. Whether it's for live broadcasting, studio recording, or field work, the AT8035 ensures that high-quality audio acquisition is always within reach.

Key Features

• Designed for video production and broadcast (ENG/EFP) audio acquisition
• Length is well-suited for ENG, outdoor recording, and other specialized uses
• Provides a narrow acceptance angle desirable for long-distance sound pickup
• Excellent sound rejection from the sides and rear of the mic
• Switchable low-frequency roll-off
• Operates on battery or phantom power
• RoHS compliantfree from all substances specified in the EU directive on hazardous substances

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Line + gradient
• Frequency Response: 40-20,000 Hz
• Low Frequency Roll-Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: Phantom: -38 dB (12.5 mV) re 1V at 1 Pa; Battery: -39 dB (11.2 mV) re 1V at 1 Pa
• Impedance: Phantom: 250 ohms; Battery: 300 ohms
• Maximum Input Sound Level: Phantom: 132 dB SPL, 1 kHz at 1% T.H.D.; Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range (typical): Phantom: 110 dB, 1 kHz at Max SPL; Battery: 98 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 72 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 2 mA typical
• Battery Type: 1.5V AA/UM3
• Battery Current/Life: 0.4 mA / 1200 hours typical (alkaline)
• Switch: Flat, roll-off
• Weight: 170 g (6.0 oz)
• Dimensions: 369.0 mm (14.53 inches) long, 21.0 mm (0.83 inches) diameter
• Output Connector: Integral 3-pin XLRM-type

Package Contents

• AT8405a stand clamp for 5/8"-27 threaded stands
• 5/8"-27 to 3/8"-16 threaded adapter
• AT8132 windscreen
• Battery
• Protective carrying case
