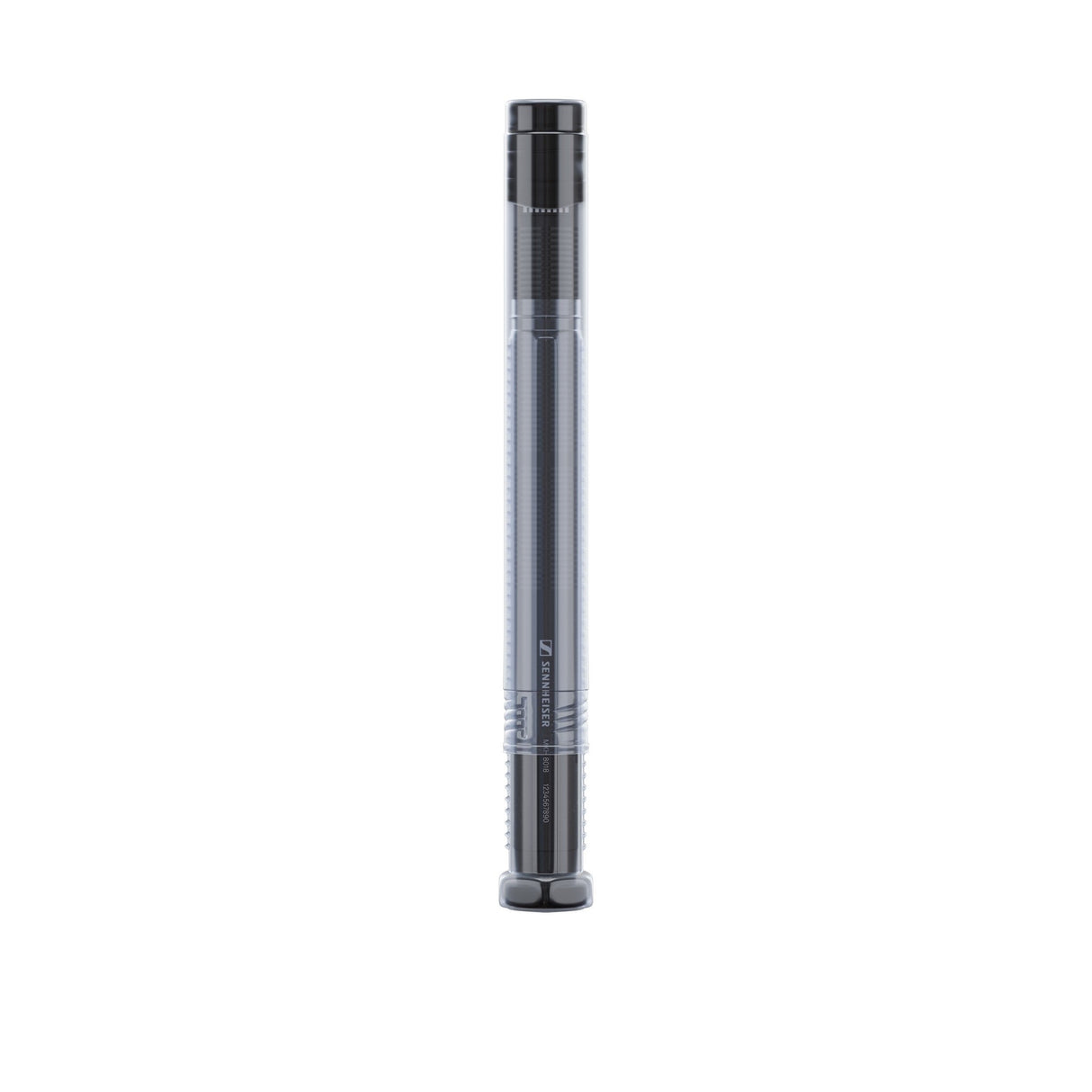

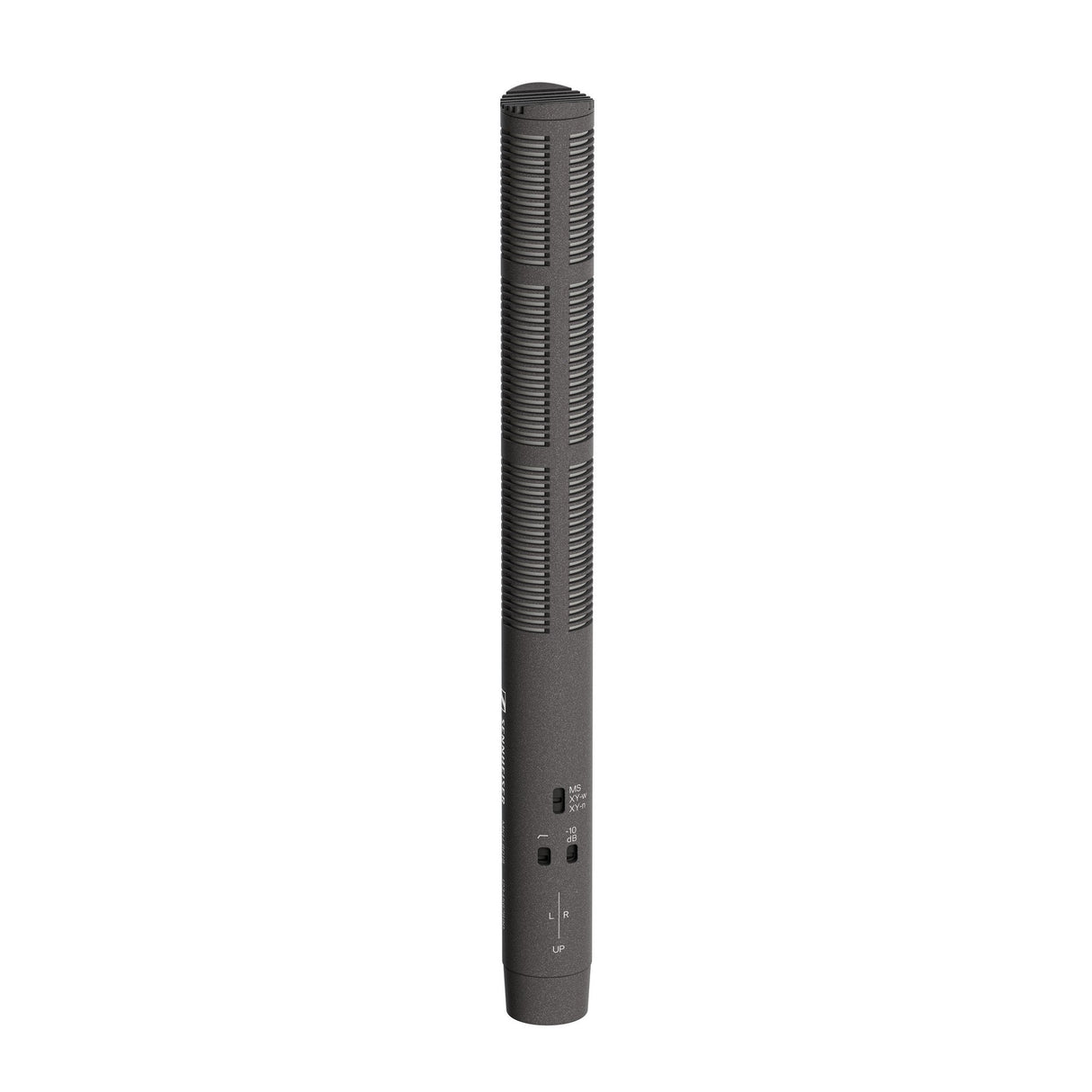

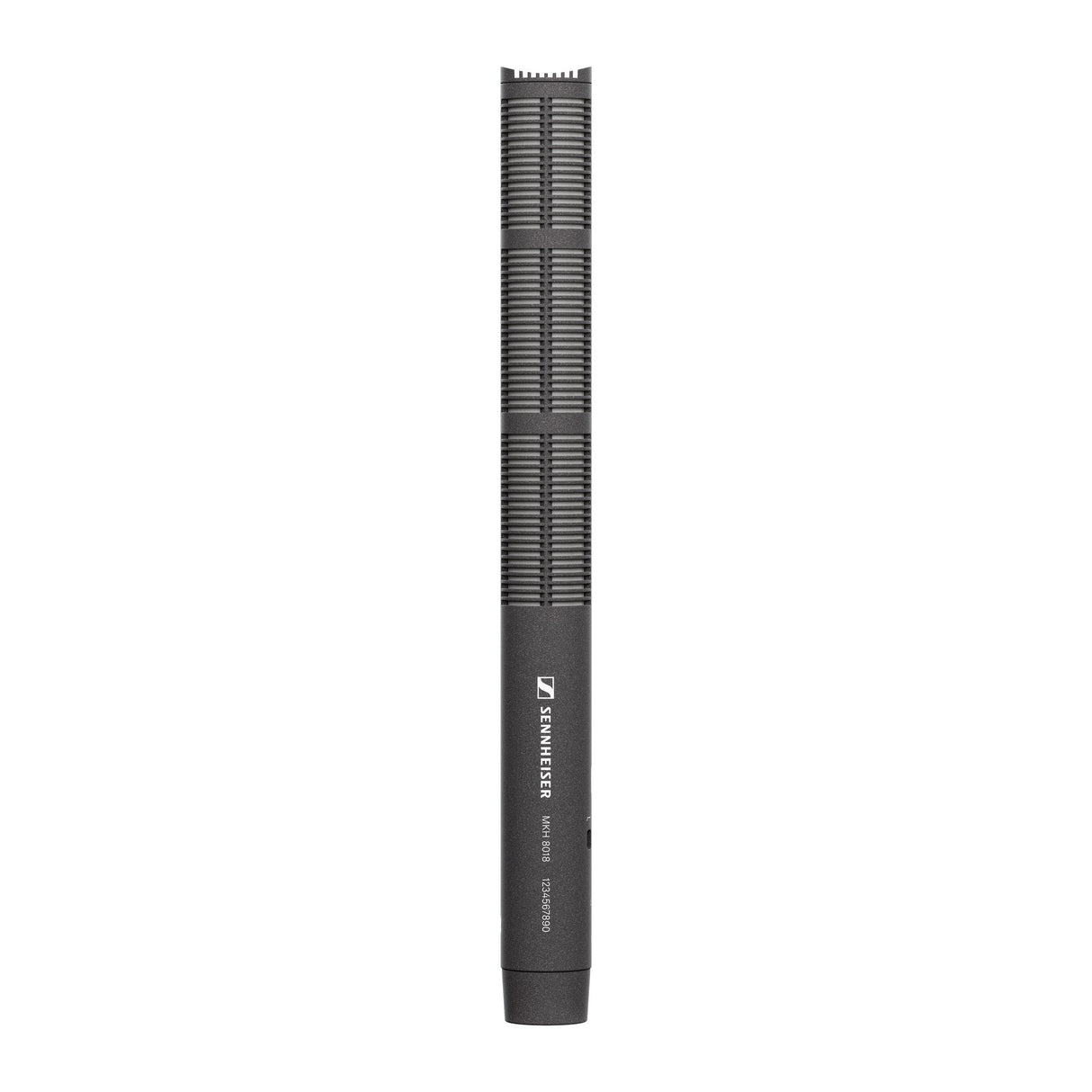

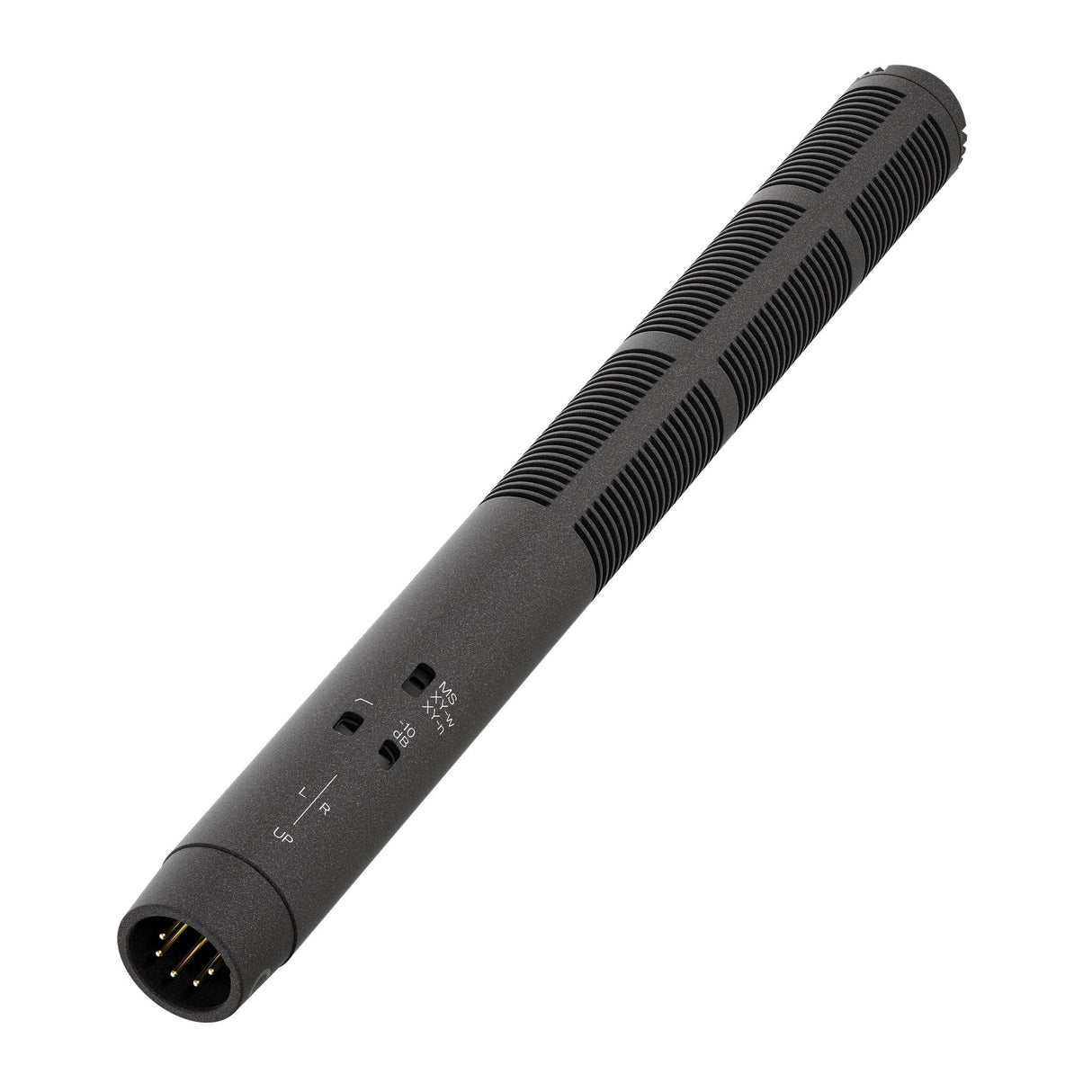

Sennheiser MKH 8018 Stereo Shotgun RF Condenser Microphone

Sennheiser MKH 8018 Stereo Shotgun RF Condenser Microphone

The Sennheiser MKH 8018 is a state-of-the-art stereo shotgun RF condenser microphone designed to deliver exceptional directionality and spatial realism. Its advanced stereo capsule configuration makes it an ideal choice for capturing immersive audio in film and video productions, providing a rich and authentic sound experience. Whether you're recording screenplay scenes, sporting events, or environmental sounds, the MKH 8018 ensures precise and natural audio reproduction.

Featuring three switchable stereo modes—MS, XY-narrow, and XY-wide—the MKH 8018 offers versatility to adapt to various recording scenarios. The switchable low-cut filter (-3 dB at 70 Hz) effectively reduces wind and handling noise, ensuring clear audio capture even in challenging environments. Additionally, the high-quality -10 dB pad protects against overloading, maintaining audio integrity during high-pressure sound events.

Designed with a compact form factor, the MKH 8018 is perfect for camera mounting, allowing seamless integration into your recording setup. Its fully floating balanced output minimizes distortion, providing clean and accurate audio signals. The microphone's low-tension diaphragm and symmetrical transducer design contribute to its remarkable sensitivity and wide frequency response, capturing sound with unparalleled authenticity.

Key Features

• Stereo shotgun capsule configuration for immersive directionality and spatial realism
• Three switchable stereo modes: MS, XY-narrow, and XY-wide
• Switchable low-cut filter (-3 dB at 70 Hz) to reduce wind and handling noise
• High-quality -10 dB pad to prevent overloading
• Compact design ideal for camera mounting
• Fully floating balanced output for minimal distortion
• Low-tension diaphragm and symmetrical transducer for high sensitivity and wide frequency response

Technical Specifications

Transducer Principle: RF condenser microphone
Frequency Response: 10 Hz to 60,000 Hz
Equivalent Noise Level: A-weighted 10 dB(A), CCIR-weighted 21 dB
Maximum Sound Pressure Level: 138 dB SPL
Audio Output: XLR-3M balanced, transformerless, floating
Operating Temperature: 14°F to 140°F (-10°C to 60°C)
Phantom Power: 48 V ±4 V (P48, IEC 61938)
Current Consumption: 3.3 mA
Sensitivity: -30 dBV/Pa
Nominal Impedance: 25 Ω
Minimum Terminating Impedance: 1,000 Ω
Dimensions: Diameter 0.75" (19 mm), Length 2.91" (74 mm) including XLR module
Weight: 0.88 lbs (400 g)
