Shure SLXD24D/B58 Wireless Dual Handheld Microphone System with Beta 58 - G58: 470 - 514 MHz

Shure SLXD24D/B58 Wireless Dual Handheld Microphone System with Beta 58

Introducing the cutting-edge Shure SLXD24D/B58 Wireless Dual Handheld Microphone System with Beta 58, designed for both professional live performances and lecture halls. This state-of-the-art wireless system features two Beta 58 Supercardioid Dynamic Microphone capsules mounted on SLXD2 handheld wireless transmitters. Known for delivering transparent, 24-bit digital audio and dependable RF stability, this system ensures your voice is heard with crystal clarity.

The SLXD24D/B58 excels in providing clear digital audio and reliable performance, making setup quick and seamless. The system supports up to 32 compatible systems per 44 MHz band, making it ideal for large events. Optional rechargeable accessories ensure wireless excellence on the go, making this an essential tool for any presenter or performer looking to connect with their audience effortlessly.

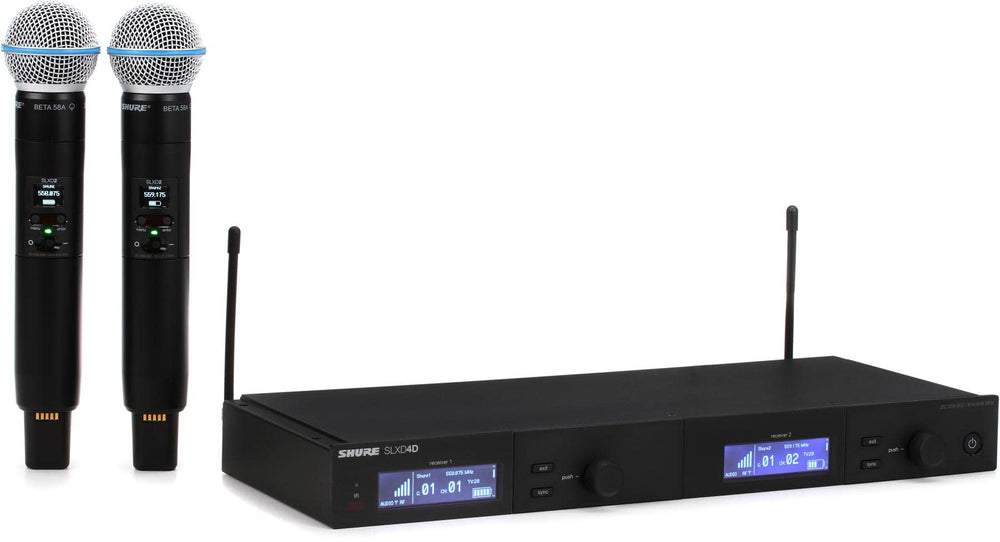

The package includes a dual-channel receiver (SLXD4D), two handheld transmitters (SLXD2/B58), antenna and rackmount accessories, and 4 AA batteries. Everything you need to amplify your message and performance is included, ensuring a professional-grade audio experience every time.

Key Features

• Transparent 24-bit digital audio delivering clear sound quality
• Extended 20 Hz to 20 kHz frequency range
• 118dB dynamic range for superior sound
• Digital predictive switching diversity
• Tuning bandwidth of 44 MHz, region-dependent
• Up to 32 available channels per frequency band, region-dependent
• Supports up to 10 compatible systems per 6MHz TV band and 12 systems per 8MHz band
• Simple transmitter and receiver pairing via IR scan and sync
• Automatic channel scan feature
• Link multiple receivers for group scans and firmware updates via Ethernet port
• Compatible with Shure Wireless Workbench control software
• Remote monitoring and control via ShurePlus Channels app
• Third-party setup and control via Ethernet
• Elegant, user-friendly interface with high-contrast LCD menu
• Guided setup mode for smooth operation
• Transmitters operate on 2 AA batteries or Shure SB903 rechargeable battery

Specifications

• SLXD2 Handheld Transmitter
  • Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
  • Dimensions: 37.1 x 176 mm (1.46 x 6.93 in.), D x L
  • Weight: 147 g
  • Housing: Aluminum
  • Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
  • Antenna Type: Integrated Single Band Helical
  • Occupied Bandwidth: < 200 kHz
  • Modulation Type: Shure proprietary digital
  • Power: 1 mW or 10 mW
• SLXD4 / SLXD4D Rack Receiver
  • Dimensions: SLXD4: 42 x 197 x 152 mm (1.65 x 7.76 x 5.98 in.), H x W x D
  • SLXD4D: 42 x 393 x 152 mm (1.65 x 15.47 x 5.98 in.), H x W x D
  • Weight: SLXD4: 816 g, without antennas; SLXD4D: 1451 g, without antennas
  • Housing: Galvanized Steel
  • Power Requirements: 15 V DC @ 600 mA, supplied by external power supply (tip positive)
  • Spurious Rejection: > 75 dB, typical
  • Connector Type: BNC
  • Impedance: 50 Ω
  • Phantom Power Protection: 1/4" (6.35 mm): Yes, XLR: Yes
  • Gain Adjustment Range: -18 to +42 dB in 1 dB steps
  • Configuration: 1/4" (6.35 mm): Balanced (Tip = audio +, Ring = audio -, Sleeve = ground), XLR: Balanced (1=ground, 2=audio +, 3=audio -)
  • Impedance: 1/4" (6.35 mm): 1.3 kΩ (670 Ω Unbalanced), XLR (line): 400 Ω (200 Ω Unbalanced), XLR (mic): 150 Ω
  • Full Scale Output: 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single), XLR: LINE setting= +15 dBV, MIC setting= -15 dBV
  • Mic/Line Switch: 30 dB pad
  • Network Interface: Single Port Ethernet 10/100 Mbps
  • Network Addressing Capability: DHCP or Manual IP address
  • Maximum Cable Length: 100 m (328 ft)

Package Contents

• 1 dual channel receiver
• 2 handheld transmitters with mic cartridge
• 2 mic clips
• 2 brass adapters for the mic clip
• 4 AA batteries
• 2 1/4 wave antennas
• 2 bulkhead adapters
• 2 22" BNC cables
• 1 power supply
• 2 black vinyl zippered bags
• 2 rack mount brackets (short)
• 1 hardware kit
• 1 quick start guide
• 1 warranty card
• 4 adhesive foot pads
