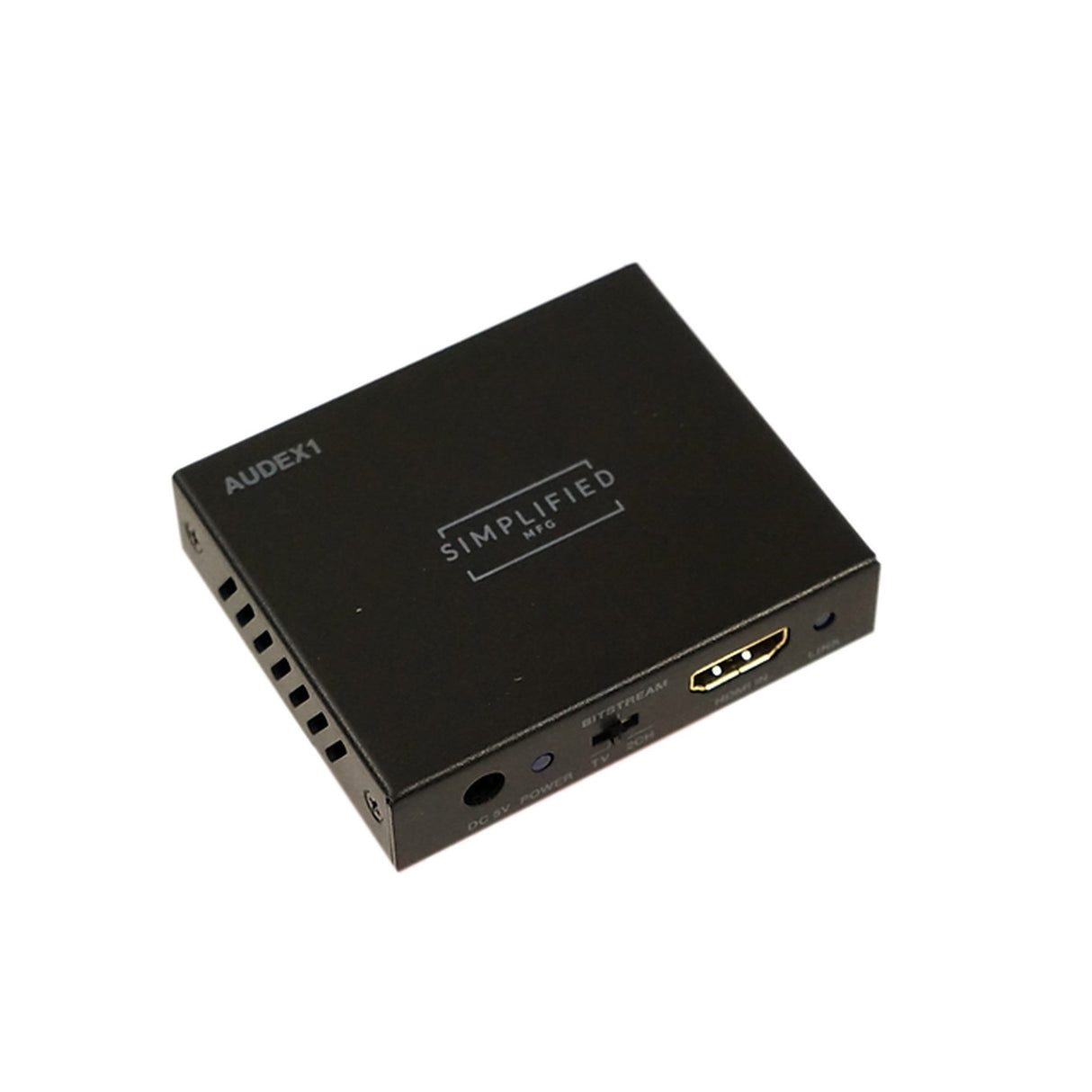

Simplified MFG AUDEX1 HDMI 18Gbps Audio Extractor
Simplified MFG AUDEX1 HDMI 18Gbps Audio Extractor
Simplified MFG AUDEX1 HDMI 18Gbps Audio Extractor
The AUDEX1 HDMI 18Gbps Audio Extractor extracts audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Both input and output HDMI connections support video resolution up to 4K2K@50/60Hz (YUV444) while supporting HDR 8, 10, 10+, and Dolby Vision pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.
Key Features
- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
- Video resolutions up to 4K2K@50/60Hz (YUV444)
- Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
- Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
- Supports HDMI High Bit Rate (HBR) audio pass through
- Audio sample rates up to 192kHz
- HDR 8, 10, 10+, and Dolby Vision (High Dynamic Range) pass through
- Supports CEC bypass
- 3-Year Warranty
Technical Specifications
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 and HDCP 1.4
Video Bandwidth
18 Gbps
Video Resolutions
up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
8-bit, 10-bit, & 12-bit
HDMI Audio Formats (Pass-through)
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats
LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
L/R Audio Formats
Analog Stereo 2CH
ESD Protection
Human body model - ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs
1x HDMI Type A <19-pin female>
Outputs
1x HDMI Type A <19-pin female>
1x L/R Audio Out <3.5mm Stereo Mini-jack>
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
73.5mm/2.9”
Weight
130g/4.6 oz.
Power Supply Input
AC100 - 240V 50/60Hz
Power Supply Output
DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption
1W (Max)
Operation Temperature
32 - 104 Degrees F / 0 - 40 Degrees C
Storage temperature
-4 - 140 Degrees F / -20 - 60 Degrees C
Relative Humidity
20 - 90% RH (no condensation)
