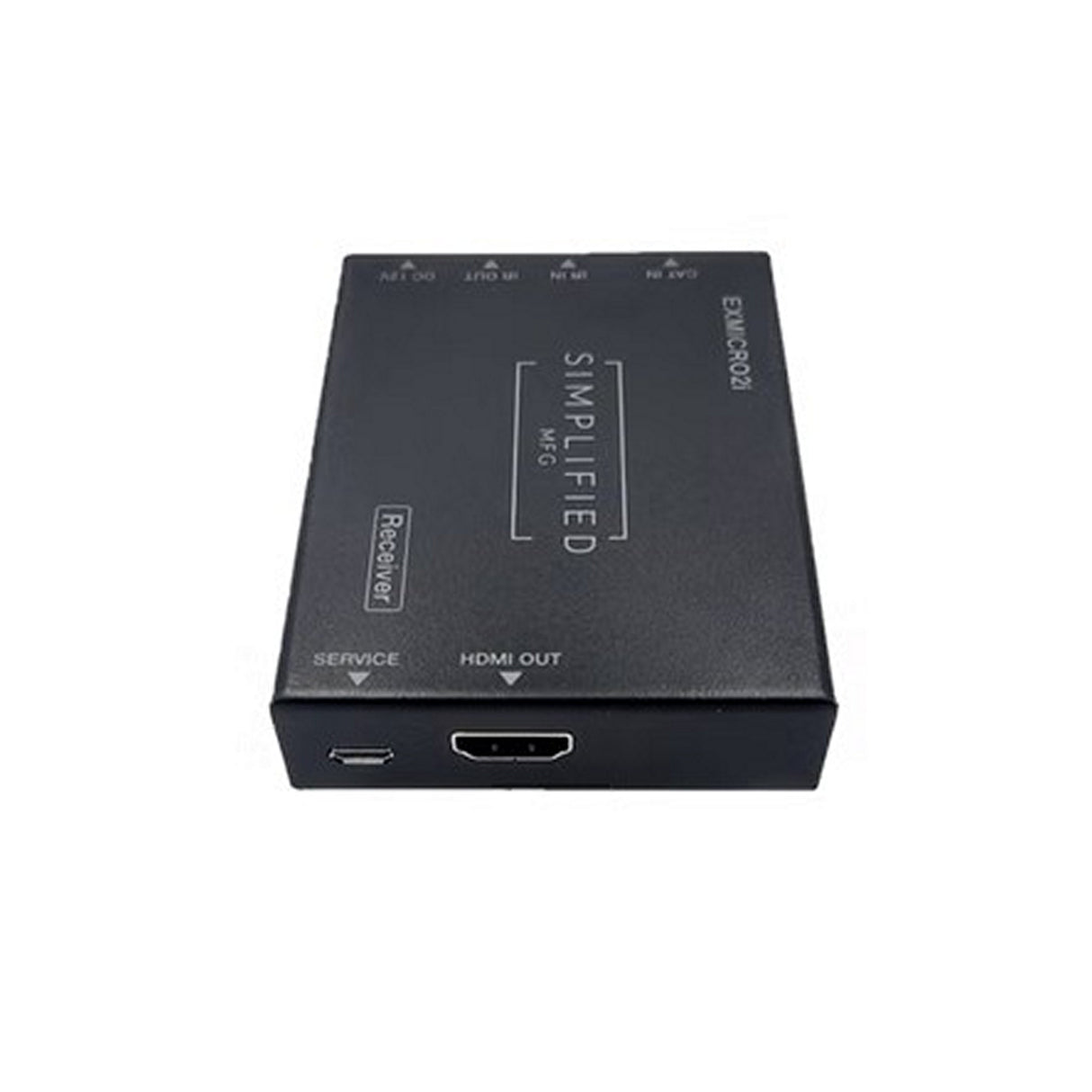

SIMPLIFIED MFG EXMICRO2i HDMI 2.0b 4K Category Cable Extender Kit
The SIMPLIFIED MFG EXMICRO2i is an advanced HDMI 2.0b extender system designed to transmit uncompressed 4K HDR video and multi-channel audio signals up to 50 meters (164 ft) over a single category cable. Utilizing efficient technology, it delivers full 18 Gbps HDMI bandwidth, supports HDR10+ and Dolby Vision, and features a local HDMI loop-out at the transmitter for convenience in commercial and residential AV installations.
This kit provides single-ended power (either TX or RX can be powered), robust EDID management, and bi-directional IR pass-through (control system compatible). Its compact metal enclosure, low power draw, and extensive compatibility make it an ideal solution for demanding installations where HDMI cable runs are impractical or impossible.
Key Features
- HDMI Compliance: HDMI 2.0b (18 Gbps)
- HDCP Compliance: HDCP 2.2 & 1.4
- Supports HDR10+ and Dolby Vision
- Local HDMI Loop Out on TX
- EDID Management: Flexible for 4K/60Hz or 1080p, and display EDID copy
- Bi-directional 12V IR Pass-through: Control system compatible (includes IR RX & TX)
- Single-Ended Power: Either transmitter or receiver can power the system
- Transmission Distance: Up to 50 m (164 ft) for 4K/1080p signals over Cat5e/6/7 cable
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
- Color Depth: 10-bit
- HDMI Audio Formats (Pass-through): LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- Metal Enclosure: Compact, black finish
- 3-Year Warranty
- Ultra-Efficient Power Consumption: Only 4W (max), approx. 70% less than typical extenders
- ESD Protection: ±8kV (air-gap), ±4kV (contact)
Technical Specifications
- Dimensions (each): 3.5″ × 2.525″ × 0.75″ (90 mm × 68 mm × 15 mm)
- Weight (each): 6 oz (0.17 kg); 12 oz (0.34 kg) per kit
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.2, HDCP 1.4
- Video Bandwidth: 18 Gbps
- Supported Video Resolutions: Up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080p@120Hz, 1080p 3D@60Hz
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
- Color Depth: 10-bit
- Audio Formats (Pass-through): LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- Inputs: TX: HDMI Type A (19-pin), IR input (3.5 mm), Mini-USB (service)
- Outputs: TX: HDMI Type A, RJ45, IR output (3.5 mm); RX: HDMI Type A, IR output (3.5 mm)
- Power Supply: Input: AC100-240V, Output: DC 12V/1A (US/EU, CE/FCC/UL)
- Power Consumption: Max 4W
- Operating Temperature: 32–104 °F (0–40 °C)
- Storage Temperature: –4–140 °F (–20–60 °C)
- Relative Humidity: 20–90% (no condensation)
- ESD Protection: ±8kV (air-gap), ±4kV (contact)
