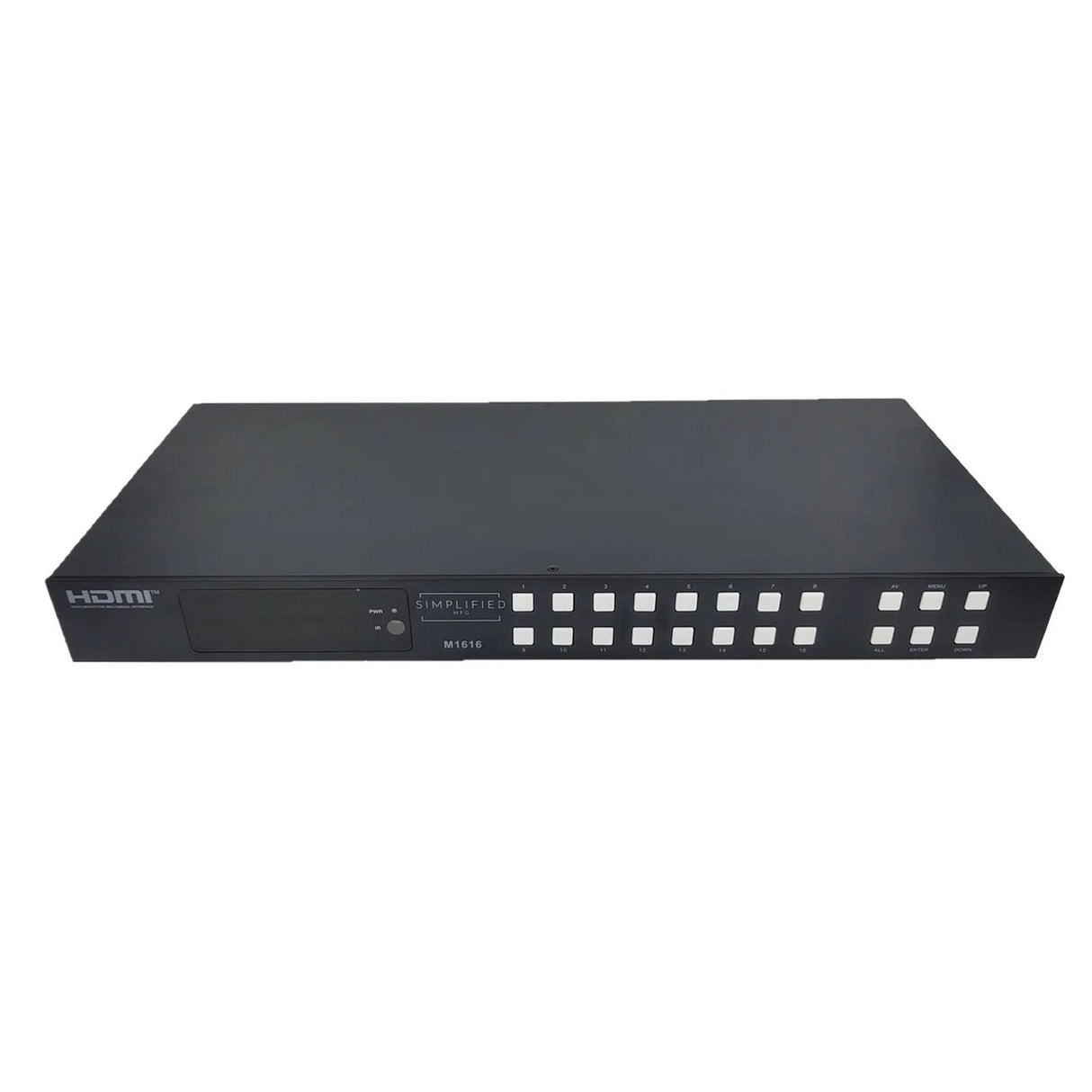

Simplified MFG M1616 16 x 16 HDMI 18Gbps Scaling Matrix
The M1616 HDMI Matrix features 16 HDMI inputs and 16 HDMI Scaling outputs. The M1616 supports video resolutions up to 2160p@60Hz Ultra HD 4:4:4 and supports high resolution audio formats such as LPCM7.1, Dolby TrueHD, Dolby Digital Plus, Atmos, and DTS-HD Master Audio. The M1616 will also pass HDR8/10/10+ High Dynamic Range information as well as Dolby Vision. Each output can be set to scale independently of the other. ARC audio is supported when used with EXeARC1 extender sets. The innovative web GUI can also allow for setting up presets video switching, outputting ARC from displays, scaling and controlling sources and displays with CEC. The M1616 is a space saving 1 RU in size.
Key Features
- HDMI2.0, HDCP2.2/HDCP1.4 compliant
- Supports video formats up to 4k2k@60Hz with 24bit RGB/YCbCr 4:4:4YCbCr4:2:2, and up to 4k2k@60Hz with 12bit YCbCr 4:2:0
- Supports RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats
- Innovative Web GUI
- ARC can be routed to S/PDIF outputs
- Supports HDR8/10/10+ and Dolby Vision
- Supports high resolution VESA mode video formats up to QSXGA@60Hz
- Audio formats supported: PCM up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby TrueHD, Atmos, 7.1, and 5.1 formats
- Simultaneous HDMI and COAX S/PDIF (S/PDIF can be assigned to ARC output
- Smart EDID management
- Control of the M1616 can be accomplished via IR Remote Control, on-panel control, RS232, and TCP/IPControl (RS232 and IP for third party control)
- 3 Year Warranty
Technical Specifications
Video Bandwidth
594 kHz. (18Gbps)
Video Resolutions
480i, 576i, 480p, 576p, 720p, 1080i, 1080p24/30/50/60, 2160p24/25/30/50/60
Transmission Distance
HDMI Output Distance varies based on Extender used
ESD Protection: Human Body Model
Ā±8kV (air-gap discharge)
Ā±4 kV (contact discharge)
Connections
Inputs
16 Type-A <19-pin> HDMI
Outputs
16 Type-A <19-pin> HDMI, 16 Coaxial S/PDIF
Mechanical
Housing
Metal Enclosure
Color
Black Matte
Dimensions
440mm (17.32ā)
Weight
3.1kg (6Lbs, 13 Oz.)
Power Consumption
76.8W
Operating Temperature
-10 Degrees C ~ 45 Degrees C / 14 Degrees F ~ 113 Degrees F
Storage Temperature
-20 Degrees C ~ 60 Degrees C / -4 Degrees F ~ 140 Degrees F
Relative Humidity
20~90% (non-condensing)
