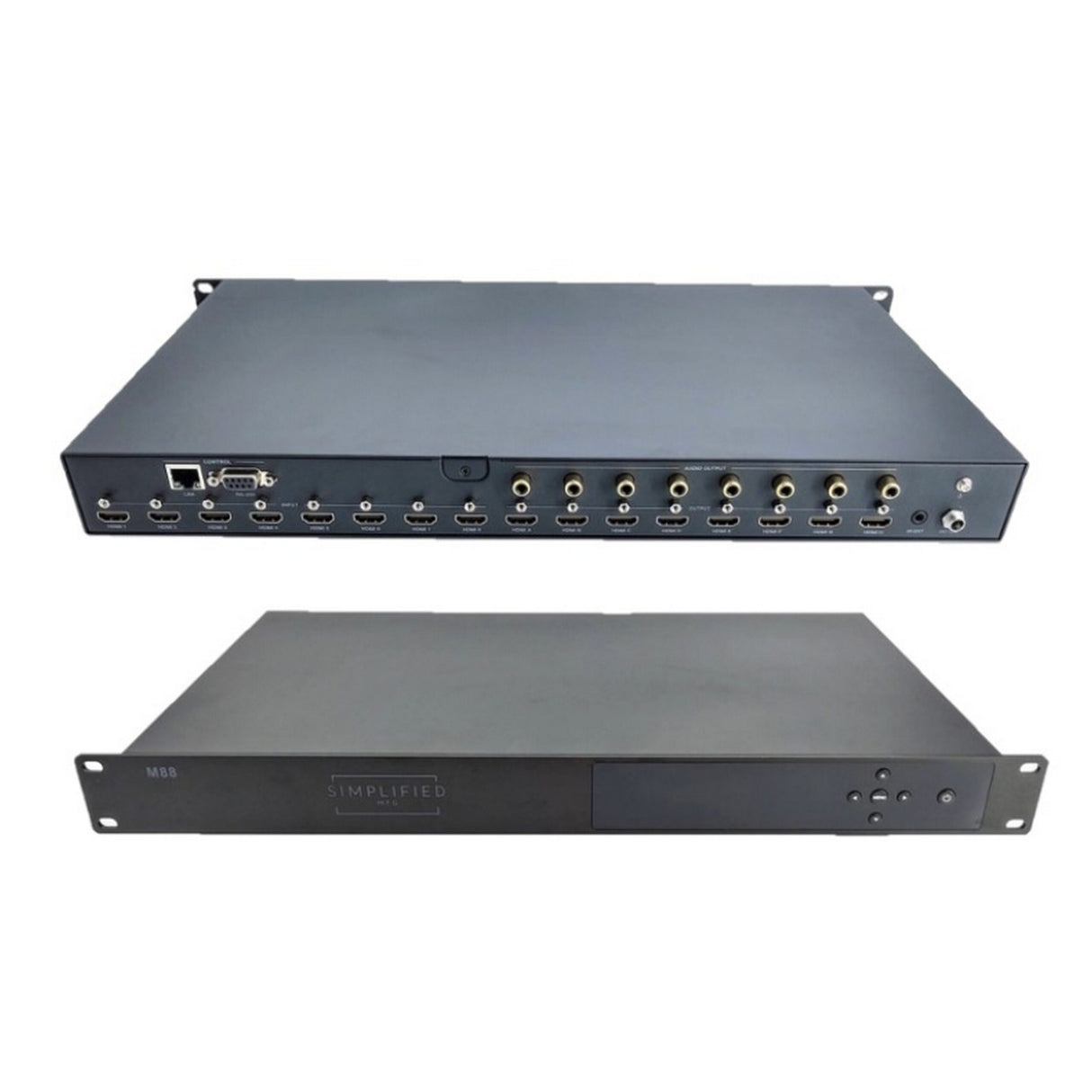

Simplified MFG M88 8 x 8 HDMI Matrix Switch with Audio Breakout
The M88 HDMI Matrix kit features eight HDMI inputs, 8 HDMI outputs. The M88 features an audio breakout by output channel as well. It provides true matrix routing for HDMI signals. It'supports transmission of video (resolutions up to 2160p@60Hz Ultra HD 4:4:4) and supports high resolution audio formats such as LPCM7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio. The M88 will also pass HDR8/10/10+ High Dynamic Range information as well as Dolby Vision. HDMI sources such as Blu-Ray players, Set-Top boxes, & etc are routed to any output via HDMI. Any source is accessible to any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP (via third party control) or the selection buttons on the front panel. This device also supports all HDMI 3D formats.
Key Features
- HDMI2.0, HDCP2.2/HDCP1.4 compliant
- Supports video formats up to 4k2k@60Hz with 24bit RGB/YCbCr 4:4:4YCbCr4:2:2, and up to 4k2k@60Hz with 12bit YCbCr 4:2:0
- Supports RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats
- Web GUI setup and control
- S/PDIF outputs are mirrored to the corresponding HDMI output
- Supports HDR8/10/10+ and Dolby Vision
- Supports high resolution VESA mode video formats up to QSXGA@60Hz
- Audio formats supported: PCM up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby TrueHD, Atmos, 7.1, and 5.1 formats
- Smart EDID management
- Control of the M88 can be accomplished via IR Remote Control, on-panel control, RS232, and TCP/IPControl (RS232 and IP for third party control)
- 3 Year Warranty
Technical Specifications
HDMI Compliance
HDMI 2.0b (18Gbps)
HDCP Compliance
HDCP 2.2 / HDCP 1.4
Video Bandwidth
18 Gbps
Video
Resolutions up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
8-bit, 10-bit, 12-bit
HDMI Audio Formats (Passthrough)
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection
Human body model - Ā±8kV (air-gap discharge) & Ā±4kV (contact discharge)
Connections
Inputs
8x HDMI Type A <19-pin female>
Outputs
8x HDMI Type A <19-pin female>
8x S/PDIF
Control Ports
1xLAN
1xRS232
1x3.5mm IR EXT in
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
483mm <19ā> (W) x 253mm <10ā> (D) x 44.5mm <1.75ā> (H)
Weight
3.35kg <7lb. 6oz.>
Power Supply
Input: AC100 - 240V 50/60Hz
Power Consumption
26.5W (Max)
Operation Temperature
32 - 104 Degrees F / 0 - 40 Degrees C
Storage Temperature
-4 - 140 Degrees F / -20 - 60 Degrees C
Relative Humidity
20 - 90% RH (no condensation)
