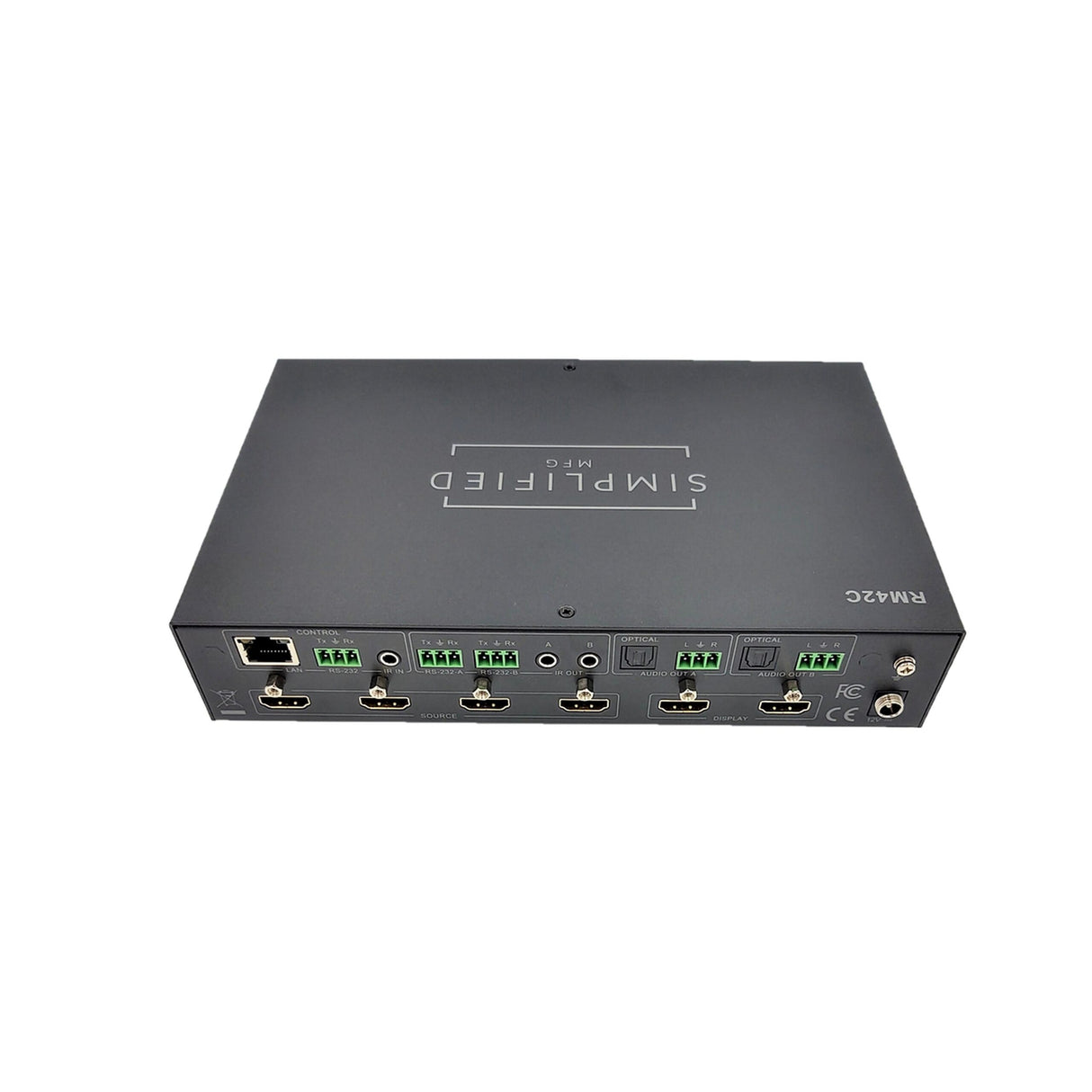

Simplified MFG RM42C 4 x 2 HDMI 18Gbps Fast Switch/Scaling Matrix Switch
The RM42C HDMI Matrix switch is a fast switch 4x2 Matrix that features four HDMI inputs and two HDMI outputs. It provides true matrix routing for HDMI signals. It'supports transmission of video (resolutions up to 2160p@60Hz Ultra HD (4:4:4) and supports high resolution audio formats such as LPCM7.1, Dolby TrueHD, Dolby Digital Plus, Atmos, and DTS-HD Master Audio. The RM42C will also pass HDR High Dynamic Range information as well (8, 10, 10+, Dolby Vision). Each output has scaling options for easier integration of unlike displays. In addition, there is a sophisticated control feature allowing the matrix to turn on other devices in the system. There is also a built-in pattern generator. This switch can be used as a four to one switch without a second display, as a presentation switch (auto power function is handy here), and used as an upgrade for the video switching in an existing AV system with a less capable AVR.
Key Features
- HDMI2.0, HDCP2.2/HDCP1.4 compliant
- Supports video formats up to 4k2k@60Hz with 24bit RGB/YCbCr 4:4:4YCbCr4:2:2, and up to 4k2k@60Hz with 12bit YCbCr 4:2:0
- Built in Web GUI with Admin and User options
- Each output has scaling
- Each output has an audio breakout
- Built in test patterns
- Sophisticated control options with CEC, RS232, and IR
- Supports RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats
- Supports HDR8/10/10+ and Dolby Vision
- Supports high resolution VESA mode video formats up to QSXGA@60Hz
- Audio formats supported: PCM up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby TrueHD, Atmos, 7.1, and 5.1 formats
- Smart EDID management
- Control of the via IR Remote Control or on-panel control
- 3 Year Warranty
Technical Specifications
Video Bandwidth
594KHz (18gbps)
Video Resolutions
480i, 576i, 480p, 576p, 720p, 1080i, 1080p24/30/50/60, 2160p24/25/30/50/60
HDMI Connector
Type A 19 pin female
ESD Protection: Human Body Model
Ā±8kV (air-gap discharge)
Connections
Inputs
4 HDMI (Type-A)
Outputs
2 HDMI (Type-A), 2 SPDIF (Optical), 2 3-Pin Phoenix Connector (Audio)mm mini-jack for audio, 2 3-Pin Phoenix Connector (RS232)
Control Ports
1 LAN (RJ-45), 1 3-pin Phoenix Connector (RS232), 1 IR IN (3.5mm mini-jack), 2 IR Out (3.5mm mini jack)
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
218mm <8.58ā> (W)x140mm <5.52ā> (D)x43mm <1.7ā>
Weight
1050g (37oz./2.31lbs.
Power Consumption
4.3W(max)/0.5W standby
Operation Temperature
0 Degrees C~40 Degrees /32 Degrees F~104 Degrees F
Storage Temperature
-20 Degrees C~60 Degrees C/-4 Degrees F~140 Degrees F
Relative Humidity
20~90% (non-condensing)
