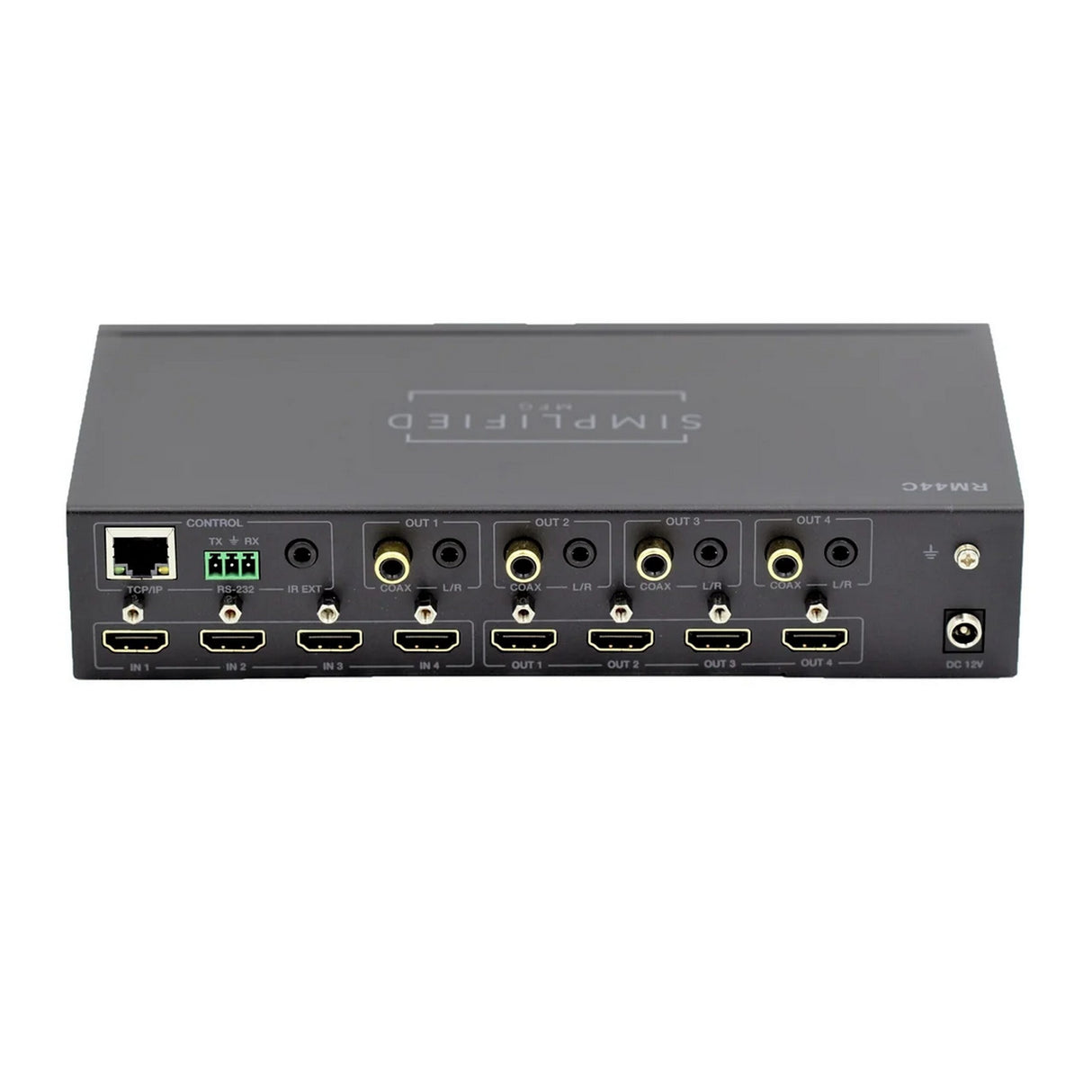

Simplified MFG RM44C 4 x 4 HDMI 18Gbps Fast Switch/Scaling Matrix Switch
The RM44C HDMI Matrix switch is a fast switch 4x4 Matrix that features four HDMI inputs and four HDMI outputs. It provides true matrix routing for HDMI signals. It'supports transmission of video (resolutions up to 2160p@60Hz Ultra HD (4:4:4) and supports high resolution audio formats such as LPCM7.1, Dolby TrueHD, Dolby Digital Plus, Atmos, and DTS-HD Master Audio. The RM44C will also pass HDR High Dynamic Range information as well (8, 10, 10+, Dolby Vision). Each output has scaling options for easier integration of unlike displays. In addition, there is a CEC control feature allowing the matrix to turn on the displays. Features are adjustable in the Web GUI with both Admin and User login settings.
Key Features
- HDMI2.0b (18Gbps), HDCP2.2/HDCP1.4 compliant
- Supports video formats up to 4k2k@60Hz with 24bit RGB/YCbCr 4:4:4YCbCr4:2:2, and up to 4k2k@60Hz with 12bit YCbCr 4:2:0
- Built in Web GUI with Admin and User options
- Each output has scaling
- Each Output has an audio breakout
- Built in signal pattern generator
- Built in CEC editor to allow control of connected devices
- Supports RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats
- Supports HDR8/10/10+ and Dolby Vision
- Supports high resolution VESA mode video formats up to QSXGA@60Hz
- Audio formats supported: PCM up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby TrueHD, Atmos, 7.1, and 5.1 formats
- Sophisticated EDID management with scaling allows different resolution displays to integrate easily
- Control of the via IR Remote Control or on-panel control
- 3 Year Warranty
Technical Specifications
Video bandwidth
18Gbps
Input Ports
4 x HDMI Female input ports
Output Ports
4 x HDMI Female output ports
Power Supply
DC 12 V, 2.5 A
ESD Protection: Human Body Model
± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions
220mm (8.66”)
Weight
792g / 1lb., 10 oz.
Operating Temperature
0 Degrees C ~ 40 Degrees C / 32 Degrees F ~ 104 Degrees F
Storage Temperature
-20 Degrees C ~ 60 Degrees C / -4 Degrees F ~ 140 Degrees F
Relative Humidity
20 ~ 90% RH (Non-condensing)
Power Consumption (Max)
10W / 1.56W Standby
