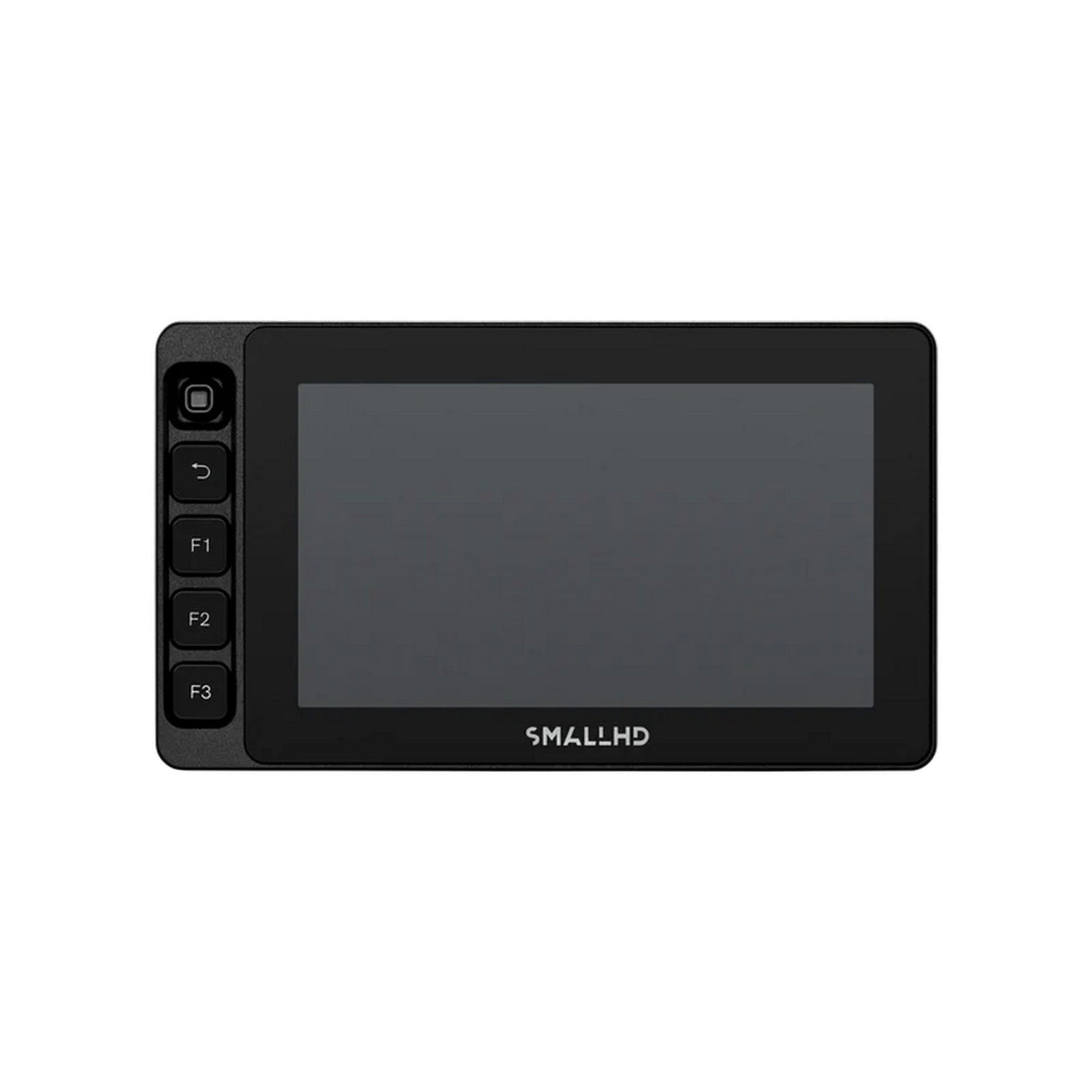

SmallHD 16-0527 Ultra 5 Daylight-Viewable 5-Inch Touchscreen 1920x1080, 440 PPI Monitor

SmallHD 16-0527 Ultra 5 Daylight-Viewable 5-Inch Touchscreen 1920x1080, 440 PPI Monitor

Powerful, portable, and adaptable, the Ultra 5 offers a dazzling 3000nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. Experience all your favorite PageOS 5 tools, functions, and settings pages on a fully-loaded 5-inch touchscreen monitor.

Ultra 5 is designed for the user who wants it all, including optional Gold or V-Mount Micro Battery Plates for a compact power solution and an Ethernet port to enable ARRI and Sony VENICE Camera Control (Camera Control license and cable sold separately).

Key Features

• Model: 16-0527
• Display: 5-inch Touchscreen, 1920x1080, 440 PPI
• Input: 1x 3G-SDI , 1x HDMI 2.0 (4Kp30)
• Output: 1x 3G-SDI , 1x HDMI 2.0 (4Kp30) , 1x 3.5mm Stereo Headphone Jack
• Power Input: 2-pin Locking Power Input (10-34V DC, 2.1A)
• Data I/O: 1x SD Card Slot, 1x RJ45 Ethernet, 1x Micro USB, 1x Locking USB

Technical Specifications

Environmental
Mount Points
6x 1/4-20 Mounting Points
Display
Panel Type
Touch-Screen
Resolution
1920 x 1080
Aspect Ratio
16:9
Brightness
3000nits
Backlight Type
Edgelit
Input Signal
3G-SDI Input Types
1x 3G-SDI
Output Signal
HDMI Output Types
1x HDMI 2.0 (4Kp30)
Connector Type
SDI
1x 3G-SDI (In), 1x 3G-SDI (In/Out)
HDMI
1x HDMI 2.0 (4Kp30) , 1x HDMI 2.0 (4Kp30)
Audio
1x 3.5mm Stereo Headphone Jack
Data I/O
Connector Type
1x RJ45 Ethernet
Storage Media
1x SD Card Slot
USB
1x Micro USB 1x Locking USB
Power
Input
2-pin Locking Power Input (10-34V DC, 2.1A)
Software
Pixel Zoom
Yes
Focus Assist
Yes
Peaking
Yes
False Color
Customizable False Color Overlays
Waveform
Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
Custom LUTS
17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
