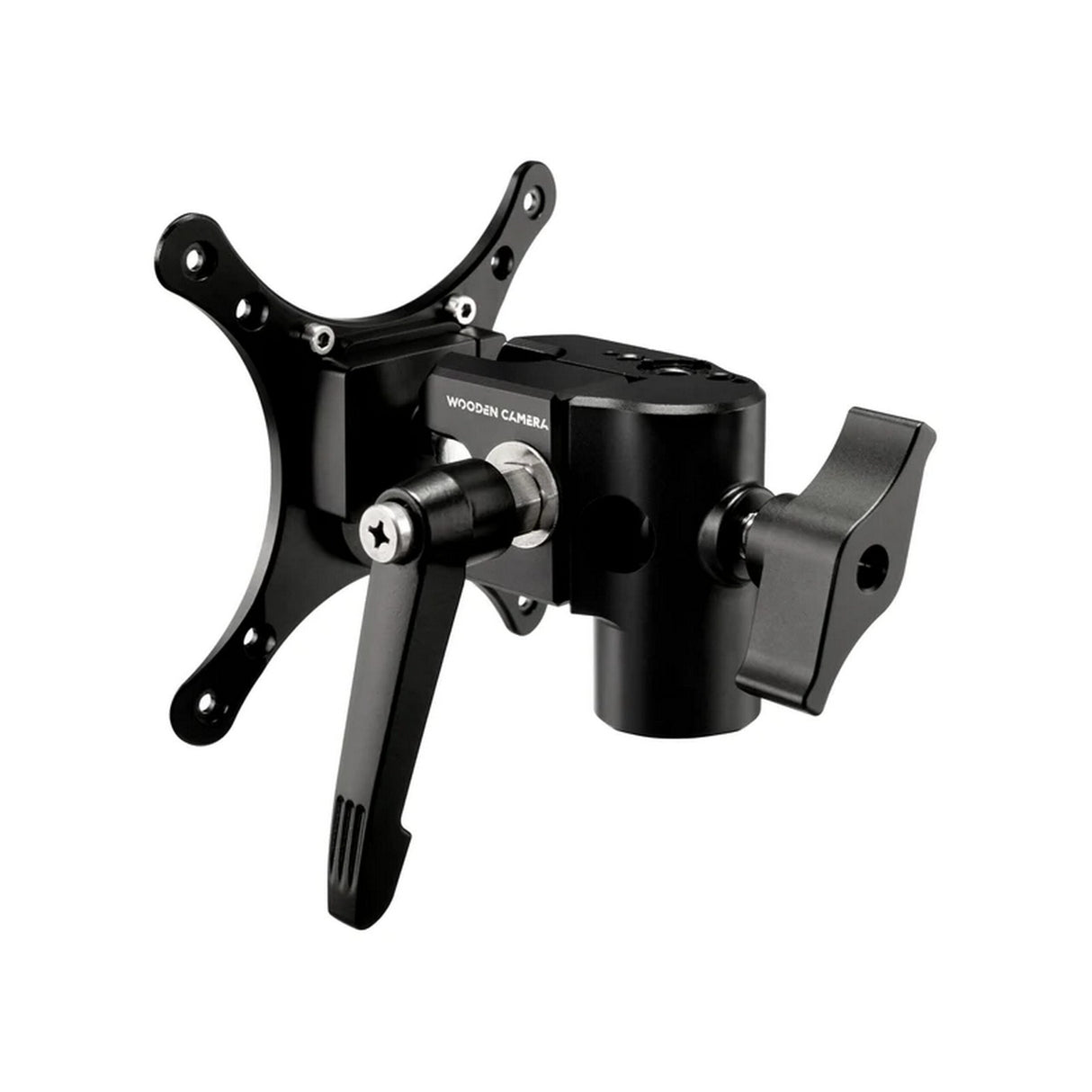

SmallHD WC-A20003 Ultra QR Articulating Monitor Mount, Baby Pin, C-Stand

SmallHD WC-A20003 Ultra QR Articulating Monitor Mount, Baby Pin, C-Stand

The Ultra QR Monitor Mount (Baby Pin, C-Stand) is an articulating monitor mount for securely attaching production monitors up to 45 lbs (20kg) to a C-Stand or 5/8” (15mm) Male Baby Pin. Integrated ARCA Swiss dovetail clamp allows for quick release (QR) of the monitor from the C-Stand.

Installing the Ultra QR to a monitor can be done in two ways; utilizing the VESA Hole Standard (75mm or 100mm) or via the ARCA Swiss dovetail clamp with select SmallHD production monitors that utilize the ARCA Swiss Slide-On Rail.

The Ball Clamp system allows for a wide range of articulation while retaining friction, allowing users to adjust the position of the monitor without loosening the handle. Variable positioning includes upwards and downwards tilt, side-to-side pan, and complete 360* rotation from landscape to portrait viewing mode.

Featuring ARRI-Standard 3/8”-16 and 1/4”-20 mounting points located directly on the top of the monitor mount for attaching wireless receivers, secondary monitors, and more.

Compatible with SmallHD 4K monitors and many more.

Technical Specifications

Included Items: 4x Mounting Screws (M4 x 10 mm)
Weight
562 g (1.2 lbs)
Dimensions
140 x 120 x 120 mm (5 x 4 x 4 in)
