SolidDrive MSK-1-T Soundmasking Sound Transducer for Drywall Applications with Transformer

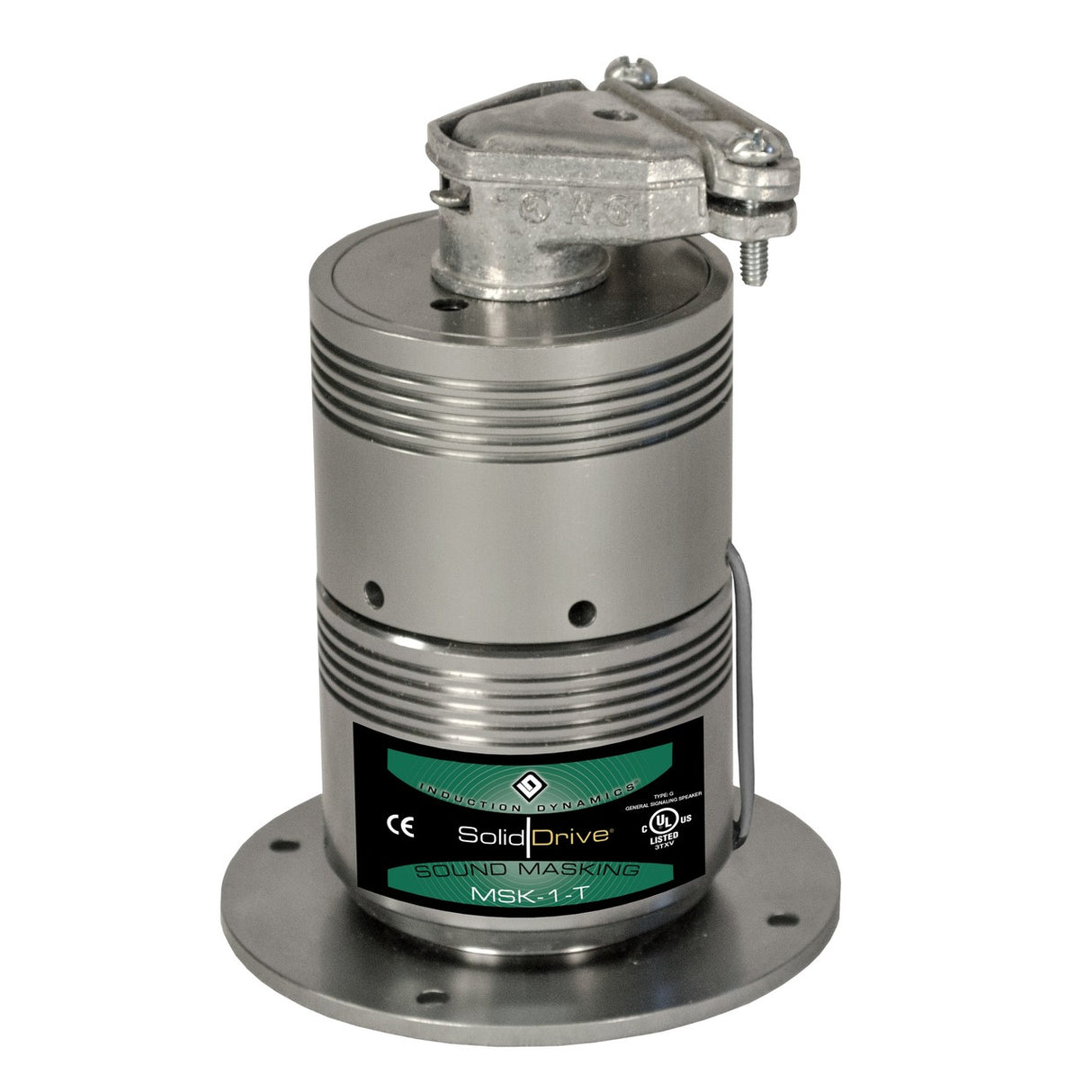

The MSK-1-T is an economical hidden planar-source sound transducer designed for sound masking in glass-mount applications. Featuring a rugged aluminum enclosure with neodymium magnets, the MSK-1-T uses technology similar to our patented SD1 transducers to transfer acoustic energy to the substrate. The result is extremely wide and even audio coverage and acoustical uniformity in the listening space. The unit incorporates a 10 watt transformer for use in 70 V installations. The product must be installed using the SD1 in-wall mounting bracket, sold separately.
Key Features
- 30W Max. Continuous Power RMS
- The MSK-1-T is an economical hidden planar-source sound transducer designed for sound masking in glass-mount applications
- Featuring a rugged aluminum enclosure with neodymium magnets, the MSK-1-T uses technology similar to our patented SD1 transducers to transfer acoustic energy to the substrate
Technical Specifications
Nominal Impedance
N/A
Frequency Response (- 3 dB)
90 Hz - 10 kHz
Frequency Response (-10 dB)
80 Hz - 15 kHz
Max. Program Power
50W
Max. Continuous Power RMS
30W
Max. Power SPL @ 1 M
86dB (Drywall)
Enclosure - material
Titanium anodized aluminium
Grille - material
N/A
Grille - part
N/A
Height (SM = Height)
120.7 mm / 4.75"
Diameter (SM = Width)
58.6 mm / 2.30"
Weight
0.83 kg / 2 lb
Shipping Weight
1.14 kg / 2.5 lb
