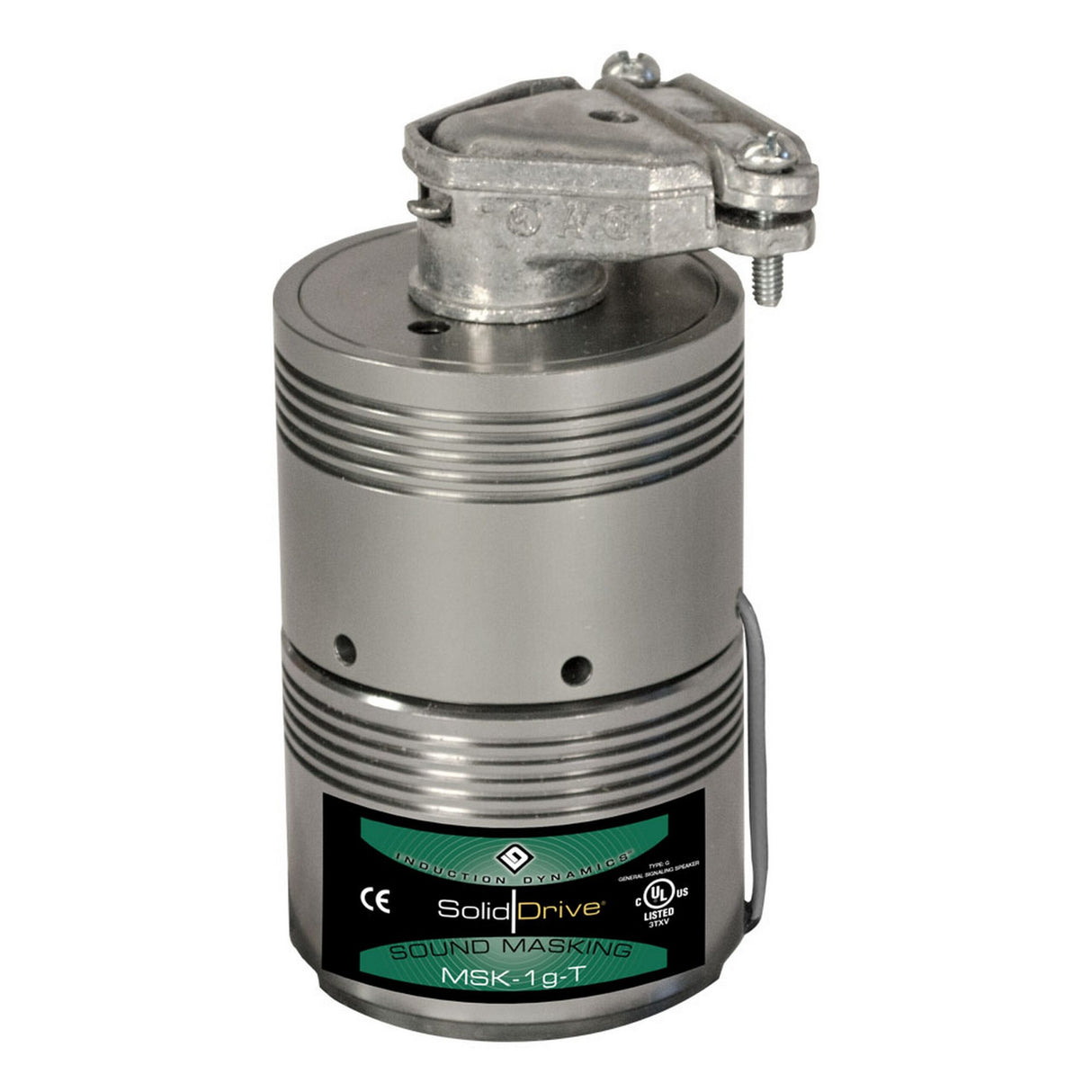

SolidDrive MSK-1G-T Surface Mount Actuator and Transformer for Glass Surfaces
The MSK-1g-T is an economical hidden planar-source sound transducer designed for sound masking in glass-mount applications. Featuring a rugged aluminum enclosure with neodymium magnets, the MSK-1g-T uses technology similar to our patented SD1 transducers to transfer acoustic energy to the substrate. The result is extremely wide and even audio coverage and acoustical uniformity in the listening space. The unit incorporates a 10 watt transformer for use in 70 V installations and is mounted to glass using an adhesive disk.
Technical Specifications
Height
4.75 in / 120.65 mm
Width/Diameter
2.3 in / 58.42 mm
Shipping Weight
2.10 lbs / 0.95 kg
Carton Height
6.5 in / 165.1 mm
Carton Length
5.5 in / 139.7 mm
Carton Width
5.25 in / 133.35 mm
Certifications
UL1480, UL2043
Enclosure Properties
Anodized Aluminum
Included Accessories
Conduit Clamp
Optional Accessories
Titanium Heat Sink (SD1-HS-TI)|Passive Equalization Module - Glass (PEM-G)
Coverage Angle (-6dB @ 2kHz)
120
Cutout Width/Diameter
3.5 in / 88.9 mm
Frequency Response (+/- 10 dB)
80 Hz - 15 kHz
Frequency Response (+/- 3 dB)
90 Hz - 10 kHz
Magnetically Boosted
No
Max. Continuous Power RMS
30 W
Max. Program Power
50 W
Transformer Options
10 W Transformer
