SolidDrive MSK-1SM Surface Mount Actuator for Wood Surfaces

SolidDrive | SKU: SOL-MSK1SM
$40040

Free Shipping

Estimated Shipping Widget will be displayed here!

Condition: New

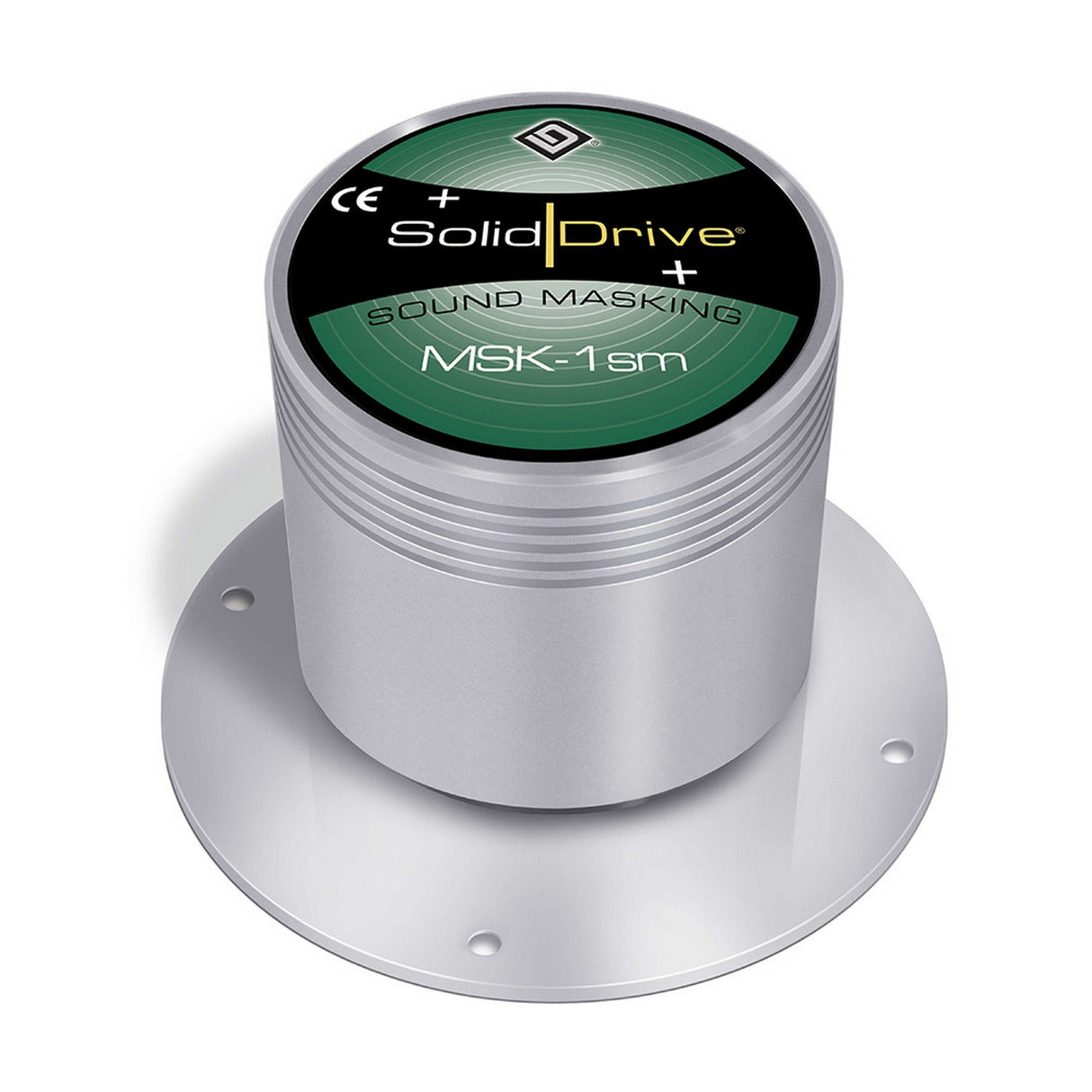

SolidDrive MSK-1SM Surface Mount Actuator for Wood Surfaces

The MSK-1sm by SolidDrive is an economical hidden planar-source sound transducer designed for sound masking in wood-mount or other rigid-surface applications. . Featuring a rugged aluminum enclosure with neodymium magnets, the MSK-1sm uses technology similar to our patented SD1 transducers to transfer acoustic energy to the substrate. The result is extremely wide and even audio coverage and acoustical uniformity in the listening space. The MSK-1sm is mounted directly to the surface using wood screws (or other screws suitable for the surface).

Technical Specifications

Shipping Weight
1.4 lbs / 0.635 kg
Carton Height
5.5 in / 139.7 mm
Carton Length
5.5 in / 139.7 mm
Carton Width
5.25 in / 133.35 mm
Enclosure Properties
Anodized Aluminum
Included Accessories
Conduit Clamp
Optional Accessories
Titanium Heat Sink (SD1-HS-TI)|Passive Equalization Module - Wood/Surface Mount (PEM-W)|Junction Box (AC-JB10-XFMR or AC-JB20-XFMR)
Coverage Angle (-6dB @ 2kHz)
120
Frequency Response (+/- 10 dB)
70 Hz - 15 kHz
Frequency Response (+/- 3 dB)
80 Hz - 10 kHz
Magnetically Boosted
No
Max. Continuous Power RMS
30 W
Max. Program Power
50 W
Nominal Impedance (Ohm)
8 OHM
Sensitivity dB @ 1W/1M
69 dB
Sensitivity dB @ 2.83V/1M
69 dB
