SolidDrive SD250 50-Watts Class D Amplifier

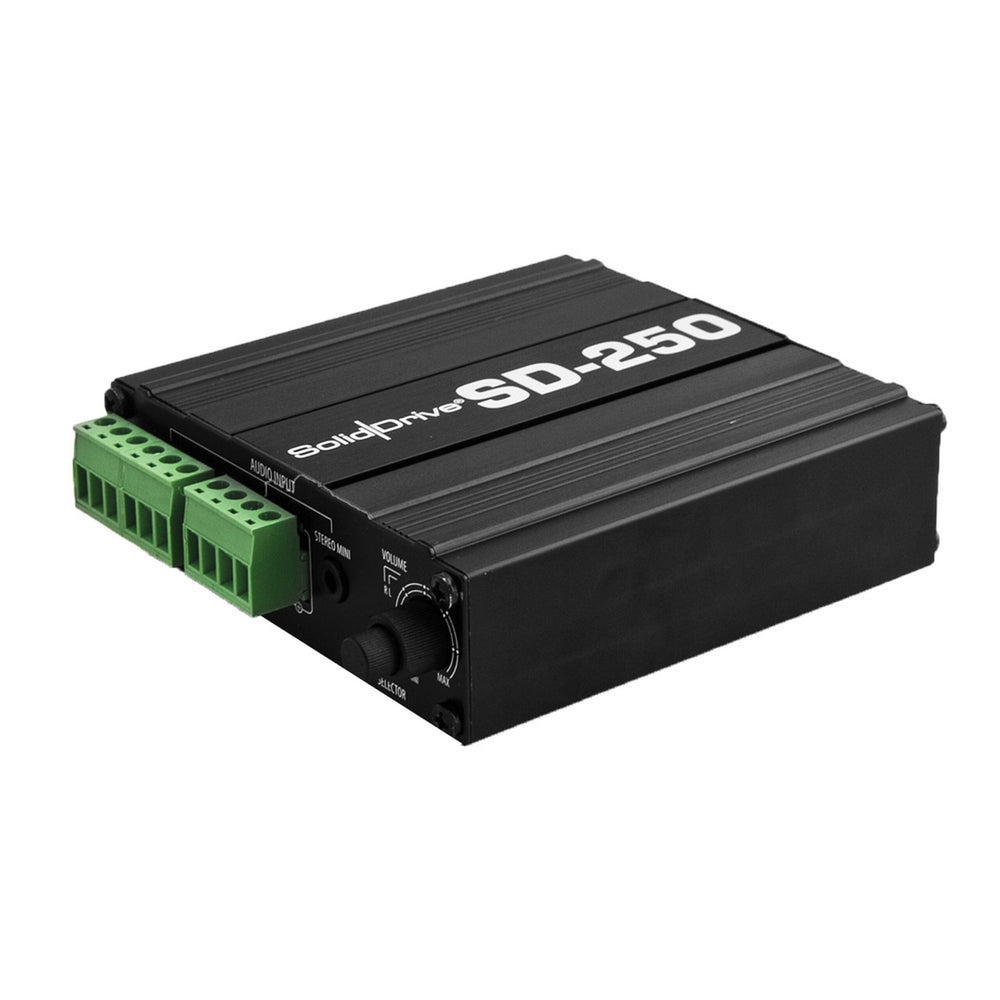

The SolidDrive SD-250 is an ultra compact 2-channel amplifier with extra heat sink surfaces for extended duty at full power. The amp is rated at 50 watts per channel and can run in stereo, mono, or bridged mono. But most importantly it has custom electronic EQs for glass, sheet rock, wood, or bypass. Having the correct power and the right EQ will make the AD sound its best. The amp can utalize balanced stereo euroblock, stereo unbalanced mini jack, or high level euroblock inputs.

Technical Specifications

Depth
4.9 in / 124.46 mm
Height
1.2 in / 30.48 mm
Width/Diameter
3.9 in / 99.06 mm
Shipping Weight
3.1 lbs / 1.41 kg
Carton Height
3.5 in / 88.9 mm
Carton Length
10.25 in / 260.35 mm
Carton Width
9.5 in / 241.3 mm
Certifications
CE, RoHS, UL60065, ETL-C/US, FCC
Enclosure Properties
Aluminum
Included Accessories
3-Pin Euroblock, 4-Pin Euroblock, Mounting Hardware, Power Supply, Stereo RCA Adapter
Input Impedance
47K OHM Line Level, 600 OHM Balanced
Power Requirements
32 v DC
Voltage Gain
34 dB
Frequency Response (+/- 3 dB)
20 Hz - 20 kHz
Magnetically Boosted
No
