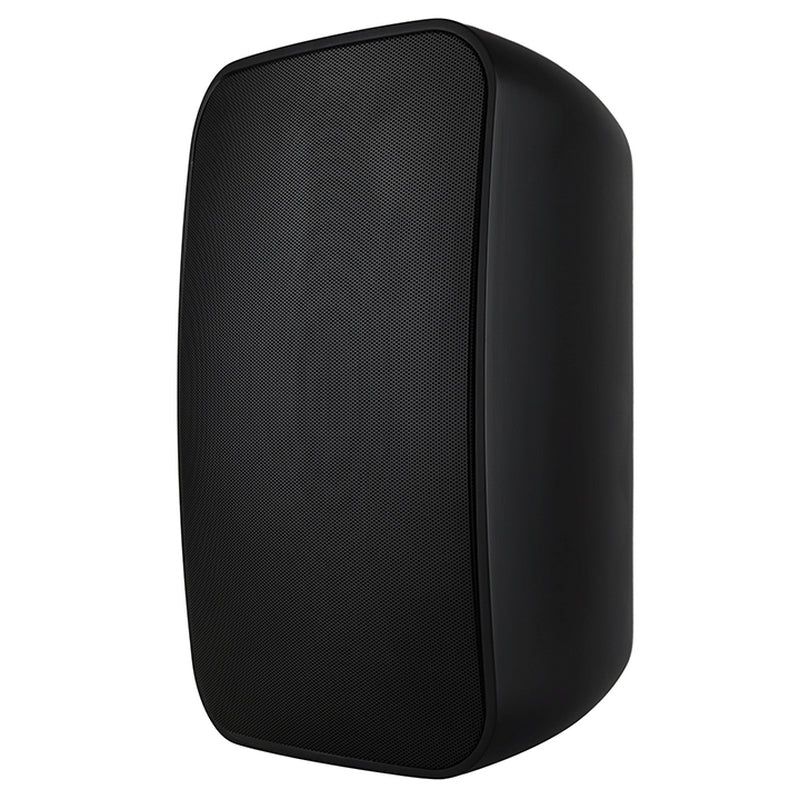

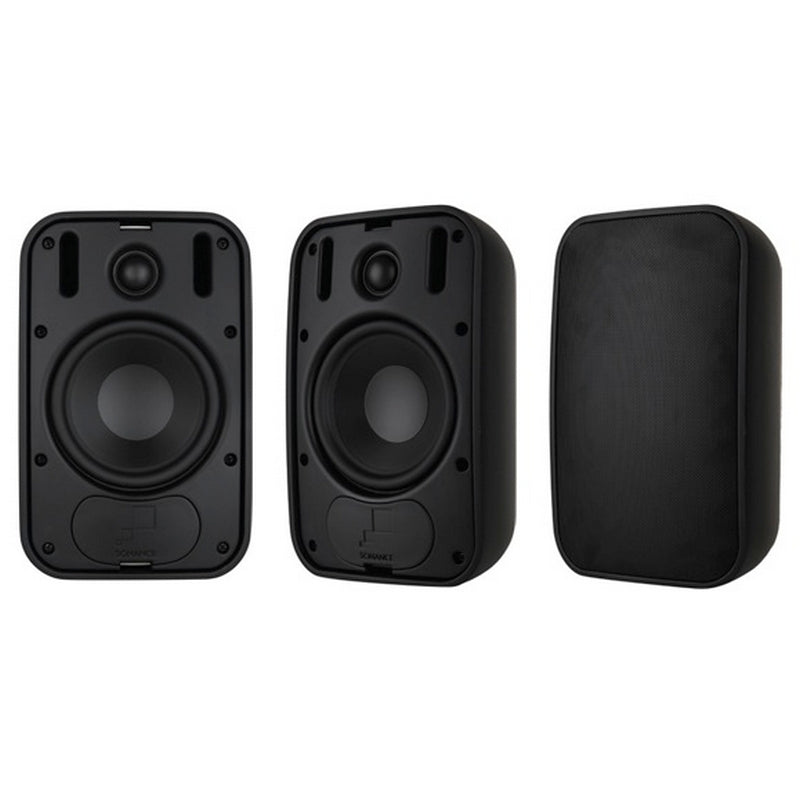

Introducing the Sonance PS-S53T Professional Series 5.25-Inch Surface Mount Speaker, Black
Looking for a high-quality, easy-to-install speaker? Look no further than the Sonance PS-S53T. With its patented FastMount bracket and front cable connection, this speaker can be installed quickly and without clutter.

This speaker is perfect for both indoor and outdoor applications, thanks to its IPX4 rated construction, which features weatherproof high-impact, extreme temperature-resistant materials and a corrosion-proof powder-coated aluminum grille.

Despite its compact size, this speaker packs a punch, with a high-excursion 5.25” polypropylene woofer that delivers excellent low bass extension and a 1” soft dome tweeter that provides accurate high-end detail and exceptional coverage.

Whether you're using high (70V, 100V) or low (8 Ohm) impedance, the full-fidelity transformer delivers uncompromised sonic performance. Plus, the Sonance PS-S53T is certified for UL 1480 (UEAY) and 2239, so you can trust that it meets the highest standards.

Key Features

• The Sonance Professional Series PS-S53T Surface-Mount Speaker is equipped with the Patented FastMount bracket and front cable connection, making the installation process faster and ensuring a neat appearance.

• With its high-excursion 5.25” polypropylene woofer, this speaker delivers impressive low bass extension that surpasses many larger competitors.

• The chambered 1” soft dome tweeter of the PS-S53T provides accurate high-end detail and exceptional coverage.

• This speaker boasts class-leading sensitivity and sonic performance, ensuring a superior audio experience.

• It offers exceptional off-axis response, allowing for consistent sound quality even when listening from different angles.

• The heavy-duty voice coil of the PS-S53T ensures longevity and reliability, making it a durable choice.

• It features a full-fidelity transformer that maintains uncompromised 70V/100V tonality, ensuring high-quality sound reproduction.

• The Sonance Professional Series PS-S53T maintains consistent voicing across its product range, allowing for seamless integration with other speakers.

• Its clean and minimalistic design adds a touch of elegance to any space.

• The PS-S53T is available in black or white, and the paintable option allows for customization to match any decor.

• The FastMount bracket system makes installation quick and easy, saving time and effort.

• The front-located cable connector and tap selector of the PS-S53T provide convenient access for adjustments and maintenance.

• The connector and tap selector cover ensures protection and prevents any damage or interference.

• The corrosion-resistant powder-coated aluminum grille adds durability and longevity to the speaker.

Technical Specifications

Frequency Range (-10dB)
43Hz - 25kHz
Frequency Range (-3dB)
70Hz - 20kHz
Power Capacity
90 Watts Continuous Program Power | 45 Watts Continuous Pink Noise
Nominal Sensitivity
88dB
Nominal Coverage Angle
90 degrees x 90 degrees coverage
Directivity Factor (Q)
7.0dB
Directivity (DI
8.0dB
Rated Maximum SPL
106dB @ 1 meter (3.3 feet) average, 113dB peak
Rated Impedance
8 Ohms nominal, 6 Ohms minimum
Transformer Taps
30W, 15W, 7.5W (3.8W 70V)
Crossover Point
2750Hz
Overall Dimension
10.08” Height x 6.36” Width x 5.68” Depth (256mm x 162mm x 144mm)
Net Weight
8.68lbs (3.94kg) each
Shipping Weight
23.93lbs (10.85kg) pair
Unit of Measure
Pair (Single upon request)
Grille
Powder Coated Aluminum Friction Fit
LF Driver
5.25” (130mm) Polypropylene Cone, Butyl Rubber Surround
HF Driver
1” (25mm) Cloth Dome, Ferrofluid cooled
Input Connectors
Front-mounted four pin, Euroblock with loop output connections
Safety Agency
UL 1480, UL 2239
Mounting Bracket
U-Bracket with Sonance FastMount
