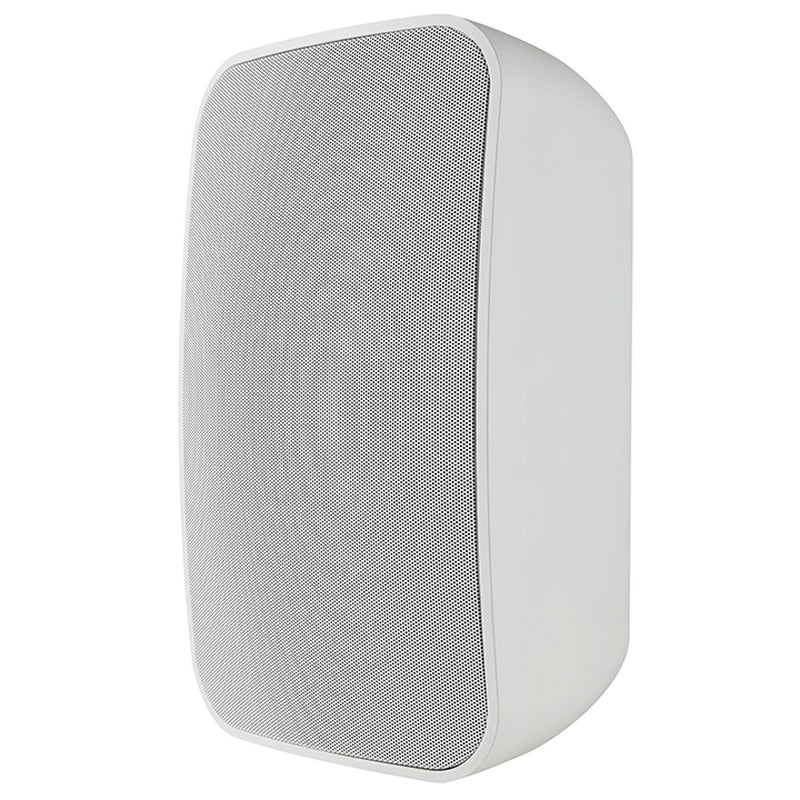

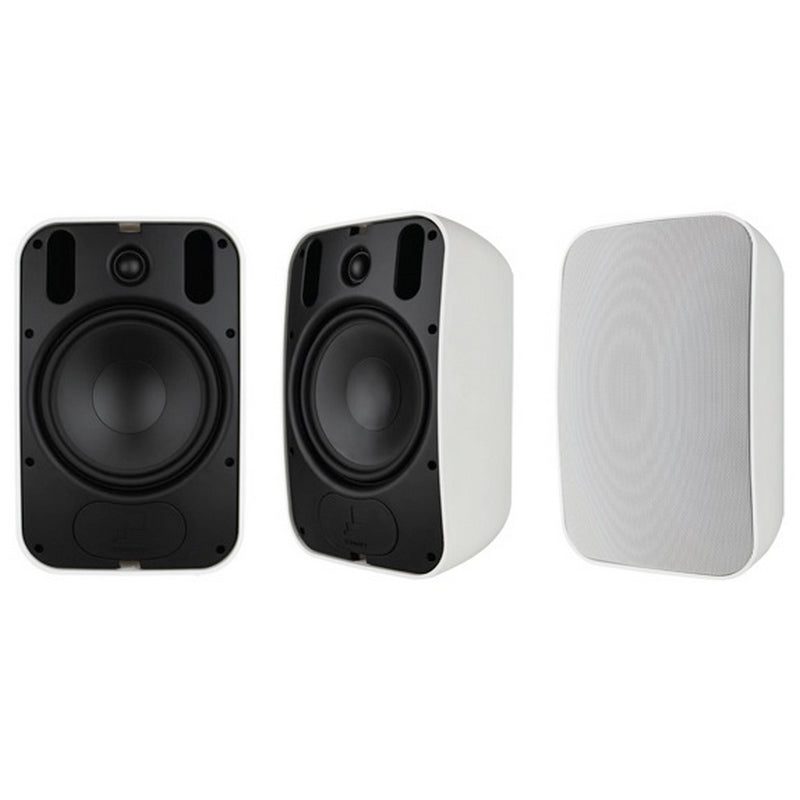

Introducing the Sonance PS-S83T Professional Series 8-Inch 160W Surface Mount, White
The Sonance Professional Series PS-S83T Surface-Mount Speaker is the perfect solution for those looking for a fast and efficient installation process. With its Patented FastMount bracket and front cable connection, the installation process is quick and easy. Its IPX4 rated construction, featuring a weatherproof high-impact, extreme temperature resistant cabinet and corrosion-proof powder coated aluminum grille, make it an ideal choice for both indoor and outdoor use.

This speaker is equipped with a high-excursion 8” polypropylene woofer that provides effortless low bass extension, equal to or better than systems using dedicated subwoofers. Additionally, the chambered 1” soft dome tweeter provides accurate high-end detail and exceptional coverage.

Furthermore, the PS-S83T is fitted with a full-fidelity transformer, delivering uncompromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance. It is also certified for UL 1480 (UEAY) and 2239, ensuring a reliable and high-quality speaker that meets industry standards.

Key Features

• The Sonance Professional Series PS-S83T Surface-Mount Speaker is equipped with the innovative Patented FastMount bracket and front cable connection, making the installation process faster and ensuring a sleek appearance.

• With its high-excursion 8” polypropylene woofer, this speaker effortlessly delivers deep bass extension that rivals or surpasses systems with dedicated subwoofers.

• The chambered 1” soft dome tweeter provides precise high-end detail and exceptional coverage for an immersive audio experience.

• This speaker boasts class-leading sensitivity and sonic performance, ensuring clear and powerful sound reproduction.

• It offers exceptional off-axis response, allowing for consistent sound quality even when listening from different angles.

• The heavy-duty voice coil of the speaker ensures longevity and reliability, making it a durable choice for professional installations.

• The full-fidelity transformer guarantees uncompromised 70V/100V tonality, ensuring optimal sound quality in any setting.

• The Sonance Professional Series PS-S83T maintains consistent voicing across its product range, allowing for seamless integration with other speakers in the series.

• Its clean and minimalistic design adds a touch of elegance to any space, while the FastMount bracket system simplifies the installation process.

• The front-located cable connector and tap selector, along with the connector and tap selector cover, provide convenience and protection for the speaker's connections.

• The corrosion-resistant powder-coated aluminum grille ensures durability and longevity, even in challenging environments.

Technical Specifications

Frequency Range (-10dB)
41Hz - 25kHz
Frequency Range (-3dB)
55Hz - 20kHz
Power Capacity
160 Watts Continuous Program Power | 80 Watts Continuous Pink Noise
Nominal Sensitivity
90dB
Nominal Coverage Angle
90 degrees x 90 degrees coverage
Directivity Factor (Q)
7.6
Directivity (DI)
8.1dB
Rated Maximum SPL
110dB @ 1 meter (3.3 feet) average, 116dB peak
Rated Impedance
8 Ohms nominal, 6 Ohms minimum
Transformer Taps
60W, 30W, 15W (7.5W 70V)
Crossover Point
2750Hz
Overall Dimension
14.02” Height x 9.01” Width x 8.58” Depth (356mm x 229mm x 218mm)
Net Weight
14.72lbs (6.68kg) each
Shipping Weight
42.23lbs (19.16kg) pair
Unit of Measure
Pair (Single upon request)
Grille
Powder Coated Aluminum Friction Fit
LF Driver
8” (203mm) Polypropylene Cone, Butyl Rubber Surround
HF Driver
1” (25mm) Cloth Dome, Ferrofluid cooled
Input Connectors
Front-mounted four pin, Euroblock with loop output connections
Safety Agency
UL 1480, UL 2239
