Sonance VX Series 6-Inch Rectangle In-Wall Speaker with White Micro Trim Grille, Pair - VX62
Authorized Dealer
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

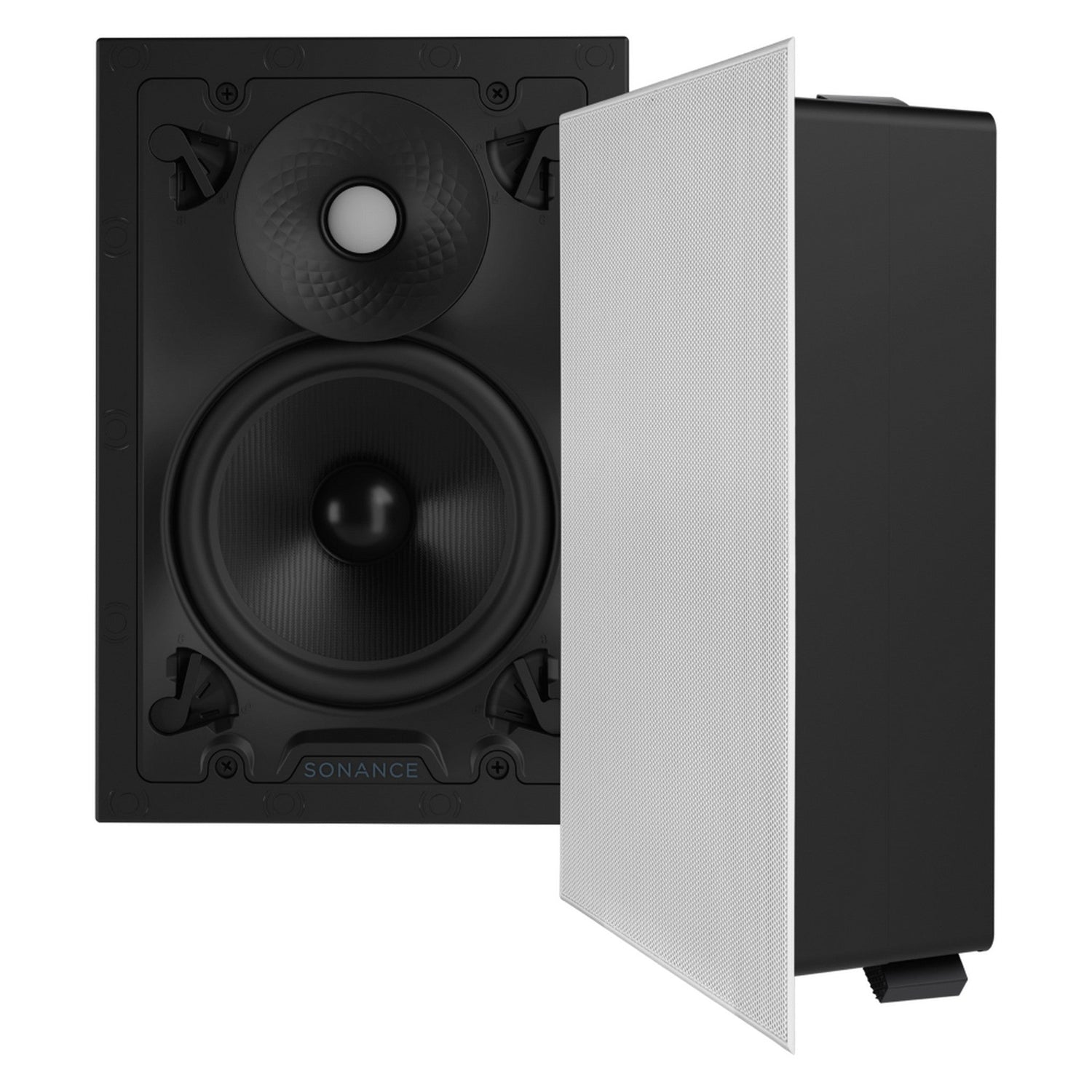

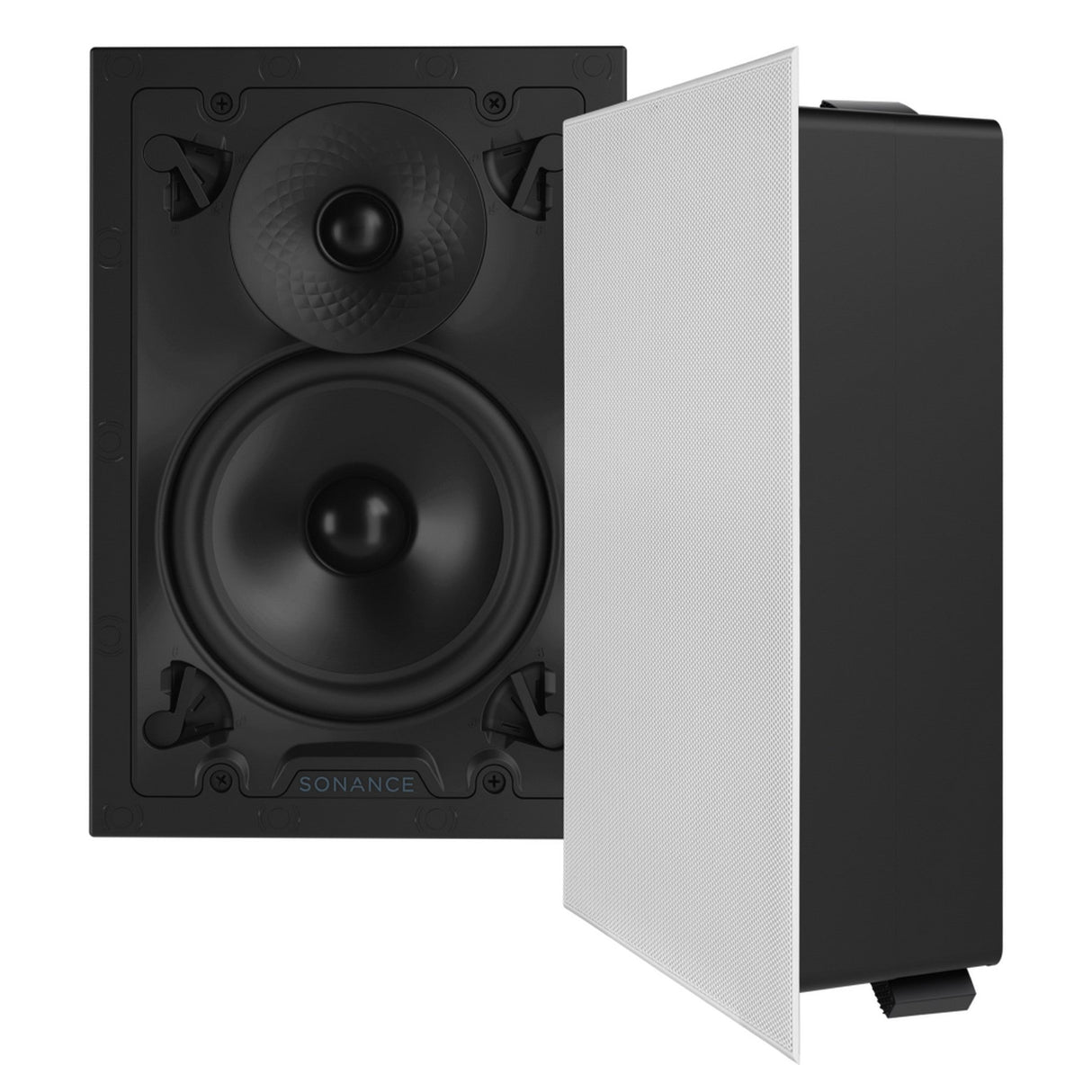

Sonance VX Series 6" Rectangle In-Wall Speaker with White Micro Trim Grille
Introducing the Sonance VX Series 6" Rectangle In-Wall Speaker, designed to deliver an unparalleled audio experience while seamlessly blending into your living space. This innovative speaker features a sleek white micro trim grille that not only enhances aesthetics but also ensures a low-profile look, making it an ideal addition to modern home environments. Engineered for both performance and style, the VX Series allows you to enjoy rich, immersive sound without compromising on design.

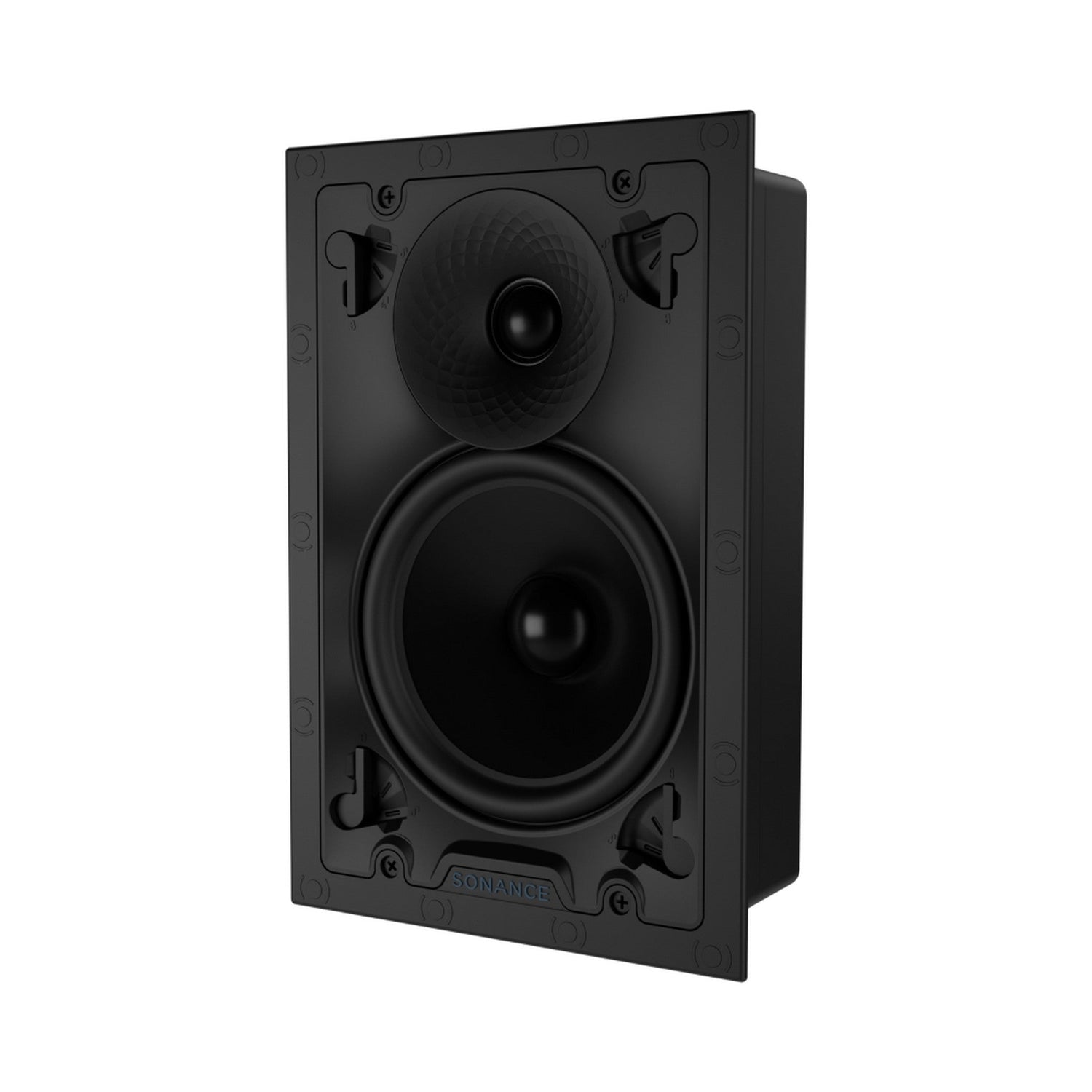

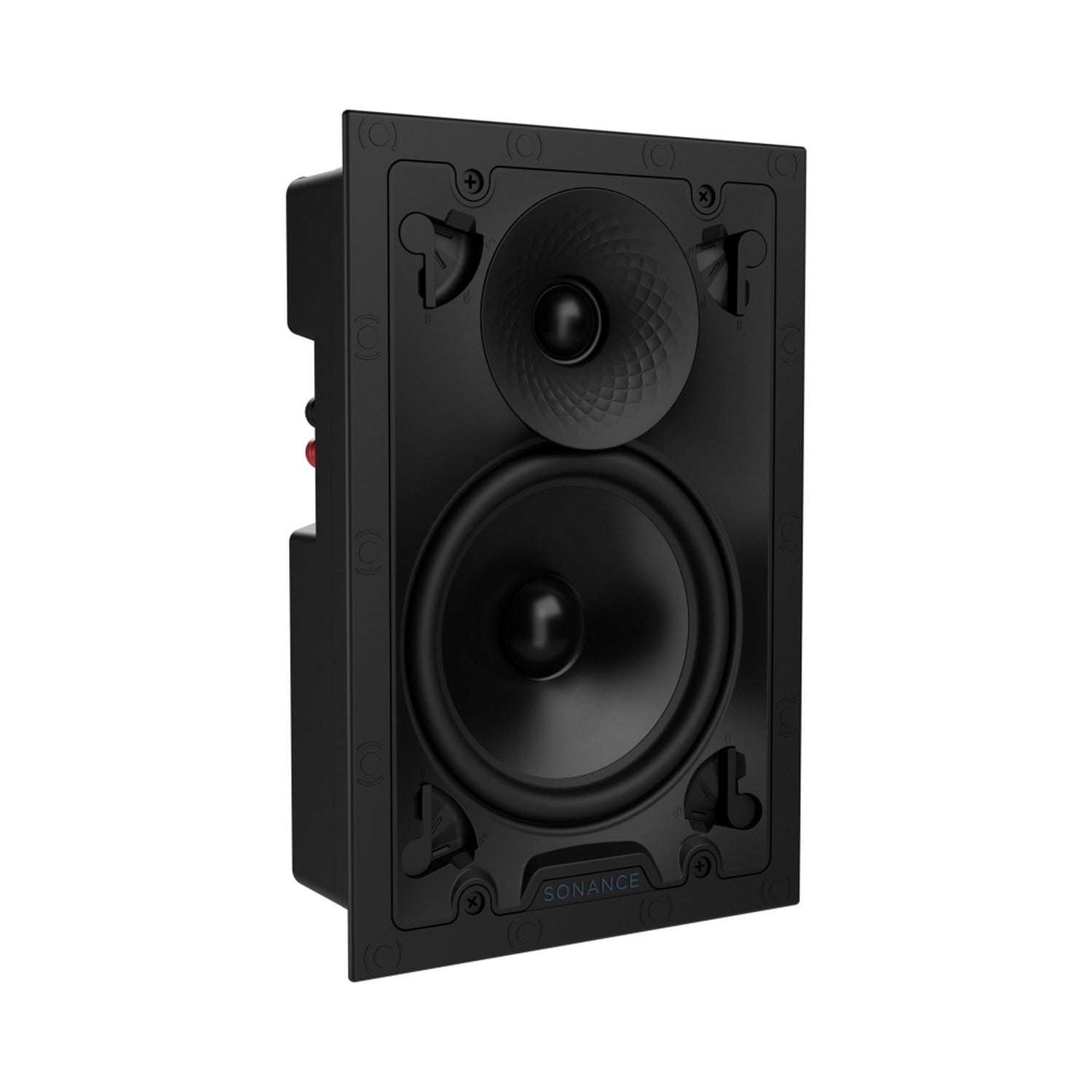

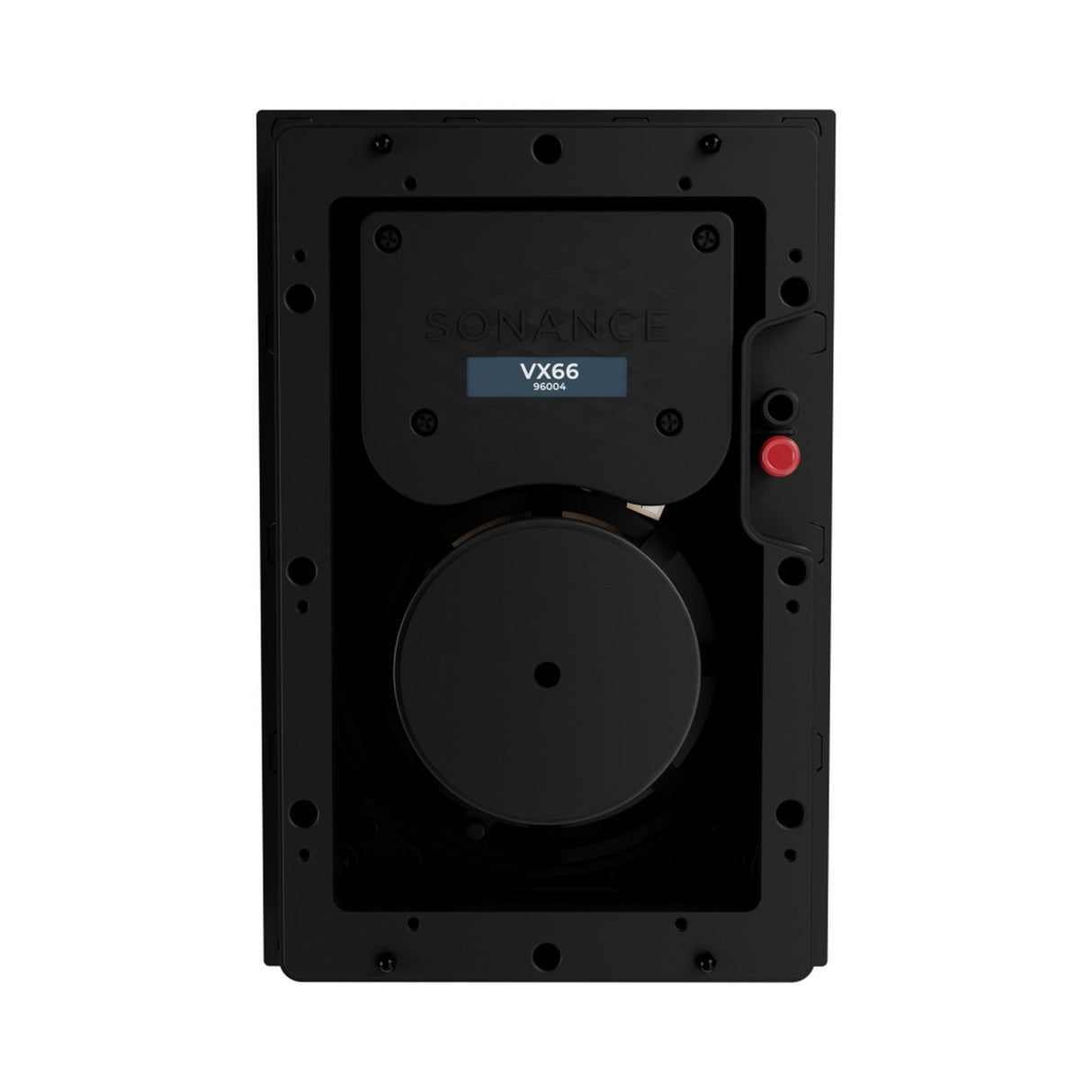

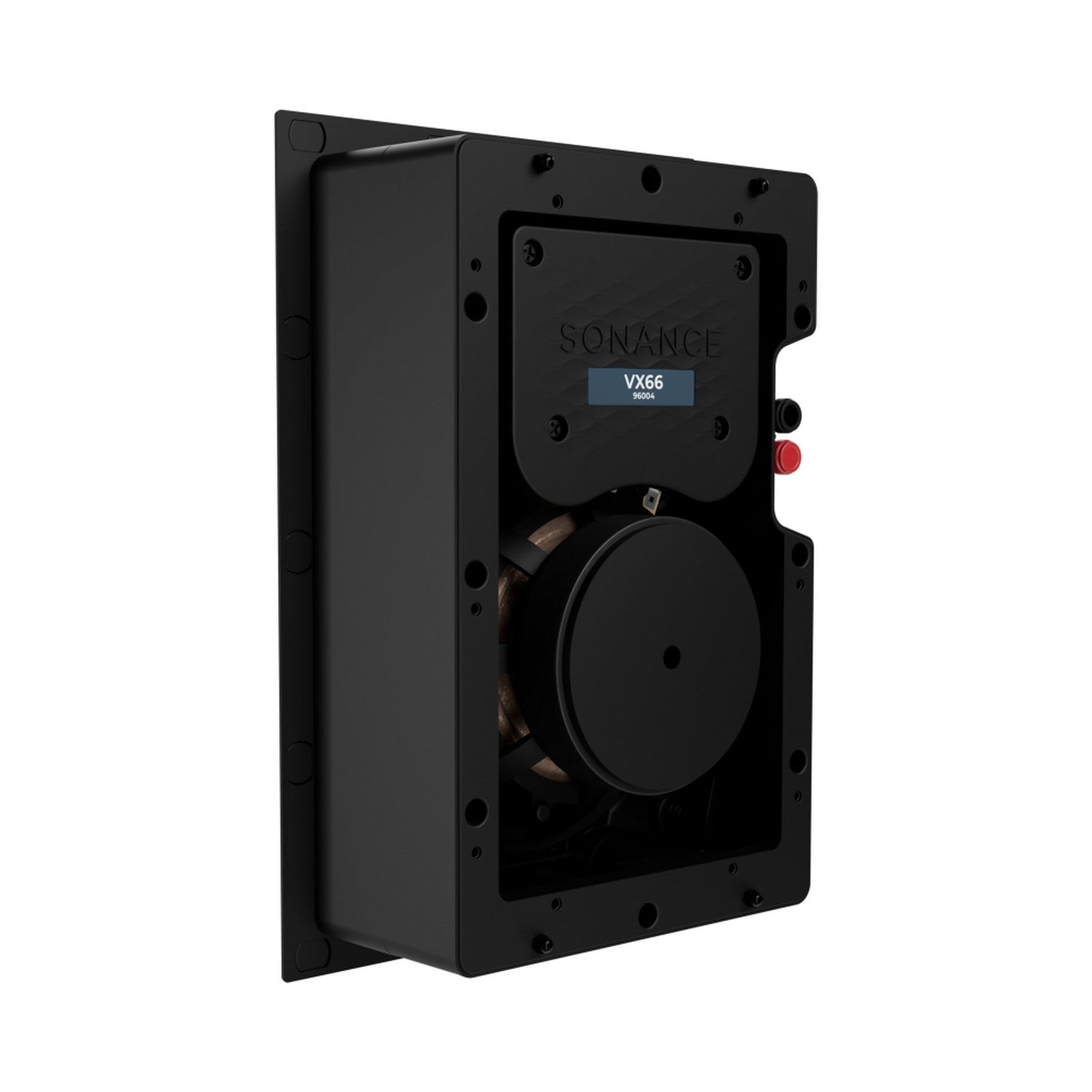

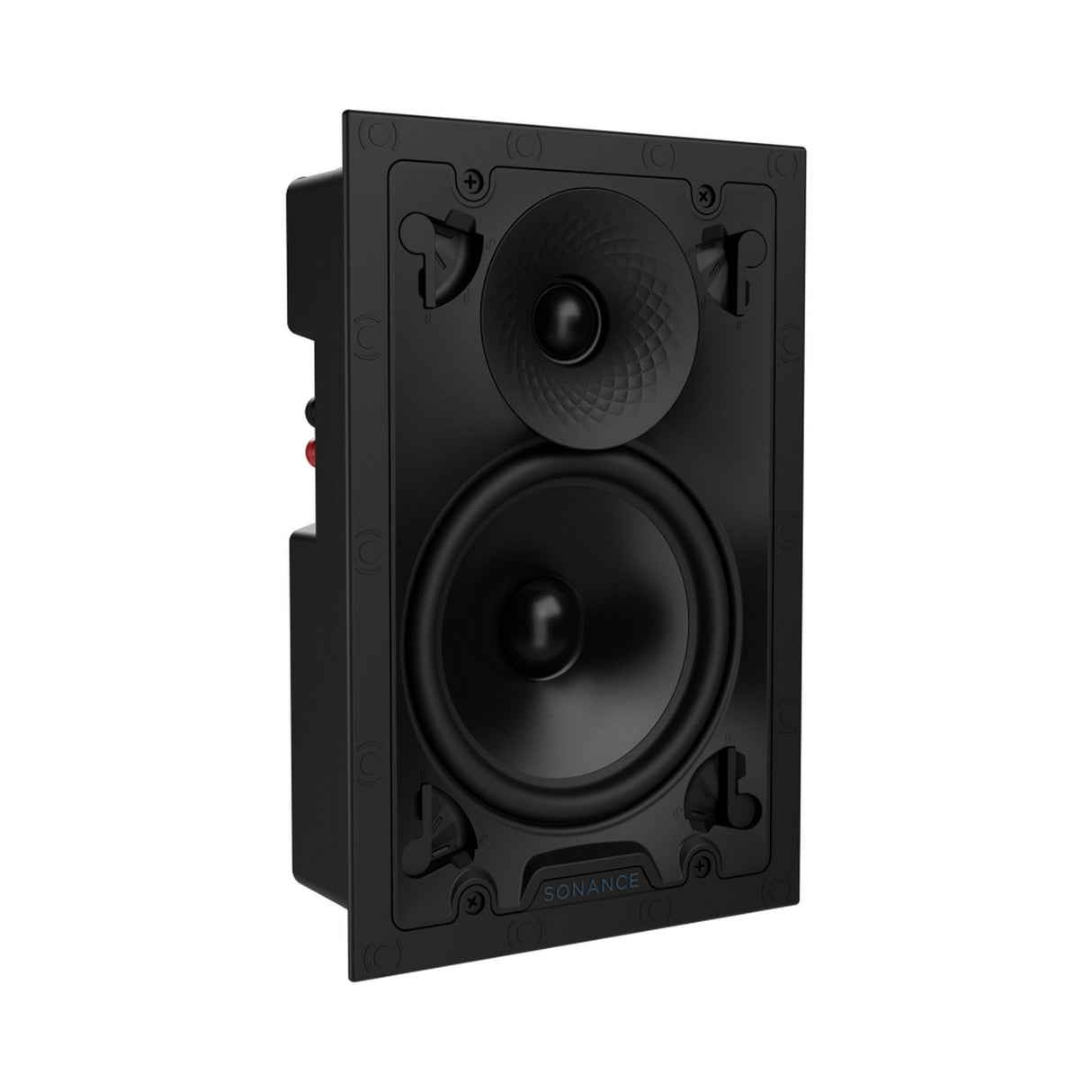

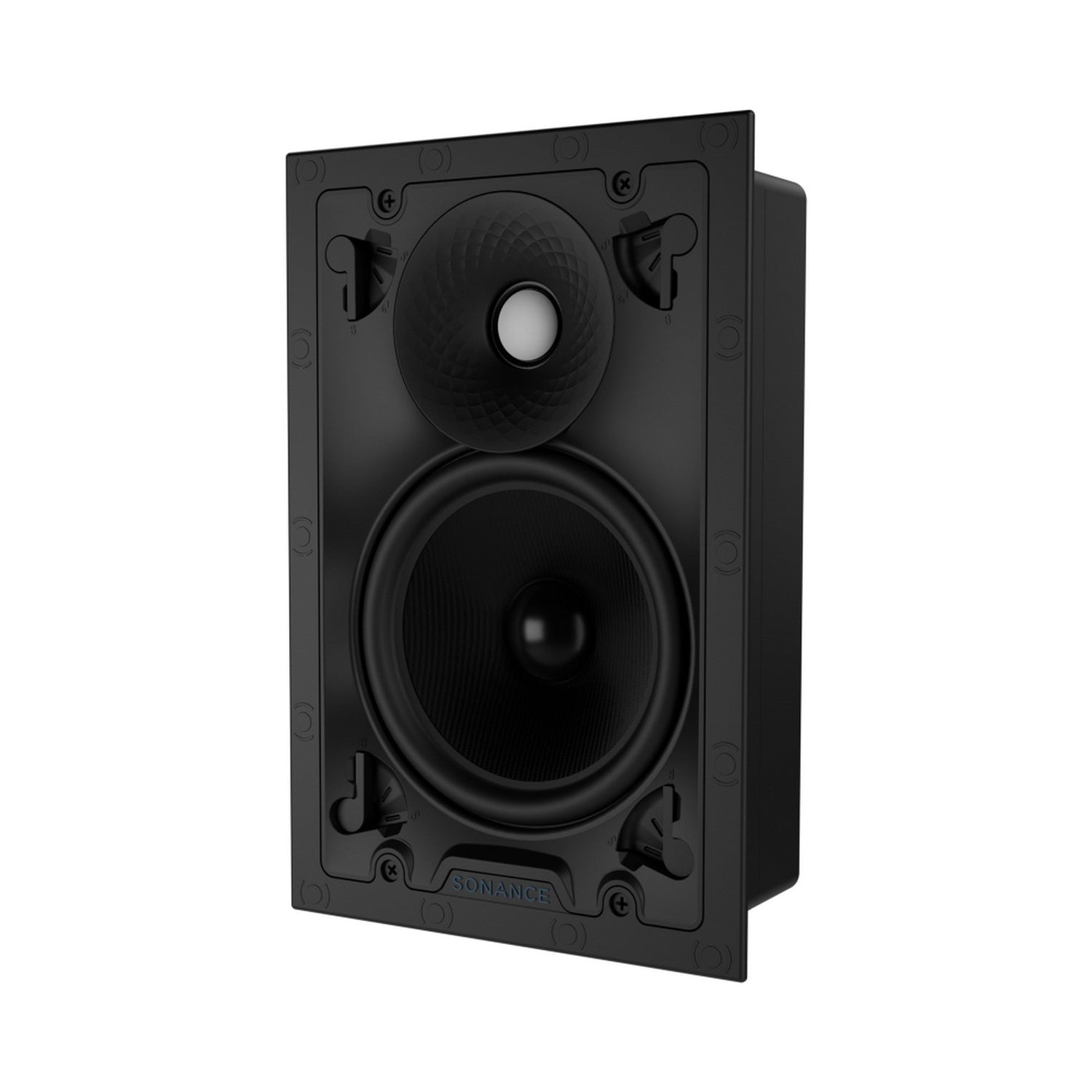

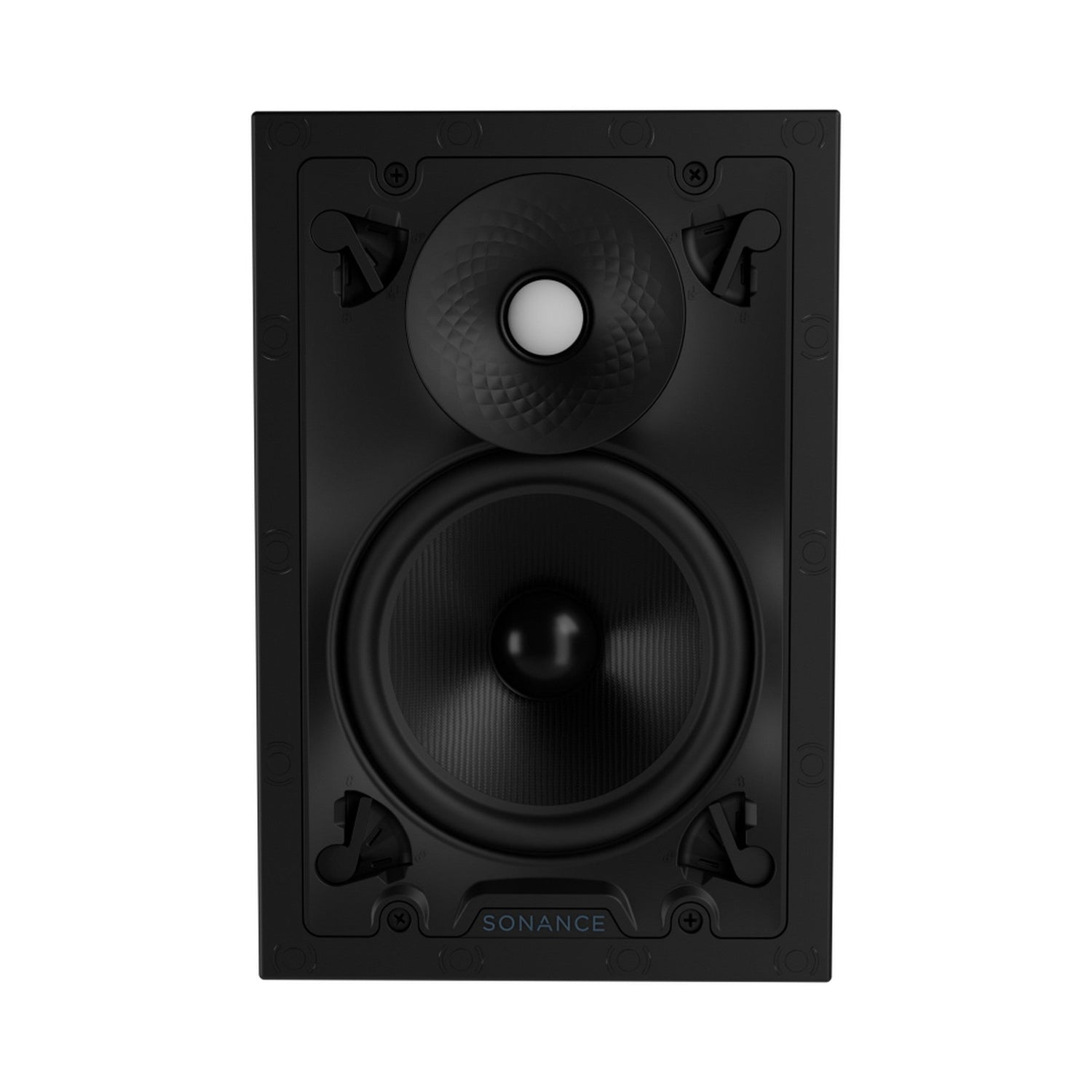

The Sonance VX62 and VX66 models are engineered for superior sound quality, making them perfect for any audio setting. The VX62 boasts a 1” cloth dome tweeter and a 6.5” textured polypropylene woofer, ensuring clear highs and deep lows. On the other hand, the VX66 features a 1” ceramic dome tweeter and a 6.5” Kevlar/Nomex cone, providing an even wider frequency response of 43Hz to 20kHz, which enhances your listening experience whether you're watching movies or enjoying your favorite music.
These speakers utilize advanced dispersion technology with a sinusoidal textured waveguide, which effectively fills the room with sound, eliminating dead spots. With easy installation, you can set up your audio system with minimal effort, thanks to the Flex Frame mounting technology and RotoLock® clamps that ensure a secure fit. Crafted for durability and performance, the VX Series speakers are built with high-quality materials that ensure longevity, making them a reliable choice for any audio enthusiast. Plus, the paintable grilles allow you to customize the look to match your interior decor seamlessly.
Key Features
- Low-profile design with white micro trim grille
- Exceptional sound quality with clear highs and deep lows
- Easy installation process
- Durable construction for long-lasting performance
- Paintable grilles for customization
Technical Specifications
Model
VX62 / VX66
SKU
96003 - Pair / 96004 - Pair
Tweeter

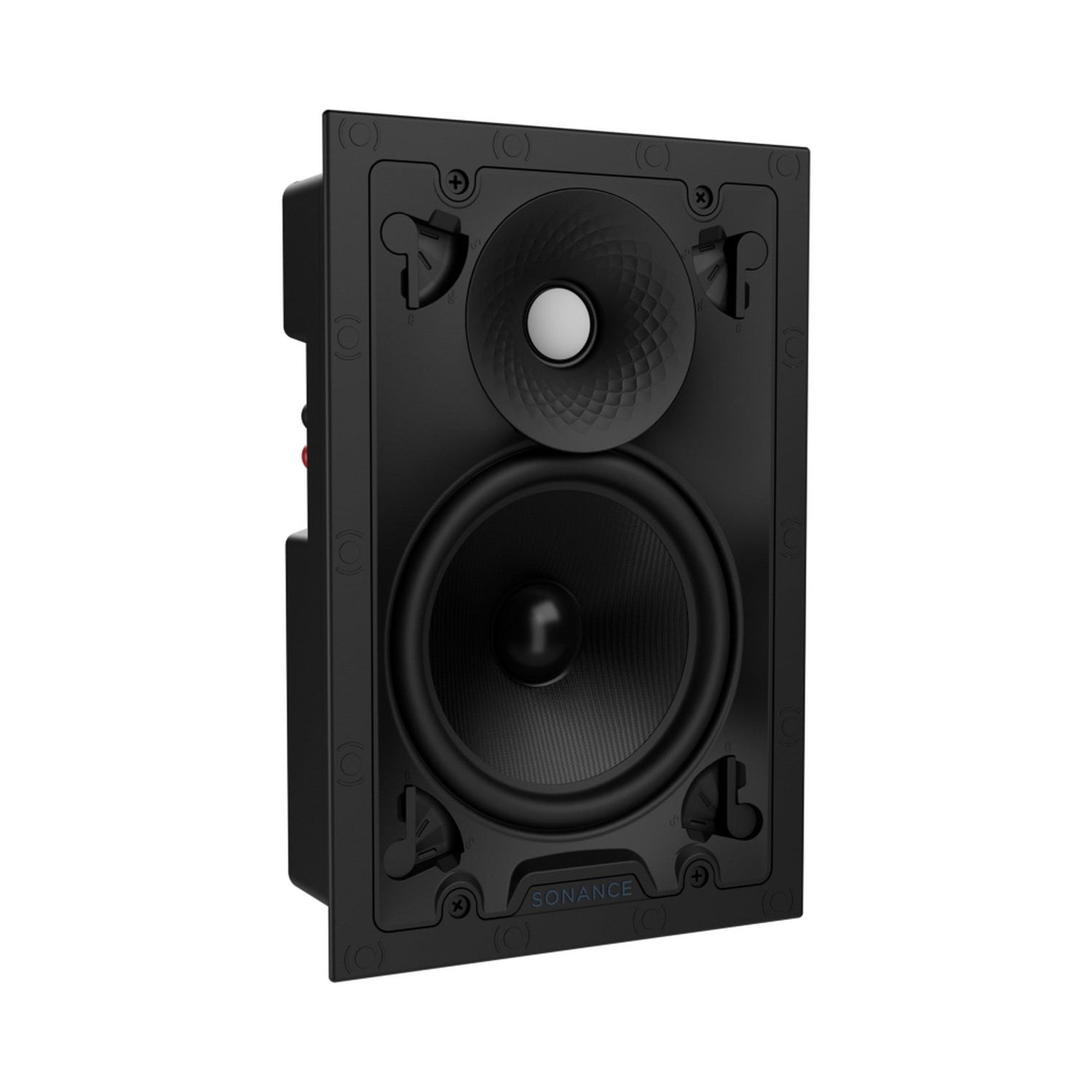

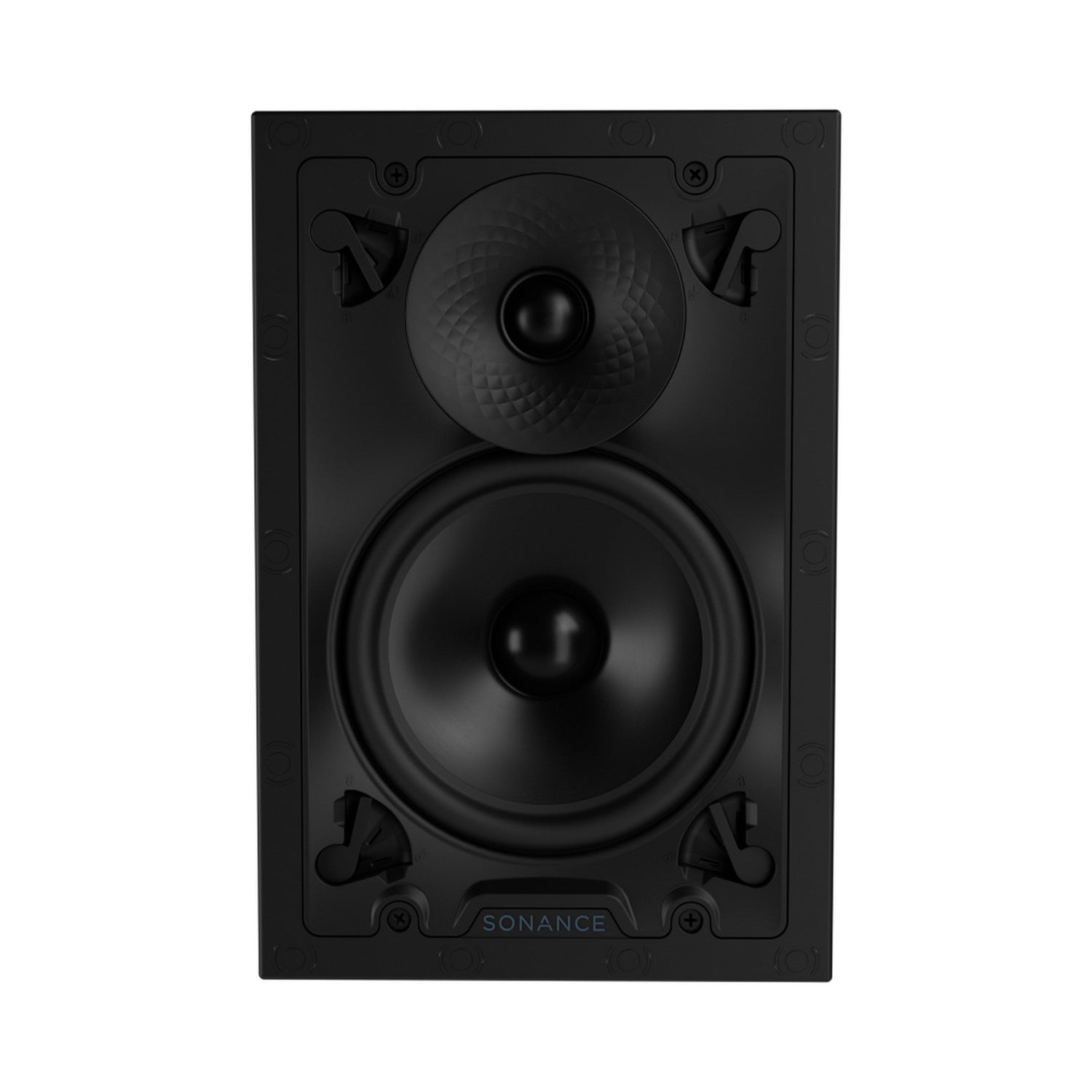

1” (25mm) cloth dome, Ferrofluid-cooled, acoustic back chamber (VX62) / 1” (25mm) ceramic dome, Ferrofluid-cooled, acoustic back chamber (VX66)
Woofer
6.5” (165mm) textured polypropylene cone, rubber surround (VX62) / 6.5” (165mm) Kevlar/Nomex cone, rubber surround (VX66)
Dispersion Technology
Sinusoidal textured waveguide
Frequency Response
45Hz - 20kHz +/-3dB (VX62) / 43Hz - 20kHz +/-3dB (VX66)
Impedance
8 ohms nominal; 6 ohms minimum
Power Handling (RMS)
5 watts minimum; 125 watts maximum (VX62) / 5 watts minimum; 140 watts maximum (VX66)
Sensitivity (2.83V/1m)
89dB SPL (VX62) / 90dB SPL (VX66)
Mounting Technology

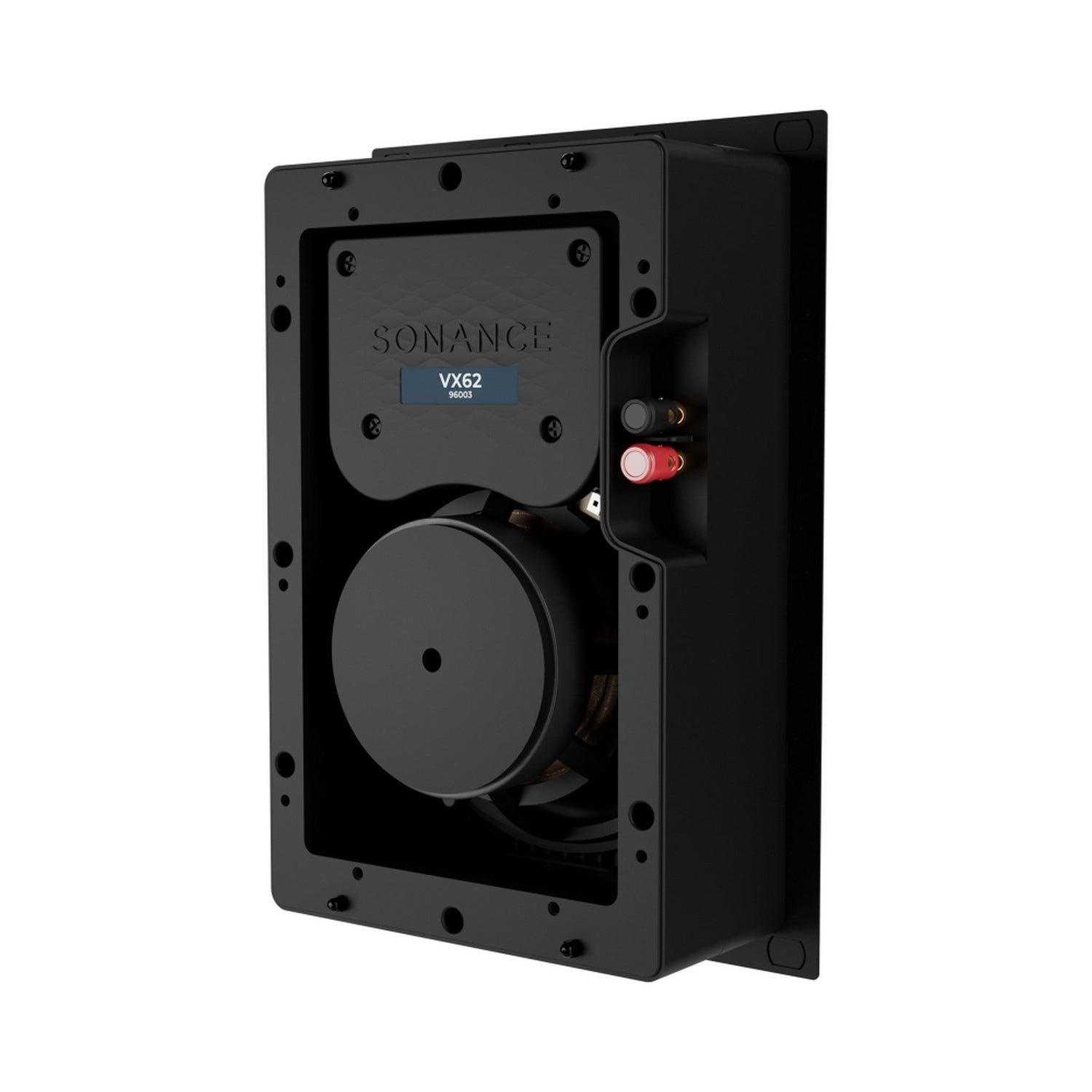

Flex Frame 1 or 2-stage, 4 x RotoLock® Clamps

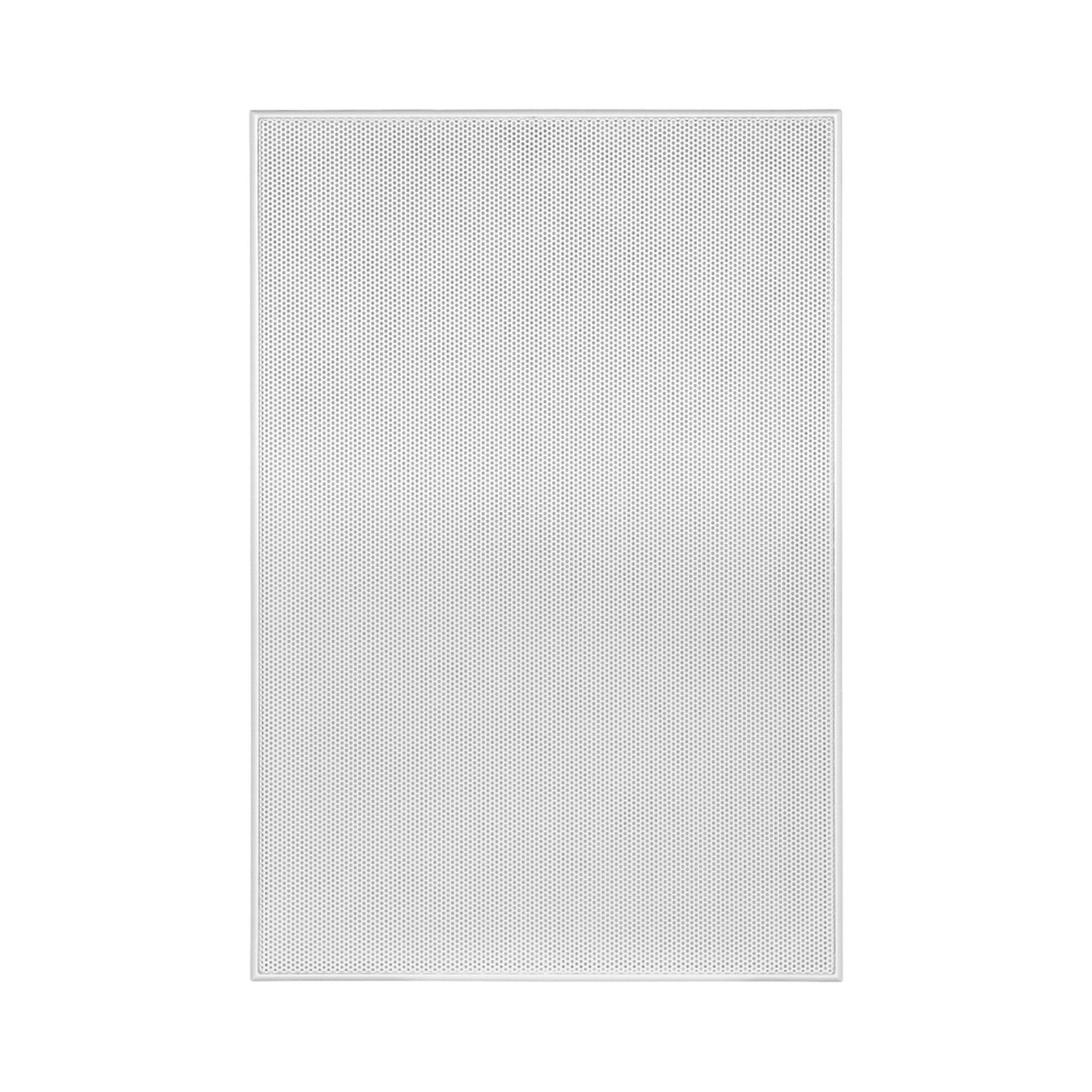

Micro Trim Grille (WxH)
8.23” x 12.12” (208.9mm x 307.7mm)
Trimless Grille (WxH)
7.88” x 11.77” (200.1mm x 298.9mm)

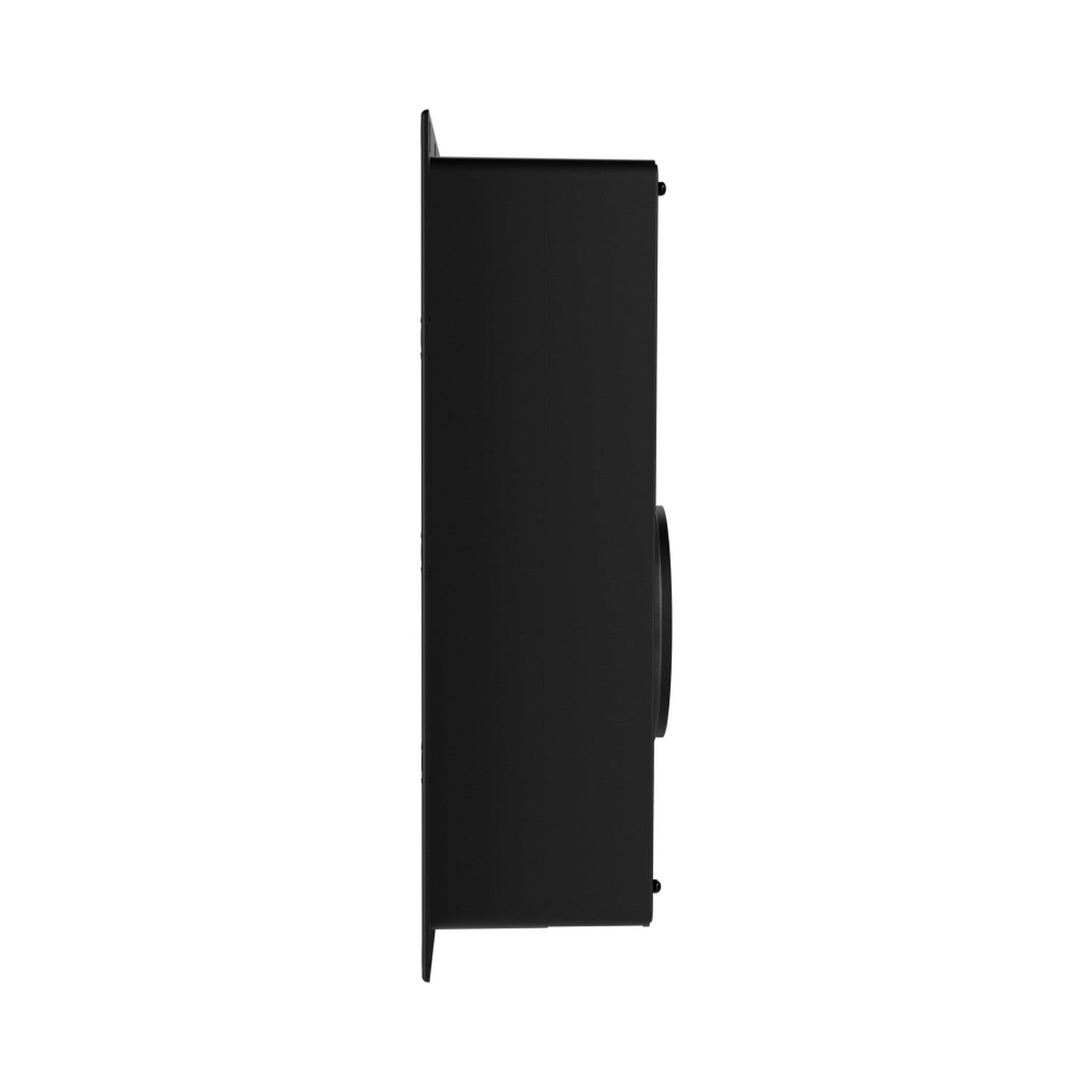

Speaker Mounting Depth (D)
3.48” (88.3mm)
Mounting Depth + Retrofit Enclosure
3.84” (97.6mm)
Cut-Out Dimensions (WxH)
6.9375” x 10.75” (176mm x 273mm)
Shipping Weight
9 lbs. (4.1kg) (VX62) / 10 lbs. (4.5kg) (VX66)
Installation / Use Cases
- Use as a 6-inch rectangle in-wall speaker pair for home audio and theater spaces.
- Suitable for modern interiors where a white micro trim grille and low-profile appearance are preferred.
- Use for music and movie playback where rich, immersive sound is needed without visible box speakers.
- Suitable for rooms that benefit from advanced dispersion technology with a sinusoidal textured waveguide.
- Use in installations requiring Flex Frame mounting technology and RotoLock clamps for a secure fit.
- Available in VX62 and VX66 model options.
Package Contents
- Sonance VX Series 6-Inch Rectangle In-Wall Speaker with White Micro Trim Grille, Pair
Frequently Asked Questions
What is the Sonance VX Series 6-inch in-wall speaker designed for?
It is designed for in-wall audio installations where strong sound performance and a clean, low-profile appearance are both important.
What is the difference between the VX62 and VX66 models?
The VX62 uses a 1-inch cloth dome tweeter and 6.5-inch textured polypropylene woofer, while the VX66 uses a 1-inch ceramic dome tweeter and 6.5-inch Kevlar/Nomex cone woofer.
Which model provides the wider frequency response?
The VX66 reaches 43Hz to 20kHz, while the VX62 covers 45Hz to 20kHz, both at plus or minus 3dB.
How does the waveguide help room coverage?
The sinusoidal textured waveguide helps distribute sound more evenly through the room, reducing dead spots in the listening area.
Can the grille be matched to the room design?
Yes. The grilles are paintable, allowing the speaker finish to better match the surrounding wall or interior design.
What installation system does this speaker use?
The speaker uses Flex Frame 1- or 2-stage mounting with four RotoLock clamps for secure in-wall placement.
What cut-out size is needed for installation?
The cut-out dimensions are 6.9375 inches wide by 10.75 inches high, or 176 mm by 273 mm.
