Sonifex AVN-AESIO8 8 AES3 I/O Dante Interface, PoE

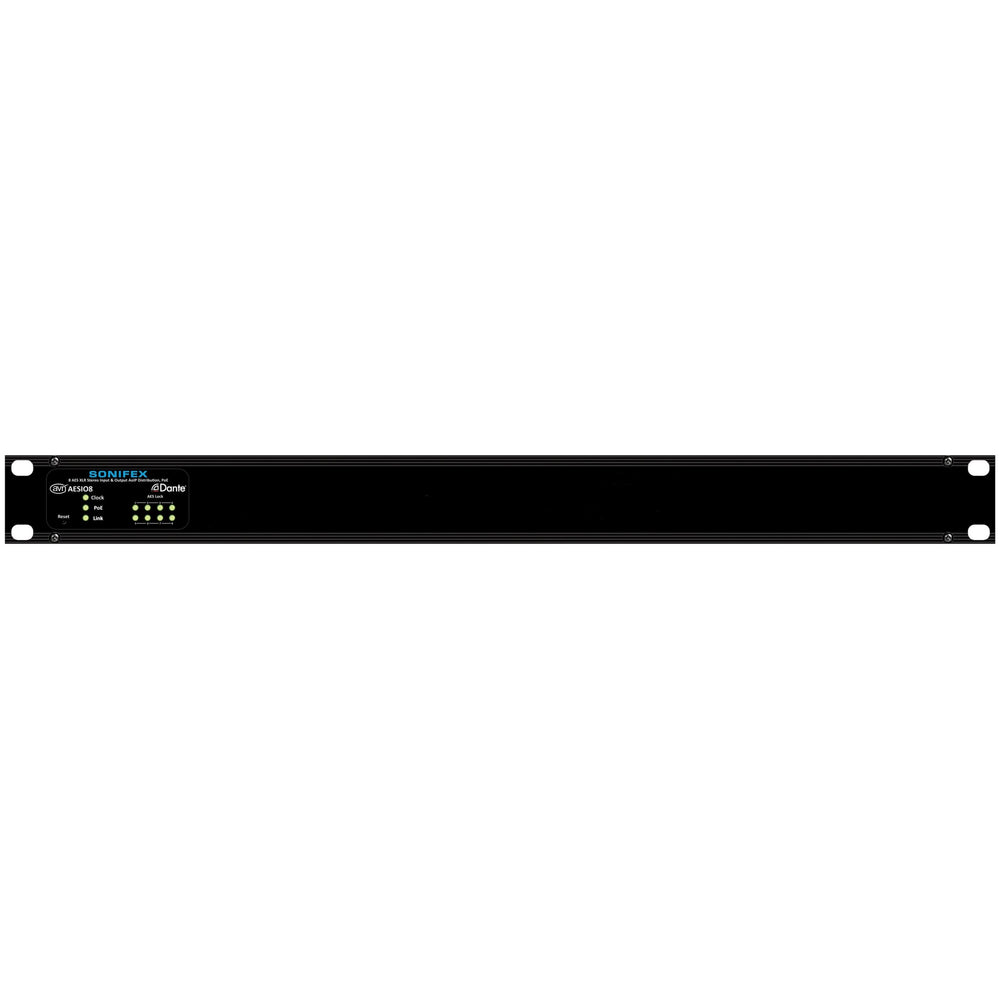

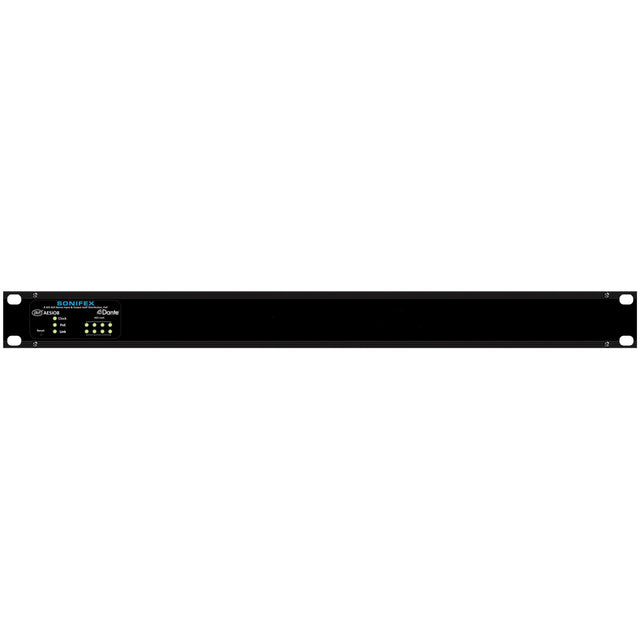

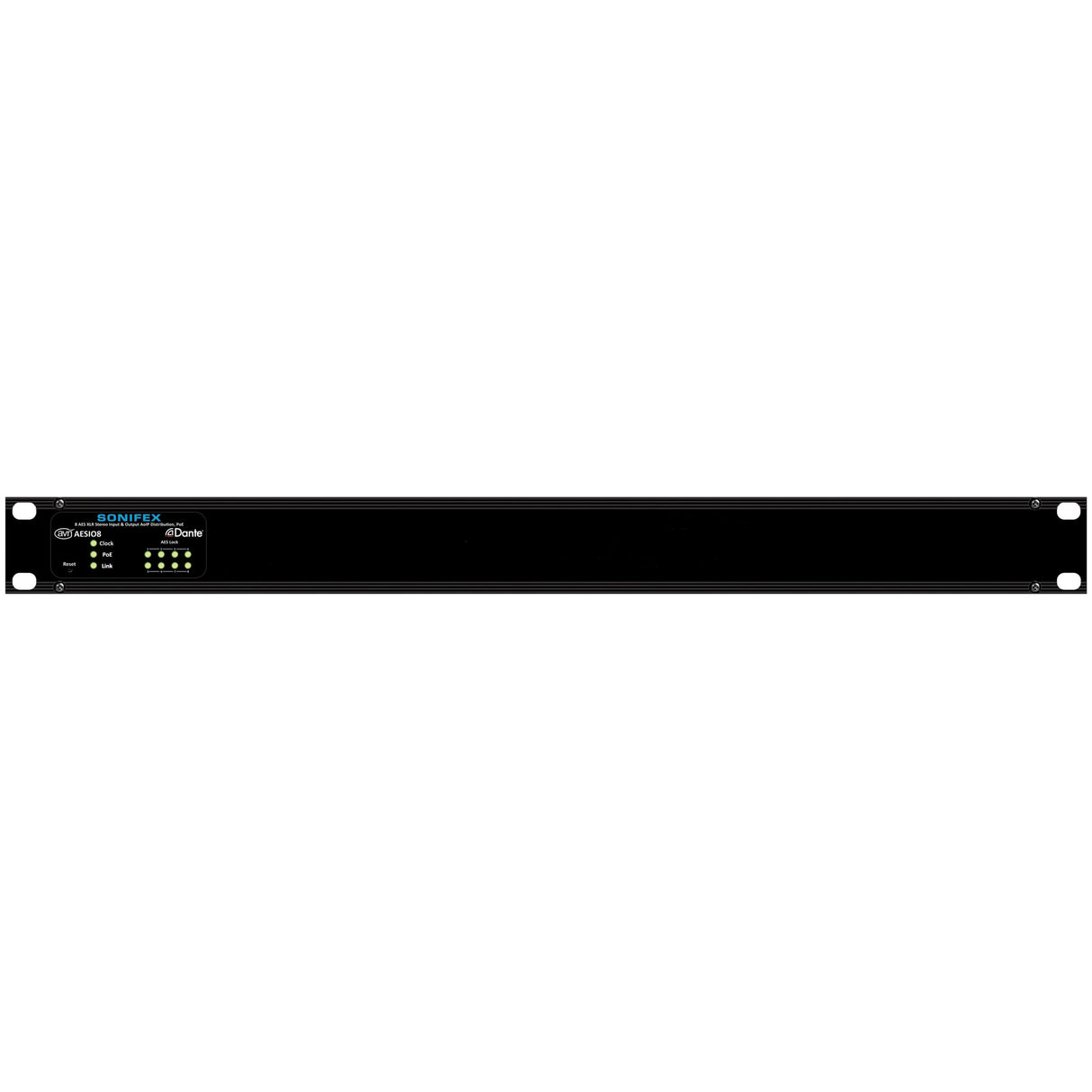

The AVN-AESIO8 audio converter and interface converts up to eight digital stereo AES3 inputs and eight digital stereo AES3 outputs to and from the Dante Audio-over-IP networking standard. Each input can accept sample rates from 32kHz to 192kHz, which will be sample rate converted to the Dante system sample rate. A valid input signal is confirmed by front panel AES3 lock LEDs for each input. All outputs follow the Dante system sample rate.
Key Features
- 8 x balanced digital stereo AES3 inputs on XLR, supporting input rates of 32kHz - 192kHz
- Sample rate conversion on physical inputs to Dante system sample rate
- 8 x balanced digital stereo AES3 outputs on XLR, output rate matches Dante system sample rate
- 1 x RJ45 Dante connector (1Gb/s Ethernet Port)
- PoE, Link, and Clock LED status indicators
- AES3 Lock LED status indicators for each input
- Configuration using Dante Controller
- AES67 operation & Dante Domain Manager compliant
- Powered by PoE
- 1U 19” rack-mount form factor
Technical Specifications
Network and AoIP
AoIP Standard
Dante
Number of Channels
16 receive, 16 transmit
Number of Streams
16 receive, 16 transmit
Sample Rates
44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz
Format
Linear PCM, 16, 24 or 32 bit
AES67 Support
Yes
Connectivity
1 x RJ45
Speed
1Gbps or 100Mbps
Dante Domain Manager Ready
Yes
AES3 Input Specifications
Input Impedance
110ohms balanced
Support Input Rates
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz (sample rate converted to Dante system sample rate).
Signal Level
AES3-2009 compliant
Bit Depth
Up to 24bits
AES3 Output
Output Impedance
110ohms balanced
Support Output Rates
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz (set as per Dante system sample rate).
Signal Level
AES3-2009 compliant
Bit Depth
24 bits
PoE Power
Standard
802.3at Type 1
Class
0
PD Power Range
0.44 W to 12.94 W
Typical PSE Power Usage
6W
Max PSE Power Usage
15.4 W
Physical
Dimensions (Raw)
48cm (W) x 11cm (D) x 4.3cm (H)(1U)
19” (W) x 4.3” (D) x 1.7” (H)
Weight
Nett: 1.0kg Gross: 1.5kg
Nett: 2.2lbs Gross: 3.3lbs
