Sonifex AVN-AI16 16 Input Dante Interface PoE

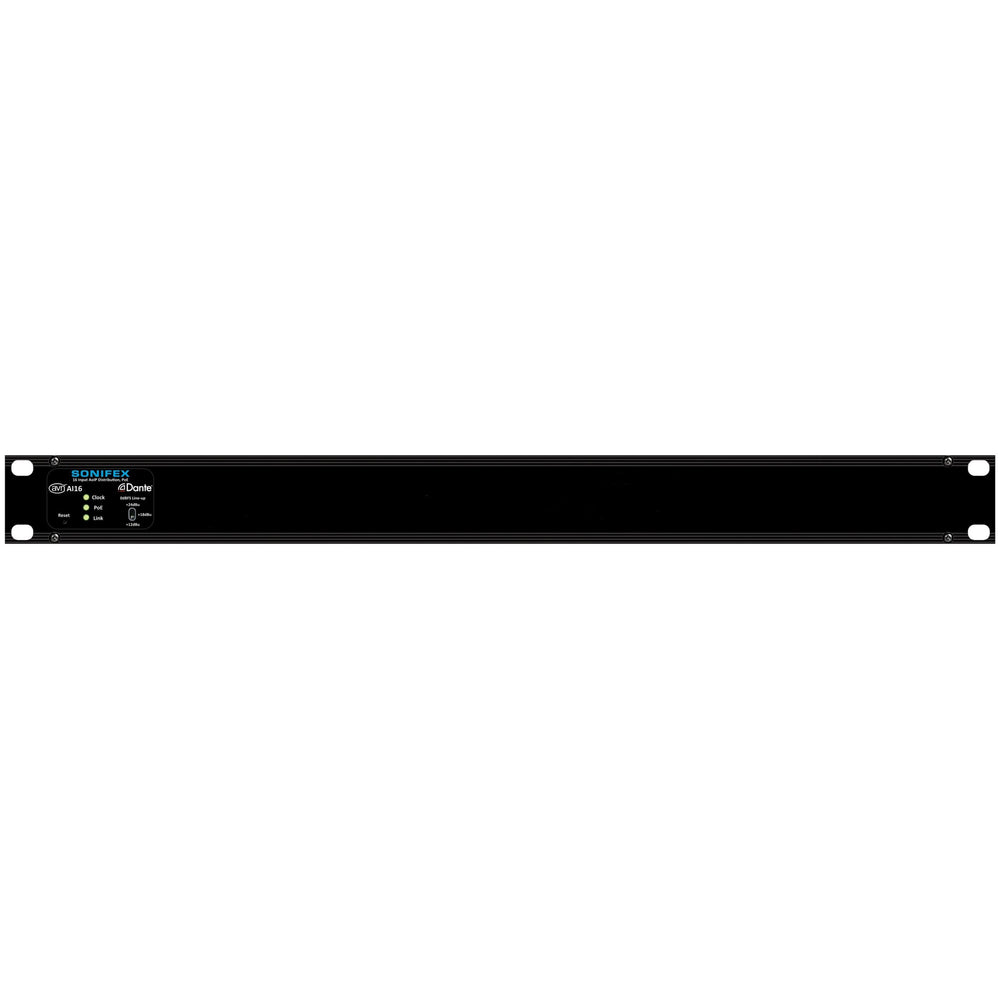

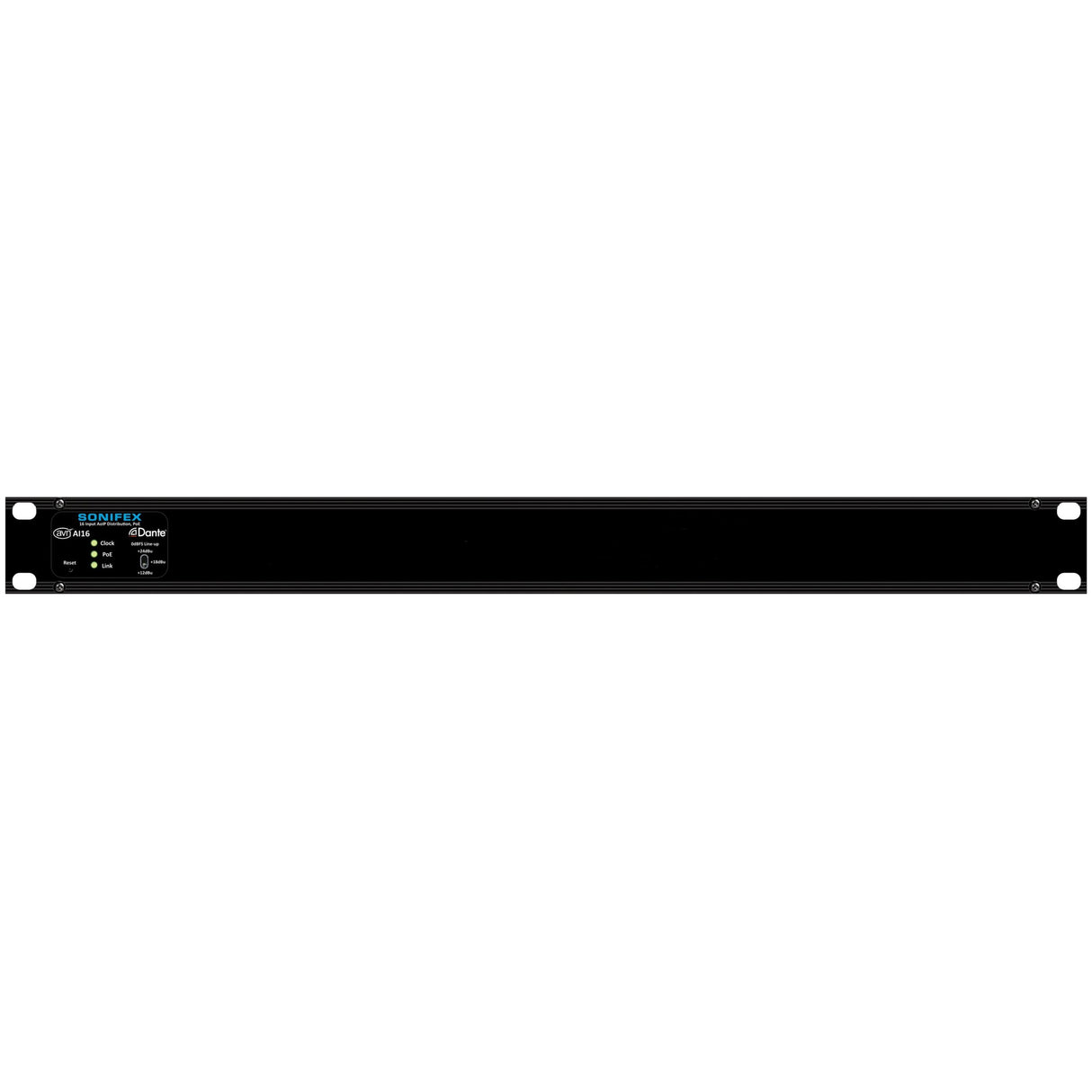

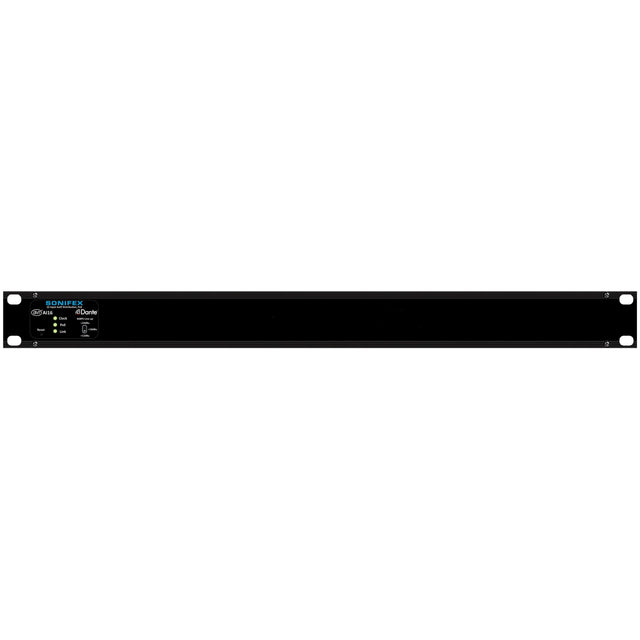

The AVN-AI16 audio converter and interface converts up to sixteen analogue inputs to the Dante Audio-over-IP networking standard. This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up, except line-up levels, done via the standard Dante Controller software and power via PoE (Power Over Ethernet).
Key Features
- 16 x balanced analogue inputs on XLR
- Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu)
- 1 x RJ45 Dante connector (1 Gb/s Ethernet Port)
- PoE, Link, and Clock LED status indicators
- Configuration using Dante Controller
- AES67 operation & Dante Domain Manager compliant
- Powered by PoE
- 1U 19" rack-mount form factor
Technical Specifications
Network and AoIP
Number of Channels
16 transmit
Number of Streams
16 transmit
Sample Rate
44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz
Format
Linear PCM, 16, 24 or 32 bit
AES67 Support
Yes
Connectivity
1 x RJ45
Speed
1Gbps or 100Mbps
Dante Domain Manager Ready
Yes
Audio Input Performance
Input Impedance
>20kohms balanced
0dBFS line-up
User Selectable +12dBu/+18dBu/+24dBu balanced
Frequency Response
20Hz to 20kHz, +0/-0.2dB
THD+N
<-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise
-110dBFS, 20kHz BW, Rs=200ohms
Crosstalk
<-100 dB
Common Mode Rejection
>60dB @ 1kHz
PoE Power
Standard
802.3at Type 1
Class
0
PD Power Range
0.44 W to 12.94 W
Typical PSE Power Usage
6 W
Max PSE Power Usage
15.4 W
Physical
Dimensions (Raw)
48cm (W) x 11cm (D) x 4.3cm (H)(1U)
19” (W) x 4.3” (D) x 1.7” (H)
Weight
Nett: 1.1kg Gross: 1.6kg
Nett: 2.4lbs Gross: 3.5lbs
