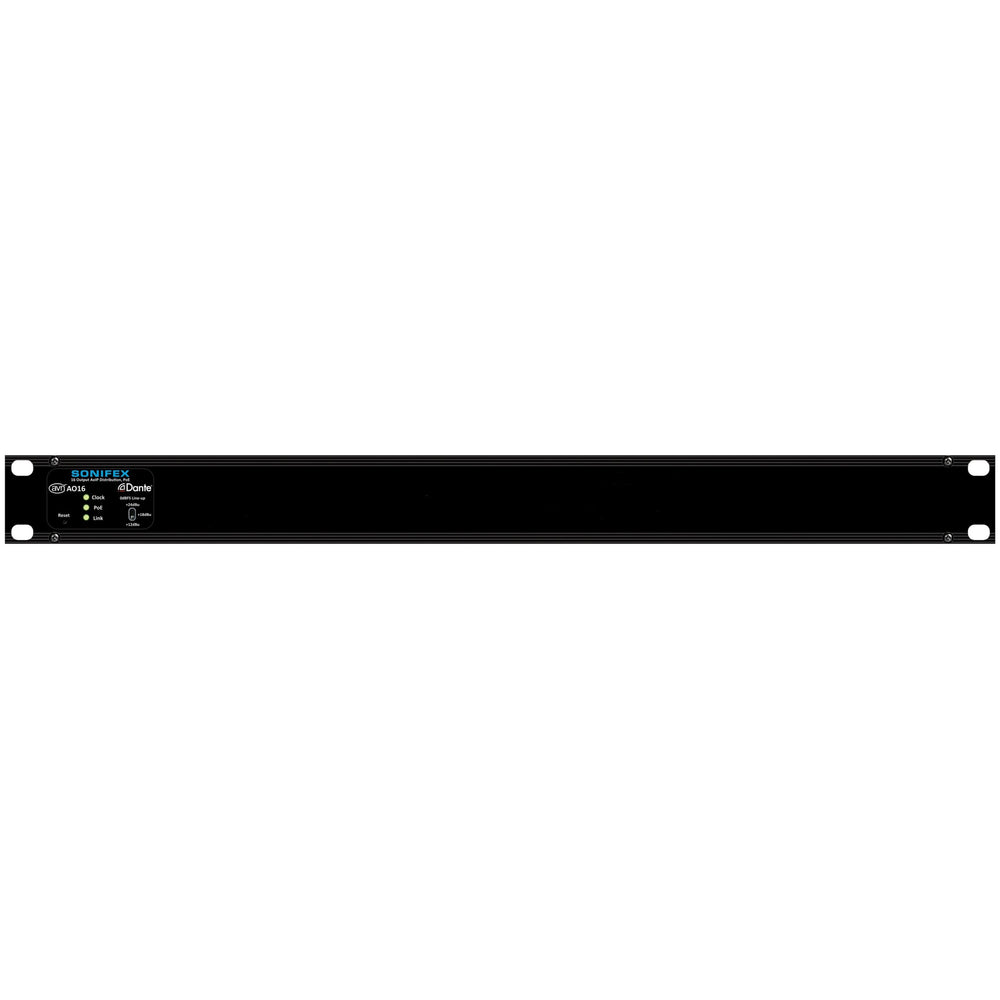

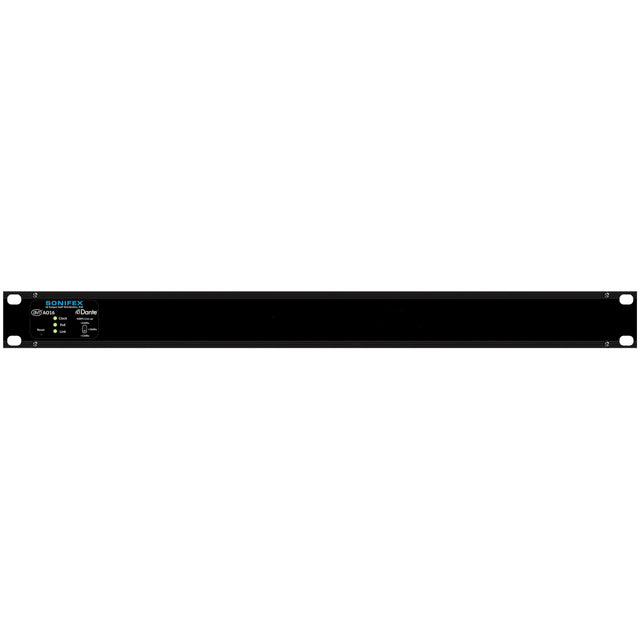

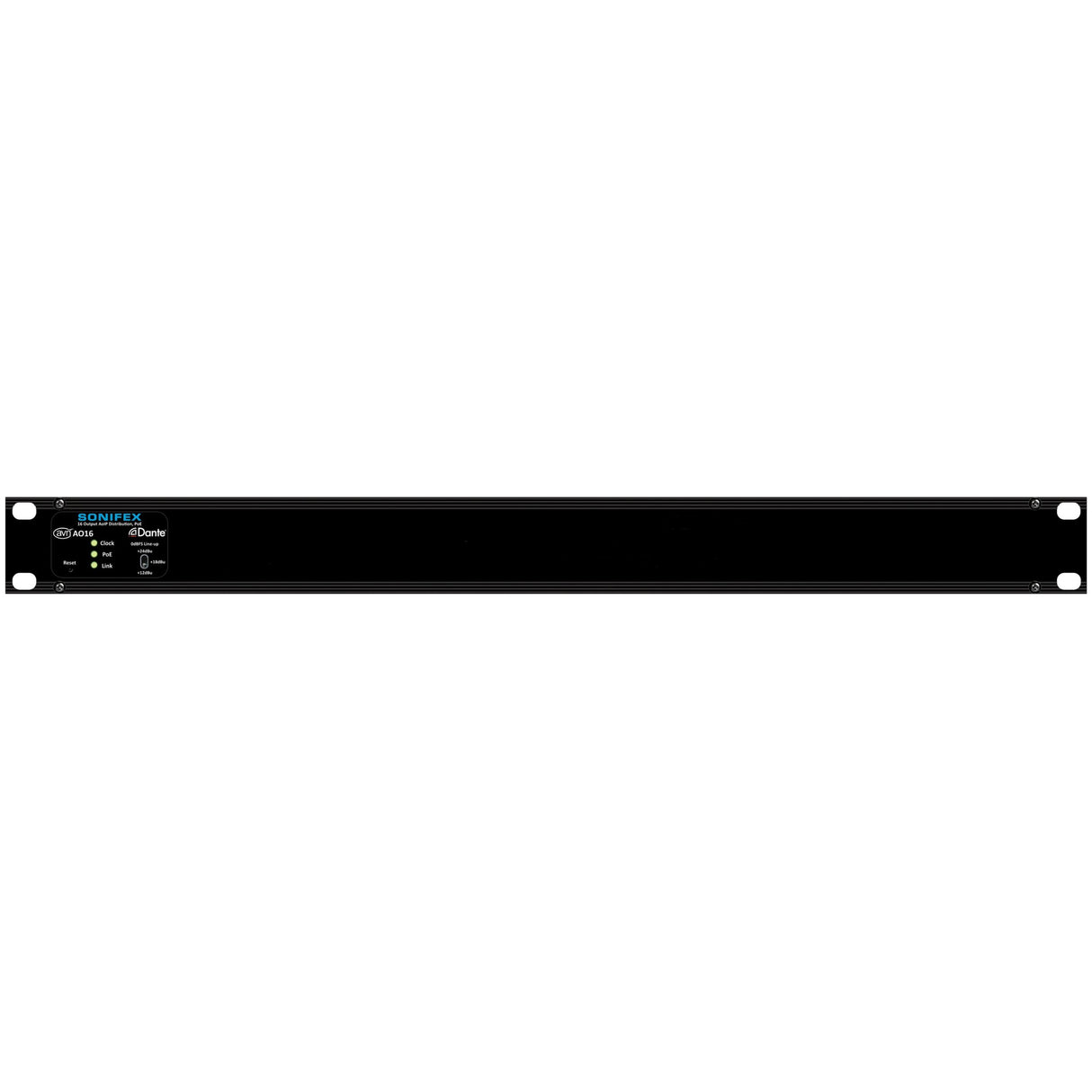

Sonifex AVN-AO16 16 Output Dante Interface, PoE
The AVN-AO16 audio converter and interface converts up to sixteen analogue outputs from the Dante Audio-over-IP networking standard. This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up, except line-up levels, done via the standard Dante Controller software and power via PoE (Power Over Ethernet).
Key Features
- 16 x balanced analogue outputs on XLR
- Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu)
- 1 x RJ45 Dante connector (1 Gb/s Ethernet Port)
- PoE, Link, and Clock LED status indicators
- Configuration using Dante Controller
- AES67 operation & Dante Domain Manager compliant
- Powered by PoE
- 1U 19" rack-mount form factor
Technical Specifications
Network and AoIP
Number of Channels
16 receive
Number of Streams
16 receive
Sample Rate
44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz
Format
Linear PCM, 16, 24 or 32 bit
AES67 Support
Yes
Connectivity
1 x RJ45
Speed
1Gbps or 100Mbps
Dante Domain Manager Ready
Yes
Audio Output Performance
Output Impedance
<50ohms balanced
0dBFS line-up
User Selectable +12dBu/+18dBu/+24dBu balanced
Frequency Response
20Hz to 20kHz, +0/-0.5dB
THD+N
<-107dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise (Mic=EIN)
-107dBFS, 20kHz BW
Crosstalk
<100dB
PoE Power
Standard
802.3at Type 1
Class
0
PD Power Range
0.44 W to 12.94 W
Typical PSE Power Usage
7 W
Max PSE Power Usage
15.4 W
Physical
Dimensions (Raw)
48cm (W) x 11cm (D) x 4.3cm (H)(1U)
19” (W) x 4.3” (D) x 1.7” (H)
Weight
Nett: 1.1kg Gross: 1.6kg
Nett: 2.4lbs Gross: 3.5lbs
