Description

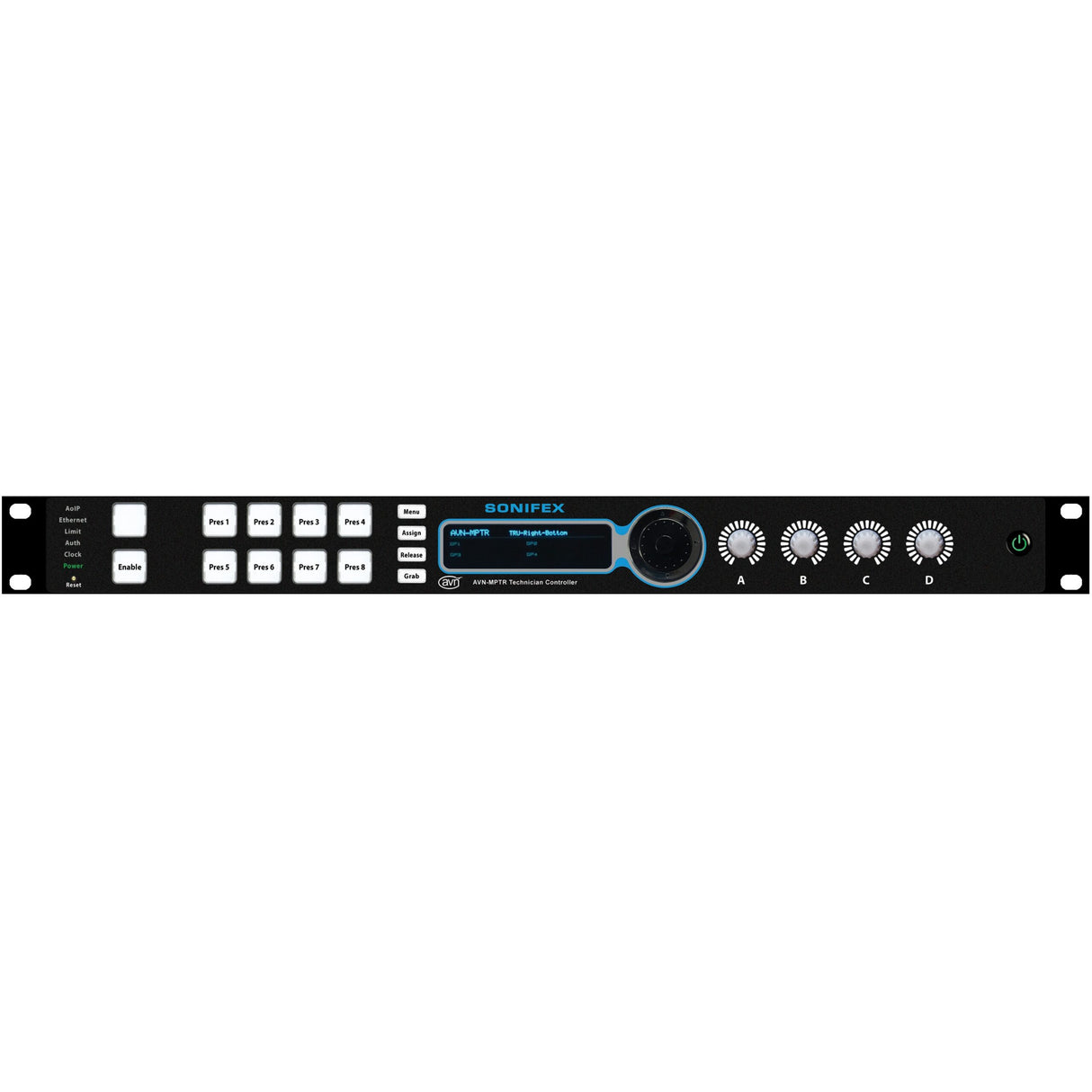

Sonifex AVN-MPTR Technician Remote Controller, Rackmount
The presenter mixer system allows on-air presenters to adjust the audio levels fed to their radio or wired IEM systems, whilst also allowing Sound Control Room operators to adjust the levels remotely. The system consists of 3 types of unit all connected on a common Ravenna Audio over IP (AoIP) network with added audio sources derived from Ravenna based AoIP mixers or input portals. Setup and control can be provided via webpages and/or 3rd party applications. The system uses mono audio throughout.
Key Features
- Allows selection of each of 8 VMs and remote adjustment of volume controls
- 8 virtual mixer select buttons
- 4 x rotary encoders showing input level metering and output volume control
- GPO enable and activation buttons
- 1Gb PoE Ethernet and power using Neutrik Ethercon
- Status LEDs and OLED display
- 10 x GPIO ports
- Configured via webserver
Technical Specifications
PoE Power
Standard
802.3at Type 1
Class
3
PD Power Range
0.44 W to 12.94 W
Typical PSE Power Usage
7 W
Max PSE Power Usage
15.4 W
Physical
Dimensions: (Raw)
48cm (W) x 15.0cm(D) x4.2cm (H) (1U)
19"(W) x 5.9" (D) x1.7" (H) (1U)
Dimensions (Boxed)
56cm (W) x 29.5cm (D) x 16.5cm (H)
22" (W) x 11.6" (D) x 6.5" (H)
Weight
Nett: 1.9kg Gross: 2.8kg
Nett: 4.2lbs Gross: 6.2llbs
