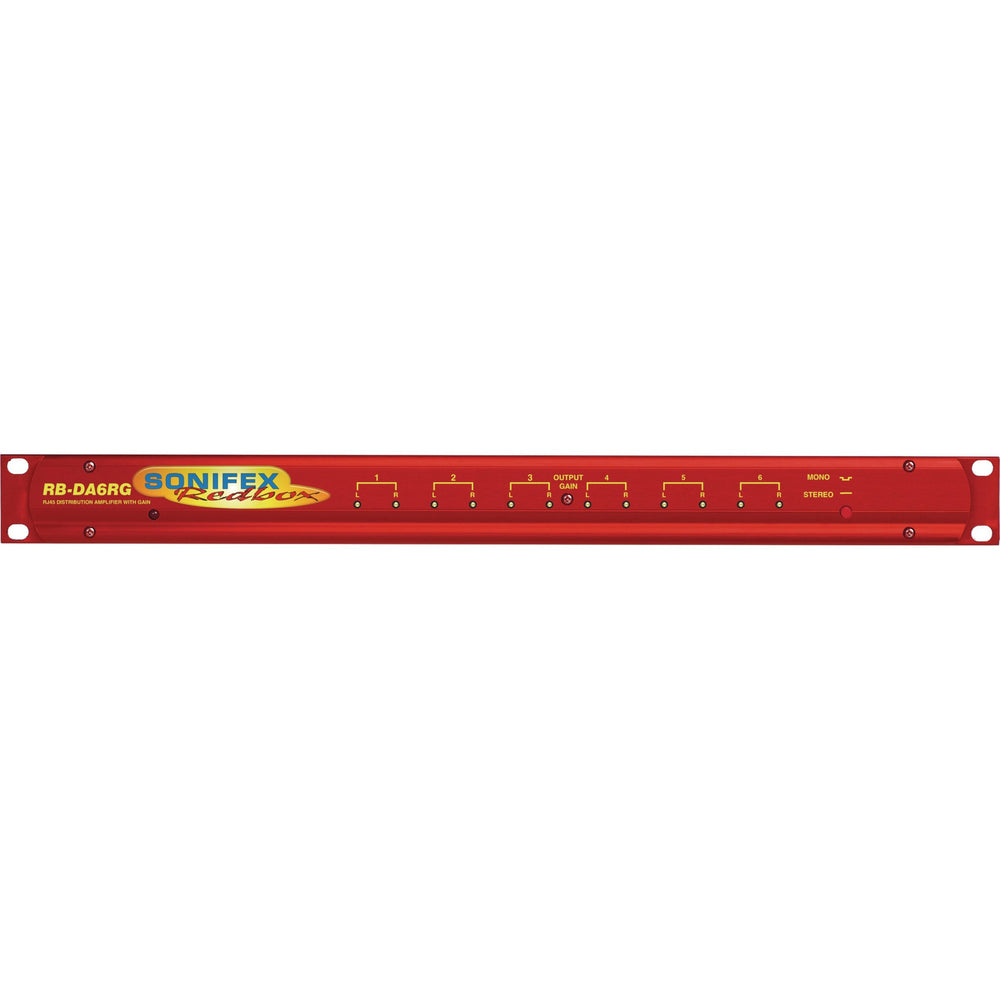

Sonifex RB-DA6RG 6-Way Stereo Distribution Amplifier with RJ45 Connectors and Output Gain Control

The RB-DA6RG is a 1U rack-mount high-performance 6 way stereo distribution amplifier for splitting a source into a number of different outputs. It is identical to the RB-DA6R with the addition of individual output gain adjustment, instead of global stereo gain adjustment.

The RB-DA6R is a 1U rack-mount high-performance 6 way stereo distribution amplifier for splitting a source into a number of different outputs. The amplifier provides multiple balanced audio outputs using RJ45 connectors wired to the StudioHub+ standard *.

By using RJ45 outputs, it allows simpler CAT5 cabling to used to connect the amplifier to other products. The RB-DA6R has one stereo input which is switchable via a rear panel push switch between paralleled balanced inputs (2 x XLR sockets or 1 x stereo input on RJ45) and unbalanced inputs (1 pair of stereo phono sockets).

The unit has 6 stereo outputs on 6 x RJ45 connectors. The unit can also be configured so that 1 mono input can be distributed to 12 outputs by use of a switch which is recessed on the front panel to prevent it being accidentally knocked.

The inputs and outputs are electronically balanced and can be wired unbalanced. Each output is individually buffered so that a short circuit on one output won’t affect the others. The left and right input gain controls (normalising) are pre-set potentiometers accessible through the front panel.

The output gain may be varied from -8dB to 18dB which is useful for normalising consumer and professional signals to give outputs of -15dBu and 0dBu respectively.

Technical Specifications

Maximum Input Level
+28dBu
Maximum Output Level
+28dBu
Frequency Response
20Hz to 20kHz +/-0.1dB (600 OHM load, ref 1kHz)
Gain Range
Adjustable 8dB loss to 18dB gain (12 adjustable pots)
Common Mode Rejection
>66dB typically
Input impedance
>20k OHM bridging (balanced)
>10k OHM (ubalanced)
Output impedance
<50 OHM
Distortion
0.01% THD @ 1kHz, ref +8dBu output
Noise
-100dB unity gain, ref +8dBu output
Inputs
2 x XLR 3 pin female, 1 x RJ45 socket balanced)
2 x phono sockets (unbalanced)
Outputs
6 x RJ45 sockets (all balanced, can be unbalanced)
Mains Input
Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
Fuse Rating
Anti-surge fuse 100mA 20 x 5mm (230VAC)
Anti-surge fuse 250mA 20 x 5mm (115VAC)
Dimensions (Raw)
48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
19” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed)
58.5cm (W) x 22.5cm (D) x 7cm (H)
23” (W) x 8.9” (D) x 2.75” (H)
Weight
Net: 1.3kg Gross: 1.9kg
Net: 2.9lbs Gross: 4.2lbs
