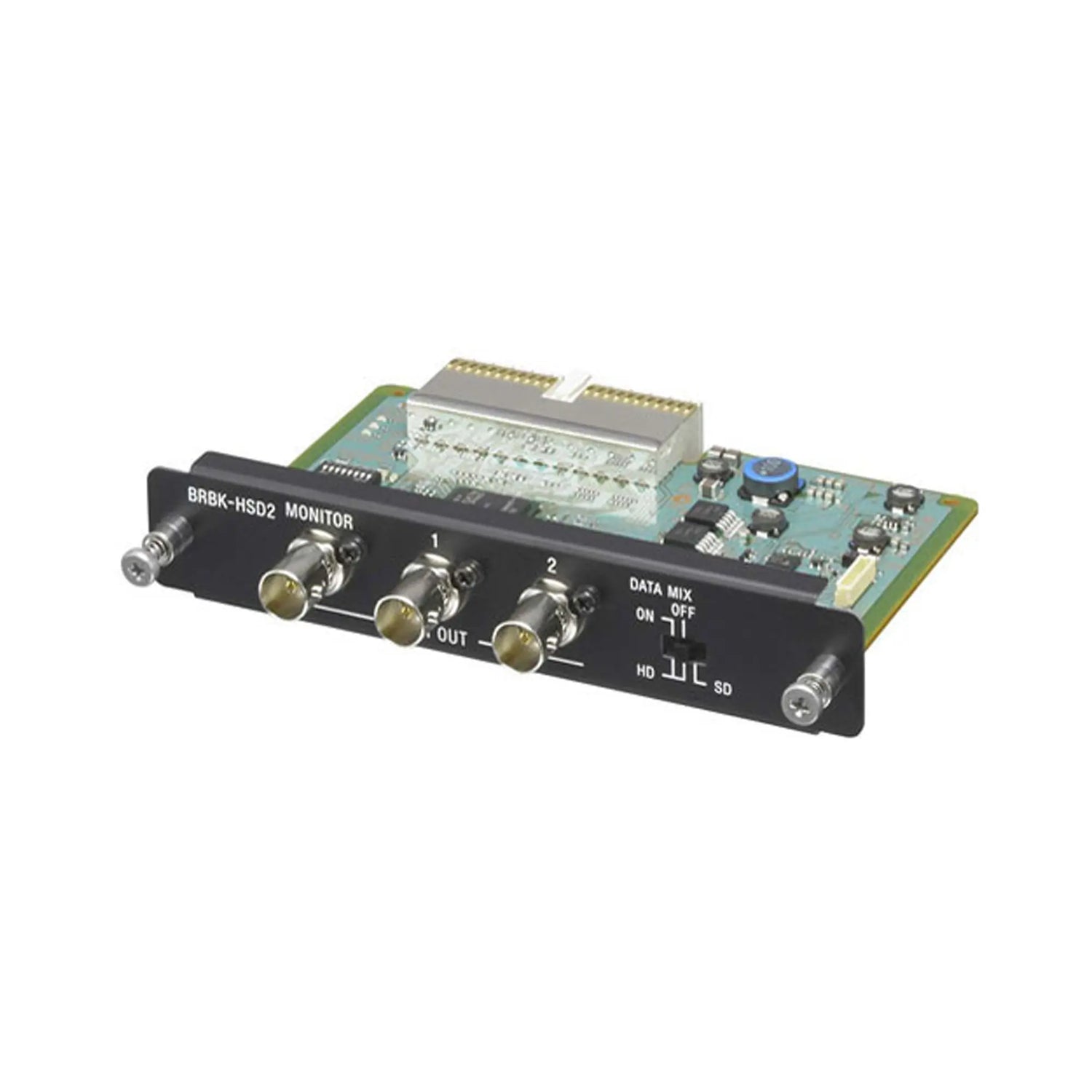

The Sony BRBKHSD2 HD/SD-SDI Output Card for BRC-H900, BRC-Z330 Robotic Cameras is an output card designed for Sony BRC-H900 and BRC-Z330 robotic cameras. It enables high-definition (HD) and standard-definition (SD) serial digital interface (SDI) output. The BRBK-HSD2 also seamlessly integrates with the BRU-SF10 HD optical multiplex unit for the BRC-Z330 camera.

With the Sony BRBKHSD2 HD/SD-SDI Output Card for BRC-H900, BRC-Z330 Robotic Cameras, users can choose between pristine HD-SDI signals compliant with SMPTE-292M standards or down-converted SD-SDI signals adhering to SMPTE-259M standards. This ensures compatibility with various broadcast environments. The Sony BRBKHSD2 HD/SD-SDI Output Card for BRC-H900, BRC-Z330 Robotic Cameras offers three digital video outputs, providing versatility for diverse production needs.

When operating in HD-SDI mode, the Sony BRBKHSD2 HD/SD-SDI Output Card for BRC-H900, BRC-Z330 Robotic Cameras allows superimposing camera menus directly onto the video signal for convenient monitoring and adjustments.

In summary, the Sony BRBKHSD2 HD/SD-SDI Output Card for BRC-H900, BRC-Z330 Robotic Cameras Sony BRBKHSD2 HD/SD-SDI Output Card for BRC-H900, BRC-Z330 Robotic Cameras is a powerful upgrade for Sony BRC camera systems, offering enhanced connectivity and flexibility for HD and SD-SDI workflows.

Technical Specifications

Output connectors
BNC type (3)
Output signal
Conforms to SMPTE292M, 75 ohm or to SMPTE259M, 75 ohm (switched with the HD/SD select switch)
Power supply
12 V DC (supplied from the camera or the
Optical Multiplex Unit)
Power consumption
2.9 W max.
Operating temperature
0 °C to 40 °C (32 °F to 104 °F)
Operating humidity
20% to 80% (no condensation)
Storage temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Storage humidity
20% to 95% (no condensation)
Dimensions
134 × 25.6 × 74.6 mm (w/h/d)
(5 3/8 × 1 1/16 × 3 inches) (not including the projected parts)
Mass
Approx. 120 g (4.2 oz)
Supplied accessories
Operating Instructions (1)
