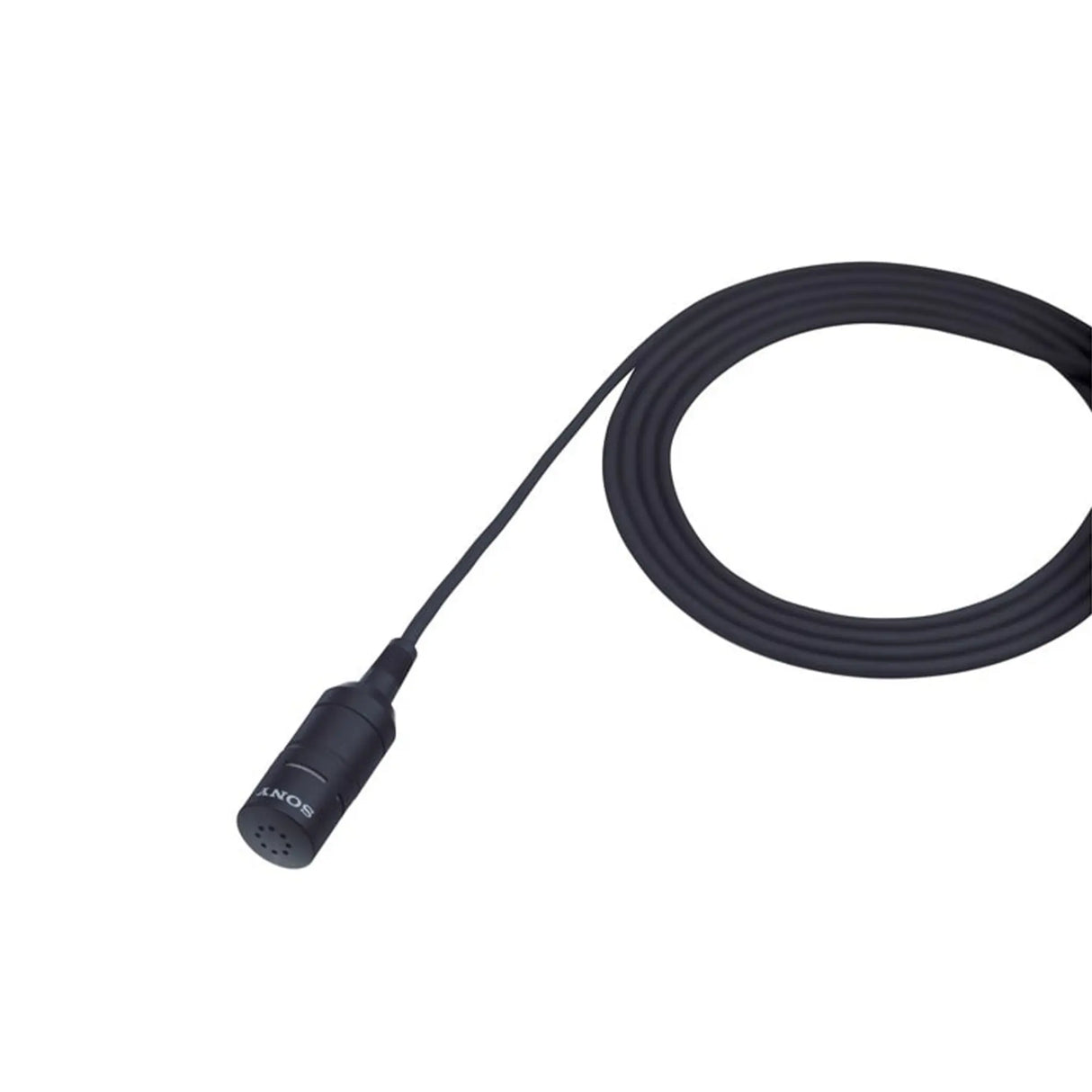

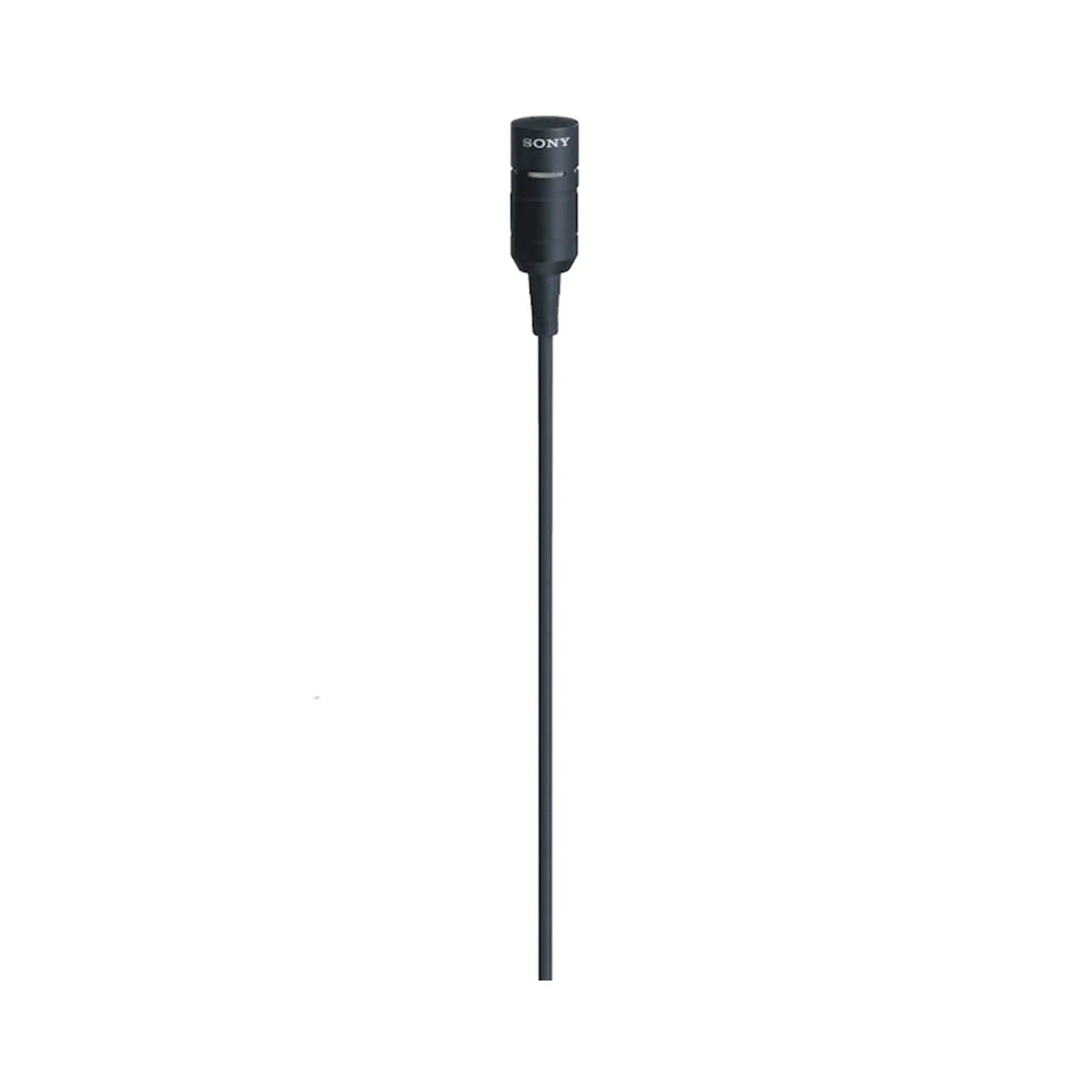

Sony ECM-66BC Miniature Cardioid Directional Lapel Electret Condenser Microphone

The Sony ECM-66BC is a state-of-the-art miniature cardioid directional lapel electret condenser microphone designed for high-quality audio capture in a variety of professional environments. This compact yet powerful microphone is engineered to deliver exceptional sound clarity and accuracy, making it an excellent choice for broadcasters, performers, and public speakers who demand reliable and precise audio reproduction. Its cardioid pickup pattern effectively minimizes background noise and captures sound directly from the source, ensuring that your voice or performance is heard with clarity and minimal interference.

Crafted with meticulous attention to detail, the ECM-66BC features a sleek and unobtrusive design that integrates seamlessly into any professional setup. The microphone's electret condenser capsule provides superior sensitivity and frequency response, making it ideal for capturing nuanced audio details. Whether you’re using it for on-stage performances, interviews, or presentations, the ECM-66BC ensures that your audio remains crisp and focused, even in challenging acoustic environments.

With its robust construction and reliable performance, the ECM-66BC is engineered to withstand the rigors of daily use while maintaining optimal audio quality. Its miniature size allows for discreet placement, making it an excellent choice for applications where visual impact is a concern. The microphone's high-performance characteristics and durable design make it a valuable tool for professionals seeking top-tier audio solutions.

Key Features

• Miniature design for discreet use
• Cardioid pickup pattern for focused sound capture
• Electret condenser capsule for superior sensitivity
• Robust construction for reliable performance
• Ideal for professional broadcasting, performance, and presentations

Technical Specifications

Audio Section

Capsule Type
Electret Condenser
Frequency Response
70 Hz to 14 kHz
Directivity
Uni-directional
Sensitivity
-36.5 dB ±2 dB
Output Impedance
2.5kΩ ±30%, Unbalanced
Dynamic Range
101 dB or more
Signal-to-Noise Ratio
65 dB or more
Inherent Noise
29 dB SPL or less
Induction Noise From External Magnetic Field
5 dB SPL or less
Wind Noise
50 dB SPL or less (with windscreen)
Maximum Input Sound Pressure Level
130 dB SPL

General Section

Connector

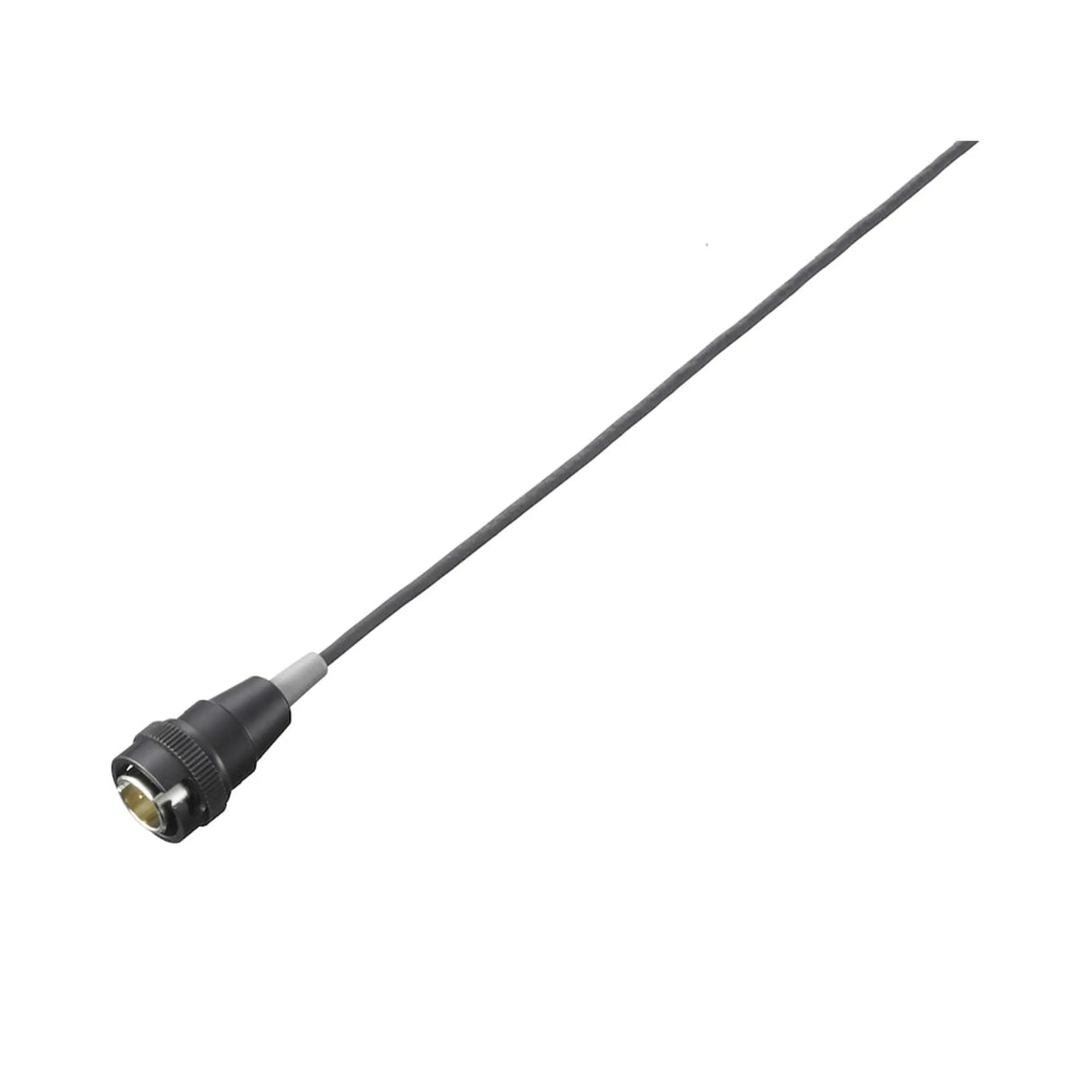

BC type. Supplied with Sony 4-pin (SMC9-4P) connector
Mic Cable
3.9 feet (1.2 m)
Power Requirements
DC 1.1 V to 10.0 V
Power Consumption
0.4 mA or less
Dimensions
7/16 x 31/32 inches (Mic head)
10.6 x 24.2 mm (Mic head)
Mass
Approx. 1.1 oz (Approx. 31.2 g)
Supplied Accessories
Urethane type windscreen (1)
Single/vertical type tie clip (1)
Single/horizontal type tie clip (1)
Operating instructions (1)
Mic case (1)
Optional Accessories
Wind screen pack
Horizontal single-clip pack
