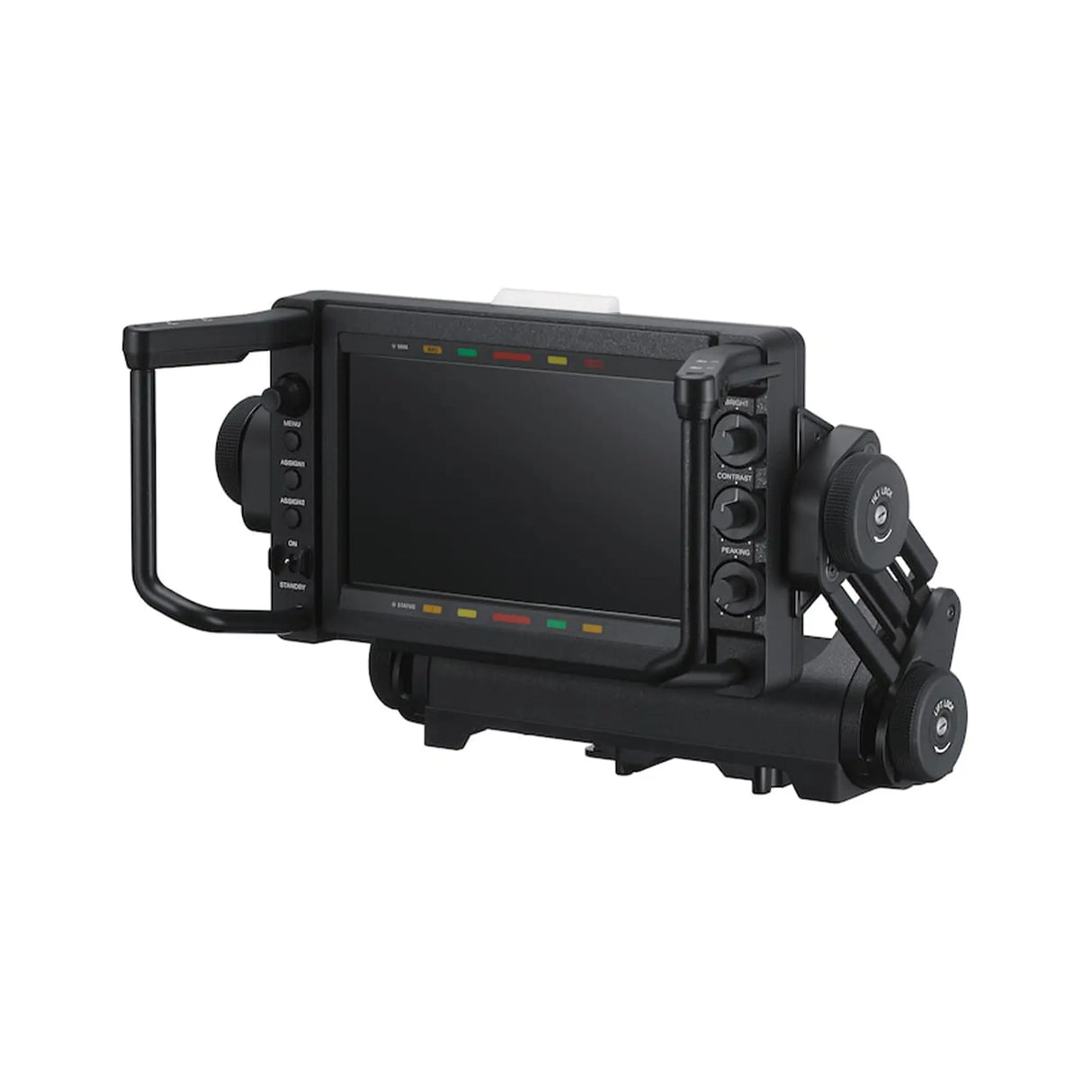

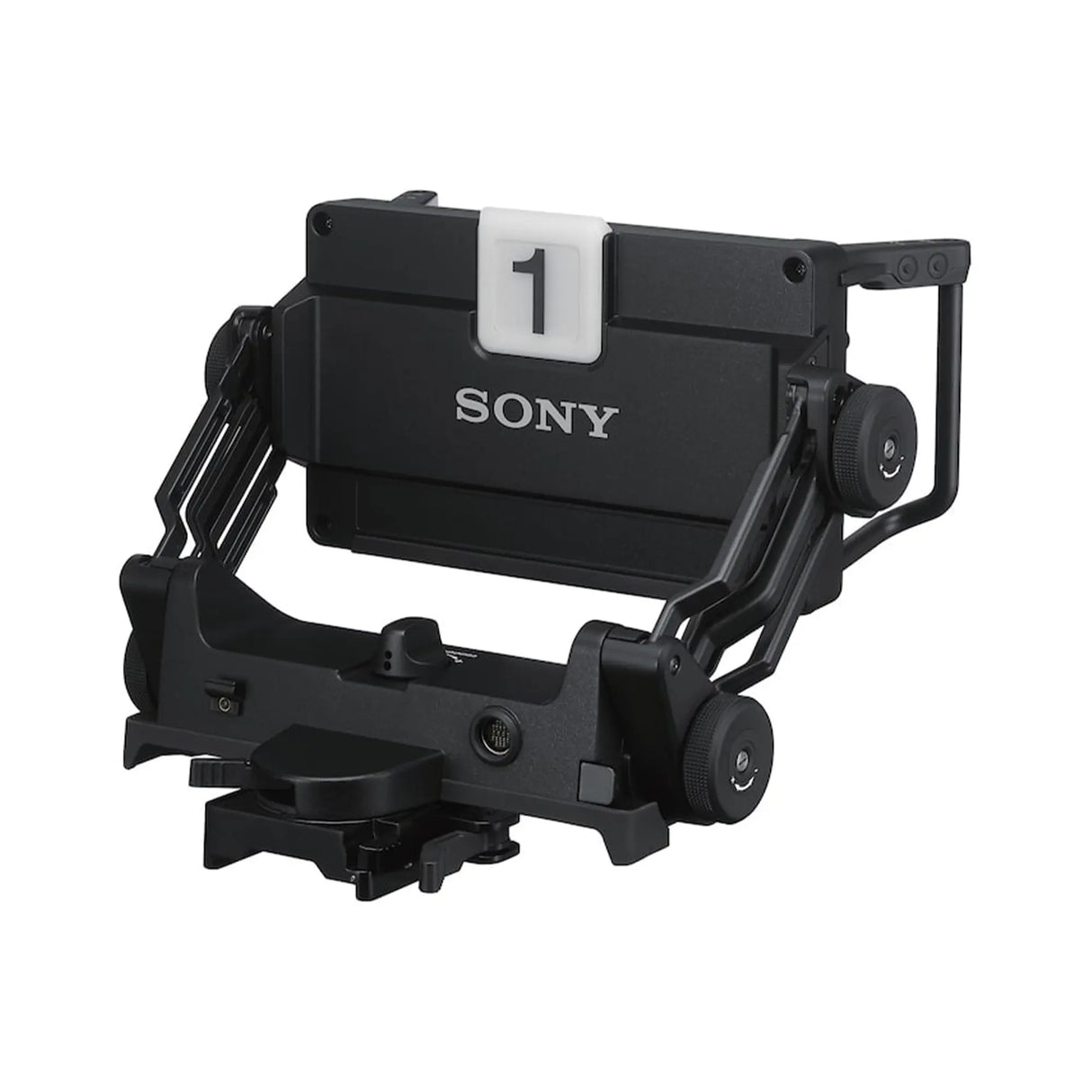

Sony HDVF-EL760: Professional 7.4-Inch OLED Viewfinder for Live Productions

The Sony HDVF-EL760 is a state-of-the-art 7.4-inch Full HD OLED viewfinder engineered for 4K/HD live production environments. Featuring a crisp 1920 x 1080 resolution OLED panel, this viewfinder delivers unmatched image clarity, making it an indispensable tool for precise focusing and exposure. The viewfinder's robust design ensures it is ready for demanding studio and field operations, offering enhanced durability and functionality.

With its innovative digital interface, the HDVF-EL760 supports direct 1080p signal transfers, optimizing compatibility with the latest HDC-series cameras while retaining analog interface options for older models. Its versatile design includes a wide movement range, a counterbalanced mechanism, and advanced slider functionality for seamless operation and positioning, providing camera operators unparalleled control and comfort during live productions.

Additional features, such as Boosted Brightness Mode (BBM), assignable switches, and adjustable color temperature settings, make the HDVF-EL760 the ultimate professional accessory. Designed for versatility, it supports outdoor and indoor applications, ensuring optimal performance under varying conditions. An integral hood and waveforms display further enhance usability, solidifying its reputation as a premium choice for professionals.

Key Features

• 7.4-inch OLED panel with Full HD 1920 x 1080 resolution.
• Supports 4K/HD live production with Sony studio cameras.
• Advanced digital interface for 1080p signal transfer.
• Boosted Brightness Mode for outdoor use (up to 700 cd/m²).
• Wide up-and-down movement range with counterbalanced mechanism.
• Six assignable switches for personalized control.
• Color temperature adjustments from 3200K to 9500K.
• Waveform monitor and flicker suppression for precise monitoring.
• Durable, compact design with integral removable hood.

Technical Specifications

General

Power Requirements: 10.5 V to 17.0 V DC (supplied by the camera)
Power Consumption: 13.5 W (BBM ON: 15.5 W)
Operating Temperature: -4°F to +113°F
Storage Temperature: -4°F to +140°F
Mass (Hood not included): 7 lb 4 oz
Dimensions (W x H x D, Hood not included): 12 1/4 x 8 1/2 x 11 3/4 inches

Display Unit

Panel: 7.4-inch color OLED panel
Effective Picture Size: 6 1/2 x 3 5/8 inches
Brightness: 315 cd/m² (normal), 700 cd/m² (BBM ON)
Resolution: 1920 x 1080
Color Temperature: D65

Connectors

Camera Connector: Round type 20-pin (x1)

What’s Included

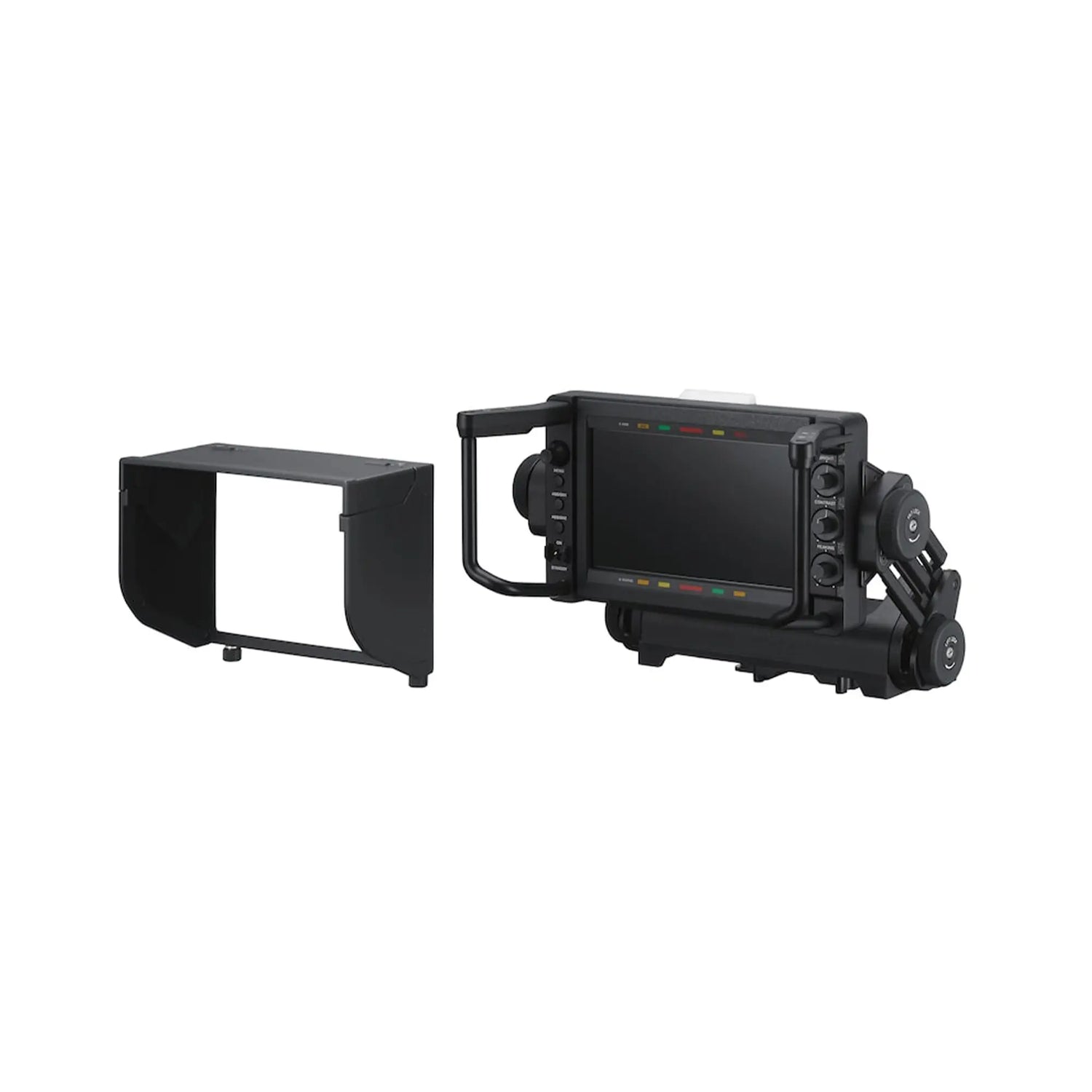

• Indoor Hood

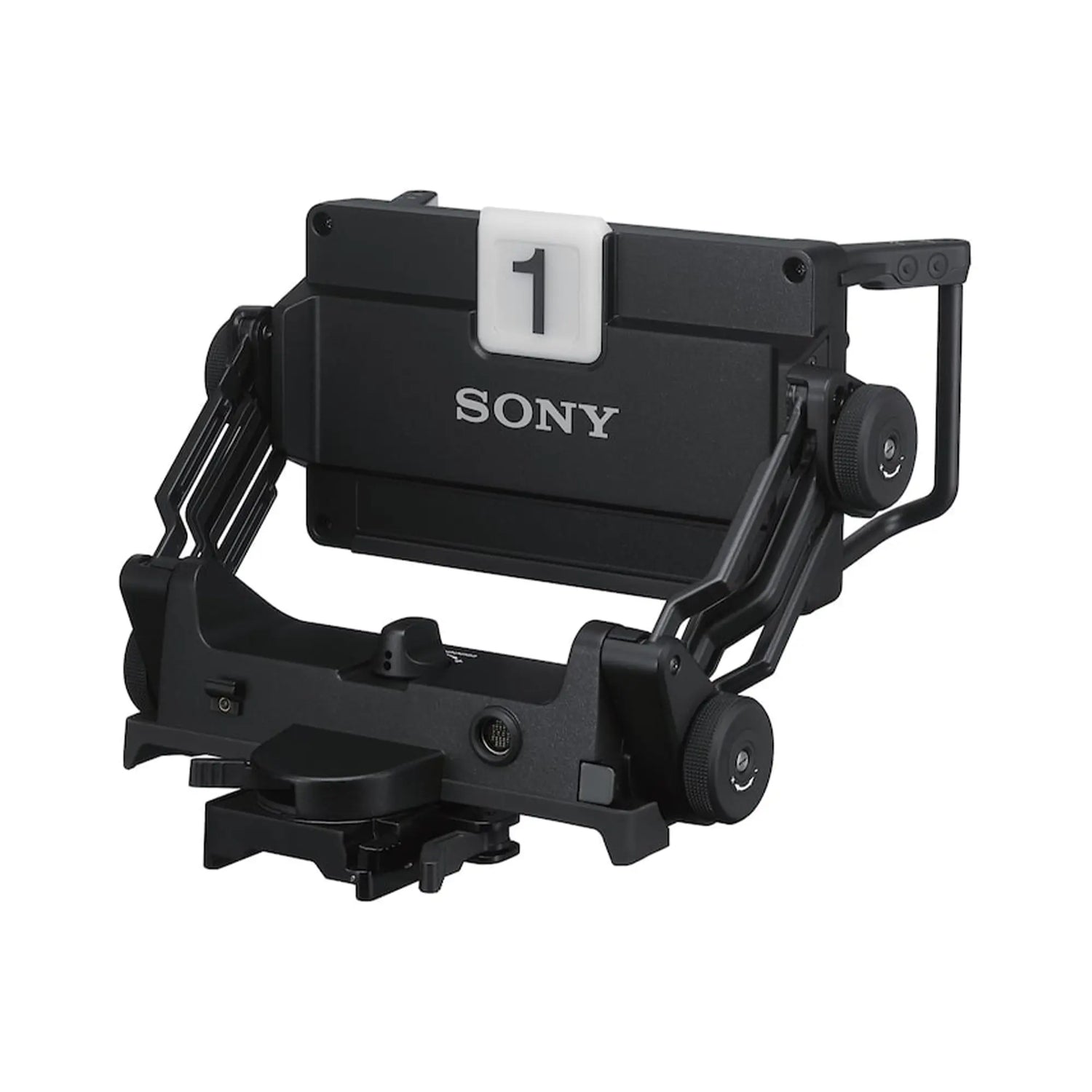

• Number Plate
• Cleaning Cloth
• 20-pin Connection Cable (new type)
• Hexagonal Wrench
• Socket Head Cap Screws (4)
• Mounting Screws (4)
• Attachment Plate
• Pan Base Assembly
• Handle Clamp
• Sheet titled "Before Using This Unit"
• Operation Manual (CD-ROM)
