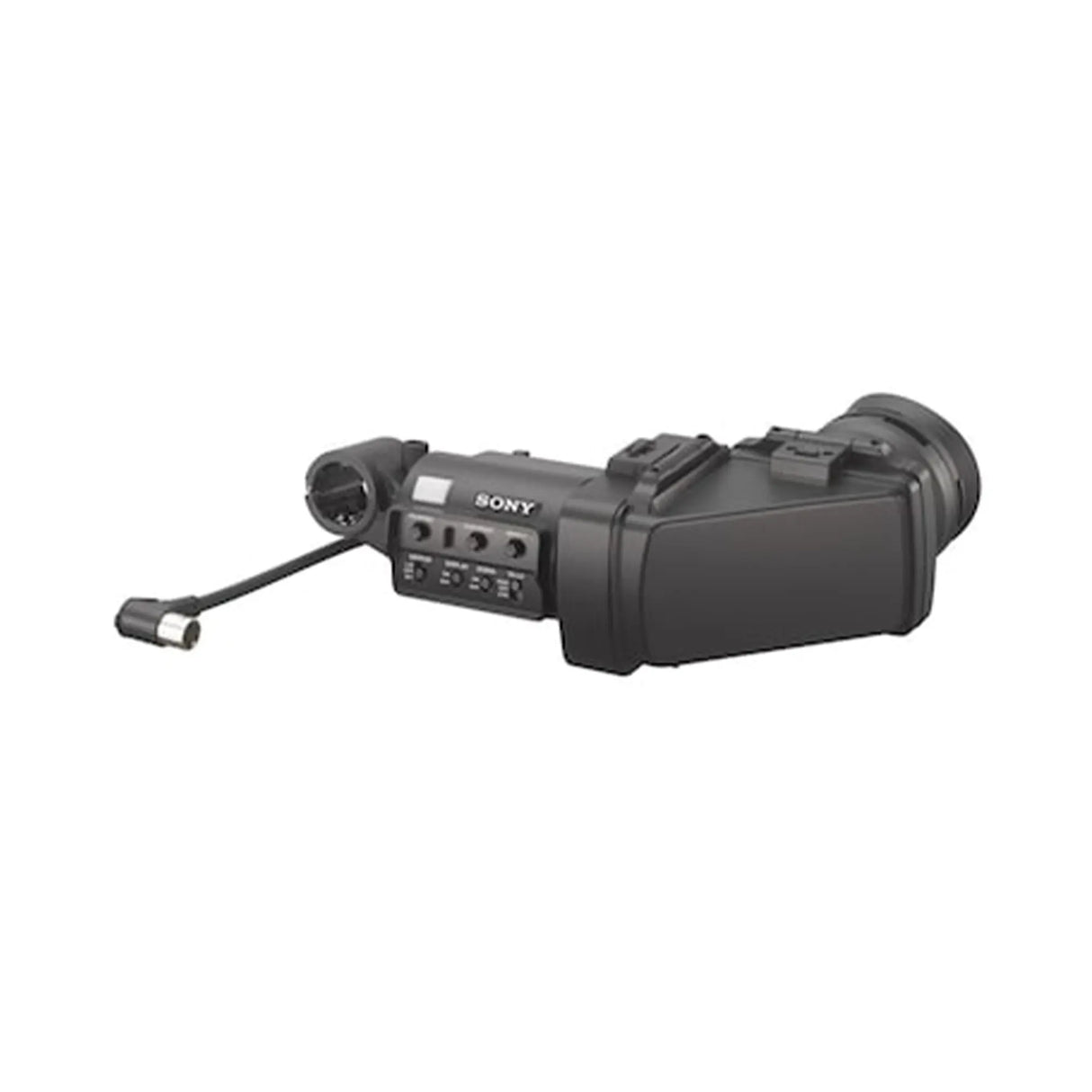

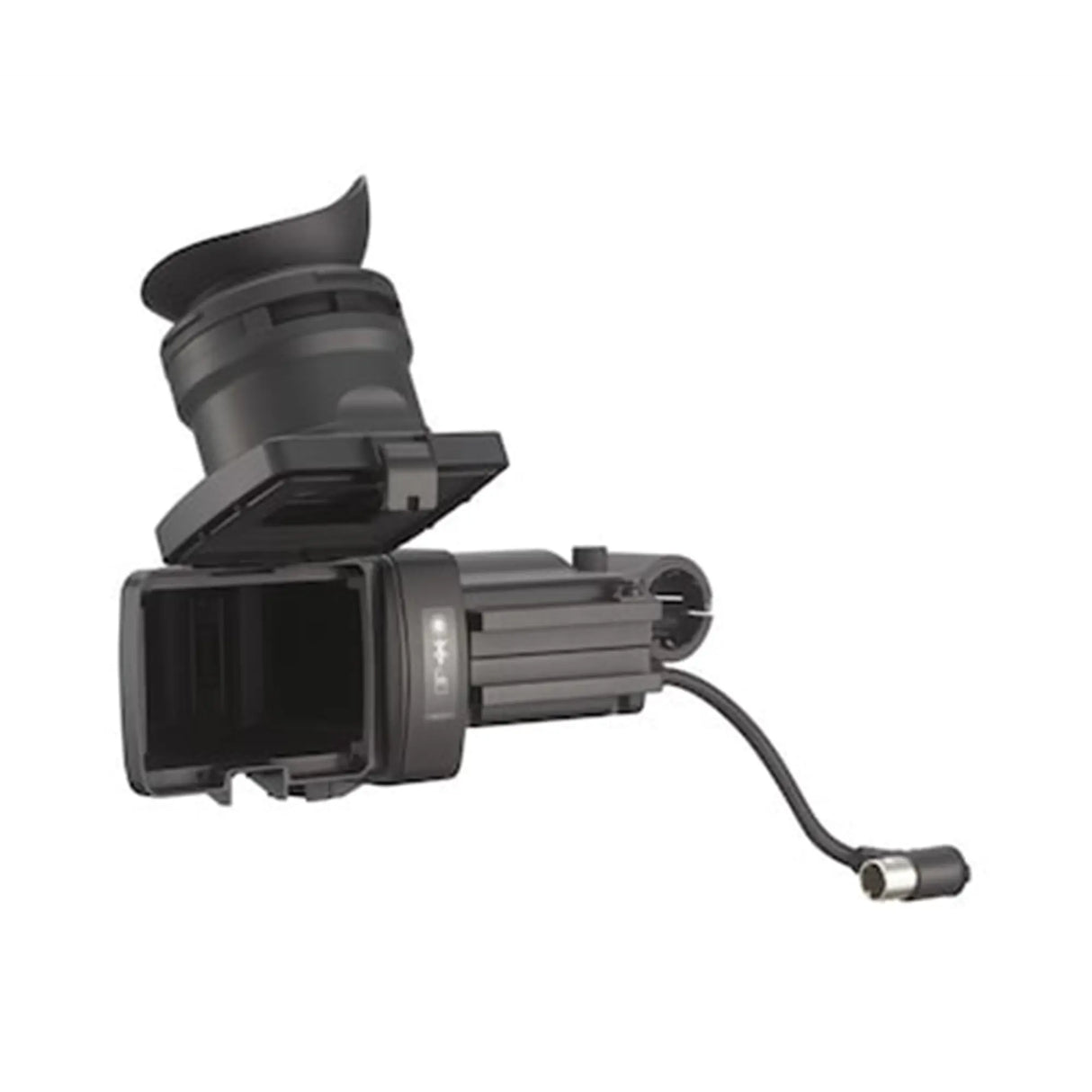

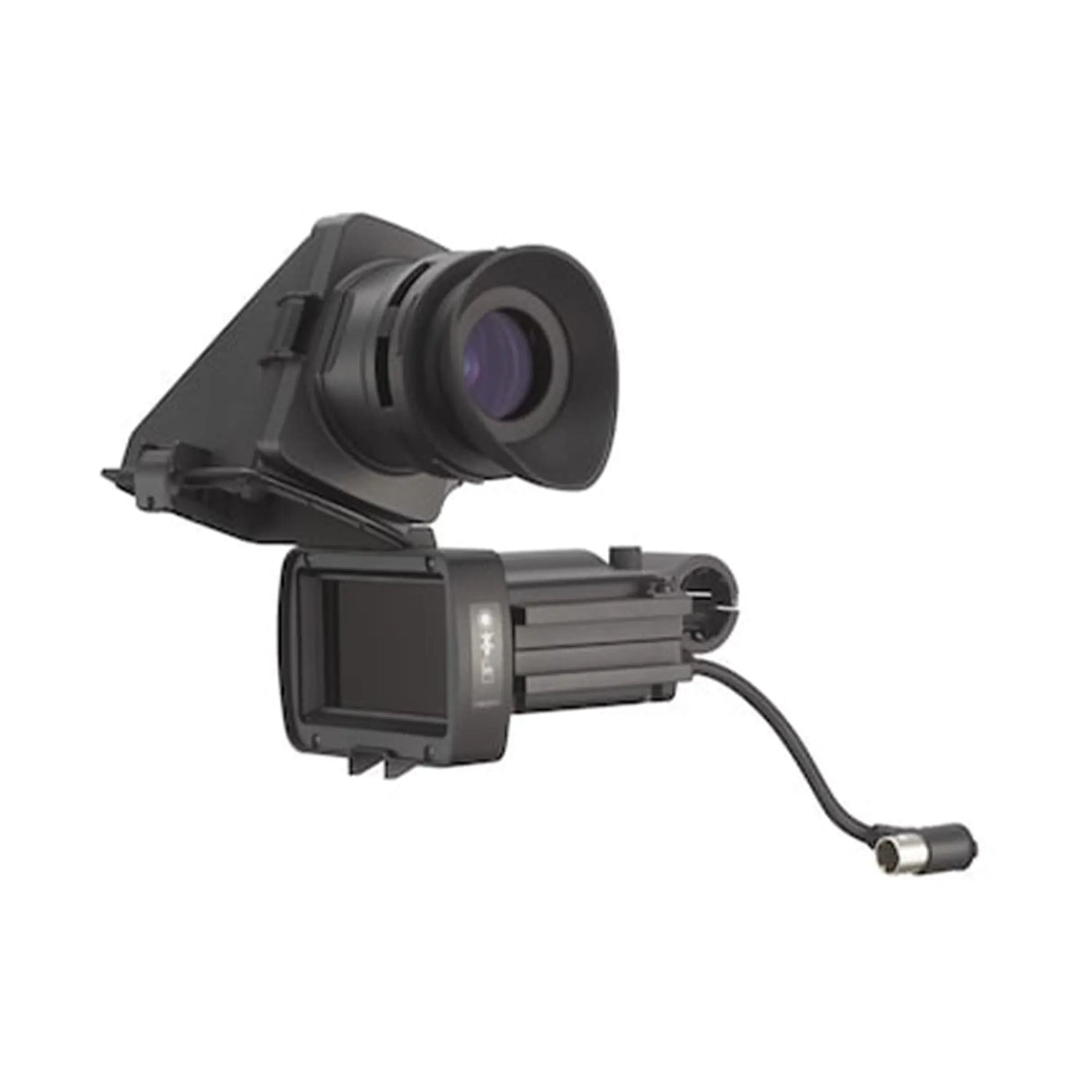

Sony HDVF-L10 3.5-Inch LCD Viewfinder

The Sony HDVF-L10 is a professional-grade 3.5-inch LCD viewfinder designed to elevate the capabilities of broadcast and production cameras. Featuring a transflective TFT LCD panel, this viewfinder ensures exceptional visibility in a variety of lighting conditions, making it an indispensable accessory for capturing high-quality footage. Its ergonomic design and robust construction provide long-term reliability, whether you're on set or in the field.

Engineered for seamless compatibility with a wide range of Sony professional cameras, the HDVF-L10 delivers outstanding performance with its 500-line resolution and true-to-life 6500K color temperature. The adjustable brightness of 200 cd/m² and its advanced optical design allow for precise focus and framing, ensuring every shot meets the highest standards of production quality. This viewfinder is ideal for operators who demand precision and efficiency.

With an operational temperature range of -5°C to 45°C (23°F to 113°F) and a lightweight yet durable build, the HDVF-L10 is designed to withstand the rigors of professional use. Its compact dimensions and versatile mounting options make it a flexible choice for a variety of setups. Enhance your workflow and achieve superior results with the Sony HDVF-L10.

Key Features

• 3.5-inch transflective TFT LCD for optimal visibility in various lighting conditions.
• 500-line resolution for sharp and detailed images.
• True-to-life color reproduction with a typical color temperature of 6500K.
• Brightness adjustable up to 200 cd/m².
• Lightweight and compact design for enhanced portability.
• Compatible with a wide range of Sony professional cameras.
• Designed for durability and reliability in professional environments.

Technical Specifications

General:
Power Supply: 10.5 to 17.0 V DC (supplied by the camera)
Power Consumption: 3.3 W
Operating Temperature: 23°F to 113°F (-5°C to 45°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Mass: 1.54 lbs (700 g)

External Dimensions: 8" x 10 1/8" x 2 3/8" (201 mm x 255 mm x 60 mm)

Image Display Area Dimensions: 3 1/8" x 1 3/4" (76.8 mm x 43.2 mm) (16:9 aspect ratio)

Performance:
Brightness: 200 cd/m² (typical, with eyepiece attached)
Resolution: 500 lines or more
Color Temperature: 6500K (typical)

Connector:
Type: Round-type 20-pin connector

What’s Included

• Operation Manual (1)

Optional Accessories

• Viewfinder Rotation Assembly: BKW-401

Compatible Products

• HXC-FB75KC, HXC-FB75H, HDC-1700, HDC-2400, HDC-2500, HDC-2570, HDC-3300R, HDC-4300
• HSC-100R, HSC-100RF, HSC-300R, HSC-300RF
• PDW-680, PDW-700, PDW-850, PDW-F800
• PMW-500, PXW-X400, PXW-X500

Note: Design and specifications are subject to change without notice.
