Sony MSU-3000 / MSU-3500 Master Setup Unit

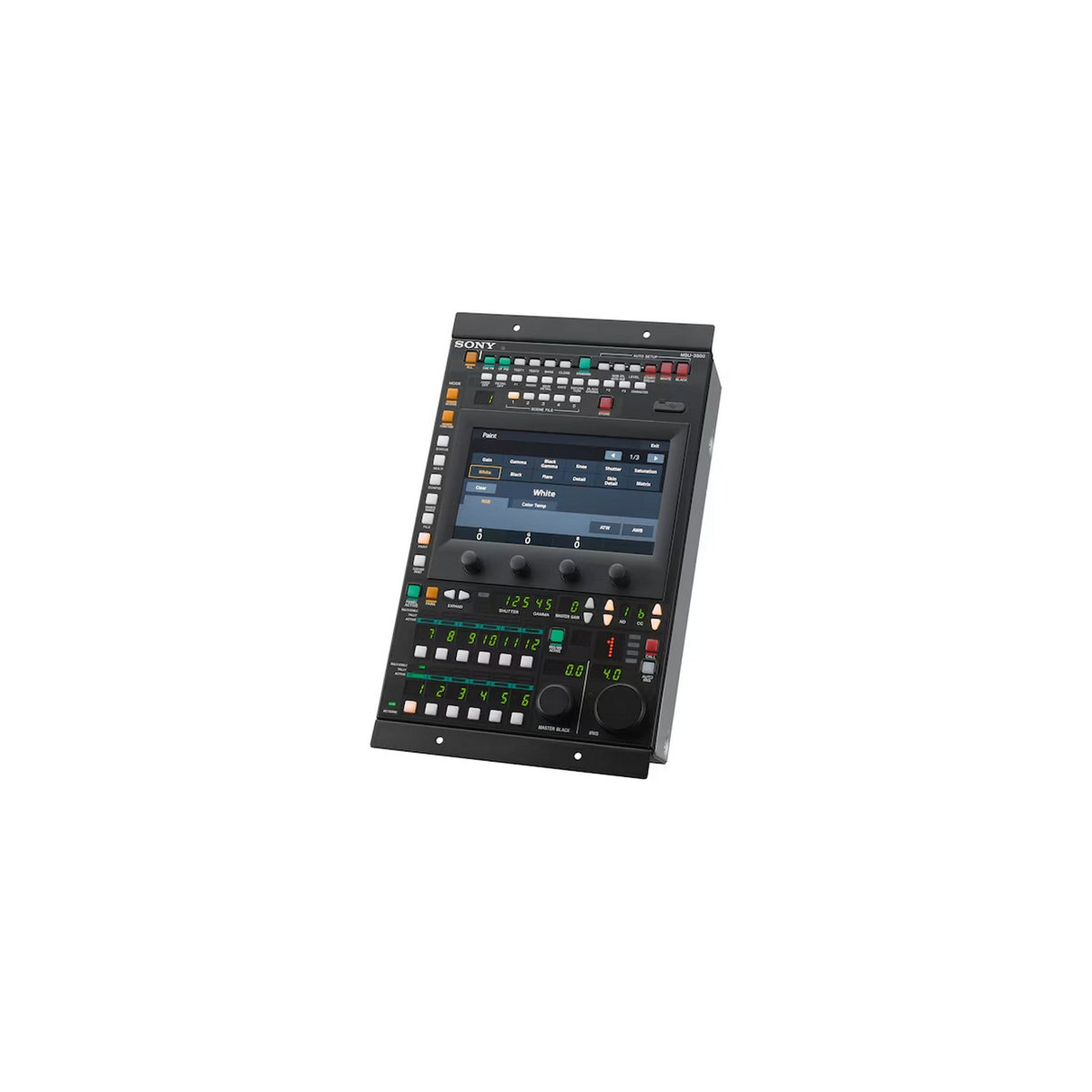

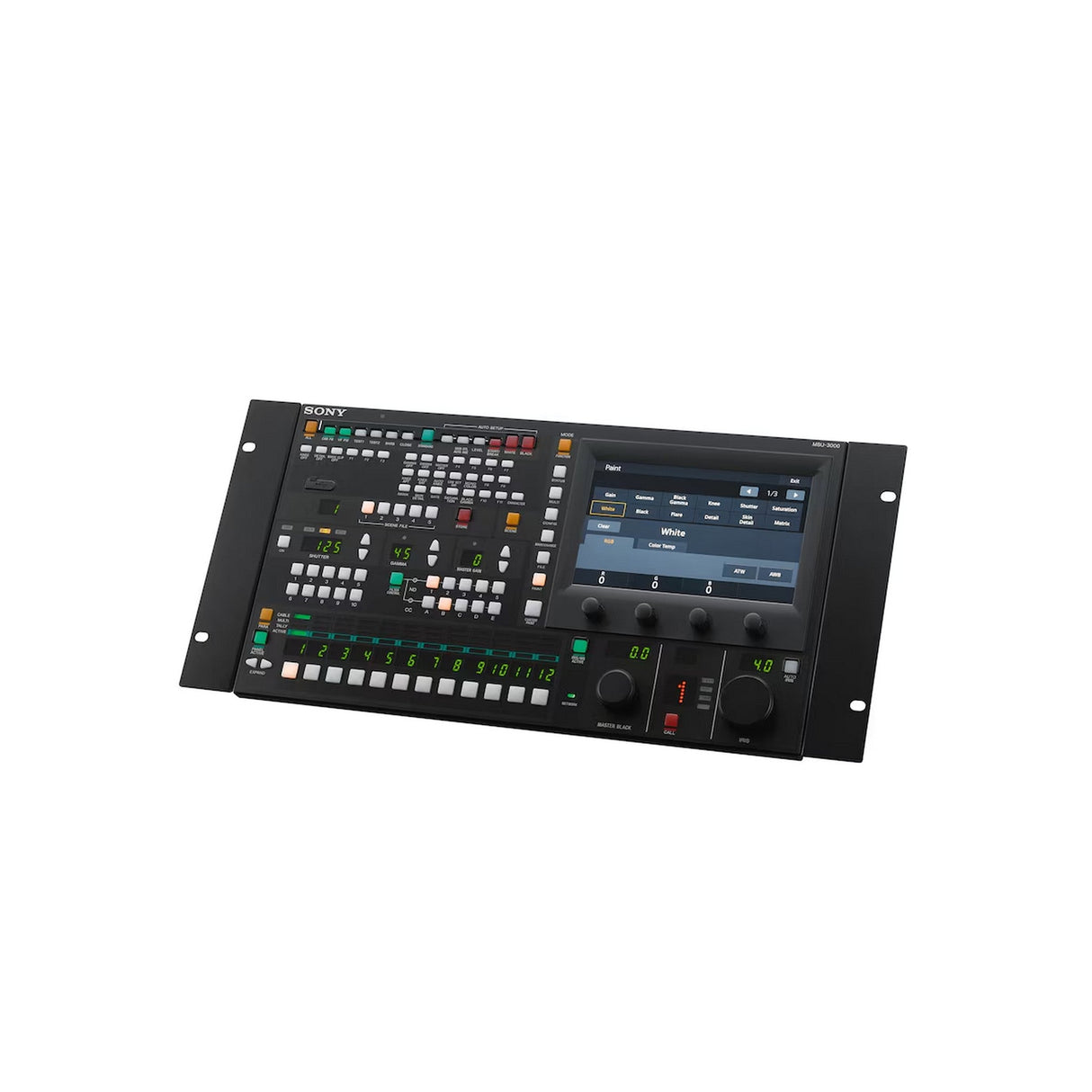

The Sony MSU-3000 (horizontal) and MSU-3500 (vertical) Master Setup Units are designed for advanced control of up to 96 HDC camera systems. The MSU-3000 fits a 19-inch EIA rack (full-rack-mount size), while the MSU-3500 is built for a 9.5-inch EIA rack (half-rack-mount size). Both units offer flexible control with 7-inch WVGA displays and customizable buttons for managing camera settings and operational status.
Both models feature 1000BASE-T Ethernet connectivity, with USB flash drive support for saving and loading settings. The MSU-3000 has 21 assignable keys, and the MSU-3500 offers 3 keys for more compact control. Their compact designs and intuitive interfaces make them ideal for both large and small-scale productions, ensuring smooth operations even in high-demand environments.
Key Features
- Supports up to 96 HDC camera systems
- MSU-3000 fits a 19-inch EIA rack (full-rack-mount), MSU-3500 fits a 9.5-inch EIA rack (half-rack-mount)
- 7-inch WVGA (800 x 480) LCD panel for operational status and paint settings
- 21 assignable keys for MSU-3000, 3 keys for MSU-3500
- USB flash drive support for saving and loading settings
- Assignable buttons and LEDs listed on the display for easy operation
Technical Specifications
MSU-3000 Dimensions: 15 7/8" x 8 3/4" x 2 3/4" (400.6 x 222 x 67 mm)
MSU-3500 Dimensions: 8 1/8" x 12 1/4" x 2 3/4" (204 x 310 x 67 mm)
Weight (MSU-3000): 9 lb. 4 oz. (4.2 kg)
Weight (MSU-3500): 7 lb. 8 oz. (3.4 kg)
Power Supply: 100ā240 V AC 50/60 Hz 0.30 A (Max.), 10.5ā17 V DC 2.3 A (Max.)
Operating Temperature: 41 Ā°F to 104 Ā°F (5 Ā°C to 40 Ā°C)
Storage Temperature: -4 Ā°F to 140 Ā°F (-20 Ā°C to 60 Ā°C)
Input/Output Connectors:
LAN: RJ-45 8pin (x1) 1000BASE-T, 100BASE-TX, 10BASE-T
Remote CCU/CNU: Multi-connector 8-pin, female (x1)
AUX: Multi-connector 8-pin, female (x1)
I/O Port: D-Sub 50-pin, female (x1)
AC In: 3-pin (x1)
DC In: XLR 4-pin (x1)
What's Included
- MSU-3000 or MSU-3500 Master Setup Unit
- Power Cable
- USB Flash Drive (for saving/loading settings)
