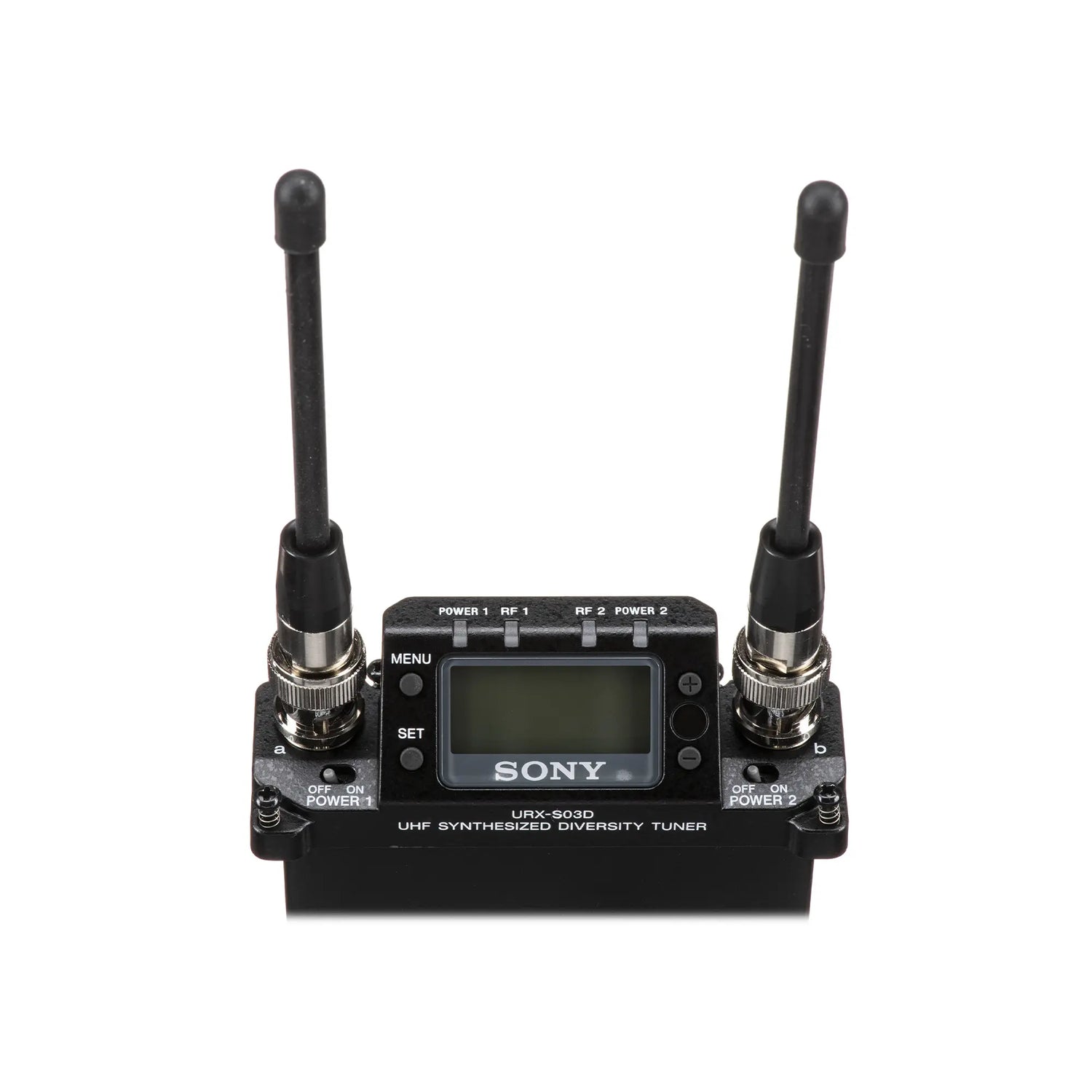

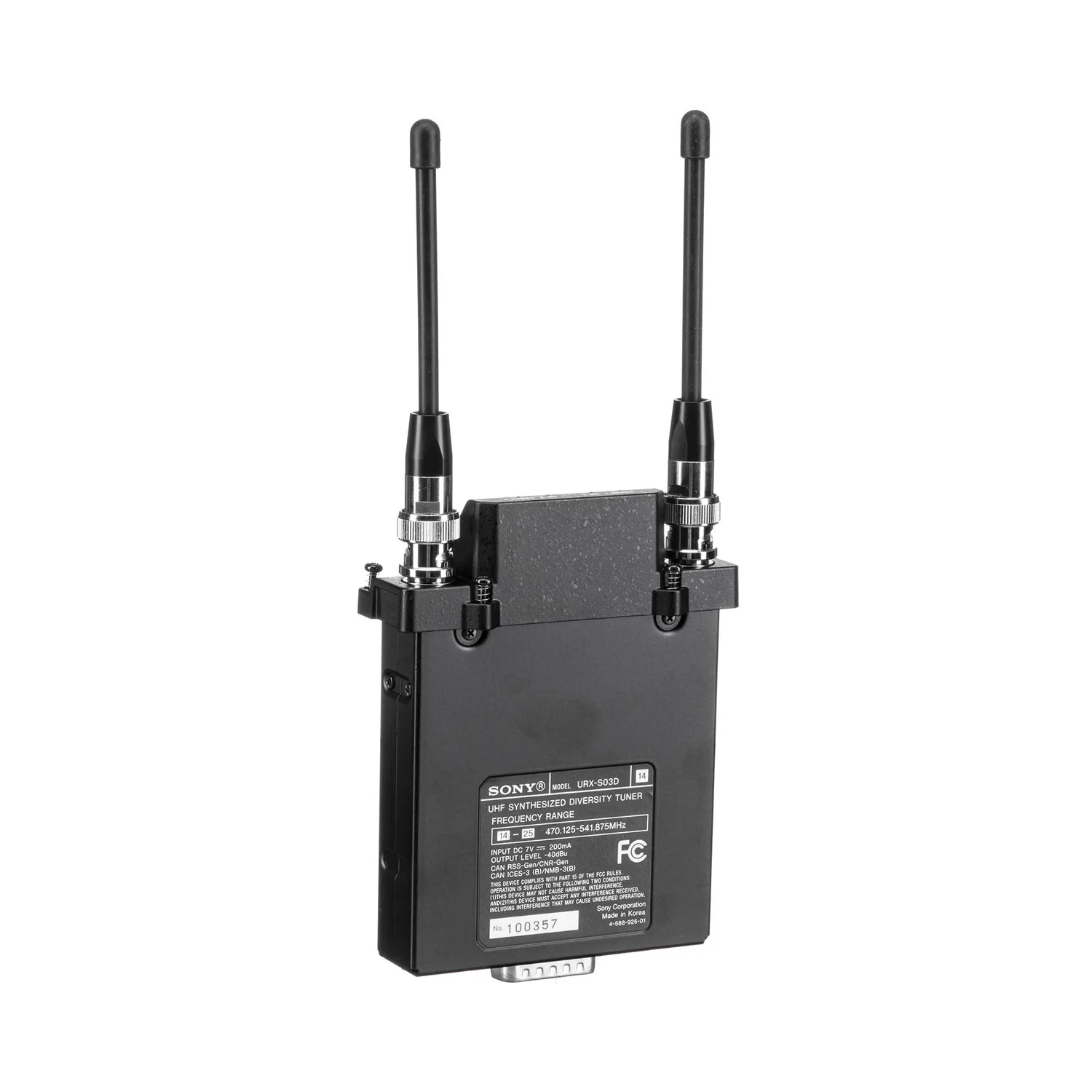

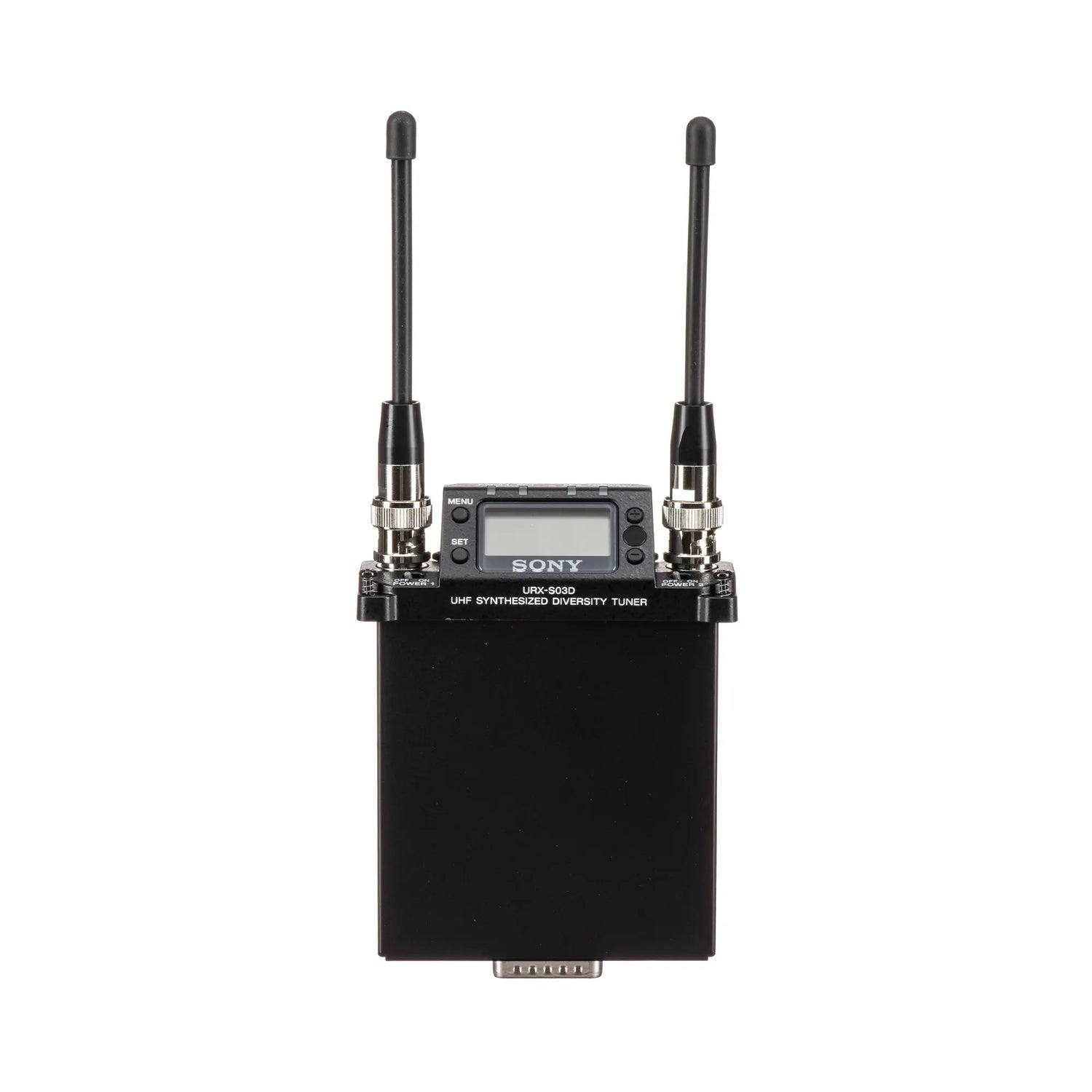

Sony URX-S03D/14 UWP-D 2 Channel Slot-In Portable Wireless Receiver, UC14, 470 to 542 MHz
The URX-S03D is the first two-channel portable receiver in the UWP-D Series that fits directly in the slot of Sony XDCAM and HDCAM camcorders. Working with the UTX-B03HR belt-pack transmitter, the system features easy channel setting functions, advanced functionality for stable RF transmission and Digital Audio Processing technology ensures high-quality sound. With advanced usability with Sony XDCAM and HDCAM camcorders, it also works seamlessly with Sony 800 and UWP Series transmitters.
Key Features
- True diversity reception system for stable reception
- Sony Digital Audio Processing for high quality sound
- Direct digital connection to camcorders
- Automatic channel setting mode
- Compatibility with Sony 800 and UWP Series
- Fast and easy channel scan
- Wide frequency coverage
Technical Specifications
Oscillator Type
Crystal-controlled PLL Synthesizer
Reception Type
True diversity
Antenna Type
Detachable
Carrier Frequencies: Americas
14UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42-51) (not available in U.S. or Canada)
Carrier Frequencies: Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New Zealand
CE21: 470.025 MHz to 542.000 MHz (not available in Australia, Malaysia, Vietnam, or New Zealand)
CE33: 566.025 MHz to 633.000 MHz (not available in New Zealand)
CE42: 638.025 MHz to 694.000 MHz
Carrier Frequencies: China
CN38: 710.025 MHz to 782.000 MHz
Carrier Frequencies: Thailand, Taiwan, Singapore
E: 794.125 MHz to 805.875 MHz
Carrier Frequencies: Japan
JB: 806.125 MHz to 809.750 MHz
Carrier Frequencies: South Korea
KR3: 925.125 MHz to 937.500 MHz
Frequency Response
23Hz to 18kHz (typical)
Signal-to-Noise Ratio
96dB (max deviation, A-weighted)
Distortion (T.H.D)
0.9% or less (-60dBV, 1kHz input)
Audio Delay
Approx. 0.375 msec
Analog Output
D-sub 15 pin, unbalanced
Analog Output Level
*-40 dBu (at -5 kHz deviation)
Pilot Tone Signal
32 kHz/ 32.382 kHz/ 32.768 kHz
Display
LCD
Power Requirements
DC 7.0 V
Operating Temperature
0C to 50C
32F to 122F
Storage/Transport Temperature
-20C to +55C
-4F to +131F
Dimensions
3 1/2 - 4 5/8 - 1 1/4 in (88 x 116.2 x 31.2 mm) (excluding the antennas) (W x H x D)
Mass
Approx. 10.7 oz (303 g) (with supplied antennas attached)
