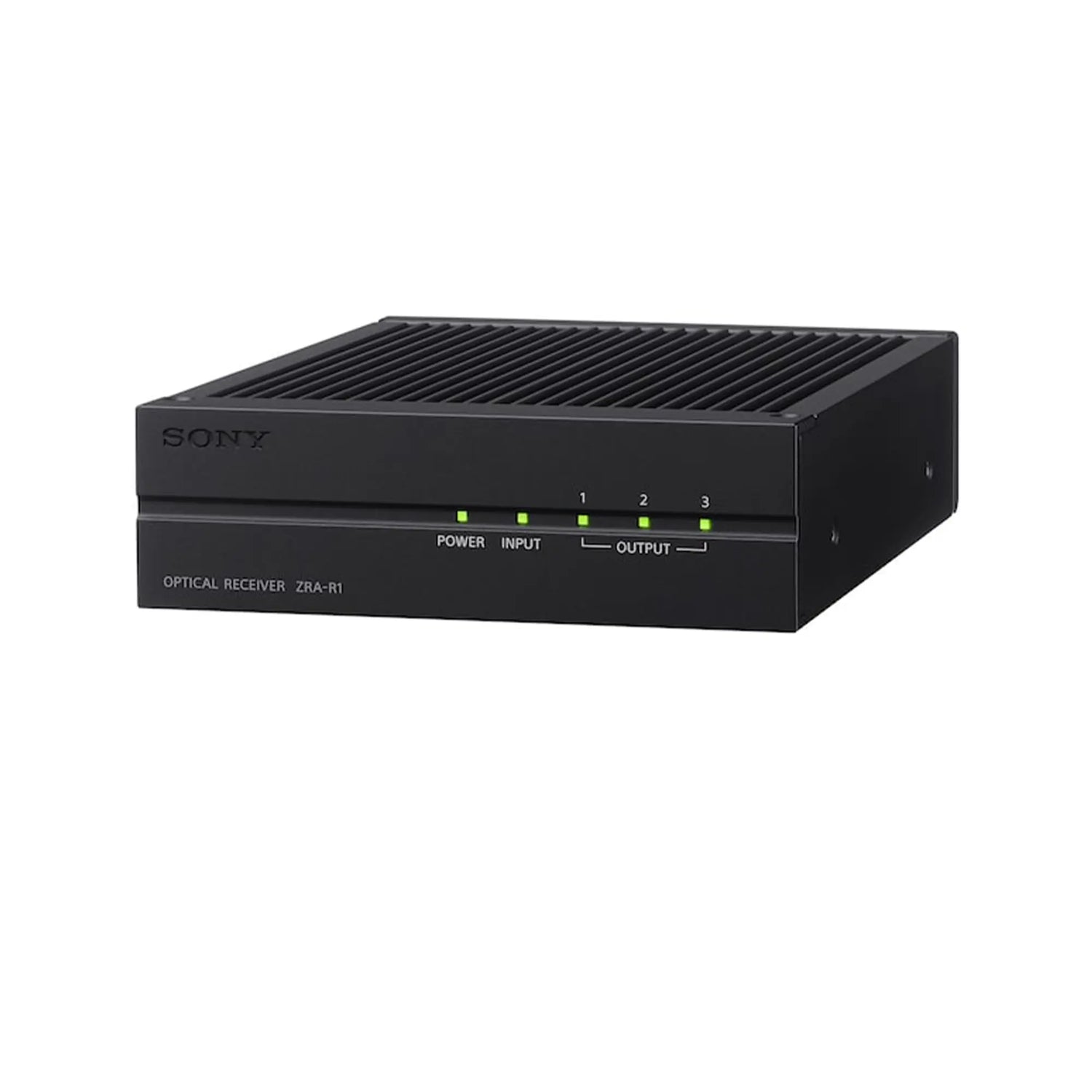

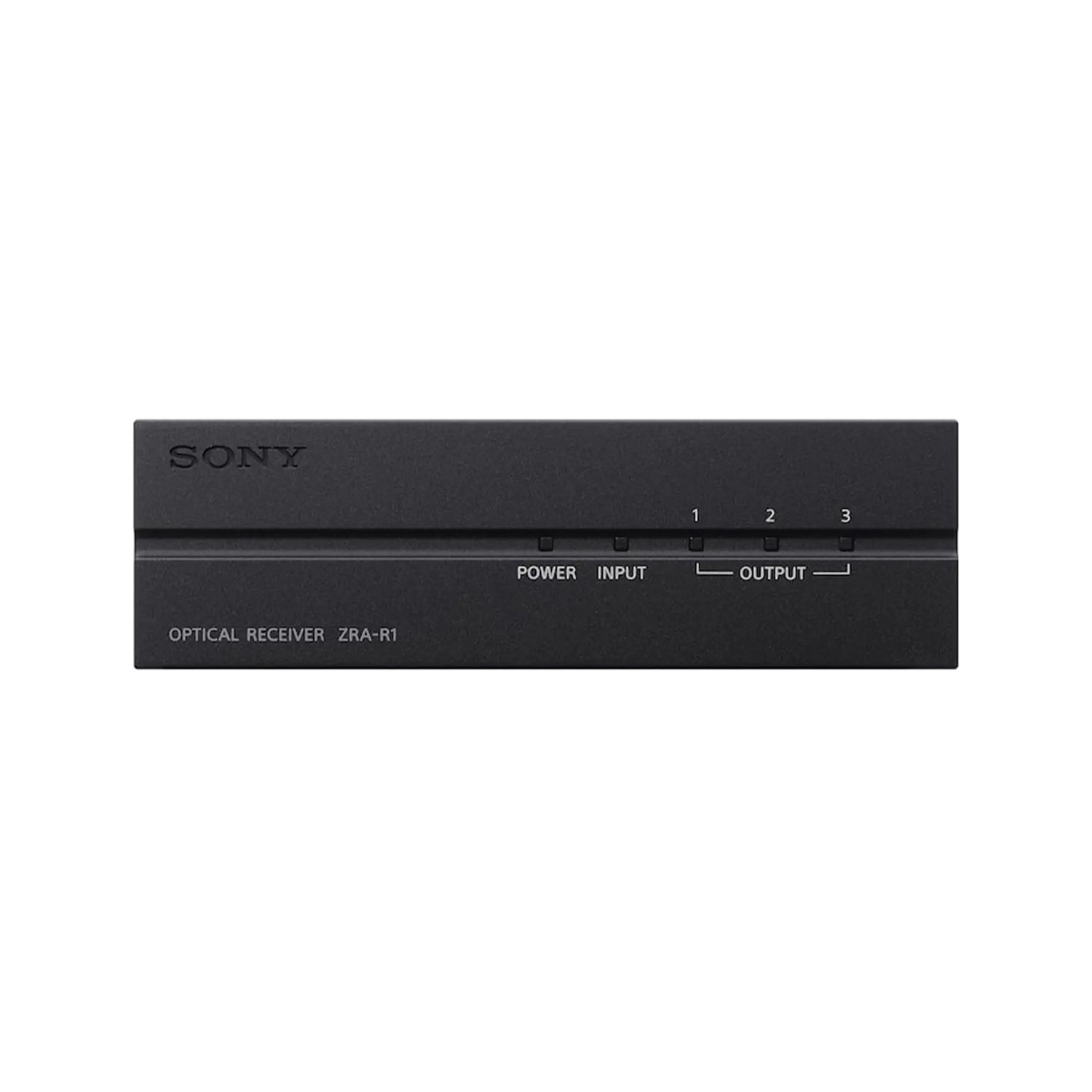

Sony ZRA-R1 Optical Receiver for Crystal LED Large Display Solutions

Sony ZRA-R1 Optical Receiver for Crystal LED Large Display Solutions

The Sony ZRA-R1 Optical Receiver for Crystal LED Large Display Solutions is a pivotal component for achieving exceptional signal transmission in large-scale video wall installations. Designed with cutting-edge optical technology, this receiver guarantees high-performance video clarity, making it the perfect choice for a wide range of professional settings, including corporate environments, broadcast studios, and live-event venues. The advanced design ensures that even the most demanding applications are handled with reliability and precision.

Fully compatible with Sony's ZRD-B series, ZRD-BH series, and ZRD-CH series cabinets, as well as the ZRCT-300 controller, the Sony ZRA-R1 Optical Receiver for Crystal LED Large Display Solutions supports fiber-optic transmission for distances up to 984.25 ft. This extended range makes it ideal for expansive installations. Supporting Full HD resolution (1920 x 1080) with 4K resolution available when connected via four pairs, the ZRA-R1 is scalable, ensuring that future upgrades to your display are easily accommodated.

Compact and efficient, the Sony ZRA-R1 Optical Receiver for Crystal LED Large Display Solutions features a USB Type-C terminal for simple and reliable connectivity. Built to endure various operational conditions, this receiver operates in temperatures ranging from 32℉ to 113℉ and can be stored between 4℉ and 140℉. Its small size makes installation a breeze, fitting effortlessly into tight spaces and enhancing the overall setup experience.

Key Features

• Compatible with Sony ZRD-B series, ZRD-BH series, and ZRD-CH series cabinets.

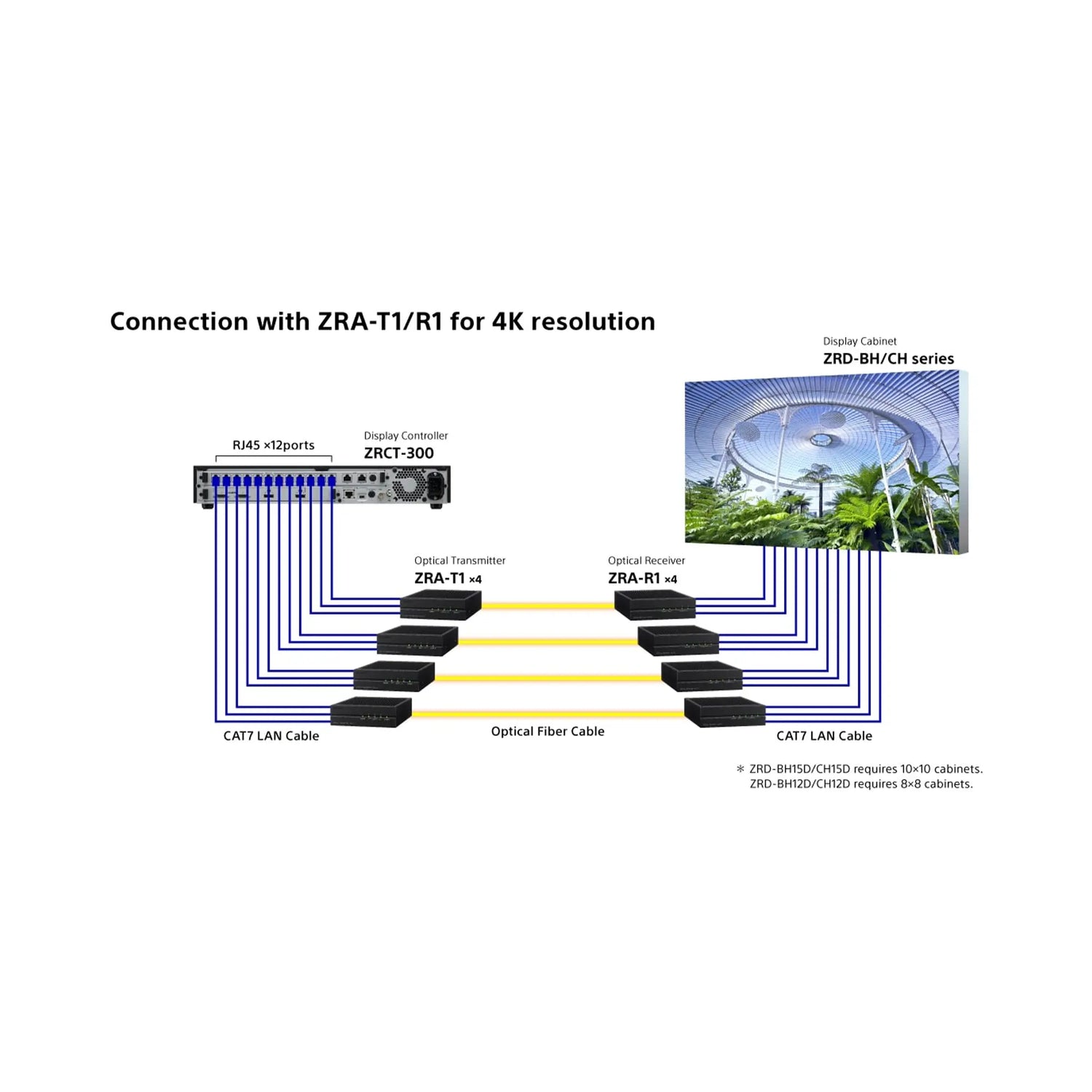

• Supports Full HD (1920 x 1080) resolution, with 4K resolution supported (4 pairs required).
• Transmission distance of up to 984.25 ft via fiber optic cable.
• Compact design with USB Type-C terminal for easy connectivity.
• Wide operating temperature range (32℉ to 113℉) and storage range (4℉ to 140℉).
• Energy-efficient with a low power consumption of just 10W.

Technical Specifications

Supported Model:
ZRD-B-series/C-series, ZRD-BH-series/CH-series

Controller:
ZRCT-300

Type:
Optical Receiver

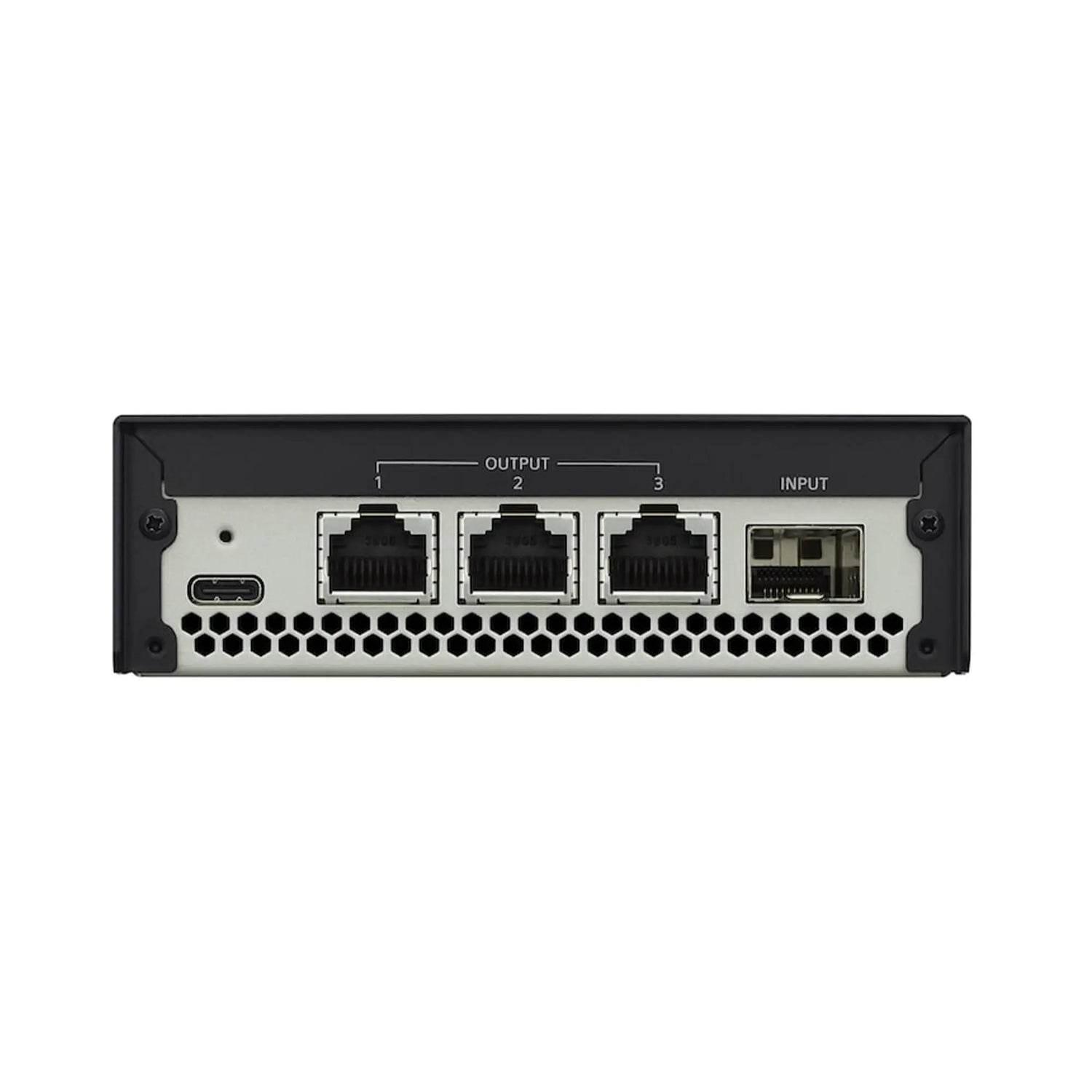

Interface:

• Input: SFP+ (multi-mode optical fiber)
• Output: RJ45 x3

Transmission:
Fiber optic, up to 984.25 ft (maximum)

Supported Signal Resolution:
Up to 1920 x 1080 (Full HD), 4K (4 pairs required)

Dimensions:
4.33" x 5.61" x 1.32"

Mass:
21.16 oz

Power Requirement:
DC 5V / 2A

Power Consumption:
10W

Type of Terminal:
USB Type-C

Operating Temperature:
32℉ to 113℉

Storage Temperature:
4℉ to 140℉

Operating Humidity:
20–80% (No condensation)

Storage Humidity:
20–80% (No condensation)

What’s Included

• Sony ZRA-R1 Optical Receiver
