Soundcraft Mini Stagebox 16i US Compact Digital Stageboxes

Soundcraft Mini Stagebox 16i combines high-quality components with a streamlined design, making it easy to add multiple channels of remote-controlled I/O to your Si-series mixing console. The Studer-designed mic preamps provide exceptional sound quality, while the compact form factor offers easy transport and fast configuration. Ideal for live engineers, houses of worship, bands, club owners and corporate installations, Soundcraft Mini Stageboxes allow you to replace heavy, expensive analog snakes with a single RJ45 Cat5 style Ethernet cable.

HIGH-QUALITY COMPONENTS

Soundcraft Mini Stageboxes offer remarkable value while maintaining the industry-leading performance that Soundcraft live solutions are known for. Renowned Studer-designed mic preamps deliver warm, rich sound for live performances and recording events.

COMPREHENSIVE I/O

Soundcraft Mini Stageboxes provide multi-channel MADI I/O via standard Cat5 cabling, eliminating the need to run expensive and heavy analog snakes from the stage to front-of-house mixing positions. Dedicated XLR mic pre inputs allow 16 simultaneous channels of external analog input. Mini Stagebox 32i offers twelve analog outputs, while Mini Stagebox 16i offers eight analog outputs for easy connection to house and stage monitors and broadcast or streaming feeds.

STREAMLINED DESIGN

A streamlined design provides essential connections and features, including MADI over RJ45 connectors built right onto the chassis. No local hardware configuration or installing option cards are requiredsimply plug in, power on, select inputs and control remotely using a Soundcraft Si console.

FULL INTEGRATION WITH Si SERIES MIXERS

Mini Stageboxes pair with Soundcraft Si Series mixers to provide remote controlled expanded I/O and intuitive operation during complex mixing scenarios. Si Impact allows owners to add a stagebox for additional inputs, while simultaneously using the existing console inputs. By adding a second MADI option card to the console, customers can add a second stagebox and select which inputs to assign to the 80 mixing channels.

Key Features

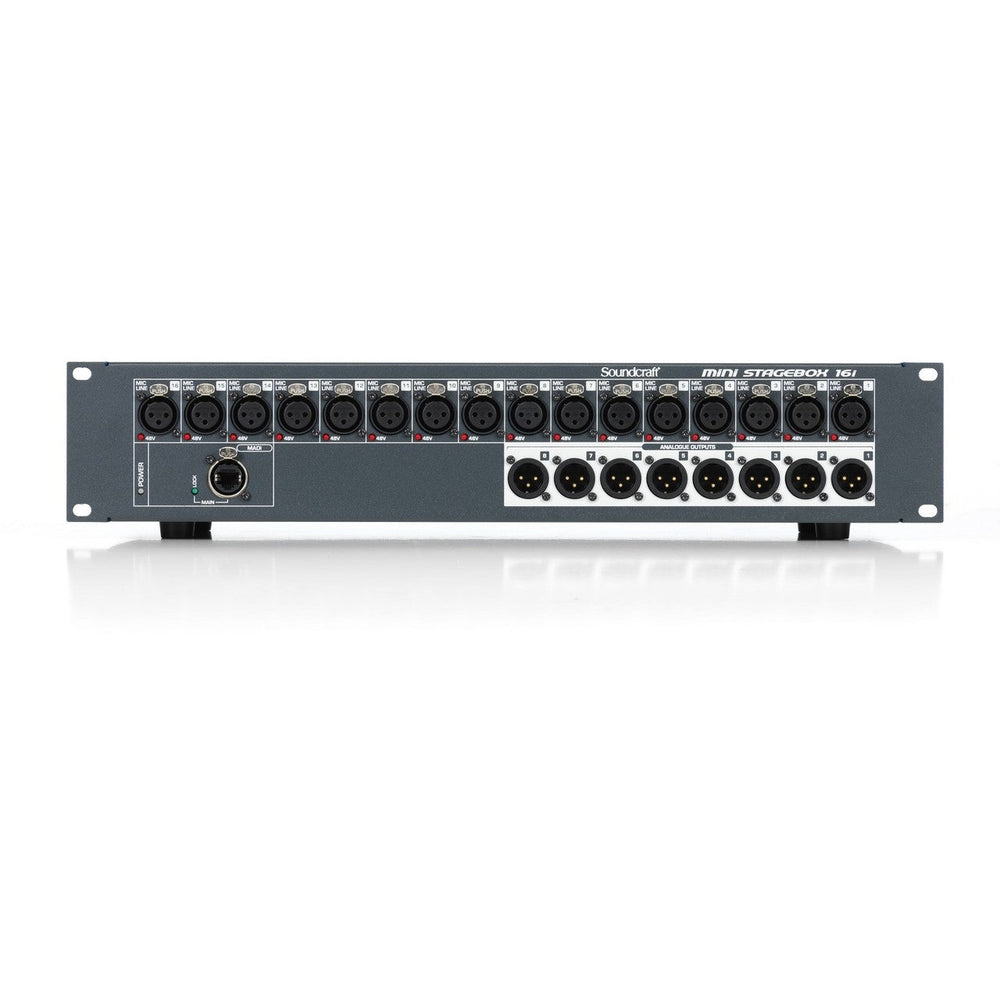

• 16i features 16 mic preamps, 8 analog outs and a single MADI connection
• RJ45/Cat5 connectivity, for 100M runs between stage and mixing console (328 feet)
• 16 remote controlled mic preamps and AD converters
• 8 XLR analog line level outputs
• 2U Rack mount design
• Legendary Studer-designed preamps for professional performance
• Dedicated remote controlled XLR mic inputs

Technical Specifications

Ins/Outs
Analog 16 in, 8 out
Mic Preamps
16
Remote Controlability
From Soundcraft Si Consoles
Cat5 Connected to Mixing Console
Yes
Additional or Subsitute I/0
Additional I/0 on Si Console Series

Frequency Response
Signal Path
Stagebox Mic input to Stagebox line output,
4dBu input signal, 4dB input Mic gain. 20Hz - 20kHz

THD& Noise
Signal Path
Stagebox Mic In (at minimum gain, -5dB) to Stagebox Line Output.
Measurement is taken with 8dBu, 1kHz input signal,
20Hz - 20kHz filters applied, unweighted. 0.004%

Signal Path
Mic In with 50dB gain to Stagebox Line Output
Measurement is taken with -40dBu, 1kHz input
signal20Hz - 20kHz filters, unweighted. <0.02%

THD Only
Signal Path
Stagebox Mic In (at minimum gain, -5dB) to Stagebox Line Output.
Measurement is taken with 8dBu, 1kHz input signal,
20Hz - 20kHz filters applied, unweighted. 0.002%

Signal Path
Mic In with 50dB gain to Stagebox Line Output
Measurement is taken with -40dBu, 1kHz input
signal20Hz - 20kHz filters, unweighted. <0.015%

Mic Input E.I.N.
Mic Input
Mic input is fitted with 150 Ohm Termination jack.
Signal is routed to console AES output.
Measurement is taken with 22Hz - 22kHz
bandwidth, unweighted.
Input signal of -40dBu.
Max Gain = (Output level (dBFS) + clip point in dBu) Input level (dBu))
E.I.N = Max Gain (noise floor(dBFS) + clip point in dBu) >126dBu

Residual Noise (Noise floor)
Master output; no inputs routed, Mix fader <-87dBu

Crosstalk
10dB input gain, -22dBu 10kHz input signal, Adjacent channels <-80dB

Sampling Frequency
48kHz

Converter Resolution
24 bit

Latency
MSB In -> Mixer -> MSB Out 1.5ms

Internal Clock Accuracy
-+25ppma
