SoundTools WallCAT 5 Female XLR Analog Audio Over CAT5

The SoundTools WallCAT 5 is an innovative 4-channel wall plate solution designed to transmit analog audio, AES3, DMX, and COM signals over shielded category 5e or higher cables. This robust and durable unit is specifically engineered for seamless integration into US standard 4" 2-gang outlet boxes, making it perfect for a wide range of installation environments including studios, conference rooms, and office spaces.

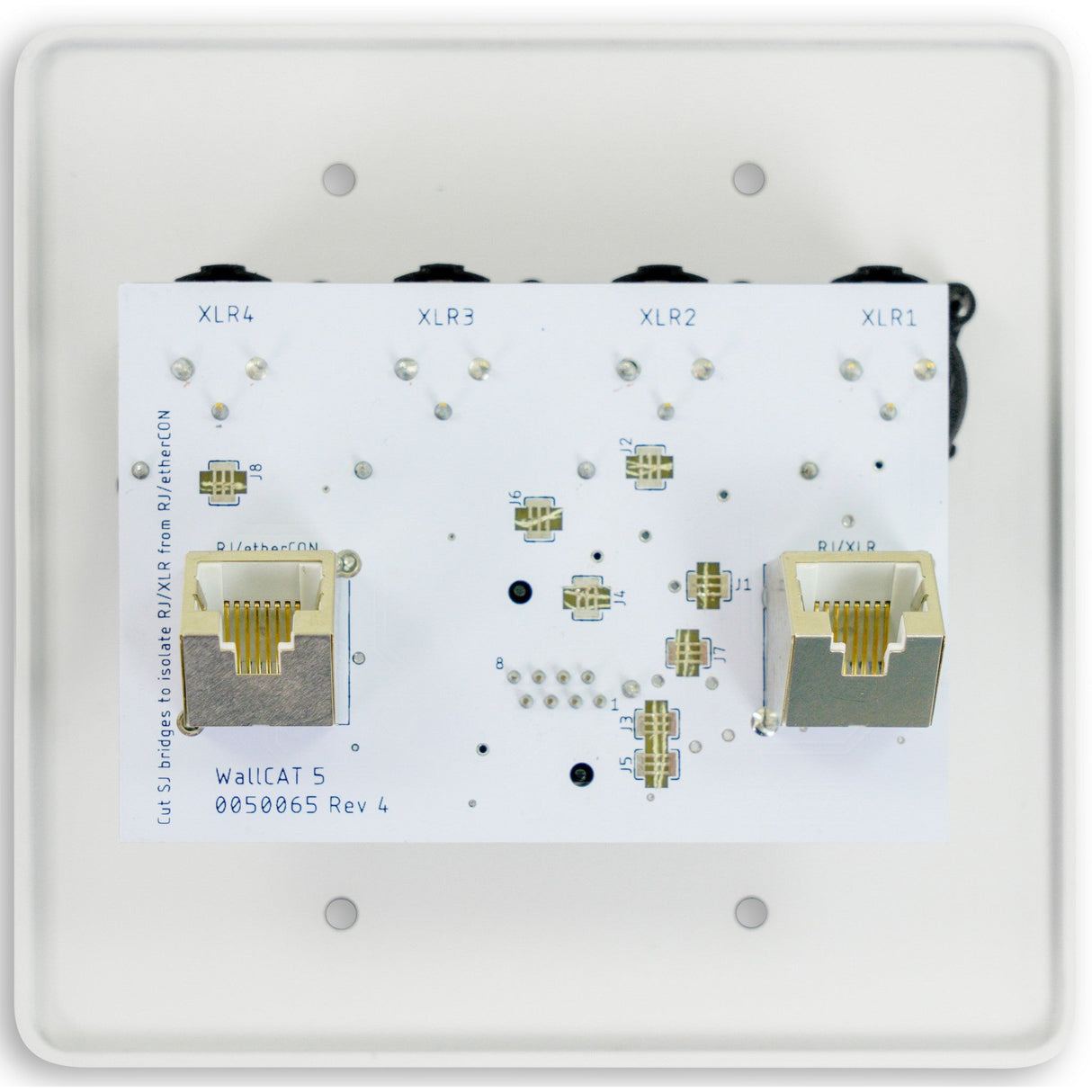

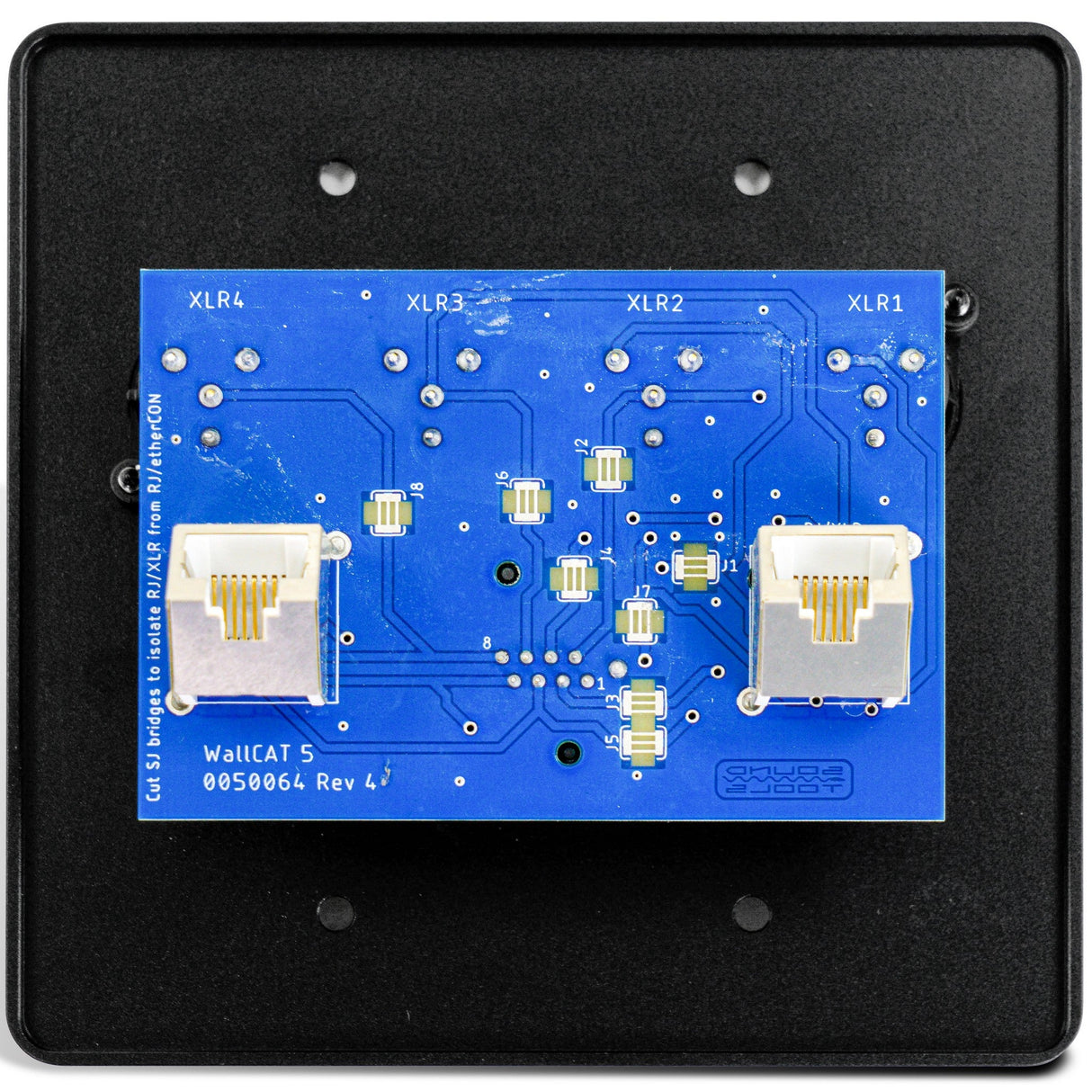

Featuring four XLR connectors—available in either male or female configurations—and a Neutrik etherCON receptacle on the front, the WallCAT 5 ensures high-quality signal transmission and flexibility. On the rear, the dual RJ45 connectors are wired in parallel, allowing for easy daisy chaining or creating a three-way split to route your Analog-Audio-Over-Cat signals exactly where needed. This setup enables sending up to four channels of audio over Cat cable to multiple locations, enhancing the versatility of your audio system.

The SoundTools WallCAT 5 is designed for quick and straightforward installation. It comes with mounting hardware for a hassle-free setup, requiring only the connection of shielded RJ45 cables and secure attachment to your wall mount. Each XLR channel is isolated to prevent signal interference, allowing simultaneous transmission of different signal types over the same Cat cable. It supports various signal types, including analog audio, AES3, DMX, and COM, and complies with AES72-20 standards.

For users needing more advanced configurations, the WallCAT 5 can be modified to function as an 8-channel unit. By connecting one of the rear RJ45s to the front panel XLRs and the other to the etherCON receptacle, you can achieve 8 separate channels. The unit also includes clear labeling to simplify the installation process and ensure ease of use.

Pair the WallCAT 5 with other SoundTools products like the CAT Box, CAT Rack, and CAT Tails for a complete and customizable audio snake solution. All SoundTools products come with the Happy Human Warranty, which guarantees a refund or replacement if you're not satisfied. For more information, contact SoundTools.

Key Features

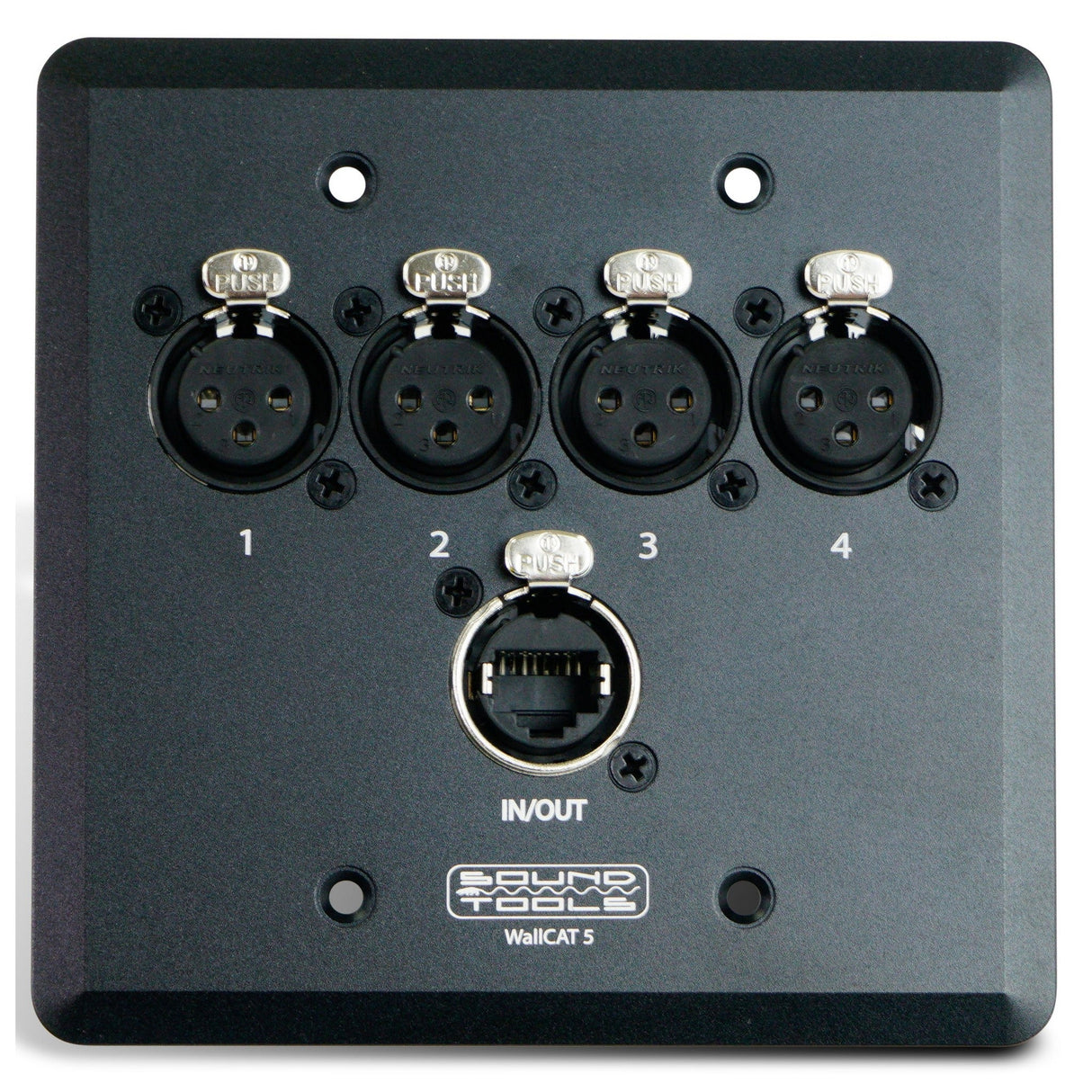

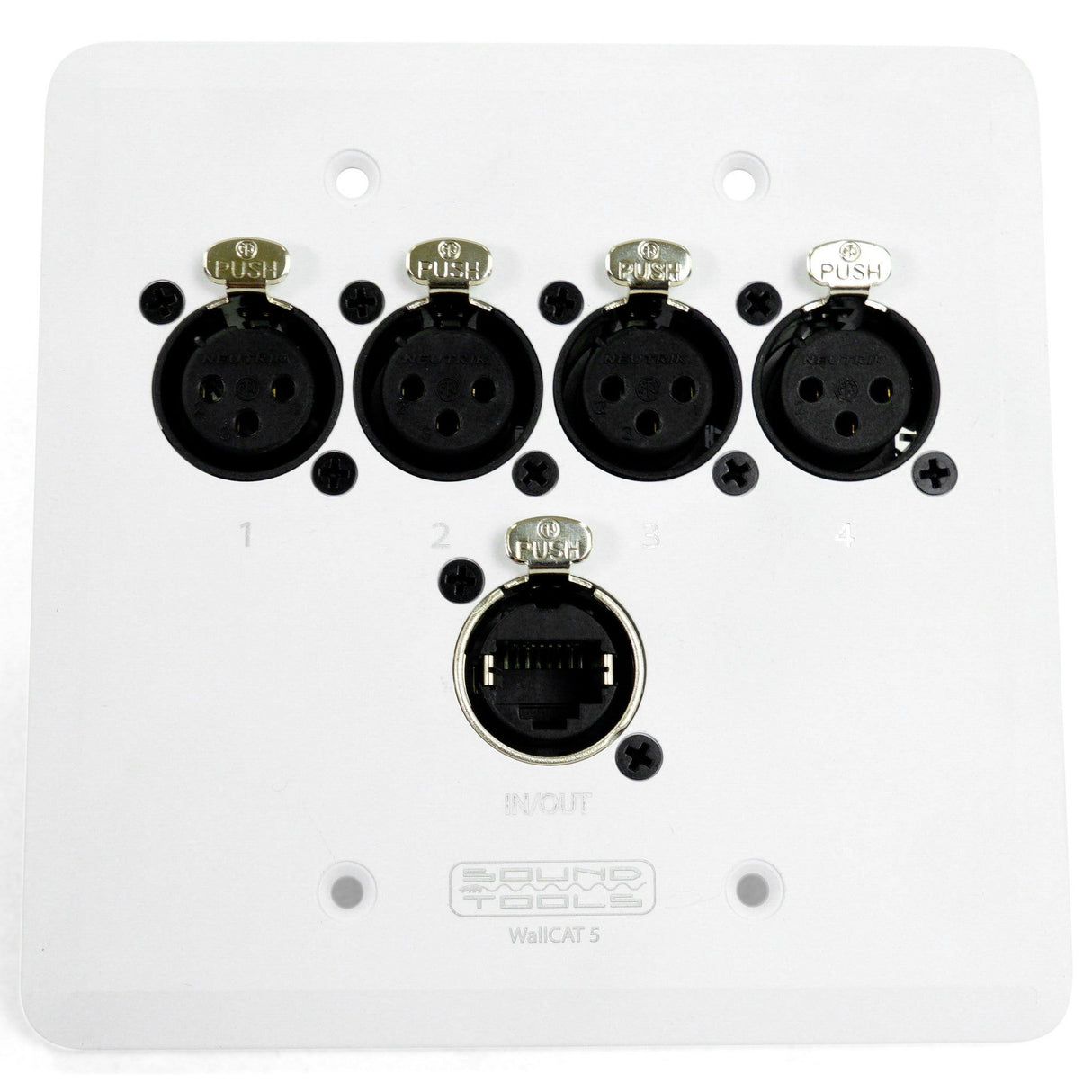

• 4 XLR connectors (female) and 1 etherCON receptacle on the front panel
• Two parallel RJ45 connectors on the rear for daisy chaining or 3-way split
• Compatible with analog audio, AES3, DMX, COM, and other 3-pin XLR-based signals
• Fits US standard 4" 2-gang outlet boxes
• Easy installation with included mounting hardware
• Can be modified for 8-channel operation with advanced configuration
• Clear labeling for straightforward installation and use
• Happy Human Warranty for customer satisfaction

Technical Specifications

Dimensions
Fits a US standard 4" 2-gang outlet box

Connectors
4 XLR (male or female)
1 etherCON receptacle (front panel)
2 RJ45 connectors (rear panel, wired in parallel)

Compatibility
Analog audio, AES3, DMX, COM, and other 3-pin XLR-based signals

Standards
AES72-20 compliant
